Main Image
S252BU33R
2.5
One high performance storage solution to support two SSD or HDD drives
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2.5 Product Number S252BU33R UPC 065030860437 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Ultra-Short) Dual 2.5" Enclosure Product Title (Short) Dual 2.5" Drive Enclosure - USB 3.0 Product Title (Medium) Dual-bay 2.5in Hard Drive Enclosure – USB 3.0 to SATA III 6Gbps with RAID & UASP Product Title (Standard) Dual-bay 2.5in Hard Drive Enclosure – USB 3.0 to SATA III 6Gbps with RAID Product Title (Long) Dual-Bay 2.5in Hard Drive Enclosure - USB 3.0 to SATA III 6Gbps with RAID Product Title (AMZ) Dual-bay 2.5in Hard Drive Enclosure – USB 3.0 to SATA III 6Gbps with RAID and UASP - Supports 2.5in SSD/HDDs from 5mm to 15mm (S252BU33R) Title Ingram (Part 1) 2.5" SSD/HDD two-bay enclosure Title Ingram (Part 2) - supports 5mm to 15mm drives Website Product Headline One high performance storage solution to support two SSD or HDD drives Bullet 1 Create a powerful external USB 3.0 storage solution, supporting two 2.5" SSD or HDD drives Bullet 2 Sleek, compact design works beautifully with your Mac or PC Bullet 3 Transfer files quickly with SATA III (6Gbps) power and USB 3.0 with UASP Bullet 4 Achieve enhanced performance and data redundancy with RAID 0,1, spanning and JBOD Bullet 5 Requires only 5V power, allowing flexible power options Bullets (Consolidated) One high performance storage solution to support two SSD or HDDs - Two-bay 2.5in hard drive enclosure for 5mm to 15mm drives and#8212; USB 3.0 to SATA III 6Gbps with RAID and UASP - Supports RAID 0 and 1 plus Spanning and JBOD - Powered by single USB 3.0 connection Marketing Copy Marketing Copy (No HTML) Applications - Increase the external storage capacity of any computer by connecting this external storage enclosure
- Take it with your laptop for on-the-go external storage
- Add the security of data redundancy by using this enclosure with support for RAID
- Backup or archive data from any USB computer
Website Search Keyword - Dual-bay 2.5" drive enclosure
- Dual enclosure for 2.5" drives
- 2.5" SSD/HDD enclosure
- 2.5" SSD/HDD dual enclosure
- USB 3.0 to SATA III SSD/HDD enclosure
- USB 3.0 to SATA III SSD/HDD drive enclosure
- Dual 2.5" Enclosure
- Dual 2.5" USB 3.0 SSD/HDD Enclosure with RAID
- Dual 2.5" SSD/HDD RAID Enclosure
- USB 3.0 2.5" SSD/HDD Dual Enclosure with RAID
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - USB3SAB3MRA
- USB3SAB6
- USB3SAB1MRA
- USB3CAB1M
- USB3SAB6BK
- USB3SAB1
- USB3SAB2MRA
- USB3CAB2M
- USB3SAB10BK
- USB3SAB3
- USB3SAB3BK
- USB3SAB10
- 25SAT35HDD
- 25SATSAS35
- USB3SEXT6BK
- USB3AAEXT10M
- SVA5H2NEUA
Related Products - S352BU33RER
- S352BMU3N
- S352BU33HR
- SAT3520U3R
- S3520BU33ER
- S3520WU33ER
- SAT3520U3SR
Input Current 0.4 A Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 5 DC Power Consumption (In Watts) 3 Power Source AC Adapter Included Plug Type H Color Black Humidity 10~90% RH Material Aluminum and Plastic Max Drive Height (mm) 15 Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 132 Product Width (mm) 50 Product Height (mm) 90 Product Weight (g) 350 Storage Temperature -10°C to 65°C (14deg;F to 149°F) TAA Compliant No 4Kn Support Yes Hot Swap Capability Yes Max Drive Capacity Currently tested with up to 2TB 7200 RPM hard drives (4 TB total) Maximum Data Transfer Rate USB 3.0 - 5 Gbps Noise Level 21 dBA OS Compatibility OS Independent RAID Yes SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID JMicron - JMS561 Compatible Drive Types SATA Fan Bearing Type Ball Bearing Fans 1 - 40 mm Fans Included? Yes/No Yes Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators - 1 - Power LED

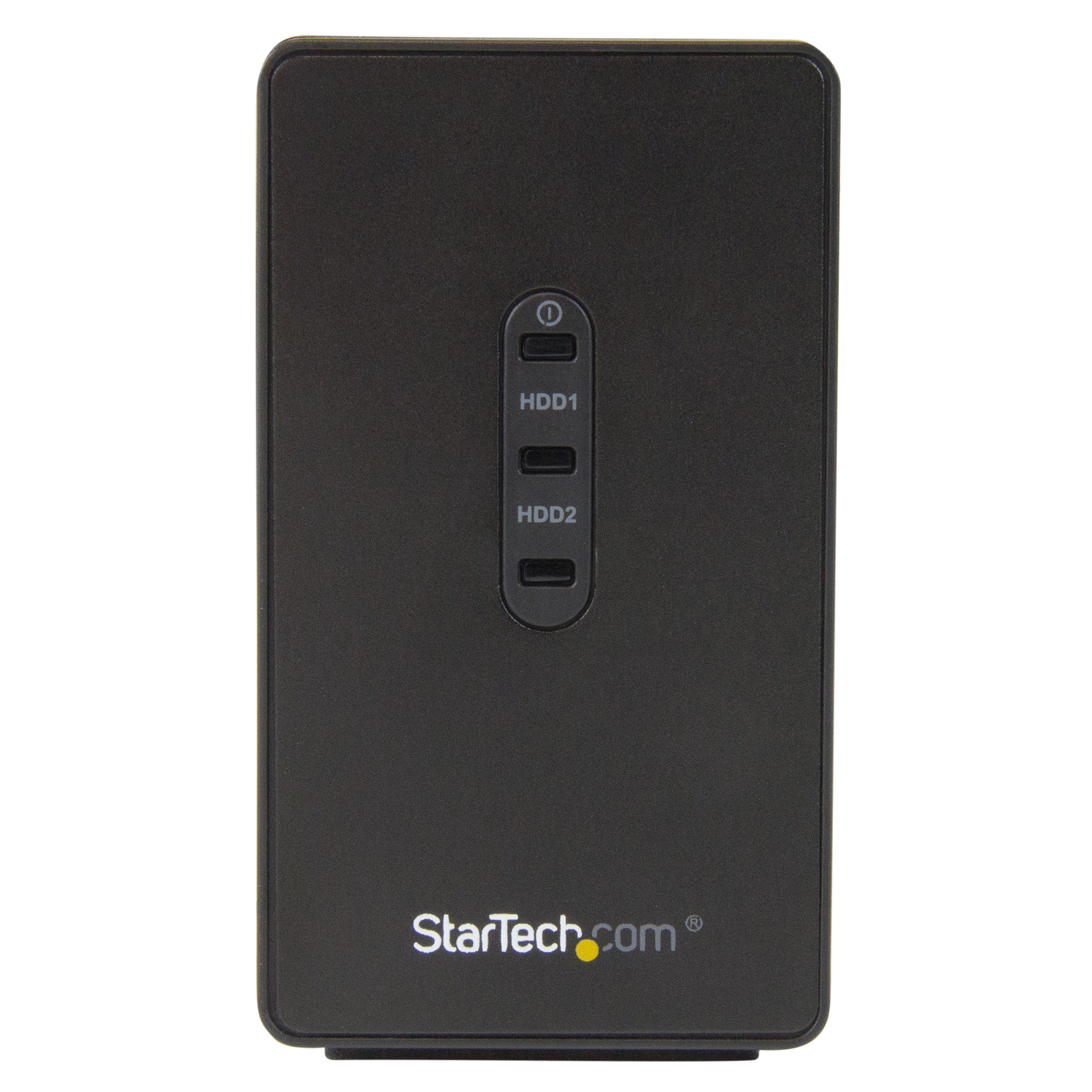

- 1 - HHD 1 Activity LED
- 1 - HHD 2 Activity LED
Number of Drives 2 Supported Drive Height(s) - 5mm
- 7mm
- 9.5mm
- 12.5mm
- 15mm

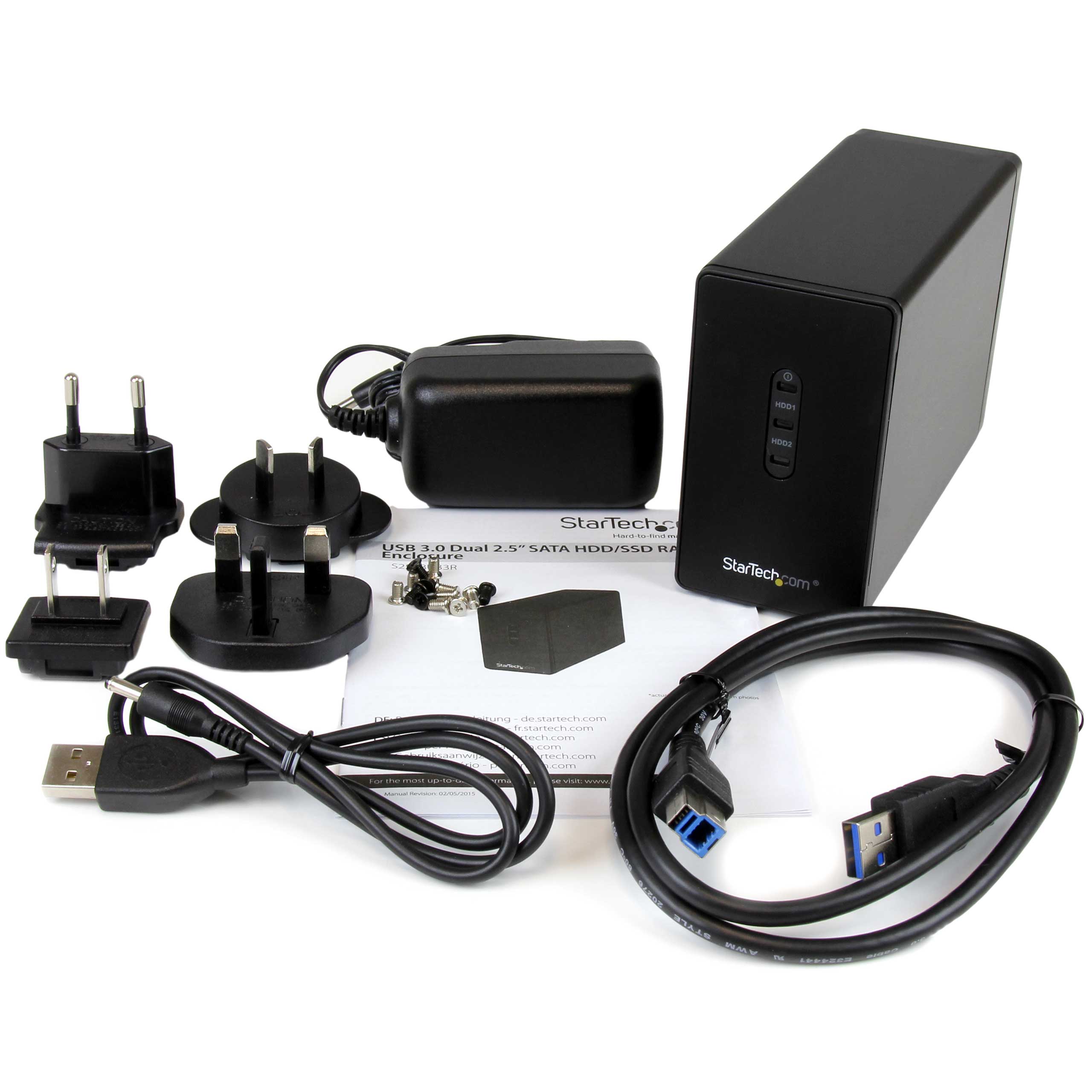

Carton Depth (mm) 340 Carton Height (mm) 261 Carton Quantity 12 Carton Weight Gross (g) 9140 Included in Package - 1 - USB 3.0 Dual 2.5” SATA HDD/SSD RAID Enclosure
- 1 - USB 3.0 cable
- 1 - USB to Power Cable (Type H Barrel)
- 1 - Universal Power Adapter (NA/EU/UK/AU)
- 1 - Installation screw kit
- 1 - Quick install guide
Package Depth (mm) 119 Package Height (mm) 109 Package Width (mm) 182 Package Quantity 1 Package Weight (g) 730 Packaging Description USB 3.0 Dual 2.5” SATA HDD/SSD RAID Enclosure Packaging Description India USB 3.0 Dual 2.5” SATA HDD/SSD RAID Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-10-07 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-04-05 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
