Main Image
S252BU33RC

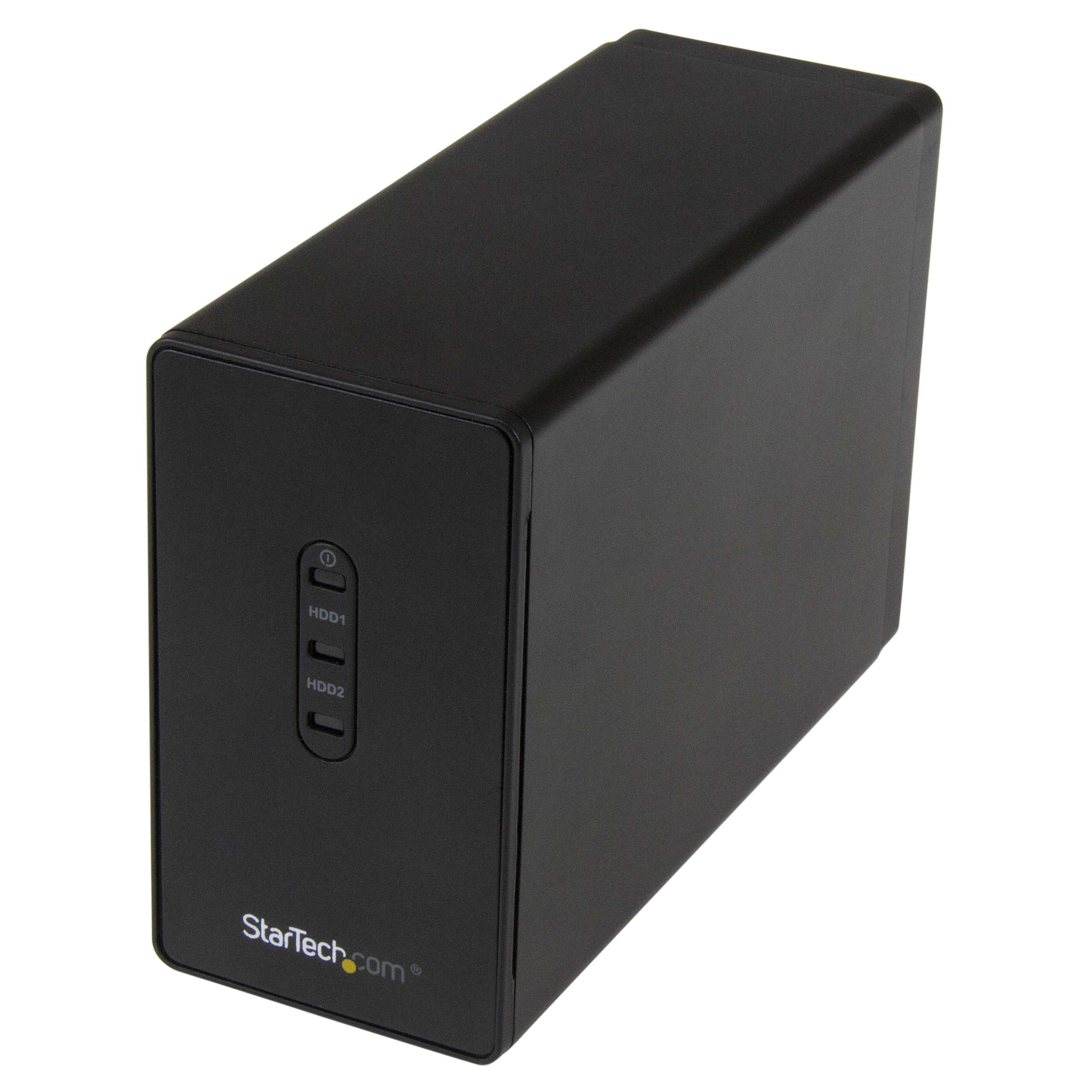

Dual-Bay 2.5” SSD/HDD Enclosure with USB-C Cable - USB 3.0, SATA III and RAID

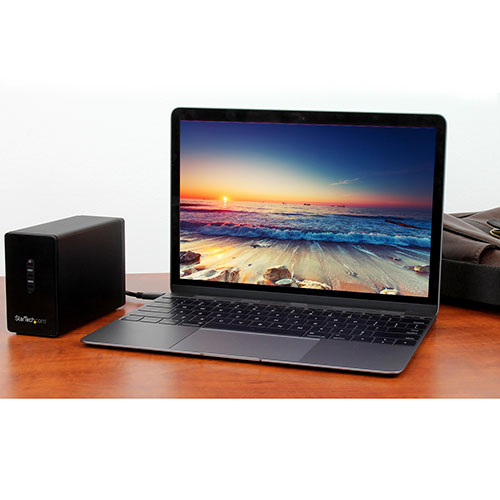

Add powerful external data storage to the latest Ultrabook, laptop or desktop computer
Main Image
Product Images
Product Images
Product Images
Product Name Dual-Bay 2.5” SSD/HDD Enclosure with USB-C Cable - USB 3.0, SATA III and RAID Product Number S252BU33RC UPC 065030862011 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) 1 Country of Origin History (2) China Product Title (Ultra-Short) 2-Bay 2.5" Enclosure Product Title (Short) Dual-bay 2.5” SSD Enclosure with USB-C Product Title (Medium) Dual-Bay 2.5” SSD/HDD Enclosure with USB-C Cable -USB 3.0, SATA III & RAID Product Title (Standard) Dual-Bay 2.5” SSD/HDD Enclosure w/ USB-C Cable - USB 3.0, SATA III & RAID - Incl USB-C to B & USB-A to B Cables Product Title (Long) Dual-Bay 2.5” SSD/HDD Enclosure with USB-C Cable - USB 3.0, SATA III and RAID Product Title (AMZ) Dual-Bay 2.5” SSD/HDD Enclosure w/ USB-C Cable - USB 3.0, SATA III & RAID - Incl USB-C to B & USB-A to B Cables Title Ingram (Part 1) 2-Bay 2.5” Drive Enclosure with Title Ingram (Part 2) USB-C Cable, SATA I/II/III & RAID Website Product Headline Add powerful external data storage to the latest Ultrabook, laptop or desktop computer Bullet 1 Leverage the USB-C port on the latest MacBook, Chromebook™ Pixel™ or other laptop to create external storage for two 2.5” SATA SSD/HDDs Bullet 2 Fast data transfers with USB 3.1 Gen 1 (5 Gbps) performance Bullet 3 Supports RAID 0,1, spanning and JBOD Bullet 4 Supports SATA I, II, III Bullet 5 Flexible power options - USB powered and power adapter (included) Bullets (Consolidated) !!#N/A Marketing Copy Applications - Increase the external storage capacity of your USB Type-C equipped laptop, tablet or desktop computer
- Back up data or archive files from any USB computer
- Carry the enclosure along with your laptop for portable external storage
Website Search Keyword - Drive enclosure with USB-C cable
- 2-bay drive enclosure
- Dual-bay drive enclosure
- USB-C drive enclosure
- USB Type-C drive enclosure
- Dual bay drive enclosure with USB-C
- 2-bay USB 3.0 drive enclosure with USB-C
- USB-C SSD enclosure
- USB Type-C SSD/HDD enclosure
- Dual-bay RAID enclosure
- USB-C 2.5" solid-state drive enclosure
- USB-C 2.5" hard drive enclosure
- USB-C 2.5" SATA solid-state drive enclosure
- USB-C 2.5" SATA SSD enclosure
- USB-C 2.5" SATA HDD enclosure
- USB-C 2-bay 2.5" SATA HDD enclosure
- USB-C dual-bay 2.5" SATA HDD enclosure
- Drive enclosure with USB Type-C port
- USB-C 2-bay 2.5" SATA SSD/HDD enclosure
- USB 3.1 Gen 1 drive enclosure
- USB 3.1 Gen 1 SSD enclosure
- USB 3.1 5 Gbps drive enclosure
- Drive enclosure with USB-C
Accessory Products - USB3SAB3MRA
- USB3SAB6
- USB3SAB1MRA
- USB3CAB1M
- USB3SAB6BK
- USB3SAB1
- USB3SAB2MRA
- USB3CAB2M
- USB3SAB10BK
- USB3SAB3
- USB3SAB3BK
- USB3SAB10
- USB31CB1M
- USB31CAADP
Related Products - S251BMU313
- S251BPU313
- S351BU313
- USB3AUB50CMB
- S2510BU33PW
- SAT2510B12U3
- S2510BPU33
- SAT2510BU32
- SAT2510U2
- SAT2510BU2
- S2510BMU33
- S2510BMU33CB
- S252BU33R
- S252SMTB3
- S352BU33RER
- S352BMU3N
- S352BU33HR
- SAT3520U3R
- S3520BU33ER
- S3520WU33ER
- SAT3520U3SR
Input Current 0.4 A Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 5 DC Power Source AC Adapter Included Plug Type H Color Black Humidity 10~90% RH Material Aluminum and Plastic Max Drive Height (mm) 15 Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 132 Product Width (mm) 50 Product Height (mm) 90 Product Weight (g) 350 Storage Temperature -10°C to 65°C (14deg;F to 149°F) TAA Compliant No Hot Swap Capability Yes Max Drive Capacity Currently tested with up to 2TB 7200 RPM hard drives (4 TB total) Maximum Data Transfer Rate USB 3.1 Gen 1 - 5 Gbps Noise Level 21 dBA OS Compatibility OS Independent RAID Yes SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 Chipset ID JMicron - JMS561 Compatible Drive Types SATA Fan Bearing Type Ball Bearing Fans 1 - 40 mm Interface/Bridge USB 3.2 Gen 1 LED Indicators - 1 - Power LED

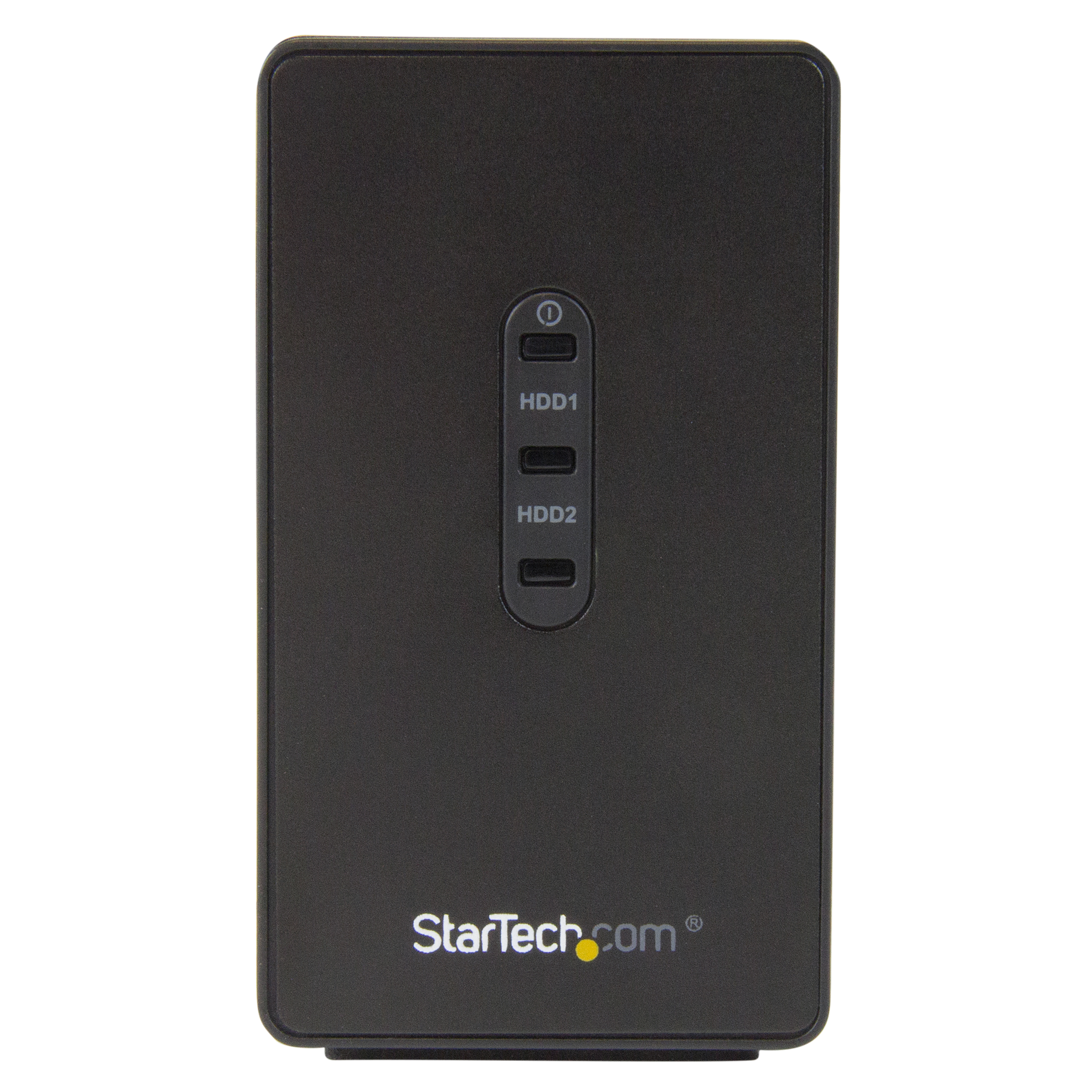

- 1 - HHD 1 Activity LED
- 1 - HHD 2 Activity LED
Number of Drives 2 Supported Drive Height(s) - 5mm
- 7mm
- 9.5mm
- 12.5mm
- 15mm
Included in Package - 1 - dual-bay 2.5” SSD/HDD Enclosure with USB Type-C
- 1 - USB Type-C to B cable
- 1 - USB Power Cable
- 1 - Universal Power Adapter (NA/EU/UK/AU)
- 1 - installation screw kit
- 1 - quick start guide
- 1 - USB A to B cable

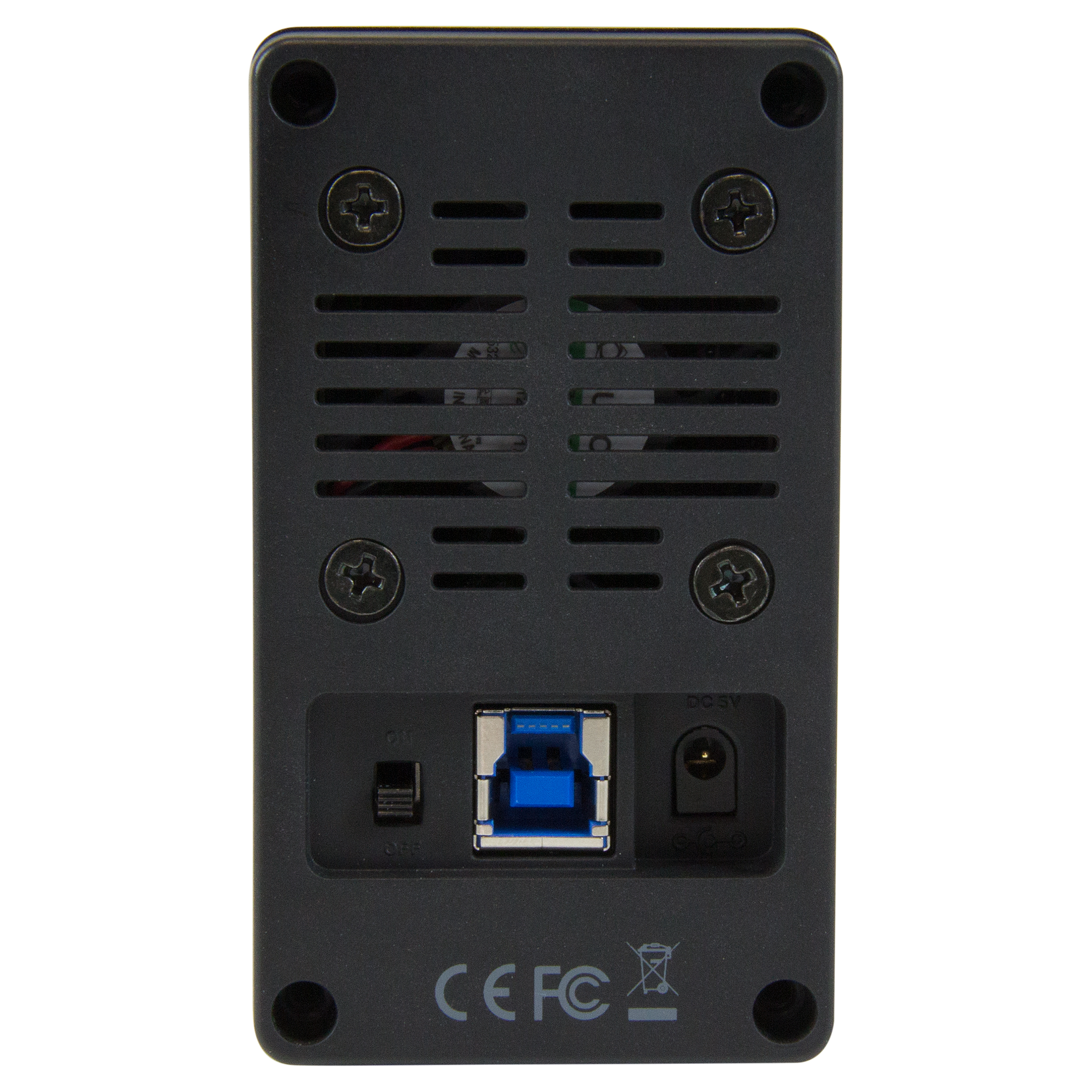

Packaging Description Dual-bay 2.5” SSD/HDD enclosure with USB Type-C™ Packaging Description India Dual-bay 2.5” SSD/HDD enclosure with USB Type-C™ Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Umer Khalid en-US Content Approved No Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,ES,EU,FR,IT,JP,MX,NL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Bennett Wood Product Photographer Alejandra Valencia Target Production Release 2015-06-05 Technical Writer Bennett Wood
