Main Image
S252SMTB3
Thunderbolt to Dual 2.5" SATA HDD/SSD

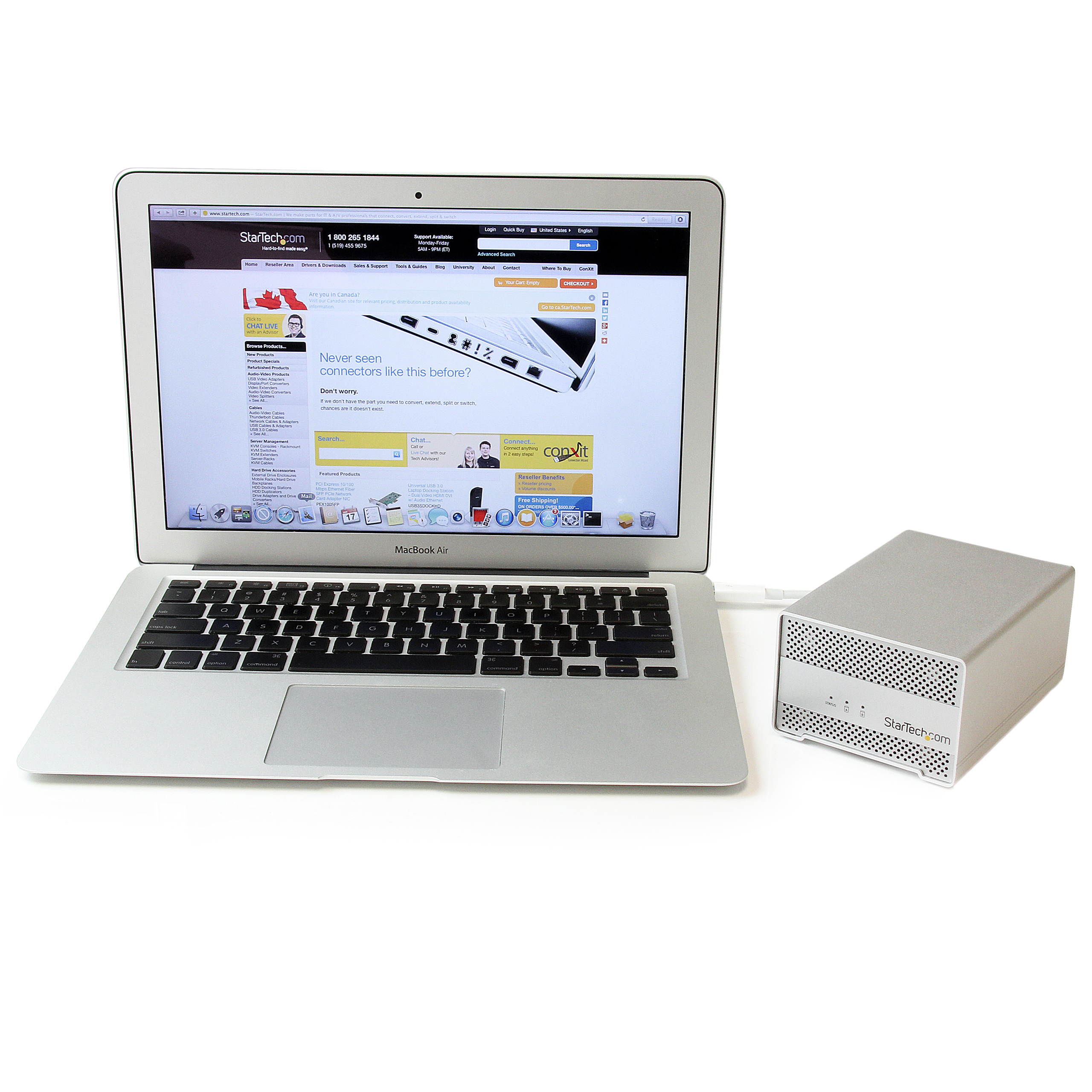

Add two 2.5" SATA HDDs, up to 15mm in height, to your Mac® or PC through Thunderbolt, with a well-ventilated storage solution that helps keep your drives running cool
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Thunderbolt to Dual 2.5" SATA HDD/SSD Product Number S252SMTB3 UPC 065030854313 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Product Title (Ultra-Short) 2 x HDD ThunderBolt Product Title (Short) ThunderBolt Dual 2.5" HDD Enclosure Product Title (Medium) Thunderbolt Dual 2.5" Hard Drive Enclosure w/ Thunderbolt Cable and Fan Product Title (Standard) Thunderbolt Hard Drive Enclosure with Thunderbolt Cable - Dual Bay 2.5” HDD Enclosure with fan Product Title (Long) Dual-Bay Drive Enclosure for 2.5in SATA Drives - Thunderbolt Product Title (AMZ) Thunderbolt Hard Drive Enclosure with Thunderbolt Cable - Dual Bay External 2.5" HDD/SSD Aluminum Enclosure with built-in fan (S252SMTB3) Title Ingram (Part 1) Thunderbolt Dual HDD/SSD Title Ingram (Part 2) Enclosure w/ Thunderbolt Cable Website Product Headline Add two 2.5" SATA HDDs, up to 15mm in height, to your Mac® or PC through Thunderbolt, with a well-ventilated storage solution that helps keep your drives running cool Bullet 1 Supports Thunderbolt data rates of up to 10Gbps Bullet 2 Aluminum housing w/ built-in fan Bullet 3 2-bay SATA drive enclosure Bullet 4 Includes 1m Thunderbolt cable Bullet 5 Built-in Thunderbolt daisy chain port Bullets (Consolidated) Add two 2.5" SATA SSDs or HDDs up to 15mm in height to your Mac or PC through Thunderbolt with a well-ventilated storage solution that helps keep your drives running cool - Durable aluminum housing with built-in fan - Thunderbolt hard drive enclosure supports Thunderbolt data rates of up to 10Gbps - Supports SATA I/II/III - Thunderbolt cable Included - Built-in Thunderbolt daisy chain port - Supports drive capacity of up to 2TB Marketing Copy Applications - Build a software RAID array, to achieve greater individual drive capacity, or secure data redundancy
- Add high-speed external storage, for graphics-intensive applications such as high-resolution video or photo editing
- Quickly transfer large data files from your computer to an external hard drive for secure backups
Website Search Keyword - Thunderbolt
- tb enclosure
- thunderbolt enclosure
- dual drive enclosure
- daisy chain enclosure
- S252TBMBP
- S252TBMBA
- macbook pro hard drive enclosure
- macbook hard drive enclosure
- mac raid enclosure
- external hard drive enclosure for mac
- Dual Bay 2.5" external drive enclosue for macbook pro
- macbook pro hard drive external enclosure
- mac hard drive enclosure
- hard drive enclosure for macbook pro
- hard drive enclosure for macbook
- hard drive enclosure for mac
- mac external hard drive enclosure
- enclosure for macbook pro hard drive
- macbook air hard drive enclosure
- Dual Bay 2.5" external drive enclosue for macbook air
- hard drive enclosure for macbook air
- external drive enclosure for macbook air
- macbook air hard drive external enclosure
- macbook air hard drive case
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - TBOLTMM1M
- TBOLTMM3M
- MDISPLPORT6
- MDPMM3MW
- MDPMM2MW
- TBOLTMM2M
- TBOLTMM50CM
- MDISPLPORT3
- MDPMM1MW
- SAT2510BU32
- S2510BU3PWPS
- S2510BMU33
- SAT2510B12U3
- S2510BU3ISO
- S2510BPU33
- S2510BU3PW
- SVA12M5NA
Related Products - S252U2ERR
- TBDOCKHDPBC
Replacement Product S354SMTB2R Input Voltage 100 - 240 AC Output Voltage (V) 12V DC Power Source AC Adapter Included Color Silver Humidity 5% ~ 95% RH Material Aluminum Max Drive Height (mm) 15 Operating Temperature 5°C to 35°C (41°F to 95°F) Product Length (mm) 133 Product Width (mm) 93 Product Height (mm) 63 Product Weight (g) 490 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Hot Swap Capability No Max Drive Capacity Currently tested with up to 2TB 5400 RPM hard drives Maximum Data Transfer Rate 10 Gbps OS Compatibility OS Independent RAID No SATA Type and Rate SATA III (6 Gbps) UASP Support No USB Type and Rate Thunderbolt - 10 Gbit/s Bus Type Thunderbolt Chipset ID Intel - DSL3510L Compatible Drive Types SATA Fan Bearing Type Ball Bearing Fans 1 - 50 mm Fans Included? Yes/No Yes Interface/Bridge Thunderbolt LED Indicators - 1 - Status (Power)
- 1 - Drive 1 Activity
- 1 - Drive 2 Activity

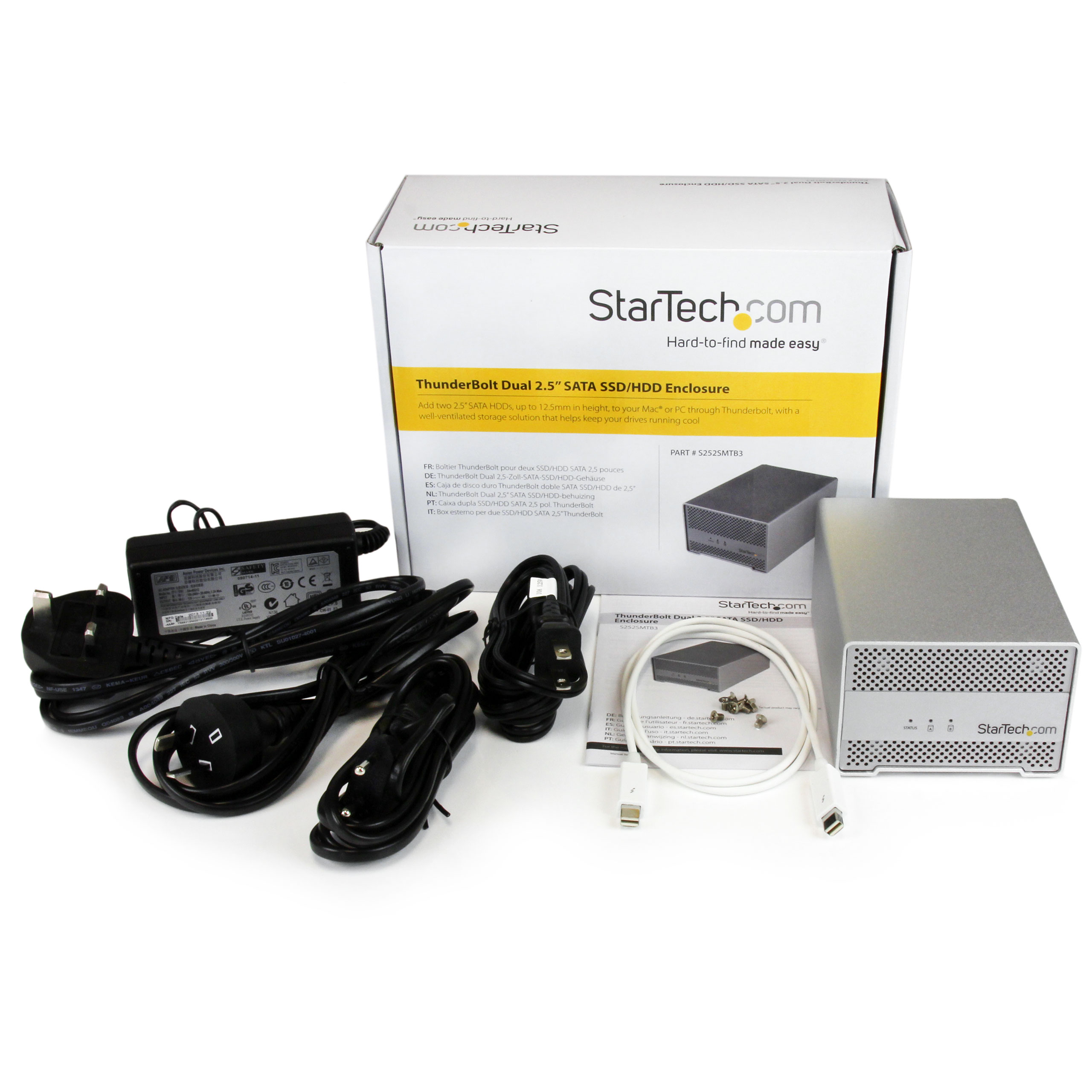

Number of Drives 2 Supported Drive Height(s) 15mm Carton Depth (mm) 400 Carton Height (mm) 260 Carton Quantity 10 Carton Weight Gross (g) 14250 Included in Package - 1 - Thunderbolt 2.5” HDD Enclosure
- 1 - HDD installation screw kit
- 1 - Thunderbolt Cable
- 1 - Universal Power Adapter w/ regional power cables (NA/EU/UK/AUS)
- 1 - Instruction Manual
- 1 - Rubber foot set
Package Depth (mm) 180 Package Height (mm) 85 Package Width (mm) 230 Package Quantity 1 Package Weight (g) 1344 Packaging Description Thunderbolt™ Dual 2.5” SATA SSD/HDD Enclosure Packaging Description India Thunderbolt™ Dual 2.5” SATA SSD/HDD Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 Mini DisplayPort (Thunderbolt 10Gbps) Host Connector 1 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-09-12 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
