S252U2ERR
Removable eSATA USB HDD Enclosure for Dual SATA
Turn dual 2.5in SATA drives into an external storage solution for fast hard drive swapping
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Removable eSATA USB HDD Enclosure for Dual SATA Product Number S252U2ERR UPC 065030839280 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Short) Removable eSATA USB SATA HDD Enclosure Product Title (Standard) 2.5in Removable eSATA USB Dual SATA HDD Enclosure Product Title (Long) 2.5in Removable eSATA USB Dual SATA Hard Drive Enclosure w/ RAID Product Title (AMZ) 2.5in Removable eSATA USB Dual SATA Hard Drive Enclosure w/ RAID (S252U2ERR) Title Ingram (Part 1) 2.5in Removable eSATA USB Dual S Title Ingram (Part 2) ATA Hard Drive Enclosure Website Product Headline Turn dual 2.5in SATA drives into an external storage solution for fast hard drive swapping Bullet 1 Accepts up to two 2.5" SATA drives in a single enclosure Bullet 2 Supported RAID modes: 0, 1, JBOD (single), BIG (Spanning/Concatenation) Bullet 3 Lockable drive doors Bullet 4 15, 000+ insertion rating Bullet 5 Power/Activity LED indicators for each drive Marketing Copy Applications - System builders who need to image drives quickly and efficiently
- Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
- Be able to replace/remove individual drives from a storage array with minimal or no system down time
- Add compact, external storage with speed (RAID 0) or redundancy (RAID 1) to almost any system
Website Search Keyword - 2.5in enclosure
- Notebook
- Laptop
- Hard Drive
- HDD
- Solid State Storage
- SSD
- RAID enclosure
- Mobile Back Plane
- Mobile Rack
- Removable
- Hot Swap
Accessory Products - ESATA3
- ESATA6
- GCESATAFF
- ESATAPLATE1
- ESATAPLATE2
- ESATAPLT1LP
- SATA2ESATA6
- ECESATA1
- ECESATA22
- ECESATA254
- ECESATUSB1
- PEXESATA1
- PEXESATA2
- PEXESATA2I
- PCIESATA2I
- MUSBUSBBMF
- USB2HABM1
- USB2HABM3
- USB2HABM6
- USB2HABM10
- USBRETAMB4
- UUSBMUSBFM
- EC230USB
- EC400USB
- CBUSB220
- PCIUSB7
- PEX400USB2
Related Products - SATDOCK2520
- HSB220SAT25B
- SAT2510BU2
- SAT2510BU2B
- SAT2510BU2E
- SAT2510SCB
- SAT2510U2
- SAT2510U2E
- SAT2510U2F
- SAT2510U2REM
- SAT2510U2S
- SATADOCK22UE
- SATADOCK525
- SATDOCK25U
Input Current 0.8A Input Voltage 110V-240V AC Output Current 2A Output Voltage (V) 5 DC Power Source AC Adapter Included Plug Type B Center Tip Polarity Positive Color Black Humidity 8~90% RH Material Steel and Plastic Max Drive Height (mm) 9.5 Operating Temperature 5°C to 70°C (41°F to 158°F) Product Length (mm) 153 Product Width (mm) 101 Product Height (mm) 25.5 Product Weight (g) 224 Storage Temperature -40°C to 80°C (-40°F to 176°F) TAA Compliant No Insertion Rating 15,000 Cycles Max Drive Capacity Currently tested with up to 1TB 5400 RPM hard drives (2TB total) OS Compatibility - Linux
- Mac OS X
- Windows 98SE
- Windows ME
- Windows 2000
- Windows XP
- Windows Server 2003
- Windows Vista
- Windows 7
- Windows Server 2008 R2
- Windows 8

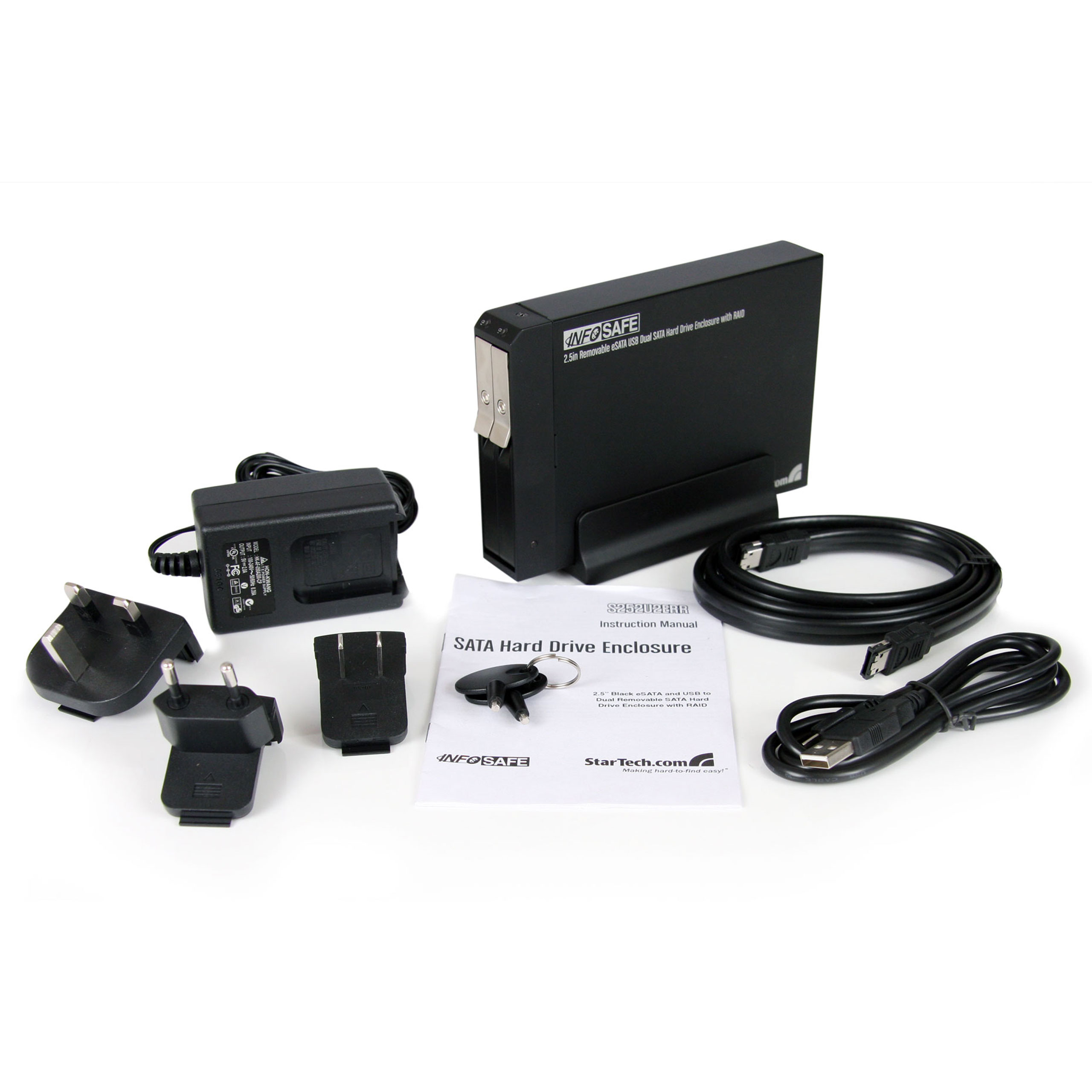

RAID Yes SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 2.0 (480Mbps) Chipset ID Silicon Image - SiI5744 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 2.0 & eSATA LED Indicators 2 - Blue - Power, Red- Accessing Number of Drives 2 Carton Depth (mm) 475 Carton Height (mm) 350 Carton Quantity 20 Carton Weight Gross (g) 14200 Included in Package - 1 - Dual 2.5in Drive enclosure with RAID
- 1 - Universal Power Adapter
- 1 - USB Cable
- 1 - eSATA cable
- 1 - Set of keys
- 1 - Instruction Manual
- 1 - Stand
- 3 - Power Adapter Plug (NA/UK/EU)
Package Depth (mm) 88 Package Height (mm) 163 Package Width (mm) 125 Package Weight (g) 650 Packaging Description eSATA/USB to 2.5in SATA HDD Enclosure Packaging Description India eSATA/USB to 2.5in SATA HDD Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 eSATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 USB Mini-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
