S25SLOTR

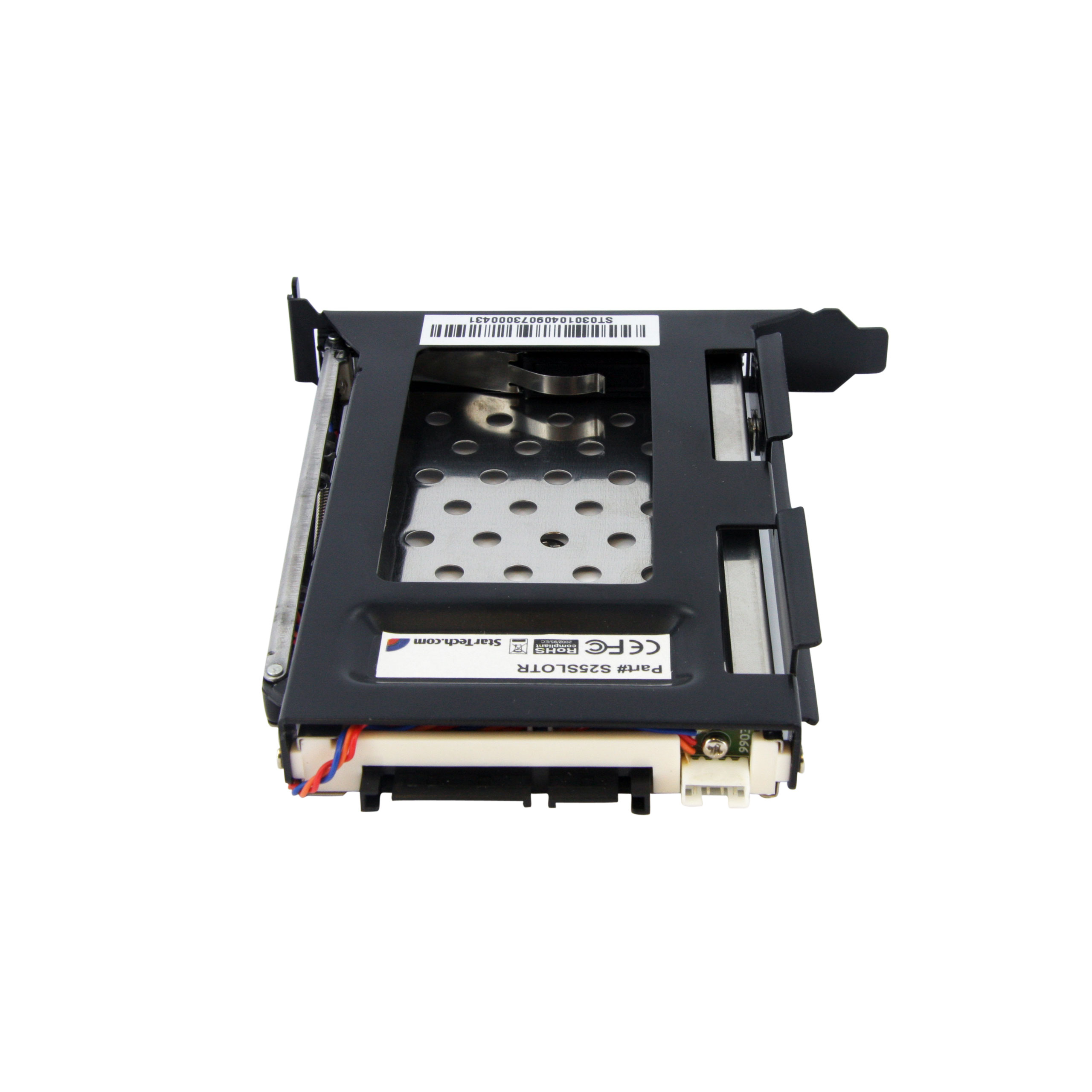

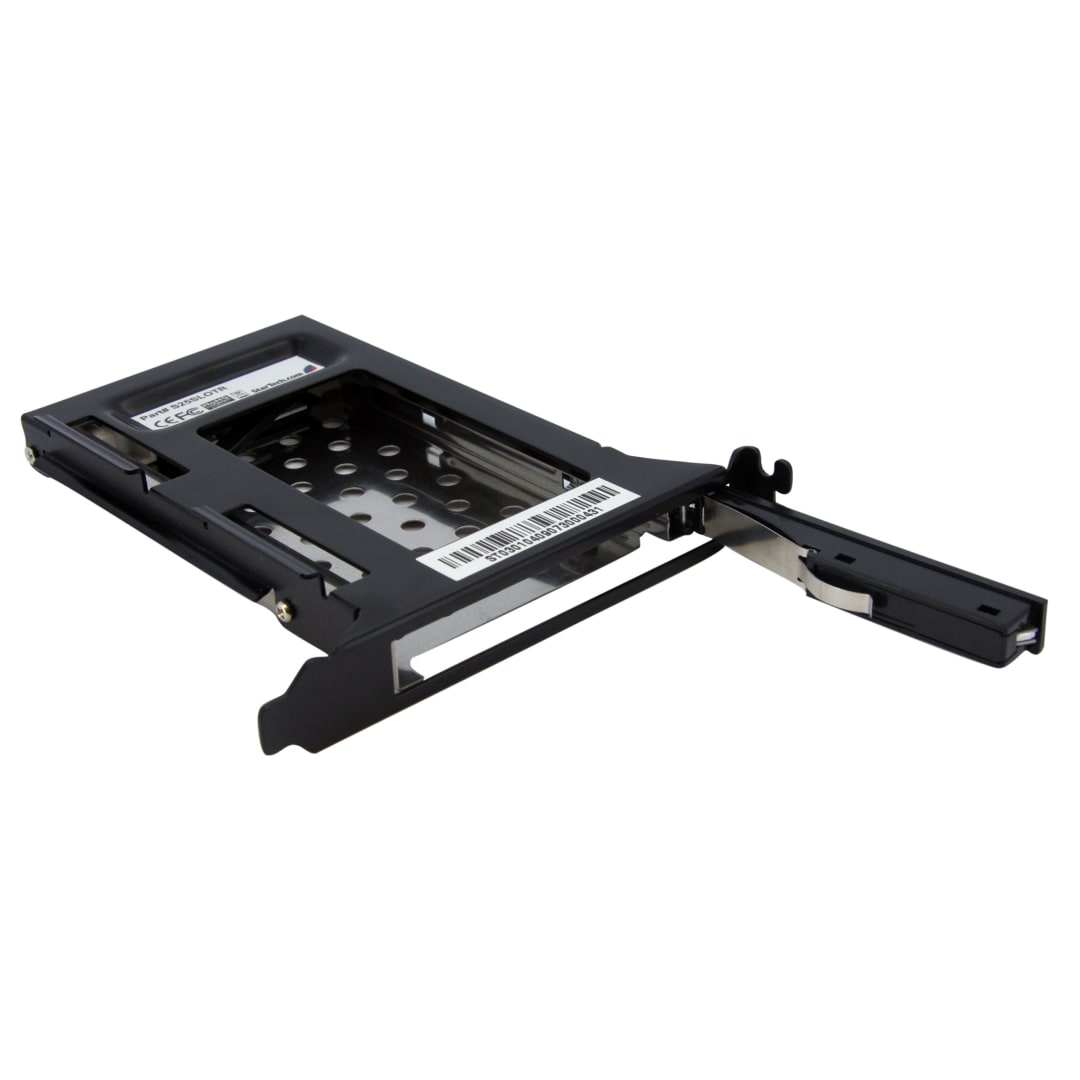

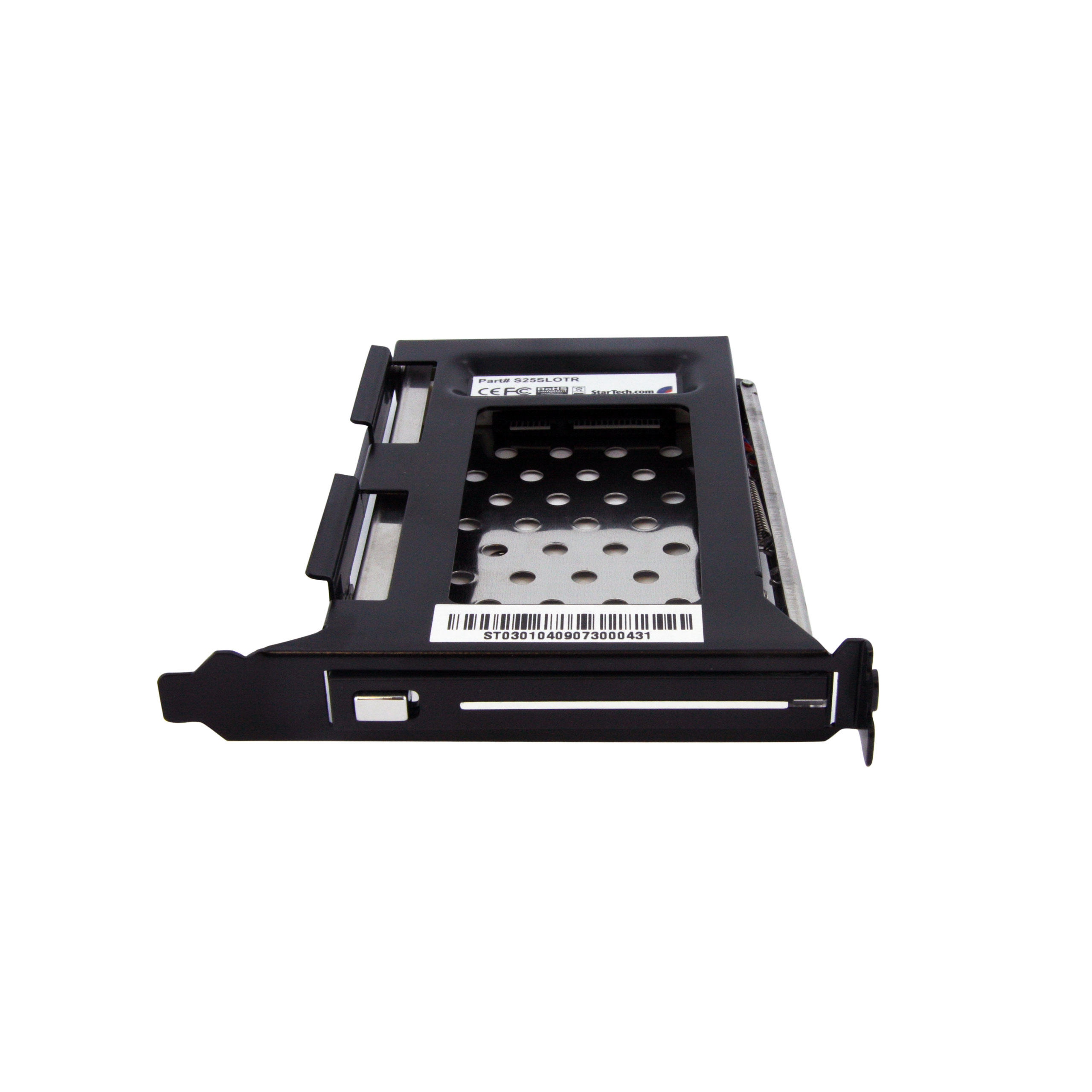

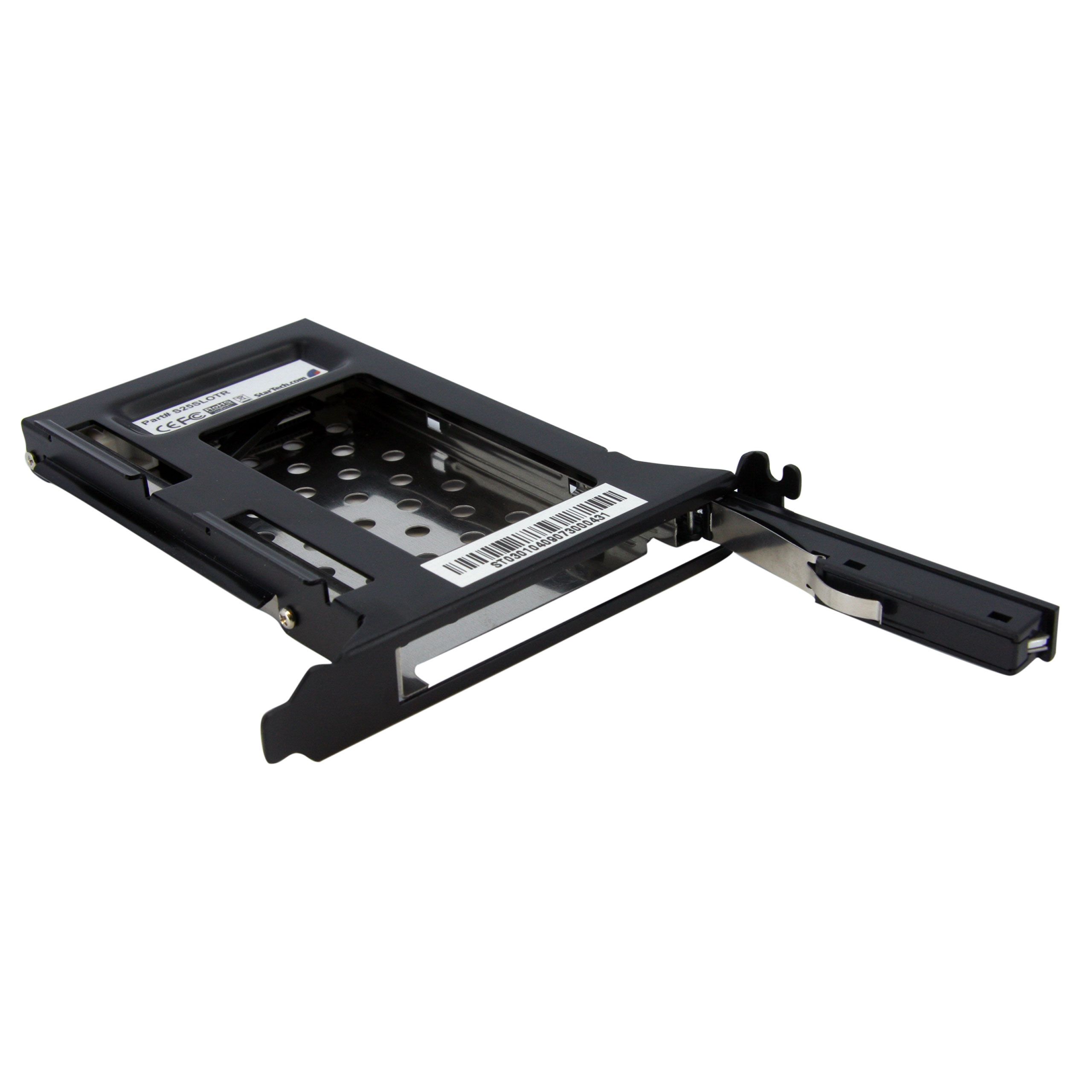

PCI Slot SATA Removable HDD Expansion Adapter
Use an available expansion card slot to install a hot swappable 2.5in hard drive
Main Image
Product Images
Product Images
BOM Image
Product Name PCI Slot SATA Removable HDD Expansion Adapter Product Number S25SLOTR UPC 065030836074 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 2.5" Drive Mobile Racks and Backplanes Family Removable 2.5" SATA Bay for PCIe Slot Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 2.5in SATA Removable HDD Bay for PC Slot Product Title (Medium) x Product Title (Standard) 2.5in SATA Removable Hard Drive Bay for PC Expansion Slot, TAA Product Title (Long) 2.5in SATA Removable Hard Drive Bay for PC Expansion Slot, TAA-Compliant Product Title (AMZ) 2.5in SATA Removable Hard Drive Bay for PC Expansion Slot - Storage bay adapter - black , TAA (S25SLOTR) Title Ingram (Part 1) 2.5in SATA Removable Hard Drive Title Ingram (Part 2) Bay for PC Expansion Slot Website Product Headline Use an available expansion card slot to install a hot swappable 2.5in hard drive Bullet 1 Fits a 2.5" SATA drive into a rear full profile expansion card slot Bullet 2 Trayless design: drive is not mounted into a tray or enclosure Bullet 3 Latching drive door Bullet 4 50,000+ insertion rating Bullet 5 Vented aluminum and steel construction Bullets (Consolidated) Get easy data access by using any available PCI expansion card slot to install a hot swappable 2.5in hard drive - 2.5in SATA removable HDD bay for PC expansion slot - Trayless hard drive rack saves time - Vented aluminum and steel - Easy, ejectable access to an inserted 2.5in SATA hard drive from the rear panel - Supports SATA III drives (up to 6 Gbps) Marketing Copy Applications - Add additional storage capabilities to a computer with no more internal or external drive bays
- Add removable storage to the rear of a system, where it is less noticeable or accessible to unauthorized users
- Add removable storage to small form factor chassis' with no standard 3.5/5.25" drive bays
- Add additional hot-swap bays to a server or workstation computer
- System builders who need to image drives quickly and efficiently
- Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
- Be able to replace/remove individual drives from a storage array with minimal or no system down time
Website Search Keyword - Mobile Rack
- Removable Rack
- Drive Drawer
- Trayless
- Hot Swap
- 2.5in
- Expansion Card
- Expansion Adapter
- Expansion Slot
- Quick Release
- PCI slot hard drive
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + cords
Accessory Products - SATA36RA1
- SATA36
- SATARA36
- LP4SATAFM2L
- LP4SATAFMD
- PYO2L
- PYO2LP4SATA
- PYO3SATA
Related Products - HSB100SATBK
- HSB220SAT25B
- HSB320SATBK
- HSB430SATBK
- SATADOCK525
- BRACKET25
- BRACKET25SAT
- SAT2510U2REM
- SATABAY425BK

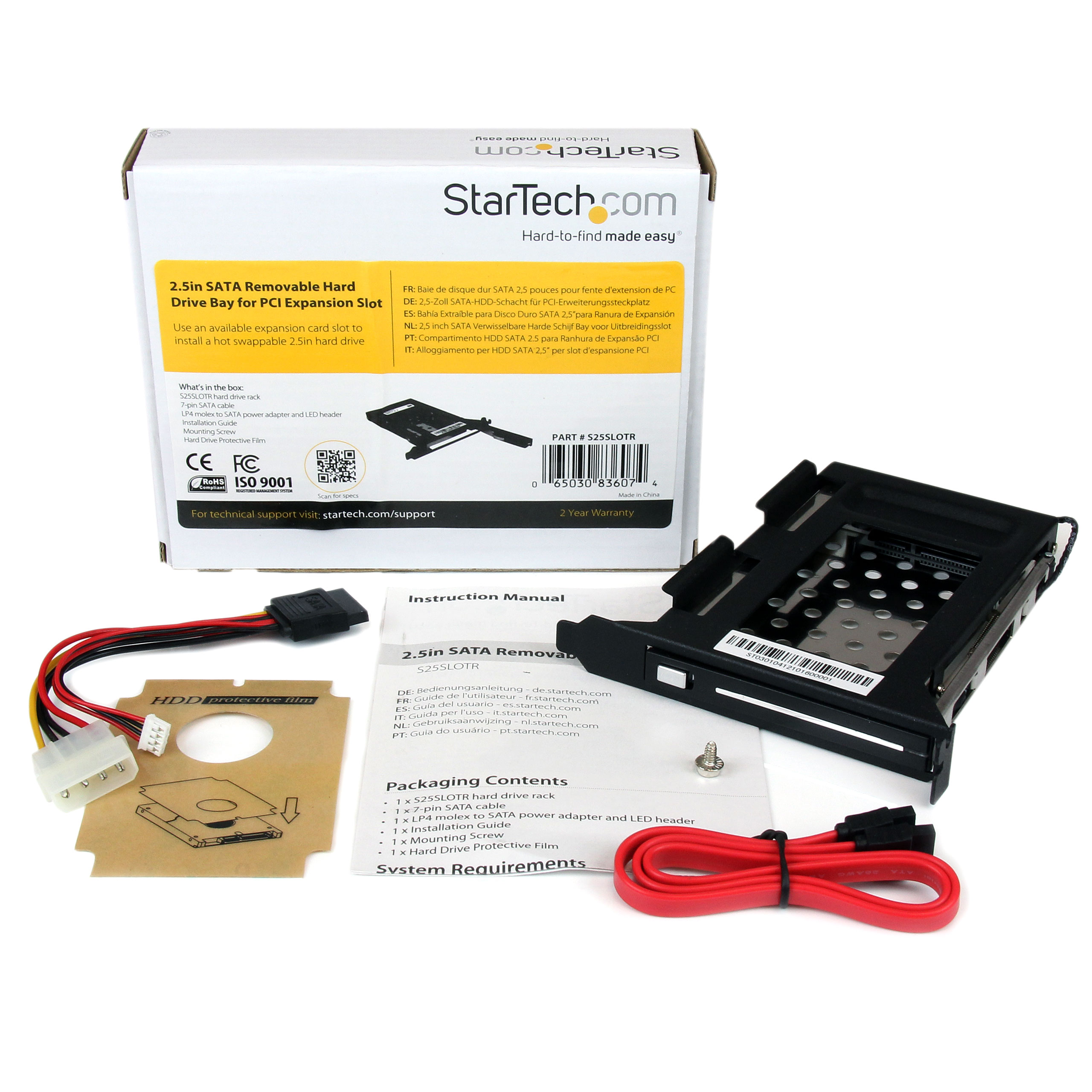

Color Black Humidity 80% RH Material Aluminum and Steel Max Drive Height (mm) 9.5 Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Aluminum Product Length (mm) 145.000 Product Width (mm) 21.000 Product Height (mm) 120.000 Product Weight (g) 167.000 Storage Temperature -5°C to 75°C (23°F to 167°F) TAA Compliant Yes Hot Swap Capability Yes Max Drive Capacity Tested up to 500 GB OS Compatibility OS Independent Compatible Drive Types SATA Fans Included? Yes/No No LED Indicators Number of Drives 1 Carton Depth (mm) 350 Carton Height (mm) 305 Carton Quantity 40 Carton Weight Gross (g) 10360 Included in Package - 1 - Expansion Slot Removable HDD bracket
- 1 - Mounting Screws
- 1 - LP4 SATA breakout cable
- 1 - Instruction Manual
- 1 - 20in SATA cable
- 1 - Hard Drive Protective Film
Included In Package for Label - 1 - Expansion Slot Removable Hdd Bracket
- 1 - Hardware Kit
- 1 - LP4 To SATA DC Converter
- 1 - Protective Film
- 1 - Manual
- 1 - SATA Cable
Package Depth (mm) 135 Package Height (mm) 33 Package Width (mm) 163 Package Quantity 1 Package Weight (g) 244 Packaging Description 2.5 SATA HDD Bay for PCI Expansion Slot Packaging Description India 2.5 SATA HDD Bay for PCI Expansion Slot Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 SATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 SATA (15-Pin) Host Connector 2 (Quantity) 1 Host Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Host Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
