S2CEPR2M-USBSL-CABLE
240W USB C Cable USB 2 0 Braided Jacket Side Locking 2m

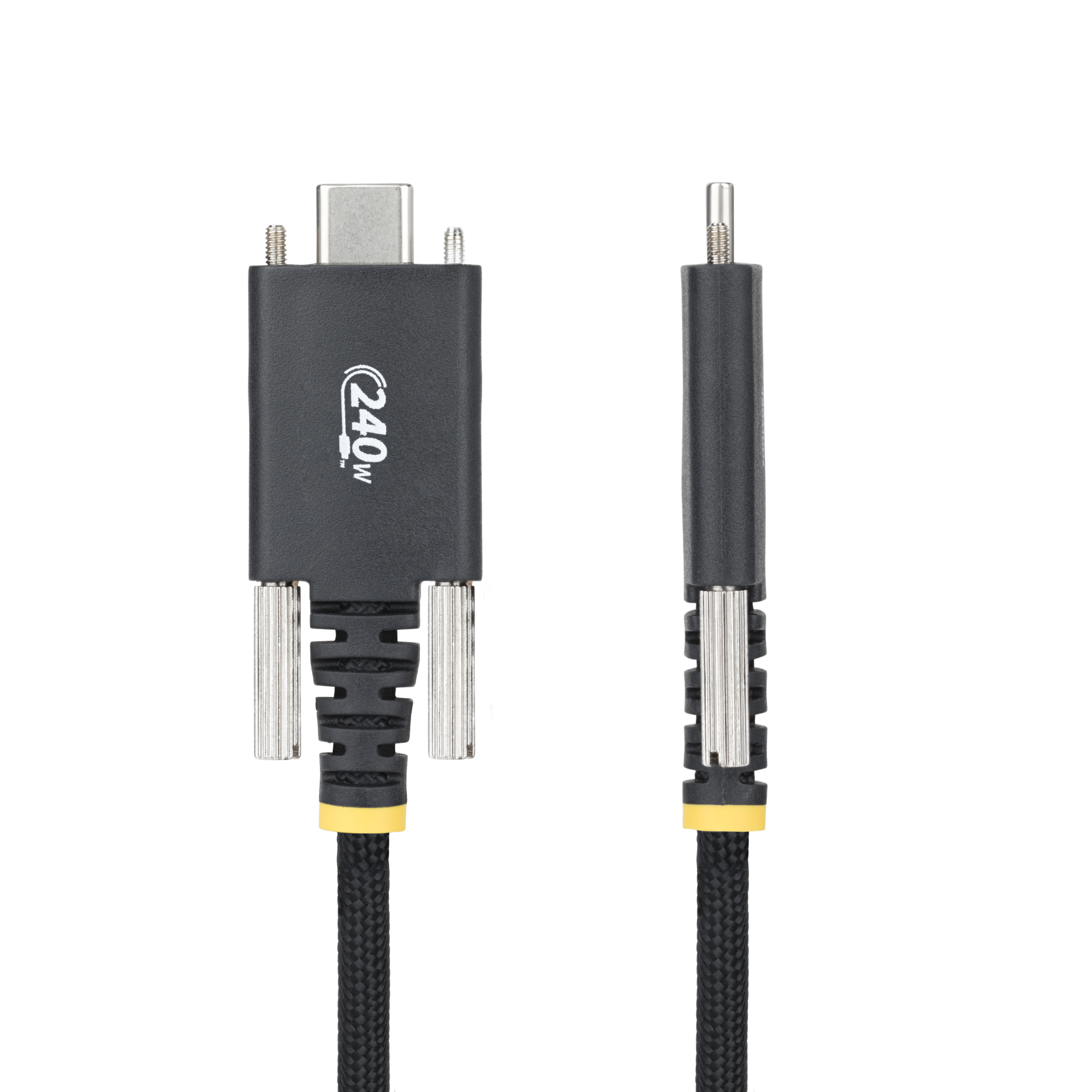

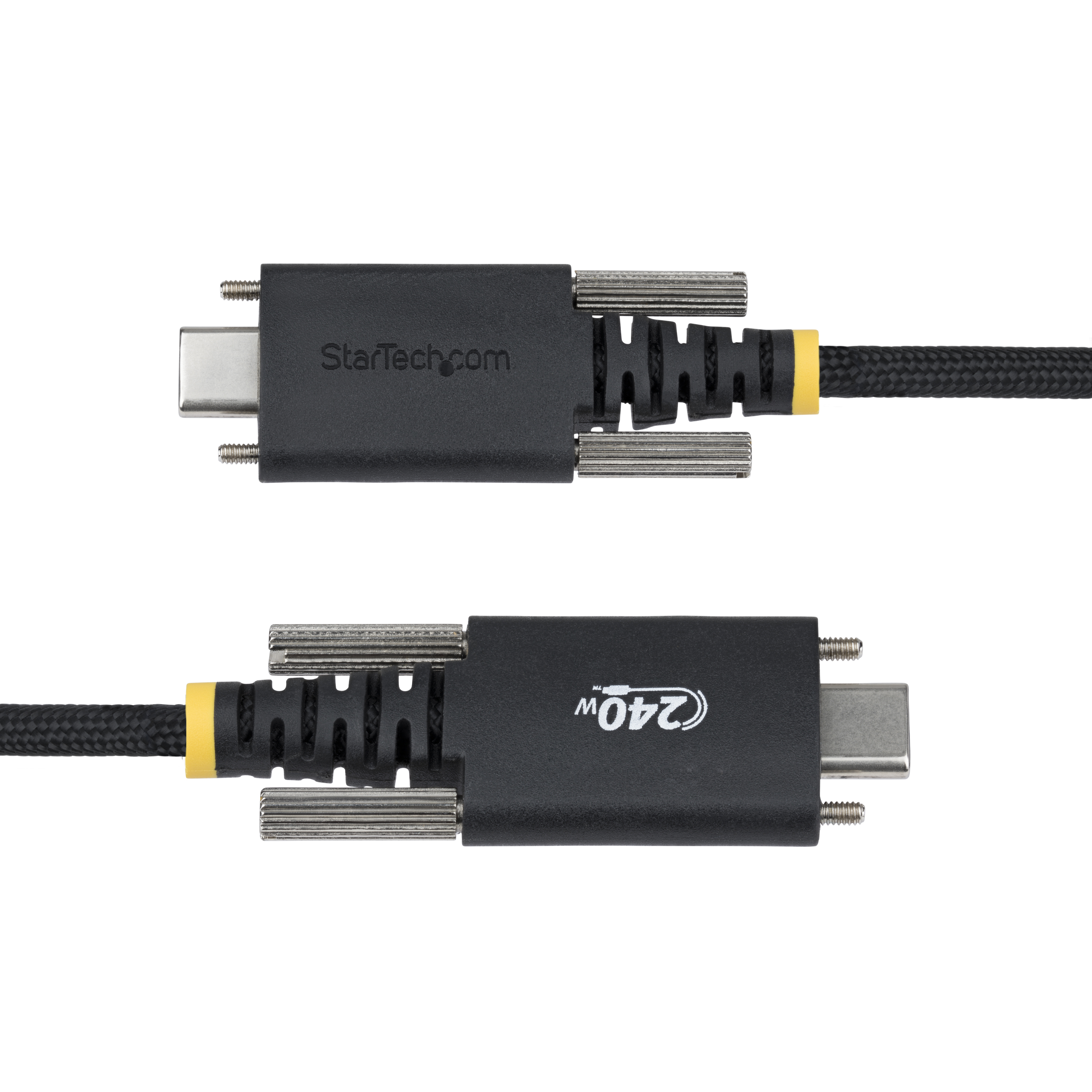

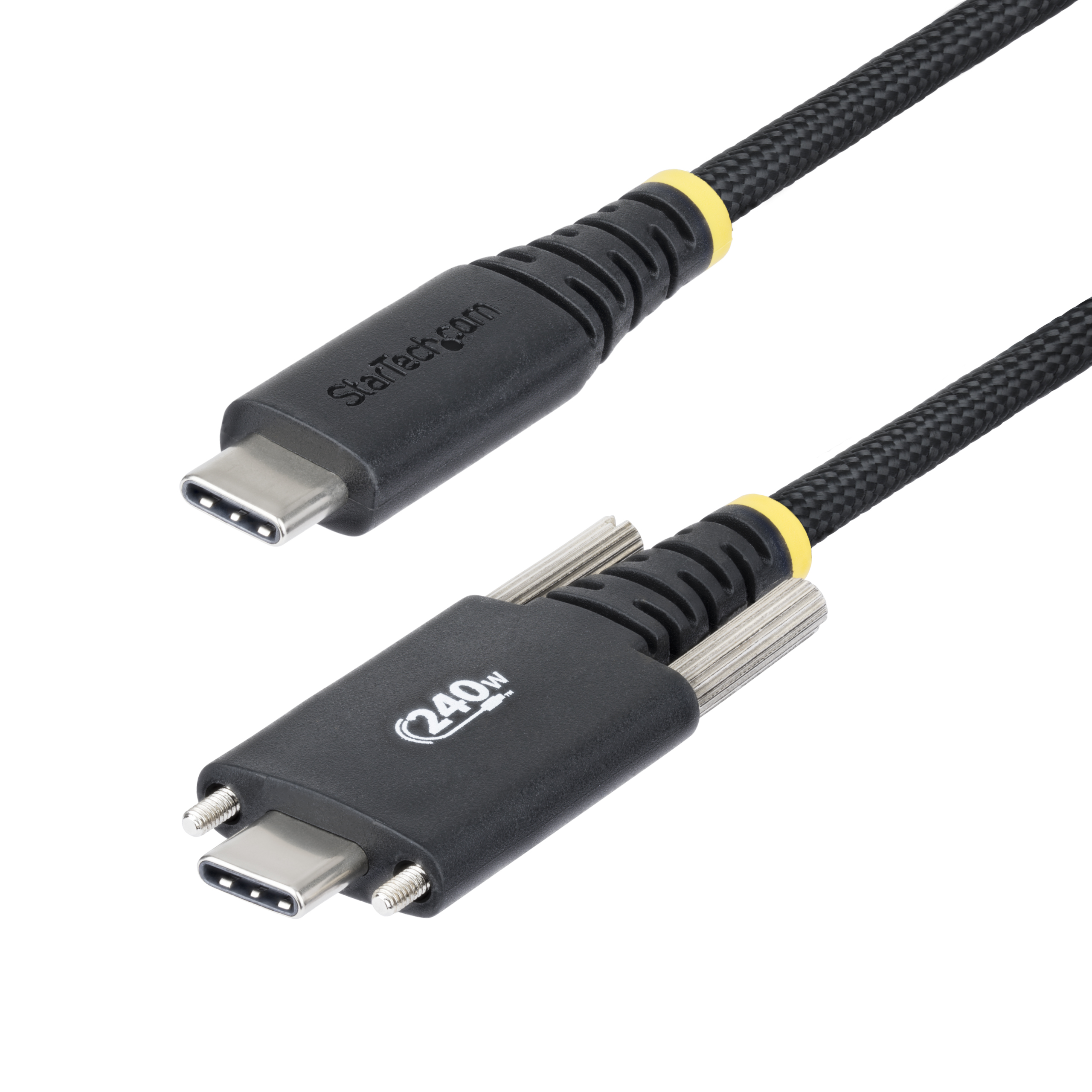

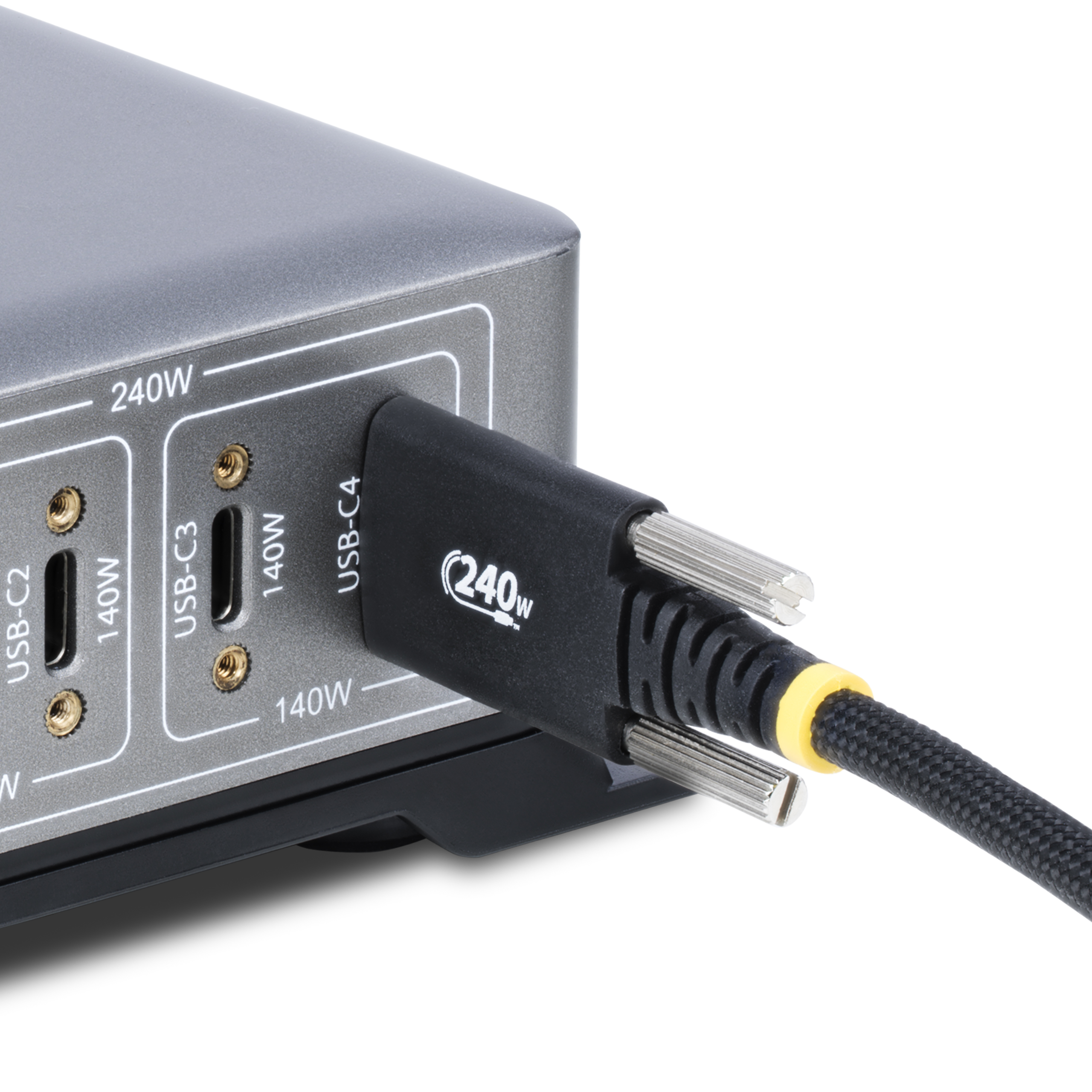

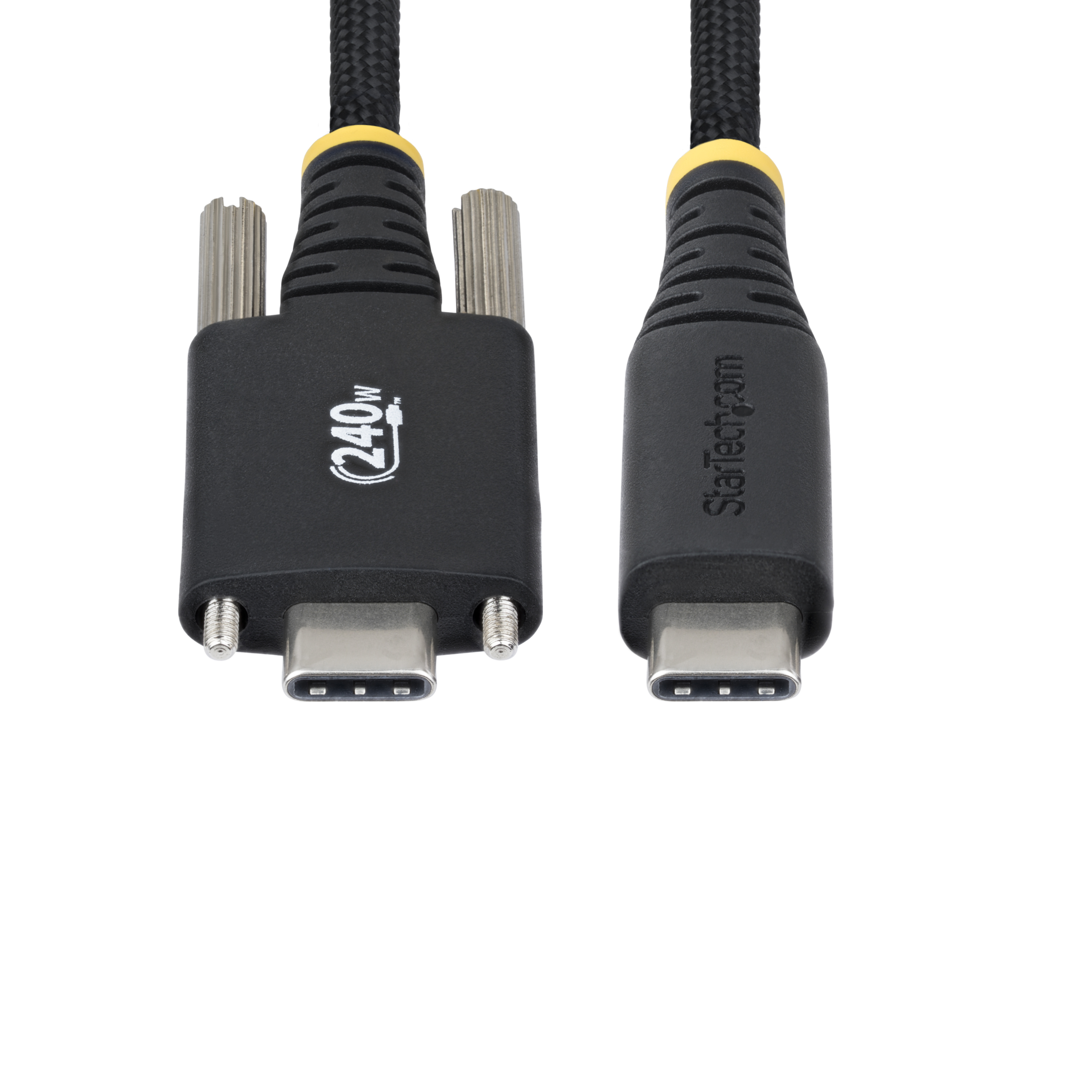

Maintain a secure connection using this rugged USB-C cable with side-locking screws
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name 240W USB C Cable USB 2 0 Braided Jacket Side Locking 2m Product Number S2CEPR2M-USBSL-CABLE UPC 065030916790 Lifecycle status Active Warranty Lifetime Weighted Opportunity 0 Taxonomy Product > Cables > USB & Thunderbolt Cables Category Level 1 USB and Thunderbolt Cables Category Level 2 USB-C Cables Category Level 3 USB-C Cables - USB 2.0 Charge & Sync Rugged Family Side-Locking Cables, USB2.0 240W EPR Charging, Braided Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) 6ft USB-C Cable Product Title (Short) 6.6ft (2m) USB-C Charging Cable, 240W Product Title (Medium) 6.6ft (2m) USB-C Charging Cable, Durable & Flexible, Screw Locking, 240W/5A PD, USB-IF Product Title (Standard) 6.6ft (2m) USB-C Charging Cable, Durable and Ultra-Flexible, Screw Locking, 240W (5A) PD EPR, USB 2.0 charger Cord, USB-IF Product Title (Long) 6ft (2m) USB-C Charging Cable, Durable and Ultra-Flexible, Side Screw Locking, 240W (5A) PD EPR, USB 2.0 Laptop Charger Cable, USB-IF Certified, Rugged USB-C Charging Cord Product Title (AMZ) 6ft (2m) USB-C Charging Cable, Durable and Ultra-Flexible, Side Screw Locking, 240W (5A) PD EPR, USB 2.0 Laptop Charger Cable, USB-IF Certified, Rugged USB-C Charging Cord Title Ingram (Part 1) 2m USB-C Cable, USB-IF Title Ingram (Part 2) 240W PD/Rugged/Side Locking Screws Website Product Headline Maintain a secure connection using this rugged USB-C cable with side-locking screws Bullet 1 USB-C EPR CHARGING CABLE: Side Screw Locking USB-C cable supports Power Delivery 3.1 EPR with up to 240W for high-performance laptops; Ideal for chargers and hubs with side-locking USB-C ports; Performance markings on connectors for easy identification Bullet 2 USB-IF CERTIFIED: The USB C Cable with integrated E-marker chip is USB-IF certified, for consistent Power Delivery output to USB-C hosts and peripherals; When using certified cables, reliable performance and compatibility is guaranteed Bullet 3 QUALITY CONSTRUCTION: Flexible braided nylon jacket resists wear, withstands 90° bends and up to 20,000 bending cycles; Nickel-plated connectors rated beyond 10,000 insertions; M2 Screw Locking connector with knurled grip for easy installation and removal Bullet 4 APPLICATIONS: Compatible with USB-C Power Delivery-enabled devices; Screw Locking for drive enclosures and external storage; Suitable for high-performance laptops such as 16in MacBook Pro Max M-series; Supports USB 2.0 for general file transfer or sync Bullet 5 PERFORMANCE: 240W (5A) PD 3.1 EPR, 48V; Compatible with 140W, 100W, 60W; USB 2.0 Type-C (480Mbps); 2-meter (6.6-foot) cable; Color: Black; O.D.: 0.18in (4.7mm); Silicone Jacket w/Braided Nylon; NOTE: USB-C video (DP Alt Mode) not supported Bullets (Compact) Side Screw Locking USB C cable supports up to 240W Power Delivery EPR; Ideal for chargers and hubs w/side locking USB-C port; Connector markings for easy identification; Flexible silicone jacket w/braid; USB-IF certified w/E-marker; USB 2.0 (480Mbps) Bullets (Consolidated) Side Screw Locking USB C cable ideal for chargers and hubs w/side locking USB-C ports - Supports Power Delivery 3.1 Extended Power Range (EPR); Up to 240W at 48V - Flexible silicone jacket w/braid resists tight bends - Rated for 20,000+ insertions and -/+90 deg bends - USB-IF certified w/E-marker; Supports 240W/140W/100W/60W; USB 2.0 Type-C (480Mbps) - 2-meter; Black; 30AWG; 4.7mm (0.18in) O.D.; Silicone Jacket w/Braided Nylon; NOTE: USB-C video (DP Alt Mode) is not supported Marketing Copy Marketing Copy (No HTML) Website Search Keyword - USB-C Charging Cable
- USB C Cable
- USB-C Cord
- 240W USB-C Cable
- USB C Charging Cord
- Laptop Charger Cord
- Wall Charger Cord
- Power Delivery
- Braided USB-C Cable
- Braided USB-C charger cord
- Braided USB-C Charging Cord
- Braided USB-C Charging Cable
- Rugged USB-C Cable
- Heavy Duty USB-C Cable
Certification USB-IF Required Marketing Compliance Marks USB-IF - Specification - Global - USB2.0 EPR 240W EPR Cable Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Prop 65 - Environmental - United States - Proposition 65 Warning Label
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Power Delivery 240W Cable Length (mm) 2000 Cable OD 4.7 Color Black Connector Style Straight Humidity 5% - 85% Material Santoprene - Thermoplastic Rubber (TPE) Operating Temperature 0°C - 50°C (32°F - 122°F) Product Length (mm) 2000.000 Product Width (mm) 19.3 Product Height (mm) 6.9 Product Weight (g) 86 Storage Temperature -20°C - 70°C (-4°F - 158°F) TAA Compliant No Wire Gauge 30 AWG MTBF (hours) Rated beyond 10,000 insertions USB Speed USB 2.0 (480Mbps) Video Support No Cable Jacket Material Silicone with Braided Nylon Connector Plating Nickel Connectors Combo USB-C to USB-C Host or Charger Connector USB-C Peripheral Connector USB-C Carton Depth (mm) 500 Carton Height (mm) 210 Carton Quantity 140 Carton Weight Gross (g) 13700 Included in Package 1 - 2m USB-C Charging Cable M/M - Side Locking Package Depth (mm) 220 Package Height (mm) 13.8 Package Width (mm) 128 Package Weight (g) 90 Packaging Description 2m USB-C Charging Cable with Side Locking Screws - 240W PD EPR Packaging Description India 2m USB-C Charging Cable with Side Locking Screws - 240W PD EPR Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 896 Connector 1 USB-C (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 USB-C (480Mbps, 2.5W) Connector 2 (Quantity) 1 A+ Not Required Amazon Merchandising Manager Veronica Ye Apple Compatibility Apple Compatible Application Photos Uploaded Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment USB 2.0 vs USB 3.2. NPI is 240W PD Comparable SKU 2 Comment NA Digital Content Due Date 2025-01-03 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett Graphic Design SKU Logic Naming Convention S2CEPRxM-USBSL-CABLE ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology - USB-C
- Power Delivery
Priority New Product High Product Development Specialist Chi Zhang Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2024-10-25 Target Production Release 2024-11-01 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Latest Video Not Required
