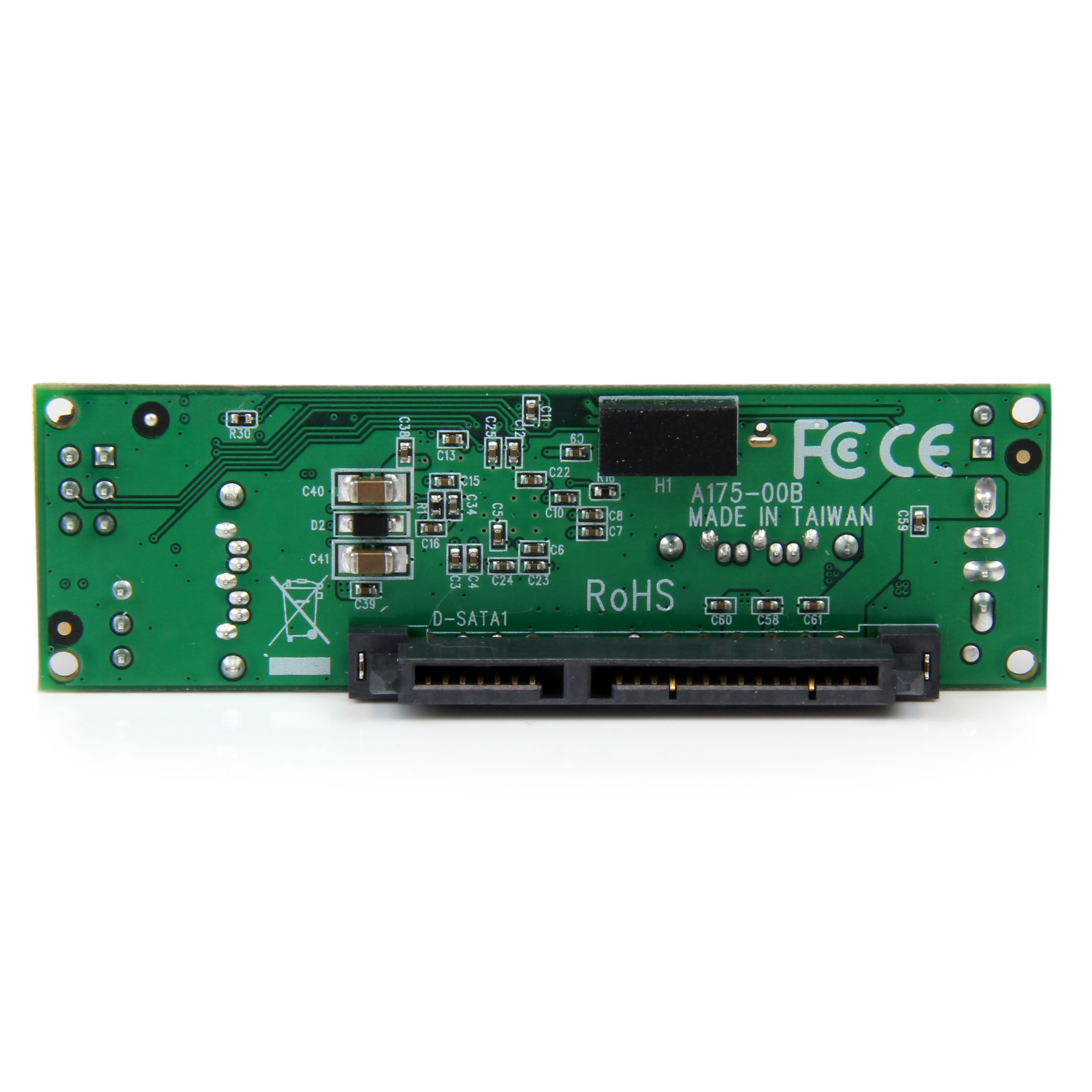

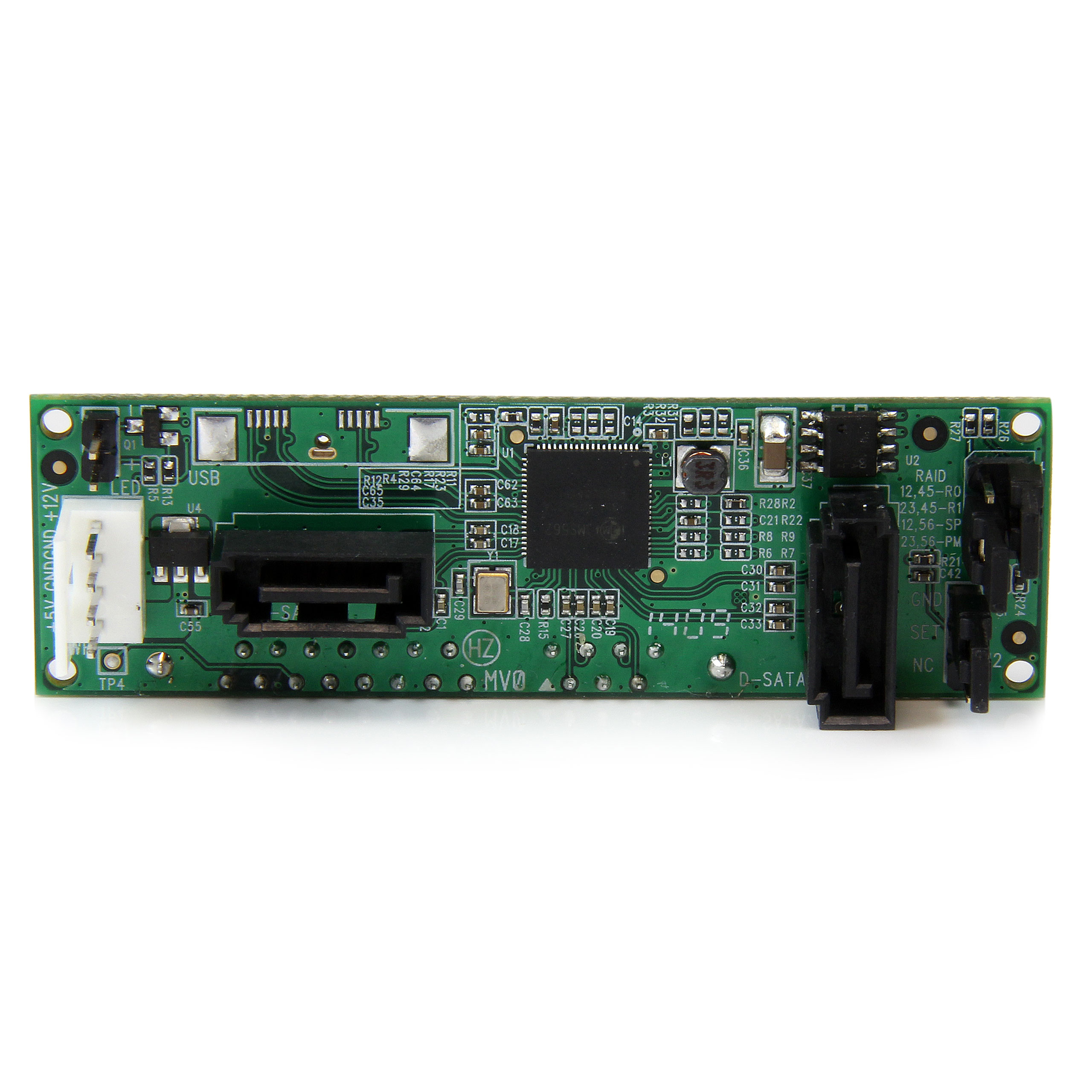

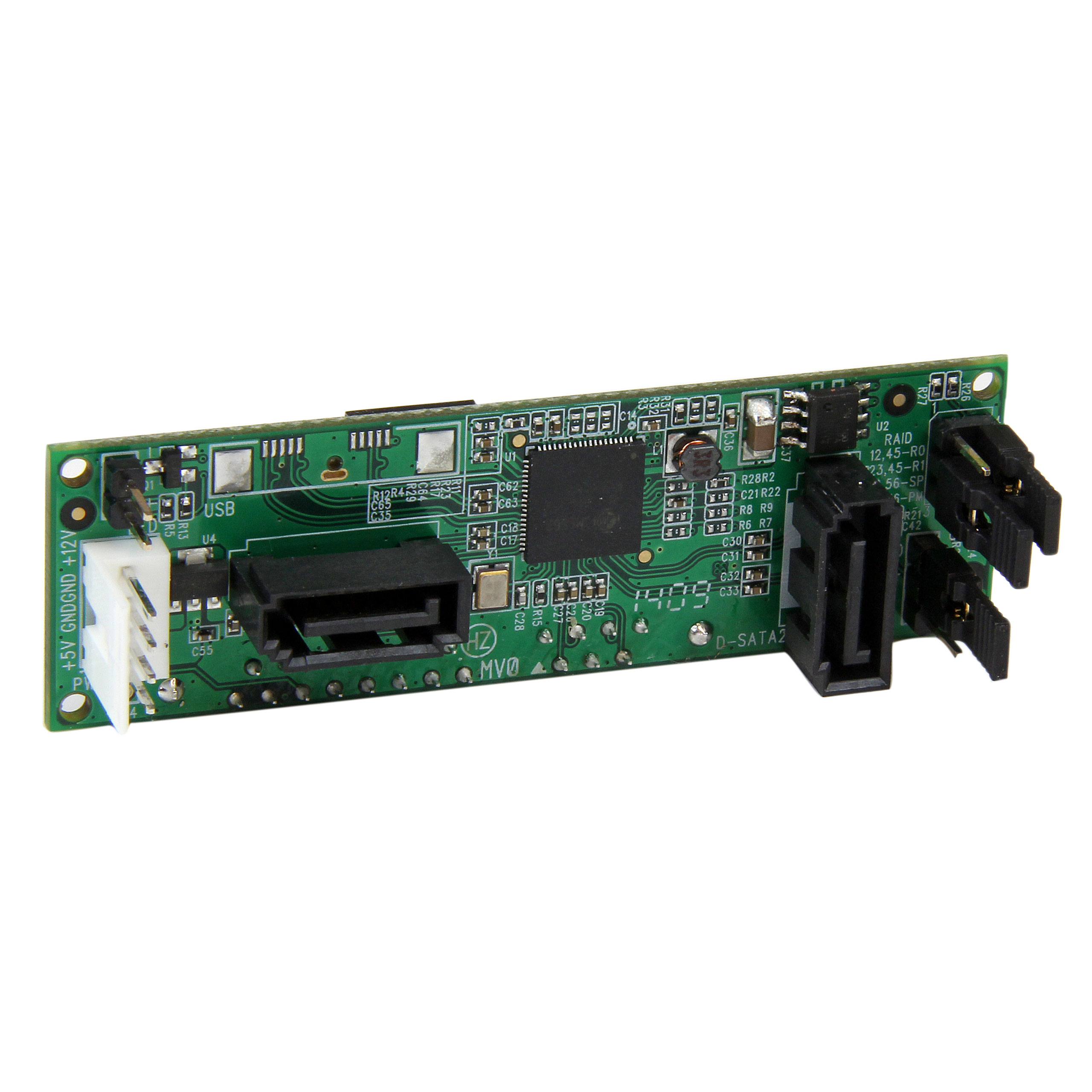

S322SAT3R
SATA 6Gbps Internal RAID adapter
Connect two SATA Hard Drives to a single internal SATA connection, and build a RAID array for accelerated performance or secure data redundancy
Main Image
Product Images
Product Images
BOM Image
Product Name SATA 6Gbps Internal RAID adapter Product Number S322SAT3R UPC 065030857529 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Adapter Enclosures/Converters Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) SATA to 2x SATA RAID Product Title (Short) SATA to Dual SATA HDD RAID Controller Product Title (Medium) Internal SATA to Dual SATA Hard Drive RAID Controller Card Adapter Product Title (Standard) SATA Dual Hard Drive RAID Adapter - Internal SATA Connector to Dual SATA HDD RAID Controller Card Product Title (Long) SATA Dual Hard Drive RAID Adapter - Internal SATA Connector to Dual SATA HDD RAID Controller Card Product Title (AMZ) SATA Dual Hard Drive RAID Adapter - Internal SATA Connector to Dual SATA HDD RAID Controller Card - Drive Mounted Adapter (S322SAT3R) Title Ingram (Part 1) Internal SATA to Dual SATA RAID Title Ingram (Part 2) HDD Controller - Drive Mounted Website Product Headline Connect two SATA Hard Drives to a single internal SATA connection, and build a RAID array for accelerated performance or secure data redundancy Bullet 1 Add dual drive RAID support to a single internal SATA connector Bullet 2 Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives Bullet 3 Space-saving design, mounts directly to your drive Bullet 4 No software or drivers required Bullet 5 2 SATA cables included for hassle-free installation Bullets (Consolidated) Connect two SATA Hard Drives to a single internal SATA connection, and build a RAID array for accelerated performance or secure data redundancy - Compatible with Desktop computers such as Dell Optiplex and SATA Hard drives such as WD/Seagate - Raid Controller Card/SATA RAID Controller/RAID Adapter/SATA RAID Controller Card/Internal RAID Marketing Copy Applications - Add data redundancy to your computer with a mirrored (RAID 1) RAID array
- Increase the capacity of your computer system by adding an additional HDD in a RAID array (BIG) using the same single SATA connector as your existing drive
- Increase system performance by internally adding a dual drive RAID 0 array to a single SATA connector
- Add additional hard drives in a computer with limited SATA connectors
Website Search Keyword - To two one SATA hard drive adapter
- SATA port multiplier
- SATA to RAID controller
- 1 x 2 SATA splitter
- HDD RAID
- RAID 0
- RAID 1
- RAID controller card
- Mirror
- stripping
- Internal RAID controller
- 1 to 2 SATA RAID adapter
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - PEXSAT32
- PEXSAT34RH
- PEXSATA24E
- PEXSATA22I
- PEXESATA2I
- PEXESAT322I
- BRACKET

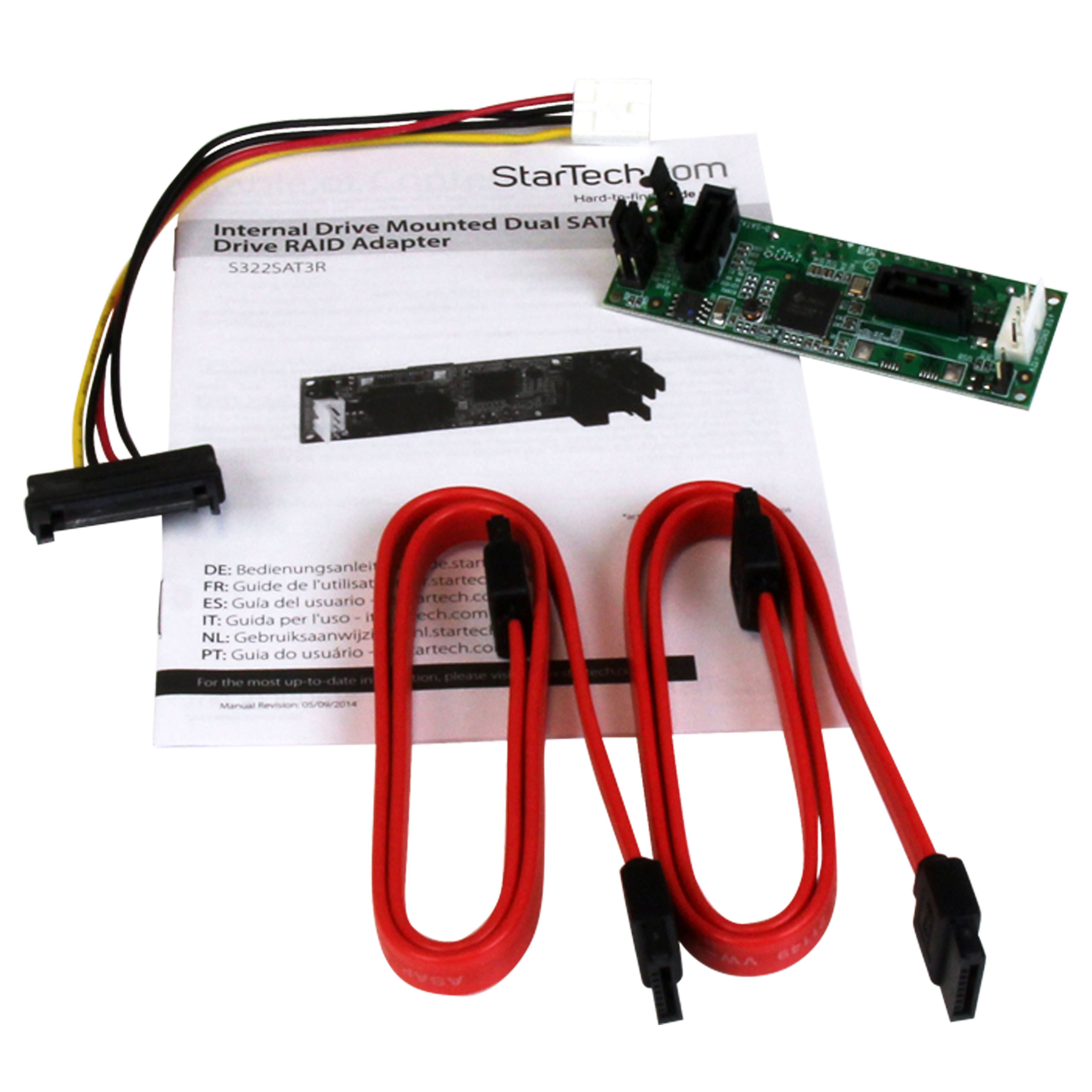

Related Products 25SAT22MSAT Humidity Operating Temperature 5°C - 50°C (41°C to 122°C) Product Length (mm) 75.000 Product Width (mm) 26.000 Product Height (mm) 23.000 Product Weight (g) 11.800 Storage Temperature -25°C - 70°C (-13°C to 158°C) TAA Compliant Yes General Specifications For JBOD mode, your SATA controller must support Port Multiplier Hot Swap Capability No Max Drive Capacity Currently tested with up to 4TB 7200 RPM hard drives Maximum Data Transfer Rate 6 Gbps OS Compatibility OS Independent Port Multiplier Yes RAID Yes SATA Type and Rate SATA III (6 Gbps) Chipset ID JMicron - JMS562 Compatible Drive Types SATA Interface/Bridge SATA Number of Drives 2 Carton Depth (mm) 380 Carton Height (mm) 310 Carton Quantity 60 Carton Weight Gross (g) 8170 Included in Package - 1 - Internal Drive Mounted Dual SATA Hard Drive RAID Adapter
- 1 - LP4 to SATA Power Adapter
- 2 - SATA Cables (50cm)
- 1 - Installation Guide
Package Depth (mm) 143 Package Height (mm) 30 Package Width (mm) 173 Package Quantity 1 Package Weight (g) 120 Packaging Description Internal Drive Mounted Dual SATA Hard Drive RAID Adapter Packaging Description India Internal Drive Mounted Dual SATA Hard Drive RAID Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin) Connector 1 (Quantity) 2 Host Connector 1 SATA (7-Pin + 15-Pin) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-05-23 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
