Main Image
S32M2NGFFPEX
M.2 to SATA PCI / PCIe slot mounted SSD adapter
Mount an M.2 NGFF SSD into your desktop computer, using a standard SATA host connection
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name M.2 to SATA PCI / PCIe slot mounted SSD adapter Product Number S32M2NGFFPEX UPC 065030859820 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 M.2 NVMe/SATA Card Adapters/Controllers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX039X Product Title (Ultra-Short) M.2 to SATA adapter Product Title (Short) M.2 to SATA PCI slot mounted SSD adapter Product Title (Medium) M.2 to SATA SSD adapter – expansion slot mounted - NGFF to SATA converter Product Title (Standard) M.2 to SATA SSD adapter – expansion slot mounted - NGFF solid state drive to SATA converter Product Title (Long) M.2 to SATA SSD Adapter - Expansion Slot Mounted Product Title (AMZ) M.2 to SATA Expansion Slot Mounted SSD Adapter - NGFF Solid State Drive to SATA Converter - PCI or PCI-express Slot Mounted (S32M2NGFFPEX) Title Ingram (Part 1) M.2 SSD to SATA adapter - NGFF Title Ingram (Part 2) converter - PCI slot mounted Website Product Headline Mount an M.2 NGFF SSD into your desktop computer, using a standard SATA host connection Bullet 1 Optimize performance with support for SATA III transfer speeds, up to 6 Gbps Bullet 2 Add SSD performance to any desktop computer system by converting M.2 to SATA Bullet 3 Wide installation compatibility with support for the most common M.2 drives (2230, 2242, 2260, 2280) Bullet 4 Includes both low-profile, and full-profile expansion slot brackets Bullet 5 Supports SATA I,II,III drives (1.5/3.0/6.0 Gbps) Bullets (Consolidated) Mount an M.2 NGFF SSD into your standard or small form factor desktop computer, with a SATA host connection - Works with desktop computers such as Apple iMac and Dell Optiplex and M.2 NGFF SSDs - SATA to M.2 NGFF SSD Adapter/M2 to SATA converter/NGFF solid state drive to SATA hard drive port converter/SSD to HDD converter/M2 SSD to SATA - Install your primary operating system on a faster SSD drive, and keep your larger standard HDD in the same system to increase performance and capacity Marketing Copy Marketing Copy (No HTML) The S32M2NGFFPEX M.2 to SATA adapter lets you connect a SATA M.2 (NGFF) SSD to a standard SATA port, and mount the drive into any desktop expansion slot. Now, you can greatly increase the performance of your desktop computer by replacing your platter drive with a fast M.2 NGFF solid state drive. By installing your primary operating system on the M.2 SSD drive and using your higher-capacity platter HDD for bulk storage, you can harness the speedy performance of the M.2 drive for frequently accessed data while storing files you access less often on your platter drive. For a hassle-free installation, the adapter mounts into any new or legacy desktop expansion slot, with support for AGP, PCI, and PCIe slots. The adapter also includes full-profile and low-profile brackets, ensuring compatibility with both full-sized and small form factor desktops. The S32M2NGFFPEX is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Install your primary operating system on a faster SSD drive, and keep your larger standard HDD in the same system for bulk storage
- Connect an unused M.2 drive to your computer system using an available expansion slot
- Recover data from an M.2 drive by connecting it to a standard SATA computer system
Website Search Keyword - M2 to SATA
- SATA to M2
- SSD adapter
- M2 adapter
- NGFF adapter
- M2
- PCI mounted
- SSD card
- M2 SSD card
- NGFF to SATA adapter
- expansion slot mounted
Required Regulatory Compliance Marks - ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
Accessory Products - SATA18
- SATA24RA1
- SATA18RA1
- SATA18LA1
- LSATA12
- SATA12RSA1
- LP4SATAFM
- SATA24
- SATA12
- SATA12LSA1
- SATAPOWADAP
- PYO3SATA
- PYO2SATA
- PYO2LP4LSATA
- PYO2LSATA
- PYO2LP4LSATR
Related Products - SAT32MSATPEX
- 35S24M2NGFF
- SAT2M2NGFF25
- SM2NGFFMBU33
Color Green Humidity 5% to 95% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 120.000 Product Width (mm) 18.000 Product Height (mm) 95.000 Product Weight (g) 130.000 Storage Temperature -10°C to 85°C (14°F to 185°F) TAA Compliant Yes General Specifications Not compatible with PCI-Express M.2 SSDs Maximum Data Transfer Rate 6 Gbps OS Compatibility OS Independent RAID No SATA Type and Rate SATA III (6 Gbps) Compatible Drive Types M.2 (SATA, B-Key, NGFF) Interface/Bridge SATA Number of Drives 1 Supported Drive Height(s) - 2230
- 2242
- 2260
- 2280

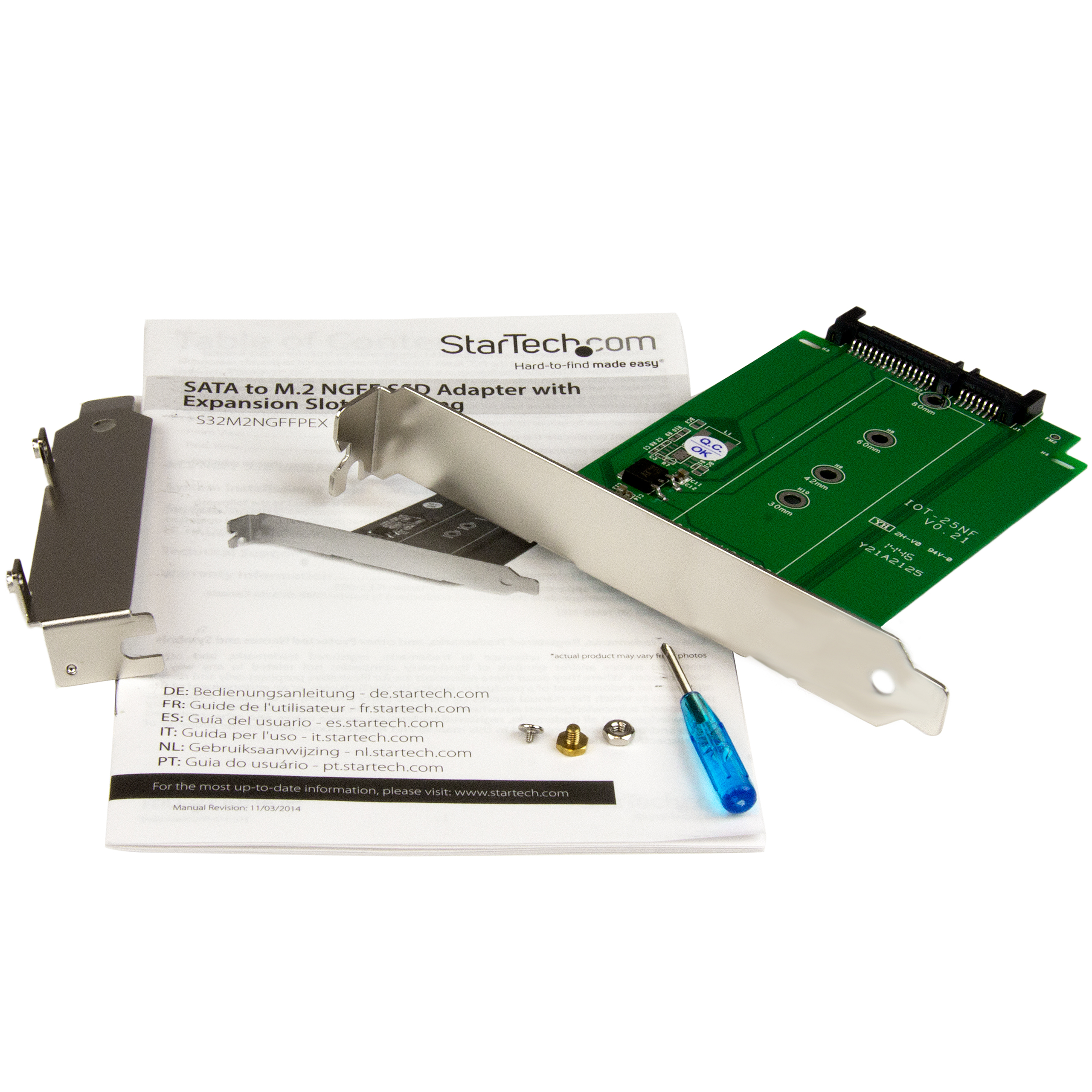

Carton Depth (mm) 481 Carton Height (mm) 335 Carton Quantity 100 Carton Weight Gross (g) 11720 Included in Package - 1 - SATA to M.2 NGFF SSD Adapter

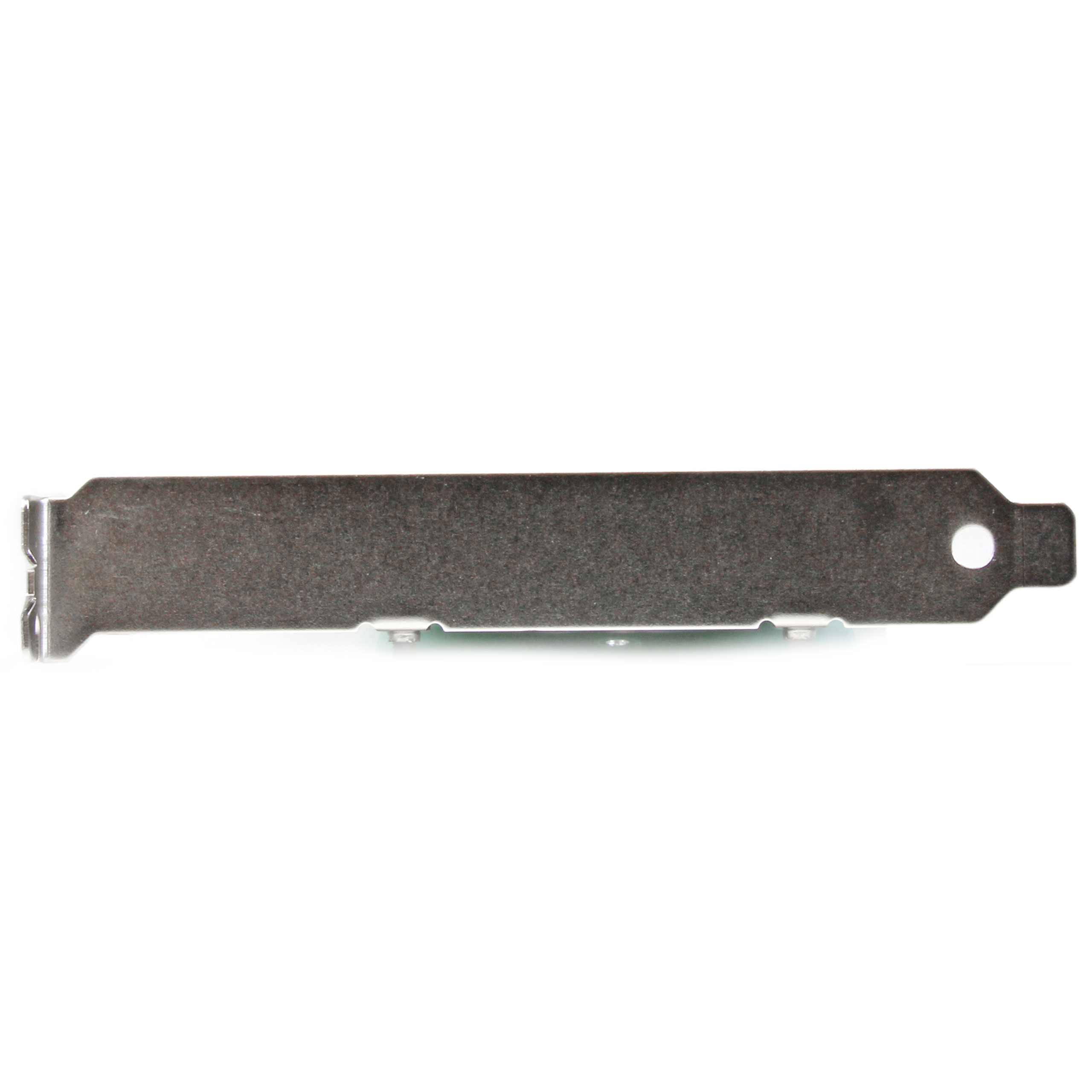

- 1 - Full profile bracket (pre-installed)
- 1 - Low profile bracket
- 1 - Screw driver
- 2 - Standoffs (for PCI slot installation)
- 1 - SSD installation screw
Package Depth (mm) 130 Package Height (mm) 33 Package Width (mm) 163 Package Quantity 1 Package Weight (g) 150 Packaging Description SATA to M.2 NGFF SSD Adapter with Expansion Slot Mounting Packaging Description India SATA to M.2 NGFF SSD Adapter with Expansion Slot Mounting Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 M.2 B-Key (SATA, AHCI) Connector 1 (Quantity) 1 Host Connector 1 SATA (7-Pin + 15-Pin) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-10-23 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2014-10-27 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
