S3510BMU33
3 5in USB 3 0 External SATA HDD Enclosure w UASP
Turn a 3.5” SATA Hard Drive into a UASP-supported USB 3.0 External Hard Drive
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 3 5in USB 3 0 External SATA HDD Enclosure w UASP Product Number S3510BMU33 UPC 065030851732 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Family 3.5" SATA Enclosure Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Ultra-Short) USB 3 HDD Enclosure Product Title (Short) 3.5 USB 3 SATA SSD HDD Enclosure - UASP Product Title (Medium) x Product Title (Standard) 3.5in Black USB 3.0 External SATA III Hard Drive Enclosure with UASP for SATA 6 Gbps – Portable External HDD Product Title (Long) 3.5in Black USB 3.0 External SATA III Hard Drive Enclosure with UASP for SATA 6 Gbps – Portable External HDD Product Title (AMZ) 3.5in Black Aluminum USB 3.0 External SATA III SSD / HDD Enclosure with UASP for SATA 6Gbps - 3.5" SATA Hard Drive Enclosure (S3510BMU33) Title Ingram (Part 1) 3.5in USB 3.0 External SATA III Title Ingram (Part 2) SSD HDD Enclosure with UASP Website Product Headline Turn a 3.5” SATA Hard Drive into a UASP-supported USB 3.0 External Hard Drive Bullet 1 STYLISH DESIGN: The HDD enclosure for 3.5in SATA drives is made of durable aluminum with a fan-less design that ensures quiet operation; Vented tray design for maximum passive heat dissipation; Includes vertical stand to save desk space Bullet 2 INCREASED PRODUCTIVITY: The 3.5in SATA external hard drive enclosure lets you leverage the high performance of the latest SSDs (solid-state drives) and HDDs (hard drives), while alleviating bottlenecks in your data transfers Bullet 3 THE IT PRO'S CHOICE: Designed and built for IT professionals, this 3.5in hard drive enclosure is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance Bullet 4 MAXIMUM COMPATIBILITY: This fan-less hard drive enclosure comes with a USB A-to-B cable, providing backward compatibility with existing USB ports or hardware Bullet 5 FASTER SPEEDS: The USB 3.2 Gen 1 external hard drive enclosure gives you greater bandwidth and speed with file transfer rates of up to 5 Gbps Bullets (Consolidated) Turn a 3.5" SATA Hard Drive or Solid State Drive into a UASP supported USB 3.0 External Hard Drive - 3.5 HDD Enclosure - 3.5 SATA Hard Drive Enclosure - USB 3.0 Hard Drive Enclosure - USB 3.0 3.5 Enclosure - UASP Enclosure - 3.5in SATA III Enclosure - 3.5" HDD Enclosure - 6 Gbps - Black Marketing Copy Marketing Copy (No HTML) The Black USB 3.0 Hard Drive Enclosure with UASP lets you connect a 3.5in SATA III hard drive (HDD) through an available USB port. The enclosure delivers optimal performance with a USB 3.0 connection, but is backward compatible with USB 2.0/1.1 host connections as well. Enhanced with UASP (USB Attached SCSI Protocol), this 3.5" SATA III enclosure performs up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. Using a more efficient protocol like UASP, it reduces latency, significantly increasing transfer speeds and reducing processor usage to utilize the full potential of your SATA III hard drives. With support for SATA I/II/III, and large capacity drives (tested up to 4TB) this HDD enclosure is compatible with virtually any 3.5in SATA hard drive. The USB 3.0/SATA III enclosure features high quality aluminum construction, ensuring durability. Backed by a StarTech.com 2-year warranty and free lifetime technical support. UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance. At the same peak in testing UASP also shows an 80% reduction in required processor resources. Testing results were obtained using an Intel Ivy Bridge system, a UASP enabled StarTech.com enclosure, and a SATA III solid state drive. Applications - Take advantage of new laptops and desktops with USB 3.0 (UASP) connectivity
- Upgrade from a USB 2.0 drive enclosure to faster USB 3.0
- Create a fast, portable external storage solution for desktops, laptops or netbooks
- Add-on extra storage to almost any USB enabled computer system
- Backup important data to an external storage device
- Share large files between computers quickly and securely without a network
- Retrieve data from an old SATA drive, or turn the unused drive into additional external storage space
- Turn a high capacity SATA hard drive into portable, external storage
Website Search Keyword - Portable
- USB 3.0
- Super Speed
- SuperSpeed
- USB Rev 3.0
- 5 Gbps
- Notebook
- Laptop
- 3.5" HDD
- Hard Drive
- External Enclosure
- External Case
- UASP
- U339001FLAT
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
System and Cable Requirements Available USB port Accessory Products - ECUSB3S2
- PEXUSB3S2
- ECUSB3S254F
- ECUSB3S1
- PEXUSB3S11
- PEXUSB3S400
- PCIUSB3S22
- ECUSB3S11
- ECUSB3S22
- USB3CAB2M
- USB3SAB6
- USB3SAB3
- USB3SAB2MRA
- USB3SAB1MRA
- USB3SAB3MRA
- USB3SAB6BK
- USB3SAB10
- PEXUSB3S4V
- USB3SAB1
- USB3SAB3BK
- USB3CAB1M
- PEXUSB3S4
- MPEXUSB3S22B
- PCIUSB3S4
- USB3SAB10BK
- PEXUSB3S22
- SVA12M2NEUA
- SVA12M5NA
Related Products - SATDOCKU3S
- SAT3510BU3
- SAT2510BU3
- SAT3510U3V
- S2510BPU33
- S3510SMU33
- S2510BMU33
- UNI3510U2
- SATDOCK22U3S
- SATDOCK4U3

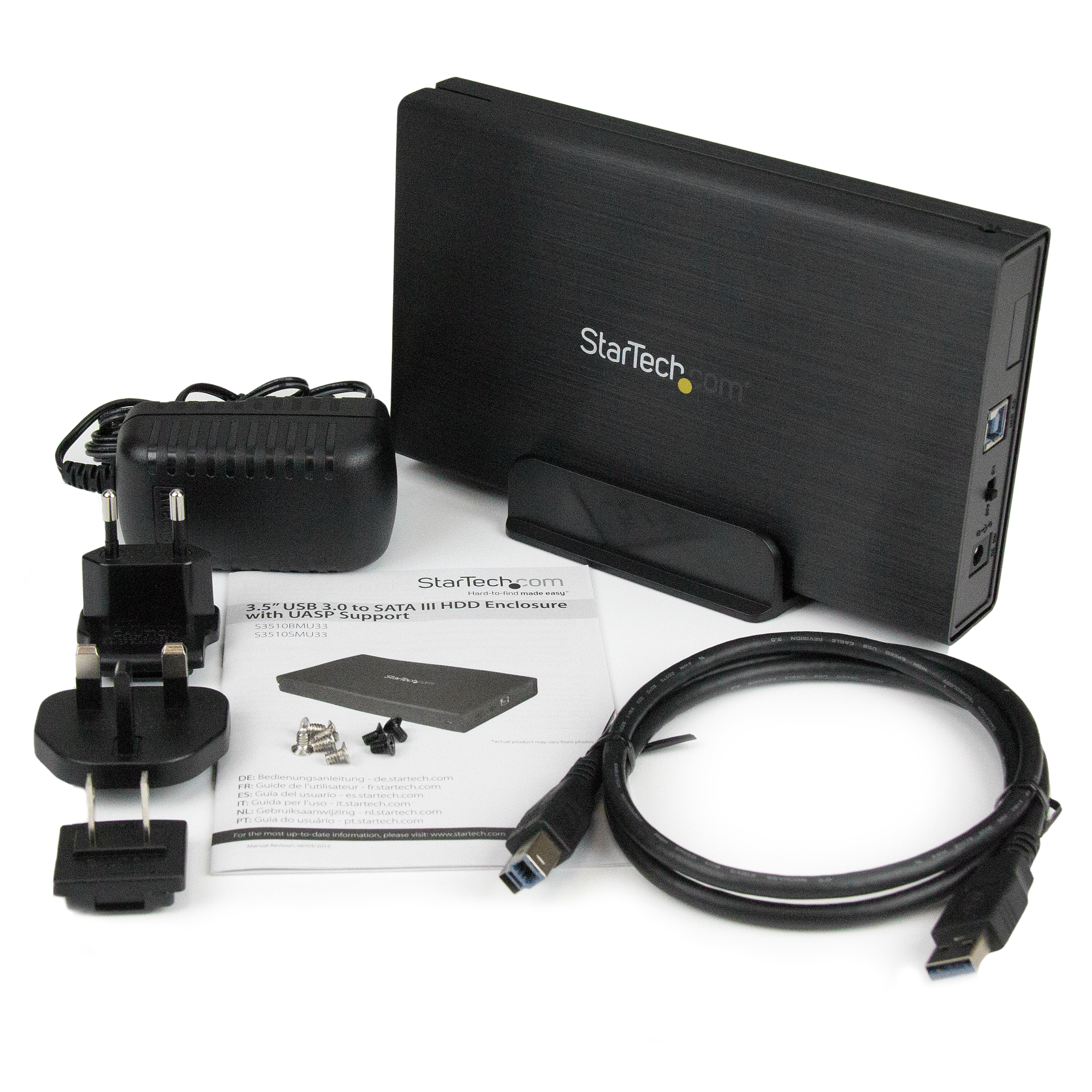

Constrained SKU Alternatives (Limited Stock) S3510SMU33 Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 12V DC Power Consumption (In Watts) 24 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity Material Aluminum and Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 191.500 Product Width (mm) 31.400 Product Height (mm) 115.400 Product Weight (g) 311.000 Storage Temperature -10°C to 65°C (14°F to 149°F) TAA Compliant No Max Drive Capacity Currently tested with up to 4TB 7200 RPM hard drives OS Compatibility OS Independent RAID No SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Chipset ID ASMedia - ASM1153 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - Power & Activity Number of Drives 1 Carton Depth (mm) 470 Carton Height (mm) 291 Carton Quantity 20 Carton Weight Gross (g) 16916 Included in Package - 1 - 3.5” USB 3.0 SATA III HDD Enclosure
- 1 - Product Manual
- 1 - Screw Kit
- 1 - USB 3.0 Cable
- 1 - Universal Power Adapter (NA / UK / EU)
- 1 - HDD Stand
Package Depth (mm) 225 Package Height (mm) 106 Package Width (mm) 134 Package Quantity 1 Package Weight (g) 787 Packaging Description 3.5" USB 3.0 to SATA III HDD Enclosure w/ UASP Support Packaging Description India 3.5" USB 3.0 to SATA III HDD Enclosure w/ UASP Support Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-05-23 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
