Main Image
S3510BMU33B
3.5in USB 3.0 SATA Hard Drive Enclosure w/ Fan
Turn a 3.5” SATA HDD into an external upright UASP-supported Hard Drive with built-in fan
Main Image
Product Images
Product Images
BOM Image
Product Name 3.5in USB 3.0 SATA Hard Drive Enclosure w/ Fan Product Number S3510BMU33B UPC 065030856164 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Ultra-Short) USB 3.0 SATA 3.5 HDD Product Title (Short) USB 3.0 SATA 3.5" HDD Enclosure w/ UASP Product Title (Medium) USB 3.0 to 3.5” SATA III Hard Drive Enclosure w/Fan and Upright Design – UASP Product Title (Standard) USB 3.0 to 3.5” SATA III Hard Drive Enclosure with Fan and Upright Design – SATA 6 Gbps & UASP Support Product Title (Long) USB 3.0 to 3.5” SATA III Hard Drive Enclosure with Fan and Upright Design – SATA 6 Gbps & UASP Support Product Title (AMZ) USB 3.0 to 3.5” SATA III Hard Drive Enclosure w/ Fan & Upright Design – USB 3.0 HDD Enclosure w/ SATA 6 Gbps & UASP Support (S3510BMU33B) Title Ingram (Part 1) USB 3.0 SATA 3.5" HDD Enclosure Title Ingram (Part 2) w/ Upright Design & UASP Website Product Headline Turn a 3.5” SATA HDD into an external upright UASP-supported Hard Drive with built-in fan Bullet 1 UASP support for optimal performance Bullet 2 Upright design for small desktop footprint Bullet 3 Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives Bullet 4 Aluminum housing with built-in fan Bullet 5 Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps) Bullets (Consolidated) Turn a 3.5" SATA HDD into an external upright UASP-supported Hard Drive with built-in fan - Hard Drive Enclosure - 3.5 SATA Hard Drive Enclosure - HDD Enclosure - External Hard Drive - HDD Case - Reduced desktop footprint w/ upright design - Built-in fan for optimal drive temperature - UASP for Faster Transfer speeds Marketing Copy Applications - Turn a high capacity SATA III hard drive into an, external storage solution
- Create a fast, portable external storage solution for desktops, laptops or netbooks
- Share large files between computers quickly and securely without a network
- Add-on extra storage to any USB enabled computer system
- Backup important data to an external storage device
- Retrieve data from an old SATA drive, or turn the unused drive into additional external storage space
Website Search Keyword - 3.5" SATA Hard drive enclousre
- UASP Enclosure
- 3.5" SATA UASP Enclosure
- USB 3.0 hard drive enclosure
- USB 3.0 UASP
- Fast USB external hard drive enclosure
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - ECUSB3S2
- PEXUSB3S2
- ECUSB3S254F
- ECUSB3S1
- PEXUSB3S11
- ECUSB3S11
- PEXUSB3S22
- PEXUSB3S23
- PEXUSB3S2E2I
- PEXUSB3S4
- PEXUSB3S400
- PEXUSB3S4V
- USB3CAB2M
- USB3CAB1M
- USB3SAB2MRA
- MPEXUSB3S2
- USB3SAB6
- USB3SAB3MRA
- USB3SAB10BK
- USB3SAB10
- USB3SAB3
- USB3SAB1
- USB3SAB3BK
- USB3SAB6BK
- ECUSB3S22
- PCIUSB3S22
- MPEXUSB3S22B
- USB3SAB1MRA
- PCIUSB3S4
- SVA12M2NEUA
- SVA12M5NA
Related Products - S2510BPU33
- SAT3510BU3
- SAT2510BU3
- SAT3510U3V
- S2510BMU33
- SAT3520U3SR
- S2510BU3PWPS
- UNI3510BMU32
- S3510BMU33
- S3510BMU33T
- S3510WMU33T
- S3510BMU33ET
- SAT3540U3ER
- SAT2510B12U3
- SAT3520U3R
- S2510BU3ISO
- SAT2510BU32
- S3510SMU33

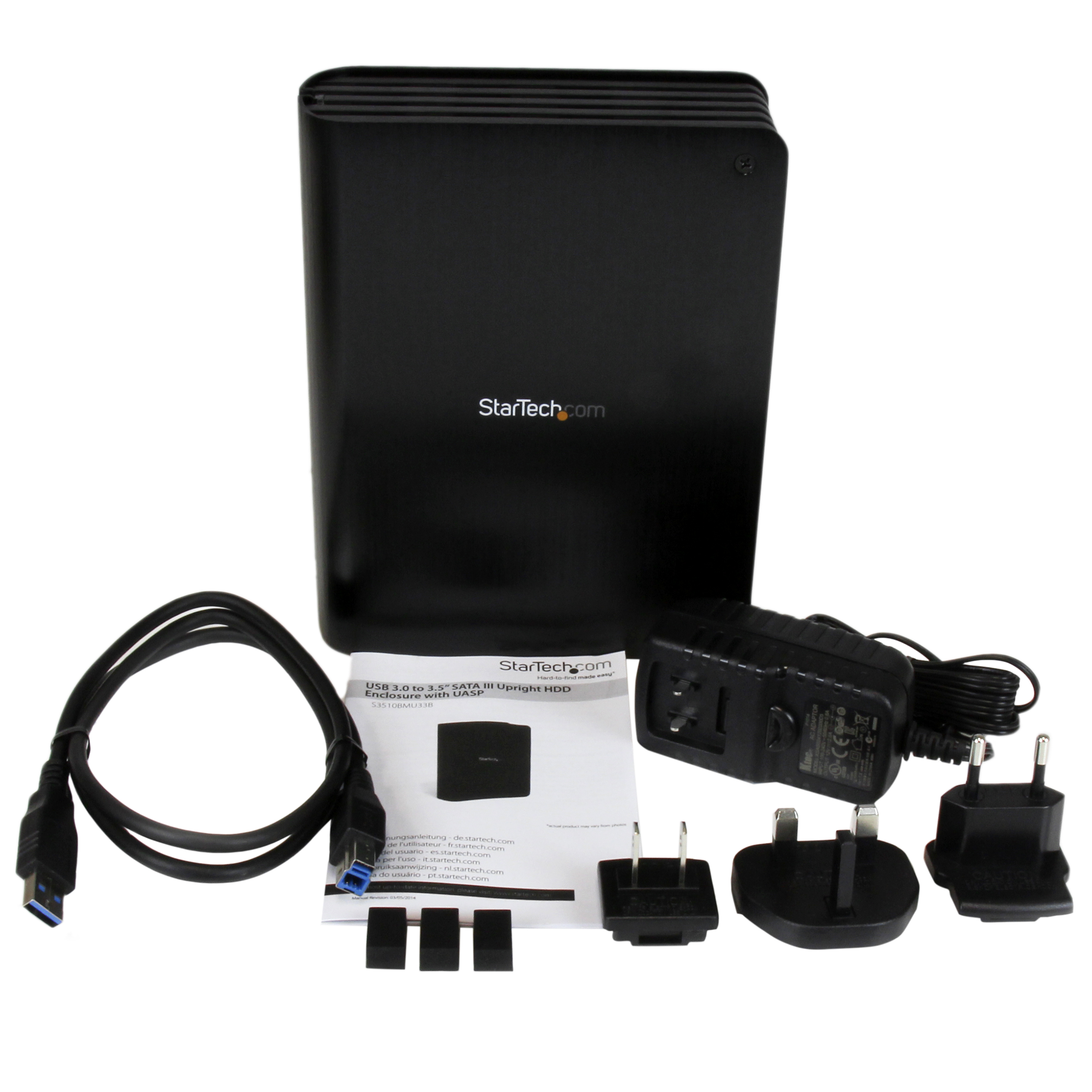

Replacement Product S3510BMU33 Input Current 600ma Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 12V DC Power Consumption (In Watts) 24 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity Operation Humidity: 10% ~ 90% RH Storage Humidity: 5% ~ 95% RH Material Aluminum and Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 180.5 Product Width (mm) 142.5 Product Height (mm) 54.5 Product Weight (g) 570 Storage Temperature -10°C to 65°C (14°F to 149°F) TAA Compliant No 4Kn Support Yes Max Drive Capacity Currently tested with up to 4TB 7200 RPM hard drives OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID ASMedia - ASM1153E Compatible Drive Types SATA Fans 1 - 80 mm Fans Included? Yes/No Yes Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - Power/Activity LED Number of Drives 1 Carton Depth (mm) 24 Carton Height (mm) 30.5 Carton Quantity 10 Carton Weight Gross (g) 11110 Included in Package - 1 - USB 3.0 3.5” SATA HDD Enclosure
- 1 - Instruction Manual
- 1 - USB 3.0 Cable
- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - Pack of Foam Spacers
Package Depth (mm) 220 Package Height (mm) 84 Package Width (mm) 241.5 Package Quantity 1 Package Weight (g) 1030 Packaging Description USB 3.0 to 3.5” SATA III Upright HDD Enclosure w/ UASP Packaging Description India USB 3.0 to 3.5” SATA III Upright HDD Enclosure w/ UASP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-01-31 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
