Main Image
S3510BMU33ET
USB 3 eSATA Trayless HDD Enclosure with UASP
Easily connect and hot swap 3.5in SATA III hard drives, through either eSATA or UASP-supported USB 3.0
Main Image
Product Images
Product Images
BOM Image
Product Name USB 3 eSATA Trayless HDD Enclosure with UASP Product Number S3510BMU33ET UPC 065030852722 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX057X Product Title (Ultra-Short) USB 3 Enclosure UASP Product Title (Short) USB 3.0 eSATA HDD Enclosure w/ UASP Product Title (Standard) USB 3.0 eSATA Hard Drive Enclosure - Trayless 3.5" SATA III HDD Enclosure - SATA 6 Gbps - Black Product Title (Long) USB 3.0 eSATA Hard Drive Enclosure - Trayless 3.5" SATA III HDD Enclosure - SATA 6 Gbps - Black Product Title (AMZ) USB 3.0 eSATA Hard Drive Enclosure w/ UASP - Trayless 3.5” SATA III HDD Enclosure w/ USB 3.0 or eSATA - SATA 6 Gbps - Black (S3510BMU33ET) Title Ingram (Part 1) USB 3 eSATA HDD Enclosure with Title Ingram (Part 2) UASP - Trayless Hard Disk Enclosure Website Product Headline Easily connect and hot swap 3.5in SATA III hard drives, through either eSATA or UASP-supported USB 3.0 Bullet 1 UASP Compatible Bullet 2 Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) Bullet 3 eSATA or USB Host Connection Bullet 4 Trayless Aluminum Enclosure Bullet 5 Compatible with USB 3.0/2.0/1.1 (5Gbps/480Mbps/12Mbps) Bullets (Consolidated) Easily connect and hot swap 3.5in SATA III hard drives - through either eSATA or UASP -supported USB 3.0 - 3.5 SATA to USB Hard Drive Enclosure - SATA to USB 3 Hard Drive Enclosure - Trayless HDD Enclosure - eSATA External HDD w/ UASP - SATA 6 Gbps Marketing Copy Applications - Retrieve data from an old SATA drive, or turn the unused drive into additional external storage space
- Hot-swap drives using a single enclosure instead of having to swap separate enclosures
- Upgrade from a USB 2.0 drive enclosure to faster USB 3.0
- Share large files between computers quickly and securely without a network
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - HDDSLEV35
- USB3SAB10BK
- USB3SAB6BK
- ESATA3
- ESATA6
- SATA2ESATA6
- ESATAPLATE2
- ESATAPLT1LP
- ESATAPLATE1
- ESATAPLT2LPM
- ESATAPLT1LPL
- ESATAPLT2LP
- USB3CAB2M
- USB3CAB1M
- USB3SAB1MRA
- USB3SAB2MRA
- USB3SAB3MRA
Related Products - SAT3510BU2E
- 25SATSAS35
- SAT3520U3R
- SATDOCK2520
- S252U2ERR
- S3510WMU33T
- S3510BMU33
- S3510BMU33T
- SAT3540U3ER
- SAT3520U3SR
- SAT3510U3V
- S2510BMU33
- SAT3510BU3
- S2510BPU33
- S3510SMU33
Input Current 0.8A Input Voltage 110V-240V AC Output Current 2A Output Voltage (V) 12V DC Power Consumption (In Watts) 24 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Humidity 20%RH ~ 80%RH Operating Temperature 5°C to 40°C (41°F to 104°F) Product Length (mm) 200 Product Width (mm) 43 Product Height (mm) 138 Product Weight (g) 820 Storage Temperature 5°C to 40°C (41°F to 104°F) TAA Compliant No Hot Swap Capability Yes Maximum Data Transfer Rate 5 Gbps OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Chipset ID ASMedia - ASM1053 - 6G Compatible Drive Types SATA Interface/Bridge - USB 3.2 Gen 1 (5Gbps)
- eSATA
- USB 3.0 & eSATA

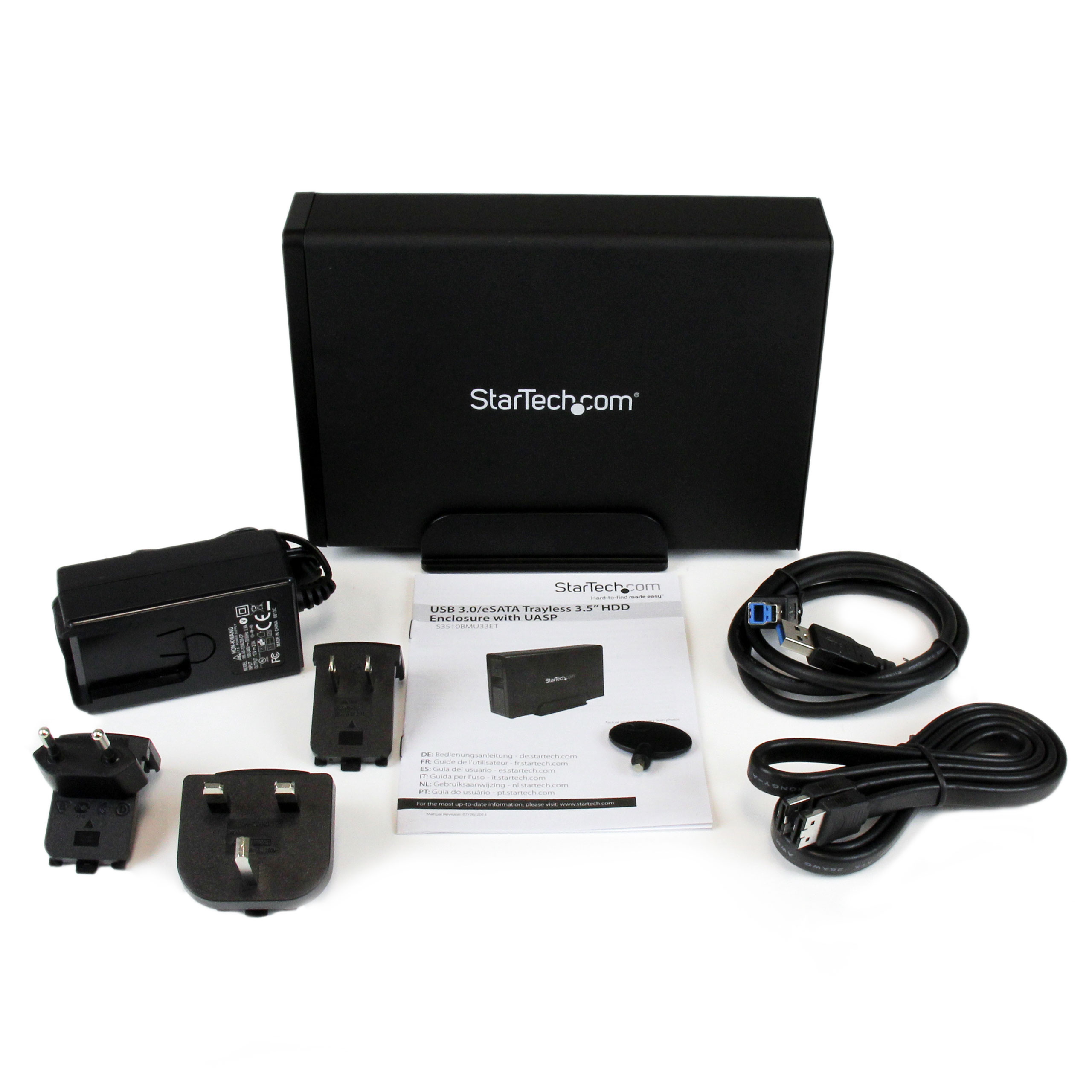

LED Indicators 1 - Power/Activity Number of Drives 1 Carton Depth (mm) 365 Carton Height (mm) 385 Carton Quantity 12 Carton Weight Gross (g) 17810 Included in Package - 1 - HDD Enclosure
- 1 - USB 3.0 Cable
- 1 - eSATA Cable
- 1 - Instruction Manual
- 1 - Universal Power Adapter (NA/UK/EU)
Package Depth (mm) 180 Package Height (mm) 115 Package Width (mm) 225 Package Quantity 1 Package Weight (g) 1400 Packaging Description USB 3.0/eSATA Trayless 3.5” HDD Enclosure w/UASP Packaging Description India USB 3.0/eSATA Trayless 3.5” HDD Enclosure w/UASP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Host Connector 2 eSATA (7-Pin) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-08-01 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
