S3510BMU33T

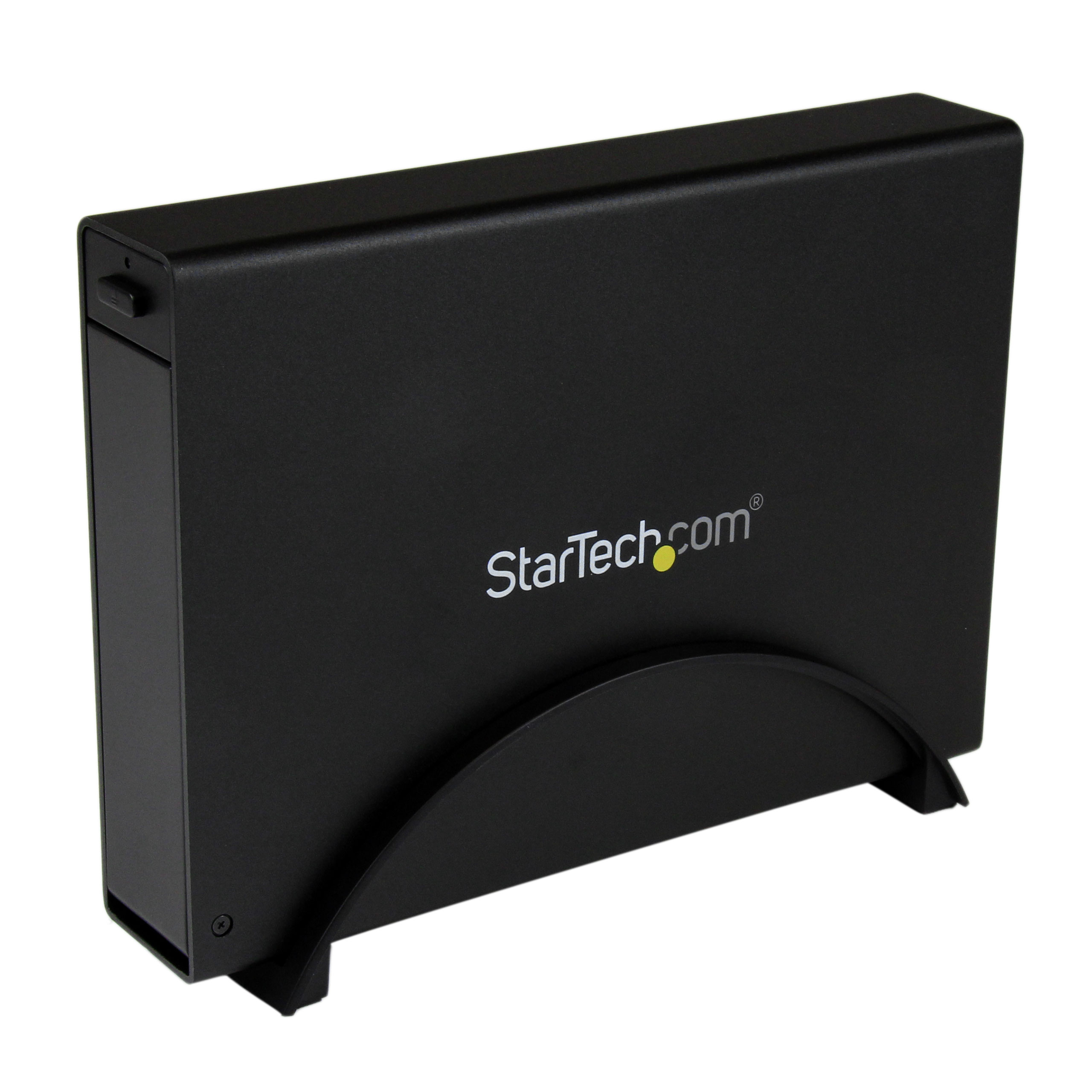

USB 3.0 3.5" SATA HDD Enclosure w/ UASP - Black
Easily connect and hot swap 3.5in SATA hard drives, with an external UASP-supported USB 3.0 black enclosure
Main Image
Product Images
Product Images
BOM Image
Product Name USB 3.0 3.5" SATA HDD Enclosure w/ UASP - Black Product Number S3510BMU33T UPC 065030852562 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) USB 3.0 SATA 3.5 HDD Product Title (Short) USB 3.0 to 3.5" SATA III HDD Enclosure Product Title (Standard) USB 3.0 Trayless External 3.5” SATA III HDD Enclosure w/ UASP for SATA 6 Gbps – Black Product Title (Long) USB 3.0 Trayless External 3.5” SATA III HDD Enclosure w/ UASP for SATA 6 Gbps – Black Product Title (AMZ) USB 3.0 Trayless External 3.5” SATA III HDD Enclosure w/ UASP for SATA 6 Gbps - External USB 3.0 Hard Drive Enclosure - Black (S3510BMU33T) Title Ingram (Part 1) USB 3.0 Trayless 3.5” SATA HDD Title Ingram (Part 2) Enclosure w/ UASP – Black Website Product Headline Easily connect and hot swap 3.5in SATA hard drives, with an external UASP-supported USB 3.0 black enclosure Bullet 1 UASP Compliant Bullet 2 Compatible with USB 3.0/2.0/1.1 (5Gbps/480Mbps/12Mbps) Bullet 3 Trayless Aluminum Enclosure Bullet 4 Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) Bullet 5 Plug-and-Play and Hot-Swap Compatible Bullets (Consolidated) Easily connect and hot swap 3.5in SATA hard drives - with an external UASP - supported USB 3.0 enclosure - SATA HDD Enclosure - USB SATA HDD Enclosure - External SATA Drive Enclosure - SATA 3.5 Hard Drive Enclosure - UASP Support - SATA 6 Gbps - Tool-less Design Marketing Copy Applications - Retrieve data from an old SATA drive, or turn the unused drive into additional external storage space
- Turn a high capacity SATA hard drive into portable, external storage
- Hot-swap drives using a single enclosure, instead of having to swap separate enclosures
- Backup and protect important files on an external portable enclosure
Website Search Keyword - SATA enclosure
- SATA 35" Enclosure
- SATA 3.5in Enclosure
- UASP enclosure
Accessory Products - HDDSLEV35
- USB3SAB1
- USB3SAB2MRA
- USB3CAB1M
- USB3SAB3
- USB3SAB3BK
- USB3SAB10
- USB3CAB2M
- USB3SAB1MRA
- USB3SAB6
- USB3SAB3MRA
- USB3SAB10BK
- USB3SAB6BK
Related Products - SAT3510BU2E
- S252U2ERR
- SAT3520U3R
- S3520BU33ER
- S3520WU33ER
- S3510WMU33T
- SAT35401U
- SAT3540U3ER
- S3510BMU33ET
- SAT3520U3SR

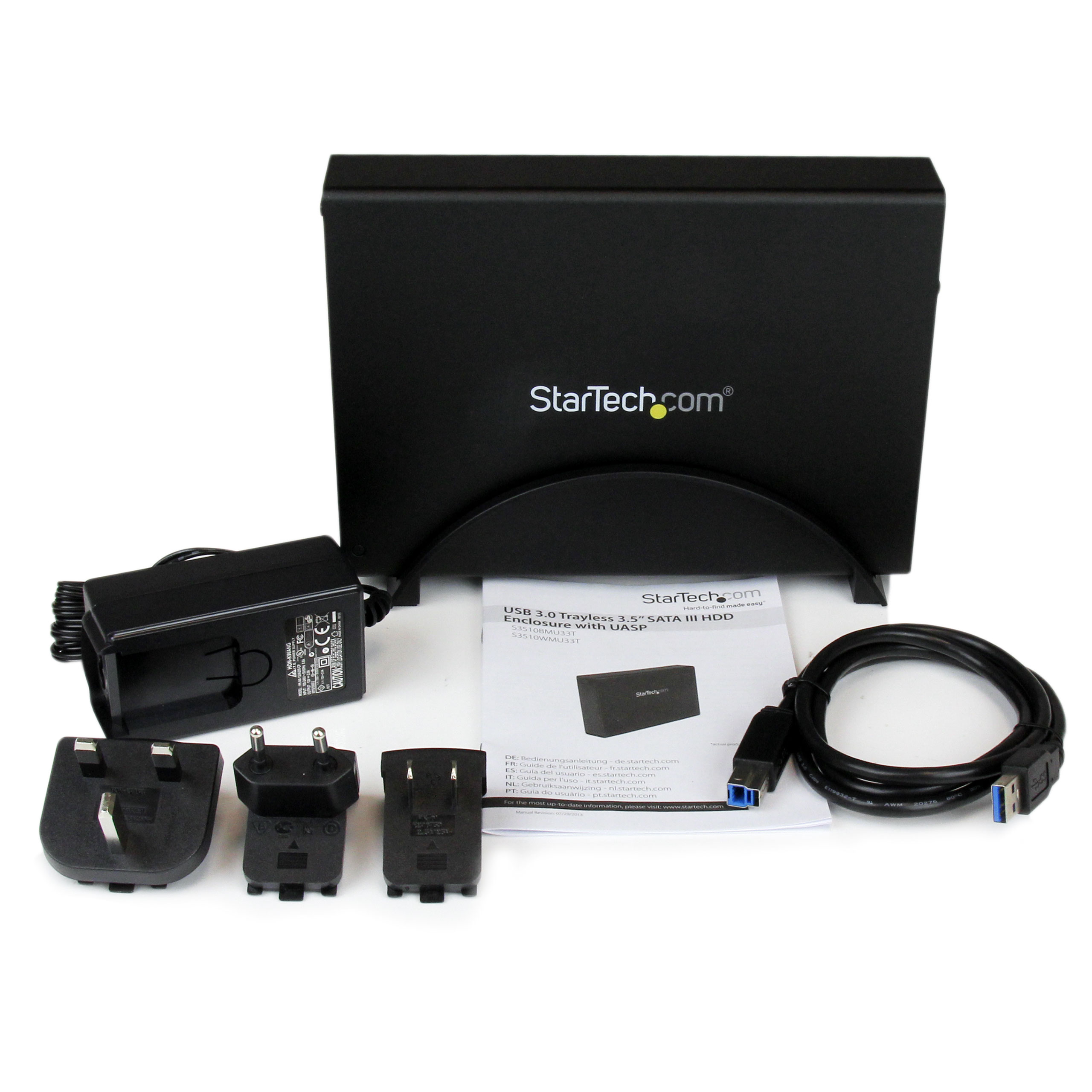

Input Current 0.8 A Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 20%RH ~ 80%RH Material Aluminum Operating Temperature 5°C to 35°C (41°F to 95°F) Product Length (mm) 206 Product Width (mm) 145 Product Height (mm) 38 Product Weight (g) 930 Storage Temperature 5°C to 35°C (41°F to 95°F) TAA Compliant No Hot Swap Capability Yes Max Drive Capacity Currently tested with up to 4TB 7200 RPM hard drive Maximum Data Transfer Rate 5 Gbps OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Chipset ID ASMedia - ASM1051E Compatible Drive Types SATA Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - Power/Activity Number of Drives 1 Carton Depth (mm) 245 Carton Height (mm) 515 Carton Quantity 10 Carton Weight Gross (g) 11700 Included in Package - 1 - USB 3.0 Enclosure
- 1 - USB 3.0 Cable
- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - User Manual
Package Depth (mm) 255 Package Height (mm) 80 Package Width (mm) 240 Package Quantity 1 Package Weight (g) 1100 Packaging Description USB 3.0 Trayless 3.5” SATA III HDD Enclosure w/UASP Packaging Description India USB 3.0 Trayless 3.5” SATA III HDD Enclosure w/UASP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-07-25 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
