Main Image
S3510SMU33
3 5in USB 3 0 External SATA HDD Enclosure w UASP

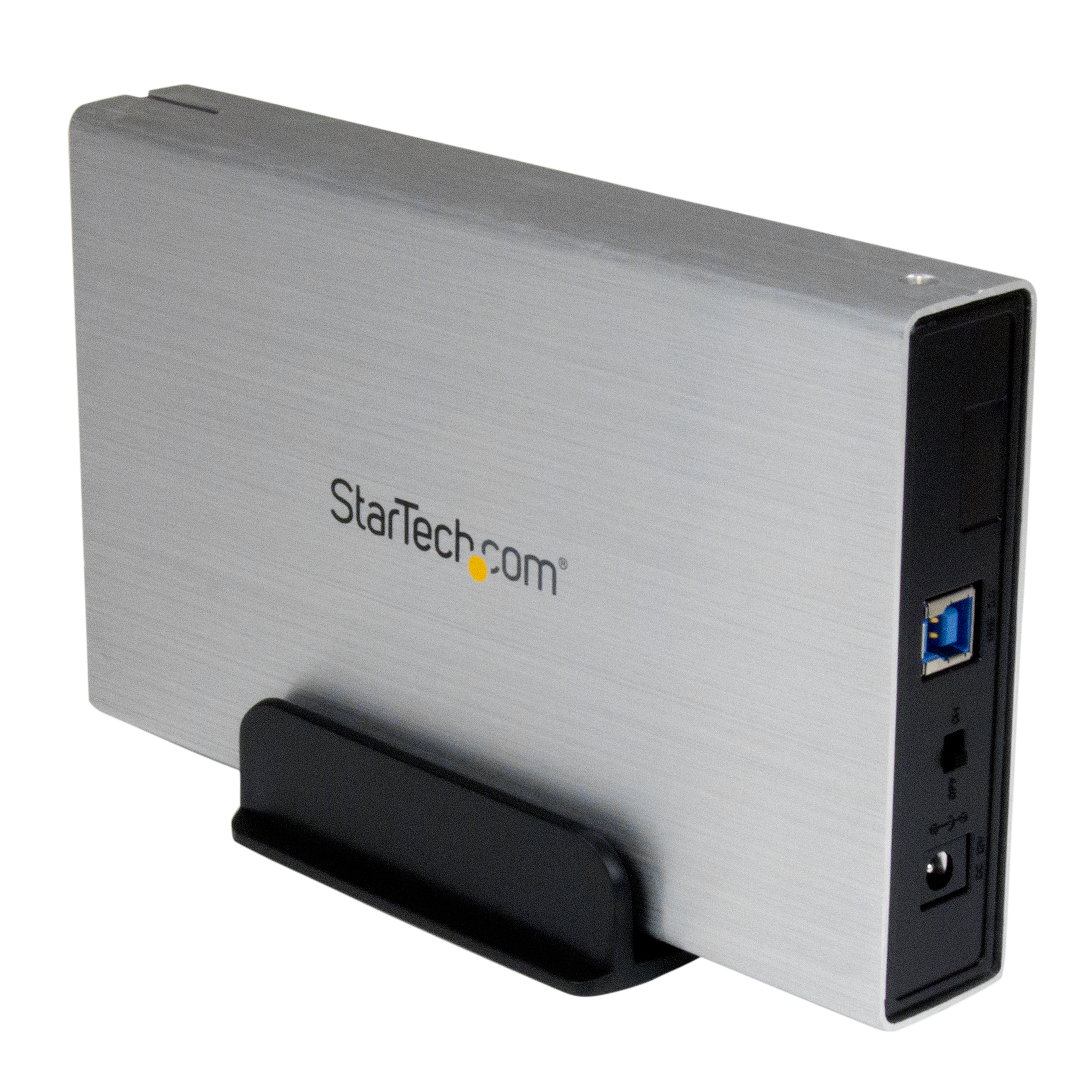

Turn a 3.5” SATA Hard Drive into a UASP-supported USB 3.0 External Hard Drive
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 3 5in USB 3 0 External SATA HDD Enclosure w UASP Product Number S3510SMU33 UPC 065030852241 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Family 3.5" SATA Enclosure Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Ultra-Short) USB 3 HDD Enclosure Product Title (Short) 3.5 USB 3 SATA SSD HDD Enclosure - UASP Product Title (Medium) x Product Title (Standard) Hard Drive Enclosure for 3.5in SATA Drives, USB 3.0 - Replaced by S351BMU33ET Product Title (Long) Hard Drive Enclosure for 3.5in SATA Drives, USB 3.0 Product Title (AMZ) Hard Drive Enclosure for 3.5in SATA Drives, Portable USB 3.0 Hard Drive Enclosure Title Ingram (Part 1) 3.5in USB 3.0 External SATA III Title Ingram (Part 2) SSD HDD Enclosure with UASP Website Product Headline Turn a 3.5” SATA Hard Drive into a UASP-supported USB 3.0 External Hard Drive Bullet 1 STYLISH DESIGN: The HDD enclosure for 3.5in SATA drives is made of durable aluminum with a fan-less design that ensures quiet operation; Vented tray design for maximum passive heat dissipation; Includes vertical stand to save desk space Bullet 2 INCREASED PRODUCTIVITY: The 3.5in SATA external hard drive enclosure lets you leverage the high performance of the latest SSDs (solid-state drives) and HDDs (hard drives), while alleviating bottlenecks in your data transfers Bullet 3 THE IT PRO'S CHOICE: Designed and built for IT professionals, this 3.5in hard drive enclosure is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance Bullet 4 MAXIMUM COMPATIBILITY: This fan-less hard drive enclosure comes with a USB A-to-B cable, providing backward compatibility with existing USB ports or hardware Bullet 5 FASTER SPEEDS: The USB 3.2 Gen 1 external hard drive enclosure gives you greater bandwidth and speed with file transfer rates of up to 5 Gbps Bullets (Consolidated) External hard drive enclosure - Connects a 3.5" SATA hard drive through an available USB port - HDD enclosure increases the data storage and backup capabilities of your computer - Tested with drives of up to 4TB capacity and supports 4Kn drives - USB 3.0 with UASP for faster performance - Supports SATA I/II/III - High quality aluminum with silver finish - Plug-and-Play and Hot-Swap compatible - Includes USB Type-A cable - Compact and portable Marketing Copy Applications - Take advantage of new laptops and desktops with USB 3.0 (UASP) connectivity
- Upgrade from a USB 2.0 drive enclosure to faster USB 3.0
- Create a fast, portable external storage solution for desktops, laptops or ultrabooks
- Add on extra storage to almost any USB-enabled computer system
- Share large files between computers quickly and securely without a network
- Retrieve data from an old SATA drive, or turn the unused drive into additional external storage space
- Turn a high capacity SATA hard drive into portable, external storage
Website Search Keyword - Portable
- USB 3.0
- Super Speed
- SuperSpeed
- USB Rev 3.0
- 5 Gbps
- Notebook
- Laptop
- 3.5" HDD
- Hard Drive
- External Enclosure
- External Case
- UASP
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
System and Cable Requirements Available USB port Accessory Products - ECUSB3S2
- PEXUSB3S2
- ECUSB3S254F
- ECUSB3S1
- PEXUSB3S11
- ECUSB3S11
- PEXUSB3S22
- PEXUSB3S23
- PEXUSB3S2E2I
- PEXUSB3S4
- PEXUSB3S400
- PEXUSB3S4V
- USB3CAB2M
- USB3CAB1M
- USB3SAB2MRA
- MPEXUSB3S2
- USB3SAB6
- USB3SAB3MRA
- USB3SAB10BK
- USB3SAB10
- USB3SAB3
- USB3SAB1
- USB3SAB3BK
- USB3SAB6BK
- ECUSB3S22
- PCIUSB3S22
- MPEXUSB3S22B
- USB3SAB1MRA
- PCIUSB3S4
- SVA12M2NEUA
- SVA12M5NA
Related Products - SAT3510BU3
- SAT2510BU3
- SAT3510U3V
- S2510BPU33
- S2510BMU33
- SAT3520U3SR
- S2510BU3PWPS
- UNI3510BMU32
- S3510BMU33
- S3510BMU33T
- S3510WMU33T
- S3510BMU33ET
- SAT3540U3ER
- SAT2510B12U3
- SAT3520U3R
- S2510BU3ISO
- SAT2510BU32

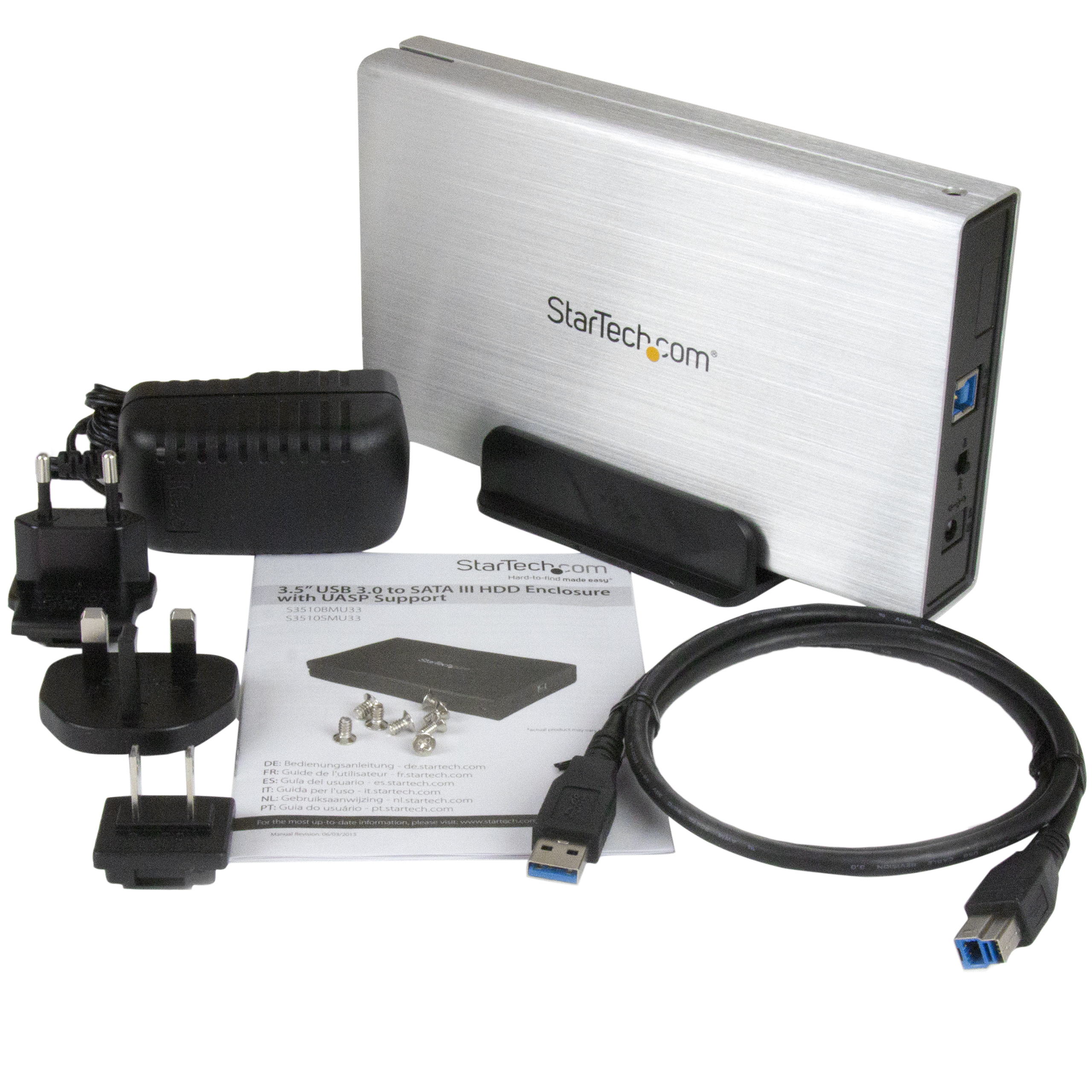

Replacement Product S351BMU33ET Constrained SKU Alternatives (Limited Stock) S3510BMU33 Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 12V DC Power Consumption (In Watts) 24 Power Source AC Adapter Included Center Tip Polarity Positive Color Silver Humidity Material Aluminum and Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 191.500 Product Width (mm) 31.400 Product Height (mm) 115.400 Product Weight (g) 321.000 Storage Temperature -10°C to 65°C (14°F to 149°F) TAA Compliant No Max Drive Capacity No maximum currently known; tested with up to 14TB 7200 RPM hard drive. OS Compatibility OS Independent RAID No SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Chipset ID ASMedia - ASM1153E Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - Power & Activity Number of Drives 1 Carton Depth (mm) 460 Carton Height (mm) 284 Carton Quantity 20 Carton Weight Gross (g) 17494 Included in Package - 1 - 3.5” USB 3.0 SATA III HDD Enclosure
- 1 - Product Manual
- 1 - Screw Kit
- 1 - USB 3.0 Cable (1m)
- 1 - Universal Power Adapter (NA/JP / UK / EU / ANZ)
- 1 - HDD Stand
Package Depth (mm) 136 Package Height (mm) 106 Package Width (mm) 224 Package Quantity 1 Package Weight (g) 824 Packaging Description 3.5" USB 3.0 to SATA III HDD Enclosure w/ UASP Support Packaging Description India 3.5" USB 3.0 to SATA III HDD Enclosure w/ UASP Support Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-06-19 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
