S351BU313

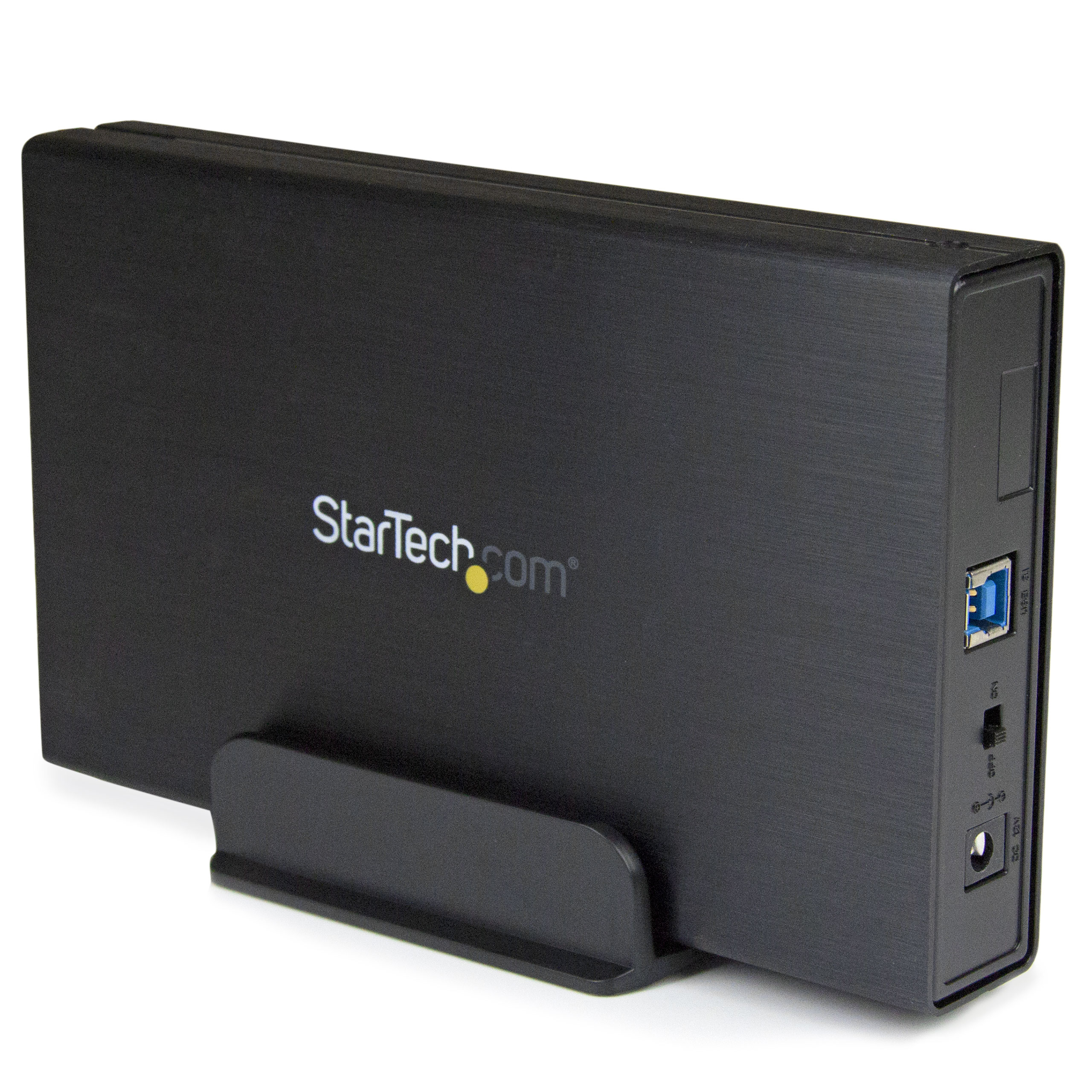

USB 3.1 to 3.5" Single Drive SATA HDD Enclosure
The high-speed, high-capacity data storage solution you’ve been waiting for – with USB 3.1 Gen 2
Main Image
Product Images
BOM Image
Product Name USB 3.1 to 3.5" Single Drive SATA HDD Enclosure Product Number S351BU313 UPC 065030861649 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Family 3.5" SATA Enclosure Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Ultra-Short) USB 3.1 Enclosure Product Title (Short) USB 3.1 (10Gbps) Enclosure for 3.5” SATA Product Title (Medium) USB 3.1 (10Gbps) Enclosure for 3.5” SATA Drives - Supports SATA 6 Gbps Product Title (Standard) USB 3.1 (10Gbps) Enclosure for 3.5” SATA Drives - Supports SATA 6 Gbps - Compatible with USB 3.0 and 2.0 Systems Product Title (Long) USB 3.1 (10Gbps) Enclosure for 3.5” SATA Drives Product Title (AMZ) USB 3.1 Gen 2 External Hard Drive Enclosure for 3.5” SATA Drives - Fan-less UASP Enhanced Single Drive Enclosure (S351BU313) Title Ingram (Part 1) USB 3.1 (10Gbps) Data Storage - Title Ingram (Part 2) for 3.5" SATA Drives - Fan-less Website Product Headline The high-speed, high-capacity data storage solution you’ve been waiting for – with USB 3.1 Gen 2 Bullet 1 FASTER SPEEDS: The USB 3.2 Gen 2 external hard drive enclosure gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps (twice the speed of USB 3.0 (USB 3.2 Gen 1) technology) Bullet 2 INCREASED PRODUCTIVITY: The 3.5in SATA external hard drive enclosure lets you leverage the high performance of the latest SSDs (solid-state drives) and HDDs (hard drives), while alleviating bottlenecks in your data transfers Bullet 3 STYLISH DESIGN: The HDD enclosure for 3.5in SATA drives is made of durable aluminum with a fan-less design that ensures quiet operation; Vented tray design for maximum passive heat dissipation; Includes vertical stand to save desk space Bullet 4 MAXIMUM COMPATIBILITY: This fan-less hard drive enclosure comes with a USB A-to-B cable, providing backward compatibility with existing USB ports or hardware Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT professionals, this 3.5in hard drive enclosure is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) High speed, high capacity data storage with USB 3.1 Gen 2 - 3.5 HDD enclosure - 3.5 SATA hard drive enclosure - Supports SATA III (6 Gbps) - Up to 6TB drive capacity - Supports SATA I, II and III - Compatible with USB 3.0 and 2.0 systems - Aluminum Bullets (Consolidated) The high speed and high capacity data storage solution you’ve been waiting for with USB 3.1 Gen 2 - 3.5" HDD enclosure - 3.5" SATA hard drive enclosure - USB 3.1 enclosure with UASP - 1-bay drive enclosure supports SATA III (up to 6 Gbps) - Fan-less design for quiet operation - External data storage with up to 6TB drive capacity - Supports UASP - Durable aluminum housing with vertical stand - Compatible with USB 3.0 and 2.0 systems Marketing Copy Marketing Copy (No HTML) Now, get the speed and capacity you want in external data storage. This aluminum SATA hard drive enclosure for 3.5" SATA hard drives gives you high-speed USB 3.1 Gen 2 (10 Gbps) performance with a large drive capacity. The enclosure for 3.5" SATA drives gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. The fanless hard drive enclosure lets you leverage the high performance of the latest SSHDs and hard drives, while alleviating bottlenecks in your data transfers. The clean and simple design makes this USB 3.1 (10Gbps) enclosure the perfect desktop companion for your Mac or PC. It's made of durable aluminum with a fan-less design that ensures quiet operation. It also comes with a vertical stand, so it occupies minimal space in your work area. This versatile single-drive enclosure comes with a USB Type A-to-B cable, providing backward compatibility with existing USB ports or hardware. It also provides UASP support for enhanced performance. The single-drive aluminum SATA hard drive enclosure is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Take advantage of new laptops and desktops with USB 3.1 Gen 2 (10 Gbps) connectivity
- Turn a high capacity SATA hard drive into portable, external storage
- Create a fast external storage solution for desktops, laptops or netbooks
- Upgrade from a USB 3.0 drive enclosure to faster USB 3.1 Gen 2
- Add extra data storage to almost any USB enabled computer system
- Backup important data to an external storage device
- Share large files between computers quickly and securely without a network
- Repurpose an unused SATA drive into additional external storage space
Website Search Keyword - USB 3.1 Enclosure
- USB 3.1 Gen 2 Enclosure
- Hard drive enclosure
- USB 3.1 Gen 2 (10 Gbps) Hard Drive Enclosure
- USB 3.1 Gen 2 to SATA hard drive Enclosure
- USB 3.1 3.5" SATA 6 Gbps Enclosure
- 3.5" SATA HDD enclosure
- 3.5" SATA hard drive enclosure
- USB 3.1 Gen 2 to SATA drive enclosure
- Single-drive 3.5" SATA HDD enclosure
- USB 3.1 Gen 2 to 3.5" SATA drive Enclosure
- Drive enclosure
- USB 3.1 Drive Enclosure
- USB 3.1 Gen 2 drive enclosure
- external data storage
- External data storage for 3.5" SATA drives
- 1-bay SATA drive enclosure
- U339001FLAT
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices. Accessory Products - PEXUSB312A
- USB3SAB1
- USB3CAB1M
Related Products - SAT3510BU3
- S3510BMU33B
- S3510SMU33
- S3510BMU33
- S3510BMU33ET
- S3510BMU33T
- S3510WMU33T
- UNI3510BMU32
- SAT3510BU2E
- IDE3510U2
- S251BMU313
- S251BPU313
- SDOCK2U313
- SDOCKU313
- USB312SAT3CB

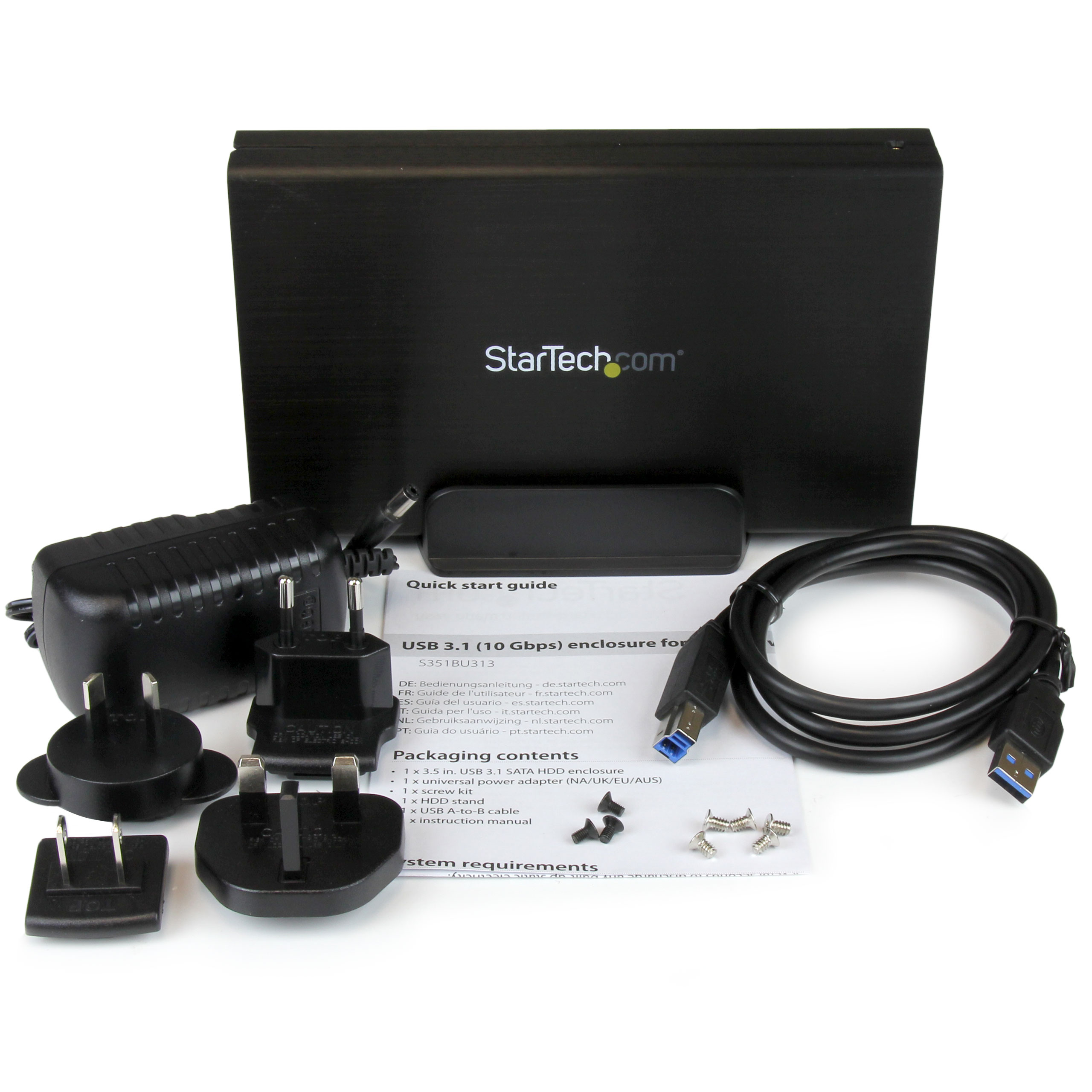

Input Current 0.6A Input Voltage 100 - 240 AC Output Current 2000mA Output Voltage (V) 12V DC Power Consumption (In Watts) 24 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity Material Aluminum and Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 191.5 Product Width (mm) 115.4 Product Height (mm) 31.4 Product Weight (g) 325 Storage Temperature -10°C to 65°C (14°F to 149°F) TAA Compliant No 4Kn Support Yes Maximum Data Transfer Rate 10 Gbps MTBF (hours) 234,284 hours OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) TRIM Support Yes UASP Support Yes USB Type and Rate USB 10Gbps Bus Type USB 3.2 Gen 2 Chipset ID ASMedia - ASM235CM Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 2 LED Indicators 1 - Power & Activity Number of Drives 1 Carton Depth (mm) 465 Carton Height (mm) 285 Carton Quantity 20 Carton Weight Gross (g) 10470 Included in Package - 1 - USB 3.1 to SATA HDD Enclosure
- 1 - Screw Kit
- 1 - Universal Power Adapter (NA / UK / EU / AUS) - 60 inches (cable)
- 1 - USB 3.0 A to B Cable - 40.5 inches
- 1 - HDD Stand
- 1 - Quick Install Guide
Package Depth (mm) 135 Package Height (mm) 106 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 738 Packaging Description USB 3.1 (10Gbps) enclosure for SATA drives Packaging Description India USB 3.1 (10Gbps) enclosure for SATA drives Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2015-03-31 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-04-17 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
