S3520BU33ER

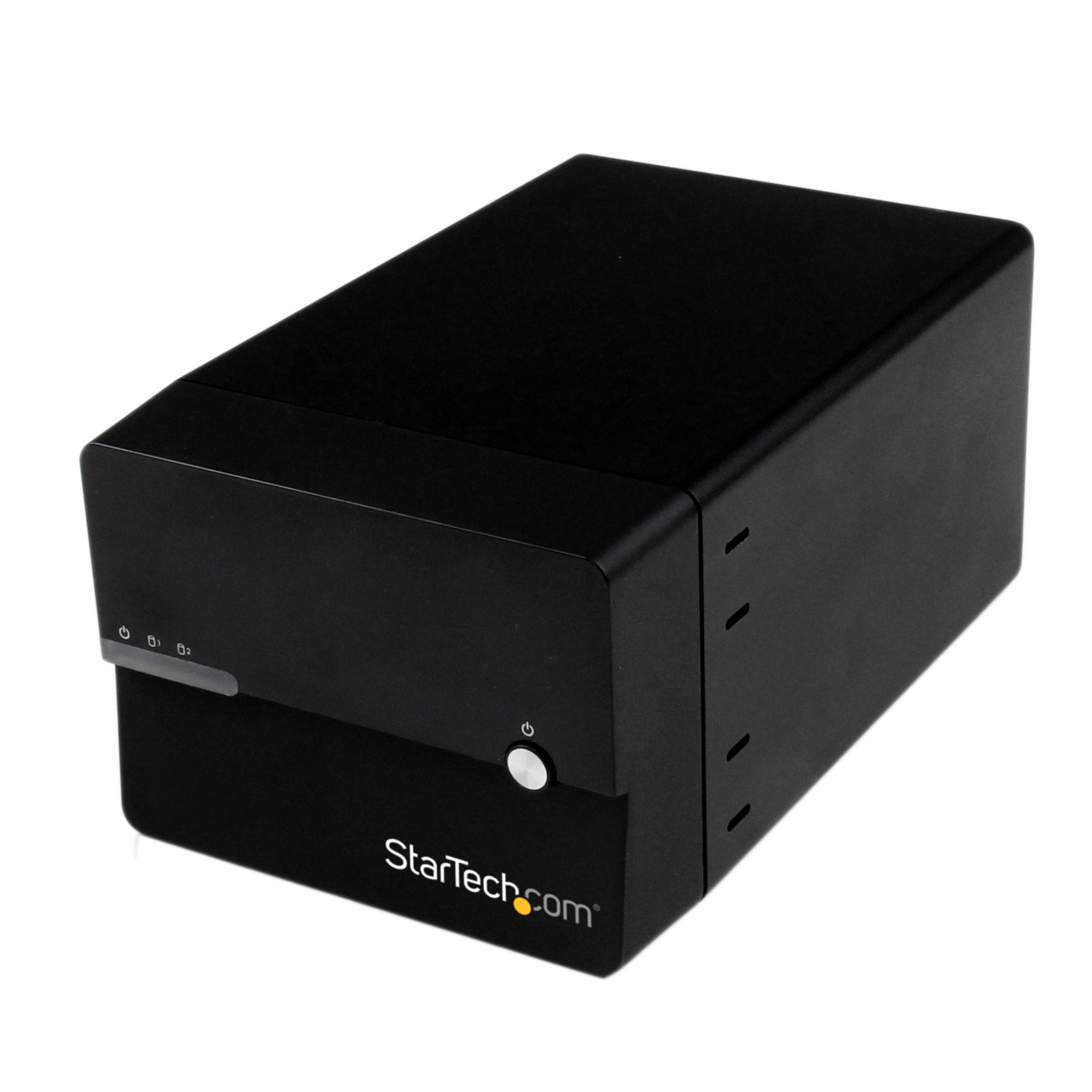

USB 3 eSATA Dual 3.5" HDD RAID Enclosure w/ UASP
Create an external dual 3.5in HDD SATA RAID array, connected through either USB 3.0 with UASP or eSATA
Main Image
Product Images
Product Images
BOM Image
Product Name USB 3 eSATA Dual 3.5" HDD RAID Enclosure w/ UASP Product Number S3520BU33ER UPC 065030853613 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) Dual Bay Enclosure Product Title (Short) Dual Bay SATA Enclosure with RAID Product Title (Standard) USB 3.0 eSATA Dual 3.5” SATA III Hard Drive External RAID Enclosure w/ UASP and Fan – Black Product Title (Long) USB 3.0/eSATA Dual 3.5” SATA III Hard Drive External RAID Enclosure w/ UASP and Fan – Black Product Title (AMZ) USB 3.0 eSATA Dual 3.5 SATA III Hard Drive RAID Enclosure w/ UASP and Fan - Black - Multi Bay 3.5" SATA HDD Enclosure w/ UASP (S3520BU33ER) Title Ingram (Part 1) 2 Bay HDD RAID Enclosure w/ Title Ingram (Part 2) UASP - USB 3 SATA Enclosure Website Product Headline Create an external dual 3.5in HDD SATA RAID array, connected through either USB 3.0 with UASP or eSATA Bullet 1 UASP Support (Attached SCSI Protocol Specification Revision 1.0) Bullet 2 eSATA or USB Host Connection Bullet 3 Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) Bullet 4 Plug-and-Play Compatible Bullet 5 Dual Drive Bay Bullets (Consolidated) Create an external dual 3.5in HDD SATA RAID array connected through either USB 3.0 with UASP or eSATA - USB 3.0 eSATA Dual 3.5" SATA III Hard Drive External RAID Enclosure w/ UASP and Fan - Black - Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) - HDD RAID Enclosure - UASP - 80 mm Ball Bearing Fan - Black Marketing Copy Marketing Copy (No HTML) The 2-Bay RAID Enclosure enables you to build a secure RAID array with two 3.5" SATA hard drives, with the option to connect it to your computer through either an available USB 3.0 or eSATA port. The RAID enclosure supports full SATA III transfer speeds (up to 6 Gbps), as well as full USB 3.0 transfer speeds (up to 5Gbps). When connected through USB, the enclosure supports UASP, which offers performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. With support for JBOD, Spanning, RAID 0, and RAID 1,the enclosure offers several options that enable you to customize your drive arrangement based on your storage requirements. The external RAID enclosure features high-quality aluminum construction with a built-in fan that maintains a better operating environment for your drives. The HDD enclosure offers a versatile solution for increasing the storage/backup capabilities of your computer, with support for large capacity hard drives (tested up to 4TB). The enclosure supports all of the leading operating systems. It is backed by a StarTech.com 2-year warranty and free lifetime technical support. UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance. At the same peak in testing UASP also shows an 80% reduction in required processor resources. Applications - Business applications that require external RAID storage for data redundancy
- Video editing or photography professional/enthusiasts working with very large file sizes
- Transfer large files between computers quickly and securely without a network
- Scenarios requiring easy storage transferability between different computer systems and large volume external storage for backups/archiving
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - USB3SAB1
- USB3CAB1M
- USB3SAB3
- USB3SAB3BK
- USB3SAB10
- USB3CAB2M
- USB3SAB1MRA
- USB3SAB6
- USB3SAB2MRA
- USB3SAB6BK
- USB3SAB3MRA
- ESATA6
- ECESAT32
- SATA2ESATA6
- ESATAPLATE1
- ESATAPLT2M
- PEXESAT32
- PEXUSB3S400
- PEXUSB3S4
- PEXESAT322I
- PEXSAT34
- PEXUSB3S2
- PEXSAT31E1
- PEXUSB3S4V
- SVA12M5NA
Related Products - SAT3520U3SR
- SAT3520U3R
- S352U2RERR
- SAT3540U3ER
- S3540BU33E
- S3520WU33ER
- SAT35401U
Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 20%RH ~ 80%RH Material Aluminum and Plastic Operating Temperature 5°C to 35°C (41°F to 95°F) Product Length (mm) 176.000 Product Width (mm) 113.000 Product Height (mm) 85.000 Product Weight (g) 620.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No Hot Swap Capability Yes Max Drive Capacity Currently tested with up to 4TB 7200 RPM hard drive MTBF (hours) 30,000 hours OS Compatibility OS Independent Port Multiplier Yes RAID Yes SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Chipset ID JMicron - JMS562 Compatible Drive Types SATA Fan Bearing Type Ball Bearing Fans 1 - 40 mm Fans Included? Yes/No Yes Interface/Bridge - eSATA
- USB 3.2 Gen 1 (5Gbps)

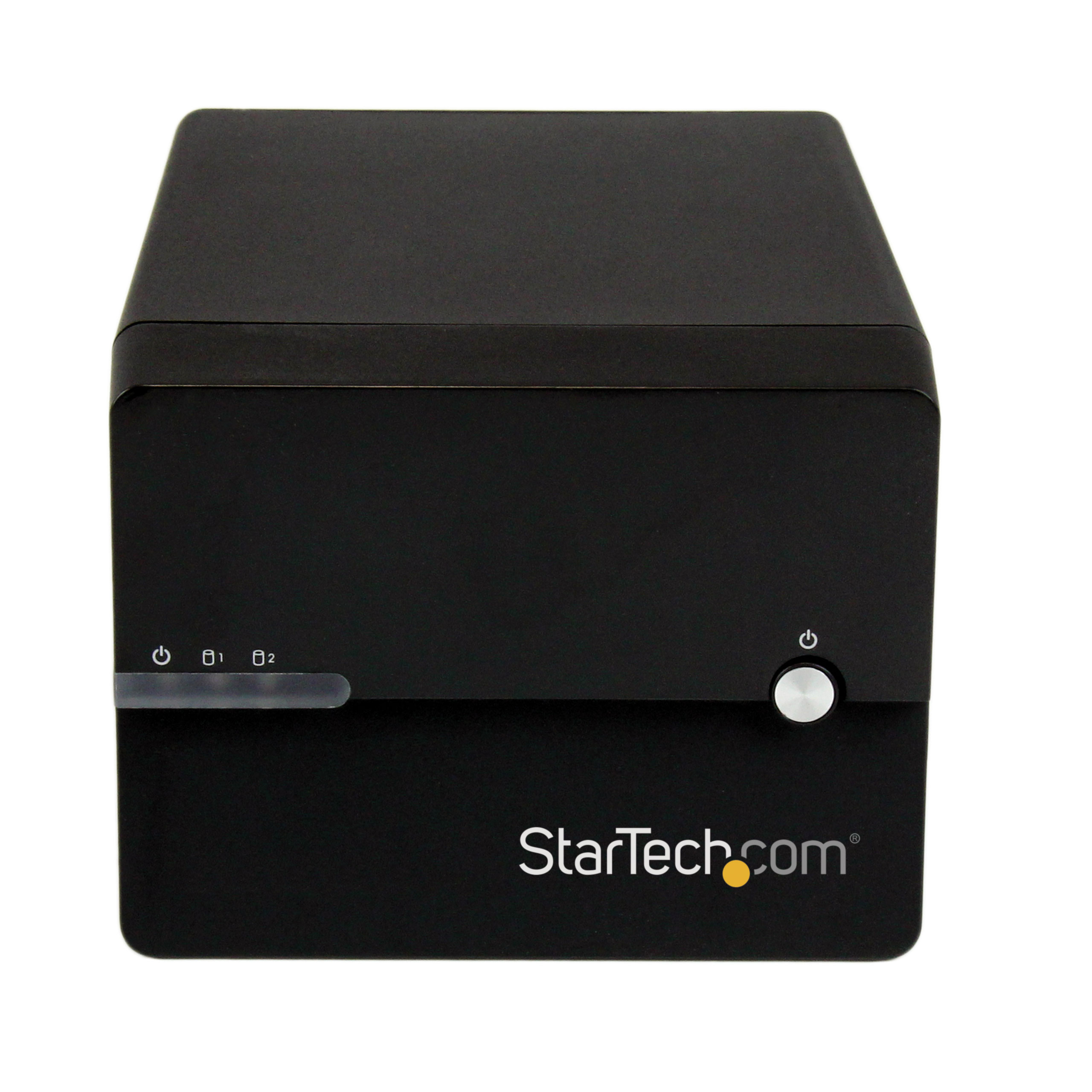

LED Indicators - 1 - Enclosure Power LED
- 1 - Drive 1 Activity LED
- 1 - Drive 2 Activity LED

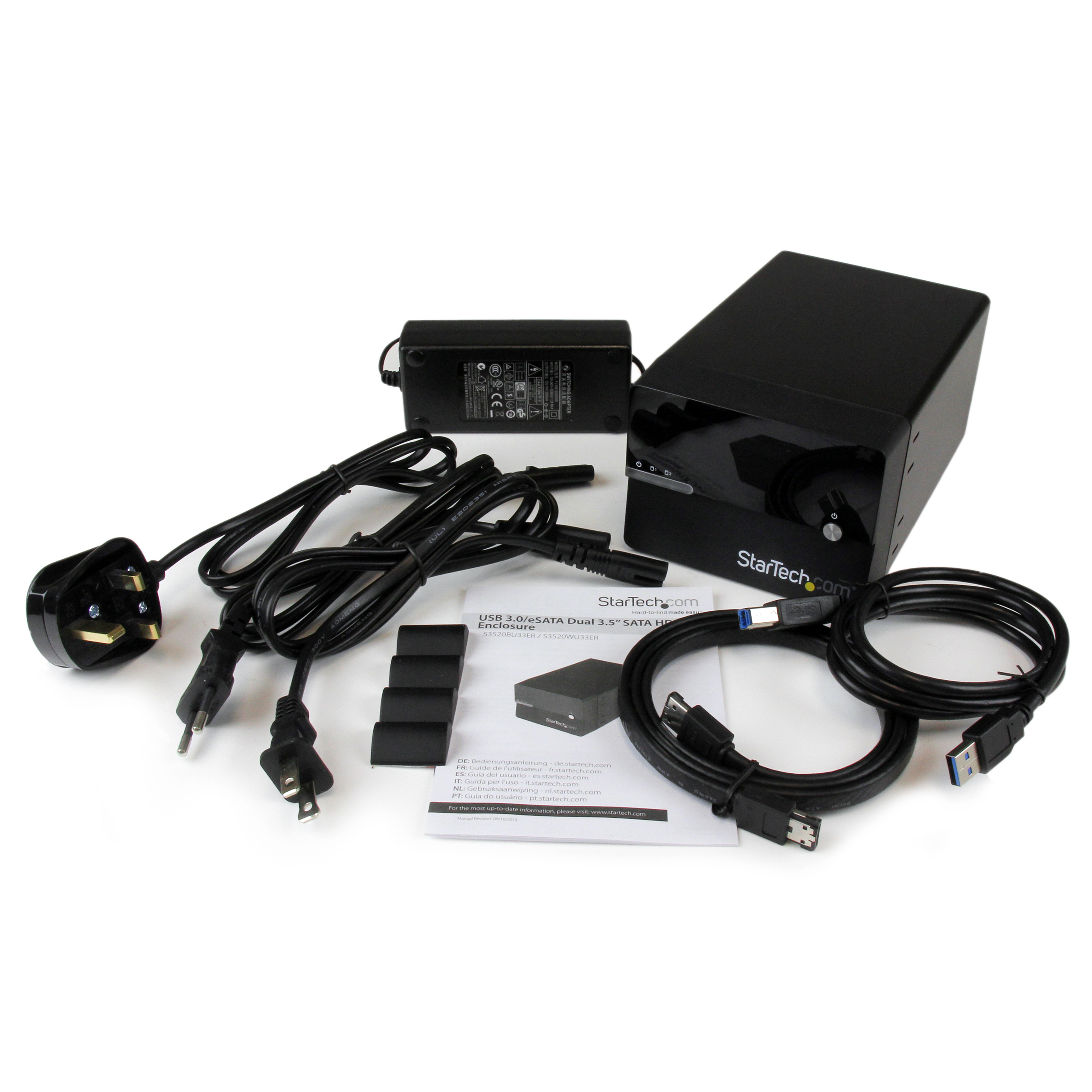

Number of Drives 2 Carton Depth (mm) 405 Carton Height (mm) 270 Carton Quantity 8 Carton Weight Gross (g) 12420 Included in Package - 1 - USB 3.0/eSATA HDD RAID enclosure
- 1 - rubber foot set
- 1 - USB 3.0 cable
- 1 - instruction manual
- 1 - eSATA cable
- 1 - universal power adapter (NA,EU,UK)
Package Depth (mm) 180 Package Height (mm) 140 Package Width (mm) 256 Package Quantity 1 Package Weight (g) 1355 Packaging Description USB 3.0/eSATA Dual 3.5” SATA HDD Enclosure Packaging Description India USB 3.0/eSATA Dual 3.5” SATA HDD Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 0 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 0 Host Connector 2 eSATA (7-Pin) Host Connector 2 (Quantity) 0 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-09-25 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
