S3520WU33ER
USB 3 eSATA Dual 3.5" HDD RAID Enclosure w/ UASP
Create an external dual 3.5in HDD SATA RAID array, connected through either USB 3.0 with UASP or eSATA
Main Image
Product Images
Product Images
BOM Image
Product Name USB 3 eSATA Dual 3.5" HDD RAID Enclosure w/ UASP Product Number S3520WU33ER UPC 065030853620 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) Dual Bay Enclosure Product Title (Short) Dual Bay SATA Enclosure with RAID Product Title (Standard) USB 3.0 eSATA Dual 3.5” SATA III Hard Drive External RAID Enclosure w/ UASP and Fan – White Product Title (Long) USB 3.0 eSATA Dual 3.5” SATA III Hard Drive External RAID Enclosure w/ UASP and Fan – White Product Title (AMZ) USB 3.0 eSATA Dual 3.5 SATA III Hard Drive RAID Enclosure w/ UASP and Fan - White - Multi Bay 3.5" SATA HDD Enclosure w/ UASP (S3520WU33ER) Title Ingram (Part 1) 2 Bay HDD RAID Enclosure w/ Title Ingram (Part 2) UASP - USB 3 SATA Enclosure Website Product Headline Create an external dual 3.5in HDD SATA RAID array, connected through either USB 3.0 with UASP or eSATA Bullet 1 UASP Support (Attached SCSI Protocol Specification Revision 1.0) Bullet 2 eSATA or USB Host Connection Bullet 3 Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) Bullet 4 Plug-and-Play Compatible Bullet 5 Dual Drive Bay Bullets (Consolidated) Create an external dual 3.5in HDD SATA RAID array connected through either USB 3.0 with UASP or eSATA - Multi Bay Hard Drive Enclosure - Dual Bay SATA Enclosure with RAID - White 2 Bay SATA External Enclosure - 2 Bay HDD RAID Enclosure - SATA 6 Gbps -Hardware RAID: JBOD/0/1/Spanning - Build-in Fan Marketing Copy Applications - Build an external RAID 1 array for data redundancy, to protect against drive failure when working with important data
- Externally work with very large files securely in video editing or photography applications
- Quickly transfer large data files from your computer to a secure external RAID enclosure
Microsoft WHQL Certified Yes Accessory Products - USB3SAB1
- USB3CAB1M
- USB3SAB3
- USB3SAB3BK
- USB3SAB10
- USB3CAB2M
- USB3SAB1MRA
- USB3SAB6
- USB3SAB2MRA
- USB3SAB6BK
- USB3SAB3MRA
- ESATA6
- ECESAT32
- SATA2ESATA6
- ESATAPLATE1
- ESATAPLT2M
- PEXESAT32
- PEXESAT322I
- PEXSAT34
- PEXUSB3S400
- PEXUSB3S4
- PEXSAT31E1
- PEXUSB3S2
- PEXUSB3S4V
Related Products - SAT3520U3SR
- SAT3520U3R
- S352U2RERR
- S3520BU33ER
- SAT3540U3ER
- S3540BU33E
- SAT35401U
Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color White Humidity 20%RH ~ 80%RH Material Aluminum and Plastic Operating Temperature 5°C to 35°C (41°F to 95°F) Product Length (mm) 176 Product Width (mm) 113 Product Height (mm) 85 Product Weight (g) 620 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No Hot Swap Capability Yes Max Drive Capacity Currently tested with up to 4TB 7200 RPM hard drive OS Compatibility OS Independent Port Multiplier Yes RAID Yes SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Chipset ID JMicron - JMS562 Compatible Drive Types SATA Fan Bearing Type Ball Bearing Fans 0 - 80 mm Fans Included? Yes/No Yes Interface/Bridge - eSATA
- USB 3.2 Gen 1 (5Gbps)

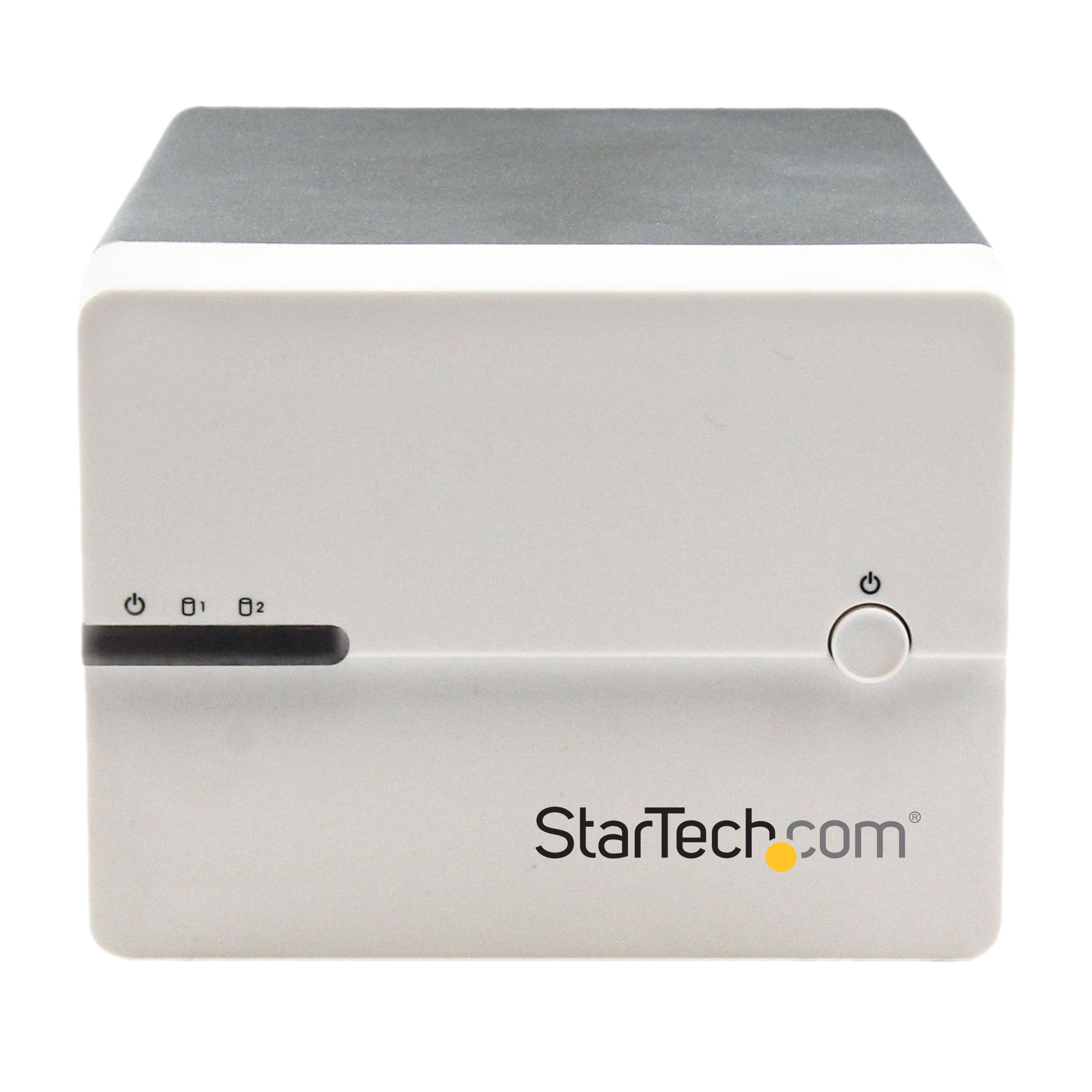

LED Indicators - 1 - Enclosure Power LED
- 1 - Drive 2 Activity LED
- 1 - Drive 1 Activity LED

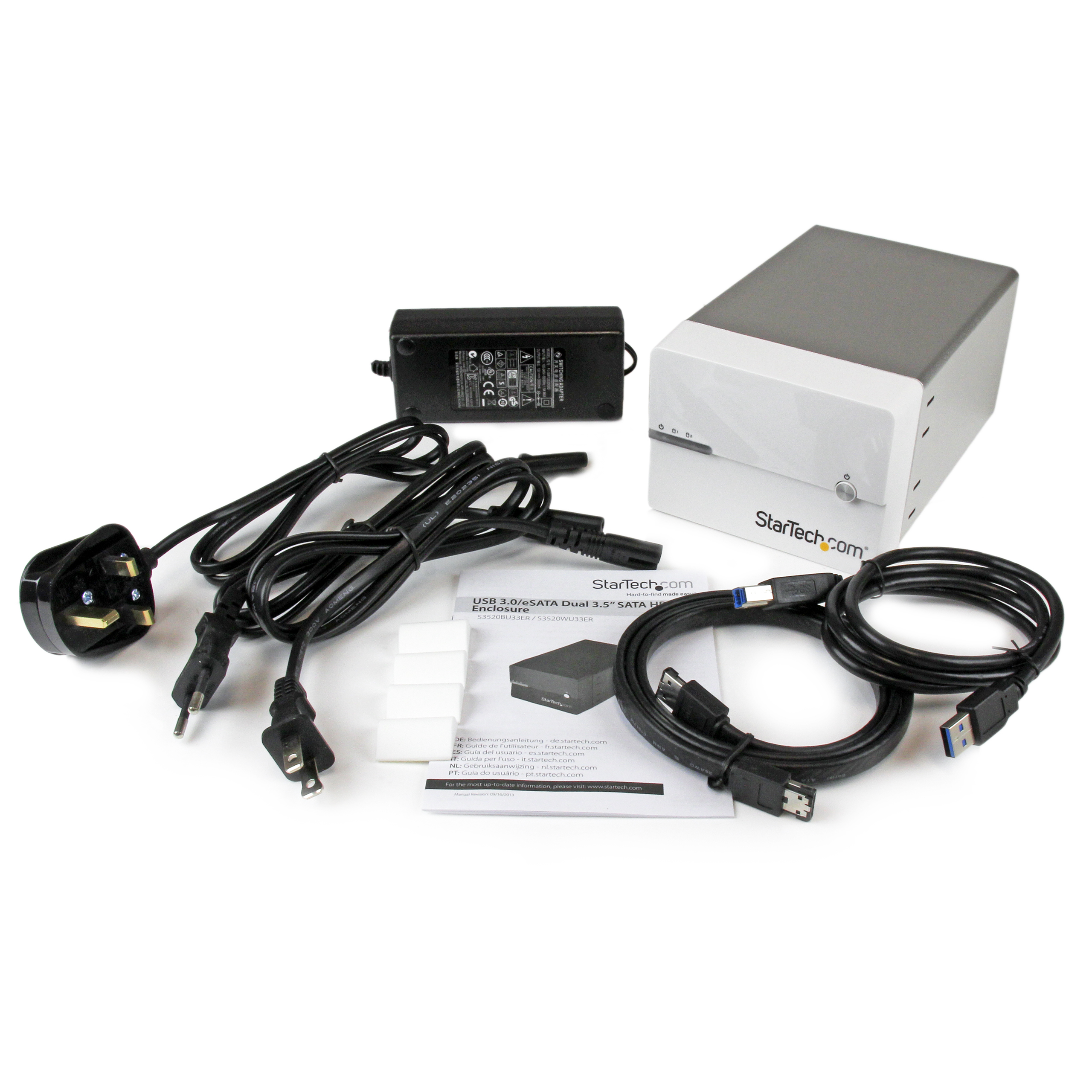

Number of Drives 2 Carton Depth (mm) 265 Carton Height (mm) 395 Carton Quantity 8 Carton Weight Gross (g) 11800 Included in Package - 1 - USB 3.0/eSATA HDD RAID Enclosure
- 1 - Rubber foot set
- 1 - USB 3.0 Cable
- 1 - Instruction Manual
- 1 - eSATA Cable
- 1 - Universal Power Adapter
- 3 - Regional power cords (NA/UK/EU)
Package Depth (mm) 139 Package Height (mm) 178 Package Width (mm) 258 Package Quantity 1 Package Weight (g) 1355 Packaging Description USB 3.0/eSATA Dual 3.5” SATA HDD Enclosure w/ RAID Packaging Description India USB 3.0/eSATA Dual 3.5” SATA HDD Enclosure w/ RAID Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 0 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 0 Host Connector 2 eSATA (7-Pin) Host Connector 2 (Quantity) 0 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-09-25 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
