Main Image
S352BMU3N
Gigabit Dual Bay NAS RAID Enclosure Media Server
Create an external dual 3.5in SATA HDD RAID array you can access over a Gigabit LAN using WebDAV, FTP, and Windows® Share services
Main Image
Product Images
Product Images
BOM Image
Product Name Gigabit Dual Bay NAS RAID Enclosure Media Server Product Number S352BMU3N UPC 065030854719 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) NAS RAID Enclosure Product Title (Short) Dual Bay Gigabit NAS RAID Enclosure Product Title (Standard) Dual Bay Gigabit NAS RAID Enclosure for 3.5” SATA Hard Drives w/ WebDAV and Media Server Product Title (Long) Dual Bay Gigabit NAS RAID Enclosure for 3.5” SATA Hard Drives w/ WebDAV and Media Server Product Title (AMZ) Dual Bay Gigabit NAS RAID Enclosure for 3.5” SATA Hard Drives w/ WebDAV and Media Server - NAS Media Server Enclosure w/ Fan (S352BMU3N) Title Ingram (Part 1) Dual Bay NAS RAID Enclosure - Title Ingram (Part 2) Gigabit NAS Media Server Website Product Headline Create an external dual 3.5in SATA HDD RAID array you can access over a Gigabit LAN using WebDAV, FTP, and Windows® Share services Bullet 1 Access files from a wide range of devices including smartphones and tablets with support for third party iOS and Android WebDAV apps Bullet 2 Stream music and video files to Smart TVs, Blu-ray players, and gaming consoles with UPnP and DLNA support Bullet 3 Protect your data with redundancy or increase performance & volume capacity, with support for Hardware RAID (0,1, JBOD) Bullet 4 Dual 3.5in SATA drive bay Bullet 5 Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) Bullets (Consolidated) Dual 3.5" SATA NAS Enclosure with RAID and USB 3.0 - Compatible with 3.5in SATA hard drives such as Western Digital Red/Blue/Green HDD and SeaGate Barracuda HDD and can be intergrated into any home or office network -/NAS File Backup Enclosure/NAS RAID Enclosure/NAS media Server - Gigabit LAN support - Access data from third party WebDAV mobile apps - Stream digital media with UPnP and DLNA - Hardware RAID 0,1,JBOD - USB 3.0 DAS Enclosure - Share files with SMB and FTP services Marketing Copy Applications - Access files on a network from any web browser-enabled device in an office network application
- Scenarios requiring easy storage transferability between different computer systems and large volume external storage for backups/archiving
- Create a cloud storage solution
- Access the drive with devices such as tablets and Smartphones that may not have a File Explorer
- Setup a redundant RAID array to protect files against drive failure
Website Search Keyword - NAS Enclosure
- Dual NAS Enclosure
- 3.5" NAS
- 3.5" Dual NAS
- External NAS Enclosure
- Gigabit NAS Enclosure
- Network drive enclosure
- dual network drive enclosure
- Nas with DAS
- NAS with USB 3.0
- NAS with USB
- Dual 3.5in bay NAS enclosure
- 2 bay NAS enclosure
Accessory Products - USB3SAB1
- USB3CAB1M
- USB3SAB3
- USB3SAB3BK
- USB3SAB10
- USB3CAB2M
- USB3SAB1MRA
- USB3SAB6
- USB3SAB2MRA
- USB3SAB6BK
- USB3SAB3MRA
- C6PATCH10BL
- C6PATCH6BK
- C6PATCH15GN
- C6PATCH3GR
- SVA12M5NA
Related Products - SAT3520U3SR
- SAT3520U3R
- S352U2RERR
- SAT3540U3ER
- S3540BU33E
- S3520WU33ER
- SAT35401U
- S3520BU33ER
Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Plug Type M Color Black Humidity 20%RH ~ 80%RH Material Aluminum Operating Temperature 5°C to 35°C (41°F to 95°F) Product Length (mm) 180.500 Product Width (mm) 115.500 Product Height (mm) 85.000 Product Weight (g) 627.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No Hot Swap Capability No Max Drive Capacity Currently tested with up to 4TB 7200 RPM hard drives Maximum Data Transfer Rate OS Compatibility OS Independent RAID Yes SATA Type and Rate SATA III (6 Gbps) UASP Support No USB Type and Rate USB 3.0 (5Gbps) Chipset ID JMicron - JCS358 Compatible Drive Types SATA Fan Bearing Type Ball Bearing Fans 1 - 40 mm Fans Included? Yes/No Yes Interface/Bridge - USB 3.2 Gen 1 (5Gbps)
- RJ45 (Gigabit Ethernet)
LED Indicators - 1 - Power
- 1 - Drive 1 Activity
- 1 - Drive 2 Activity

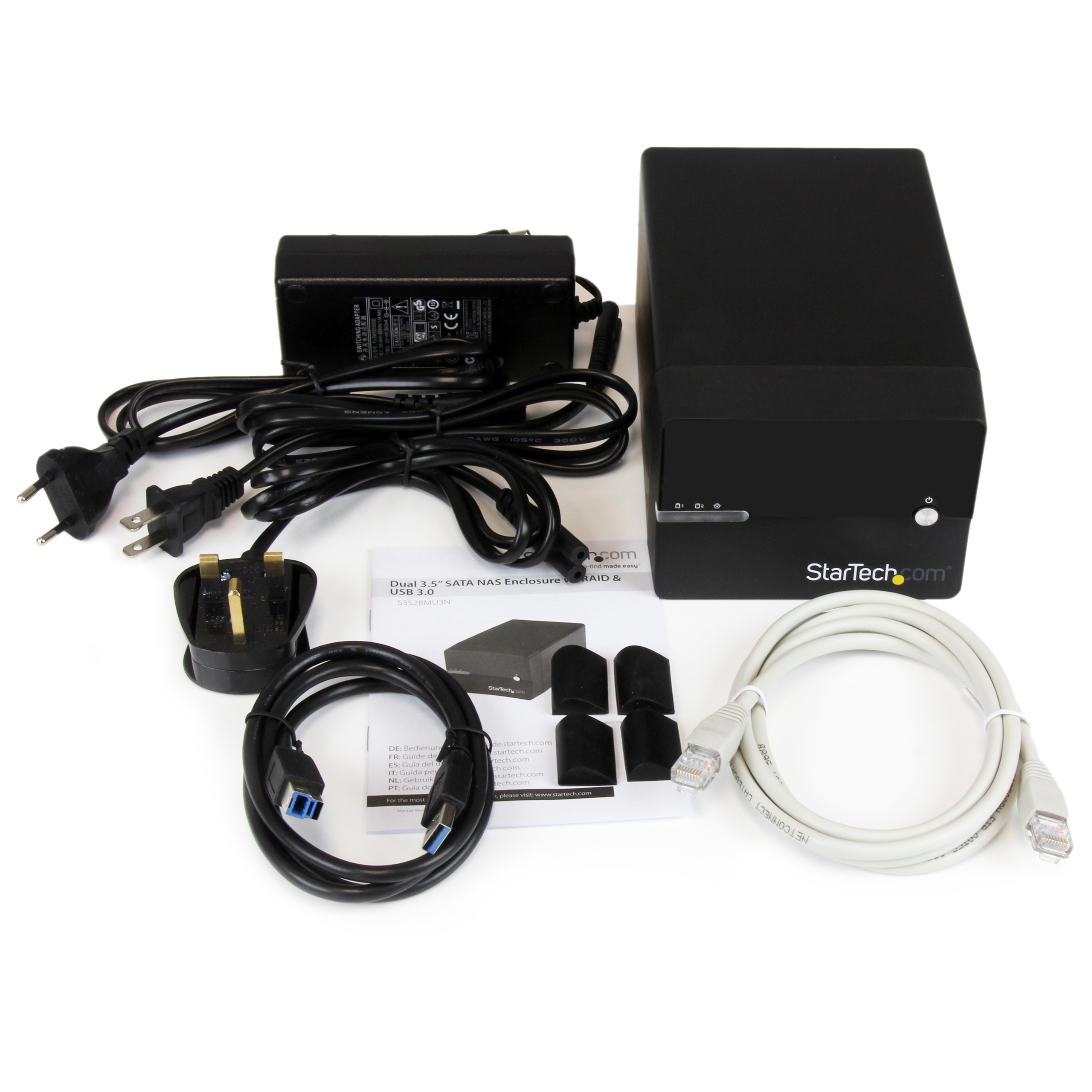

Number of Drives 2 Carton Depth (mm) 265 Carton Height (mm) 390 Carton Quantity 8 Carton Weight Gross (g) 11910 Included in Package - 1 - NAS HDD RAID Enclosure
- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - Ethernet Cable
- 1 - Rubber foot set
- 1 - Quick Install Guide
- 1 - USB 3.0 Cable
Package Depth (mm) 255 Package Height (mm) 181 Package Width (mm) 140 Package Quantity 1 Package Weight (g) 1361 Packaging Description Dual 3.5” SATA NAS Enclosure w/ RAID & USB 3.0 Packaging Description India Dual 3.5” SATA NAS Enclosure w/ RAID & USB 3.0 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Host Connector 2 USB-B (5Gbps, 4.5W) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-11-13 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
