S352BU313R

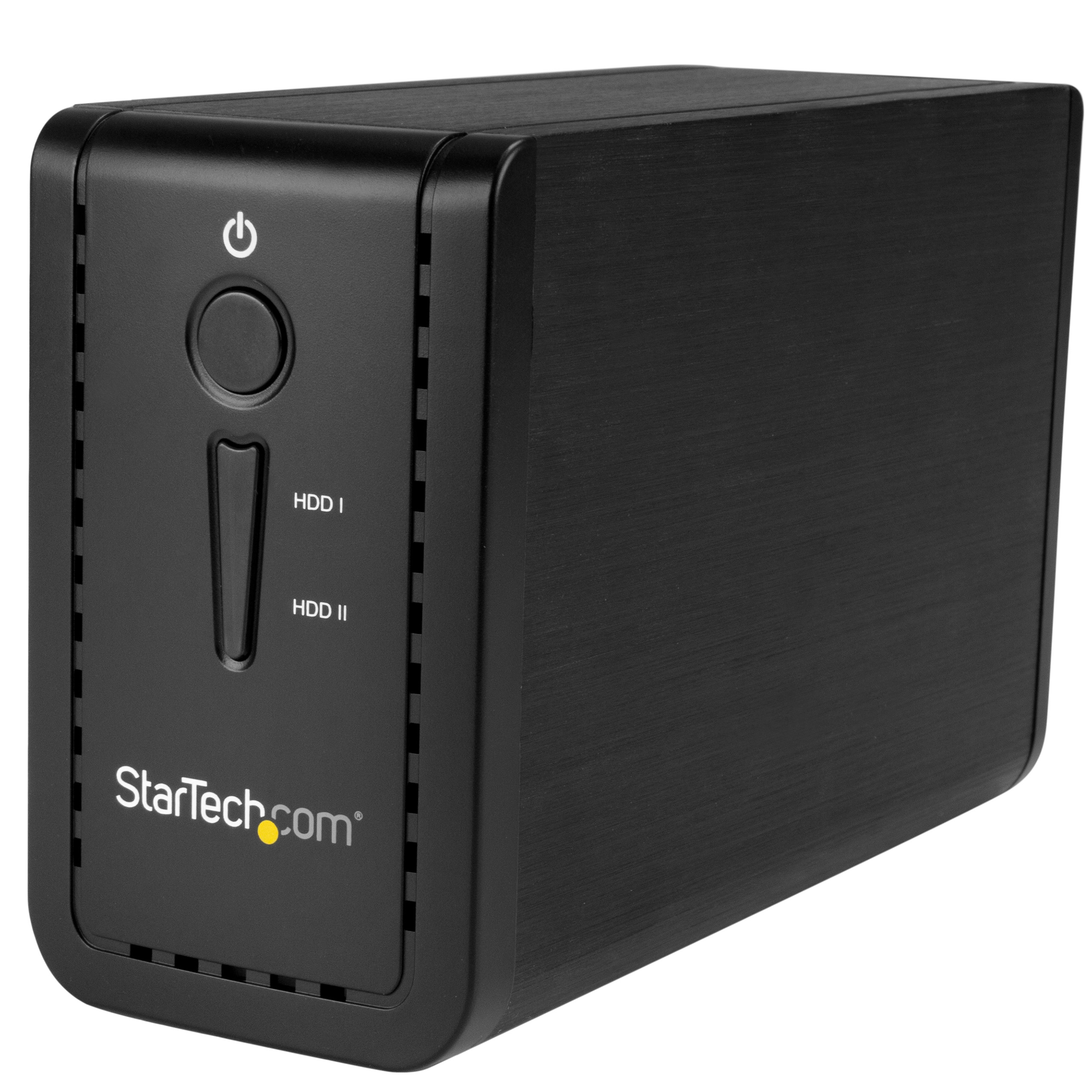

USB 3.1 Dual 3.5" SATA HDD Enclosure with RAID
Create high performance external storage with a dual SATA HDD RAID array, through USB 3.1 (10Gbps)
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name USB 3.1 Dual 3.5" SATA HDD Enclosure with RAID Product Number S352BU313R UPC 065030863872 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-C 10Gbps Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Ultra-Short) 2-Bay HDD Enclosure Product Title (Short) Enclosure, Dual 3.5" SATA USB 3.1 RAID Product Title (Medium) 2-Bay 3.5" HDD/SSD/SSHD Enclosure - RAID - USB 3.1 - SATA - USB-C and USB-A Product Title (Standard) 2-Bay 3.5" HDD Enclosure with RAID - USB 3.1 - SATA (6Gbps) - Dual 3.5" HDD/SSD/SSHD External Drive Enclosure - USB-C and USB-A Product Title (Long) USB 3.1 Dual 3.5” SATA (6Gbps) HDD Enclosure with RAID - USB-C and USB-A Product Title (AMZ) 3.5" External Dual Hard Drive Enclosure – Raid – USB-C and USB-A – SATA 6Gbps – 2 Bay USB 3.1 SSD/HDD Enclosure (S352BU313R) Title Ingram (Part 1) USB 3.1 Dual 3.5" HDD Enclosure Title Ingram (Part 2) - RAID - SATA (6Gbps), USB-C/USB-A Website Product Headline Create high performance external storage with a dual SATA HDD RAID array, through USB 3.1 (10Gbps) Bullet 1 Supports two 3.5” SATA HDDs/SSDs/SSHDs Bullet 2 Data transfer speeds of up to 10Gbps through USB 3.1 Gen 2 connectivity Bullet 3 Aluminum and plastic housing with metal hard-drive mounting tray Bullet 4 Compatible with Thunderbolt 3 USB-C port Bullet 5 Built-in fan Bullets (Compact) Create high performance external storage with a dual SATA HDD RAID array through USB 3.1 (10Gbps) - 2-Bay 3.5" HDD Enclosure with RAID - USB 3.1 - SATA (6Gbps) - Dual 3.5" HDD/SSD/SSHD External Drive Enclosure - Both USB-C and USB-A cables included Bullets (Consolidated) Create high performance external storage with a dual SATA HDD RAID array through USB 3.1 (10Gbps) - 2-Bay 3.5" HDD Enclosure w/ RAID - SATA (6Gbps) - Dual 3.5" HDD/SSD/SSHD External Drive Enclosure - Add high-capacity external data storage to your USB-C or USB-A laptop or computer - USB-C and USB-A cables included - Solid aluminum enclosure with metal hard-drive mounting tray - Built-in fan - Backward compatible w/ USB 3.0/USB 2.0 - 2-drive 3.5" HDD/SSD RAID enclosure - 2-bay 3.5in enclosure Marketing Copy Applications - Ideal for small business or home offices, build an external RAID array for data redundancy, to protect against drive failure when working with important data
- Video editing or photography professionals/enthusiasts can securely work with very large files
- Transfer large files between computers quickly and securely without a network
- Easy storage transfers between different computer systems and large volume external storage for backups/archiving
Website Search Keyword - 2-bay 3.5" HDD enclosure
- Dual 3.5" HDD enclosure
- 2-bay 3.5" drive enclosure
- 2-bay 3.5" hard drive enclosure
- 2-bay 3.5" SSD enclosure
- 2-bay 3.5" HDD/SSD enclosure
- 3.5" external drive enclosure
- 2-bay 3.5" HDD RAID enclosure
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices. Accessory Products - USB3SAB1
- USB3CAB1M
- USB3SAB3
- USB3SAB3BK
- USB3SAB10
- USB3SAB1MRA
- PEXUSB3S400
- PEXUSB3S4
- PEXUSB3S2
- USB31CB1M
- PEXUSB312EIC
- PEXUSB312A
- PEXUSB311A1C
Related Products - S3520BU33ER
- S352BU33HR
- S352BU33RER
- SAT3520U3SR
- SAT3520U3R
- S352U2RERR
- SAT3540U3ER
- S3540BU33E
- SAT35401U
- S351BU313
- SMS1BMU313
- SM21BMU31C3
- S252BU313R
- S251BMU313
- S251BPU31C3
- S251BU31C3CB
- S251BPU313
- S251BU31315
- SMS2BU31C3R
- SM22BU31C3R

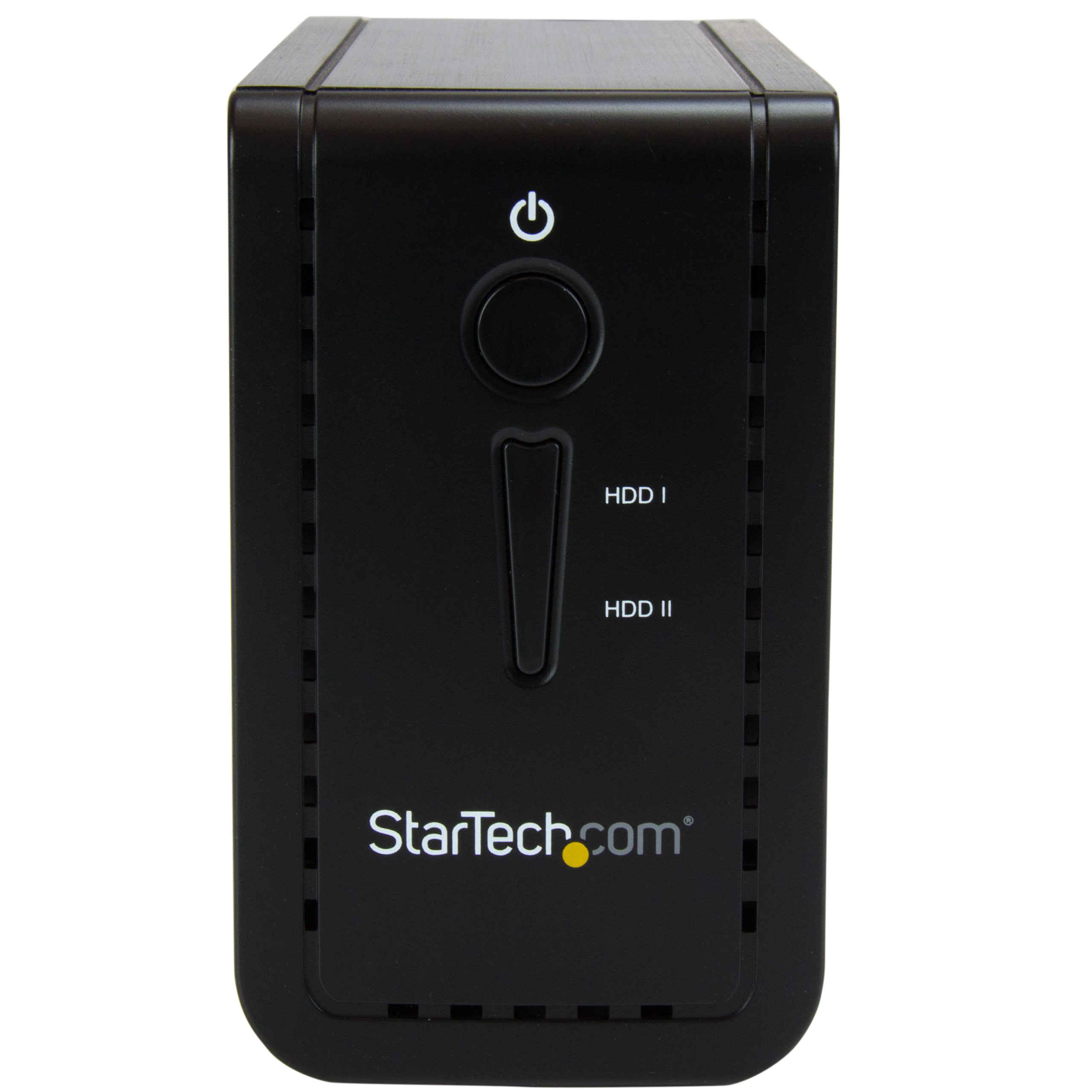

Input Current 1.0A Input Voltage 100 - 240 AC Output Current 3.0A Output Voltage (V) 12V DC Power Consumption (In Watts) 36W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5%~95% RH Material Aluminum and Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 190.000 Product Width (mm) 75.000 Product Height (mm) 125.000 Product Weight (g) 1000.000 Storage Temperature -10°C to 65°C (14°F to 149°F) TAA Compliant No 4Kn Support Yes Max Drive Capacity Tested up to 10TB Maximum Data Transfer Rate 10 Gbps MTBF (hours) 100,000 hours OS Compatibility OS Independent RAID Yes SATA Type and Rate SATA III (6 Gbps) TRIM Support Yes UASP Support Yes USB Type and Rate USB 10Gbps Bus Type USB 3.2 Gen 2 Chipset ID ASMedia - ASM1352R Compatible Drive Types SATA Fan Bearing Type Sleeve Bearing Fans 1 - 50 mm Fans Included? Yes/No Yes Interface/Bridge USB 3.2 Gen 2 LED Indicators - 1 - Power
- 2 - Drive Activity

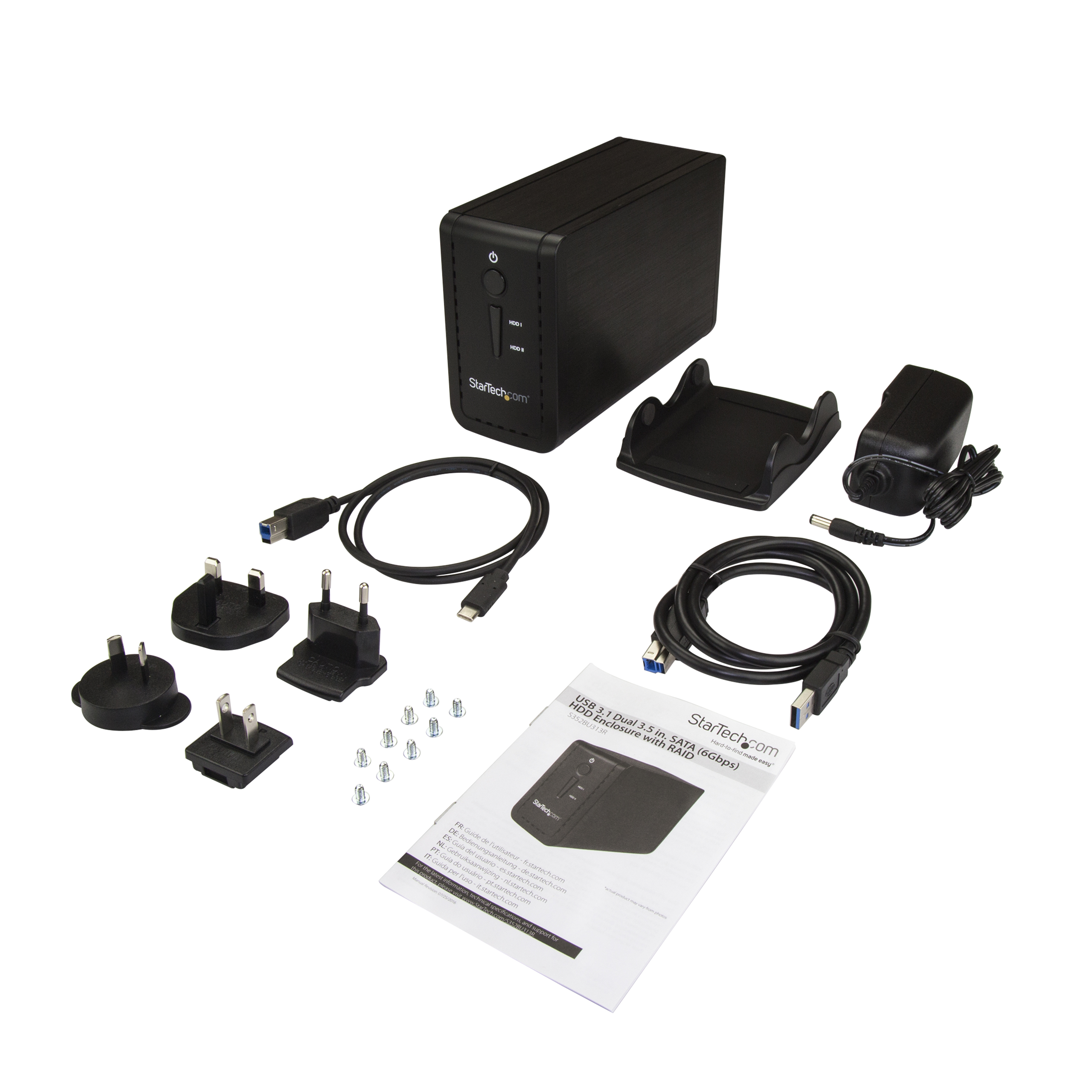

Number of Drives 2 Carton Depth (mm) 280 Carton Height (mm) 405 Carton Quantity 6 Carton Weight Gross (g) 11200 Included in Package - 1 - dual-bay enclosure
- 1 - universal power adapter (NA/JP, UK, EU, ANZ)
- 1 - USB-A to USB-B cable
- 1 - enclosure stand
- 8 - drive screws
- 1 - quick-start guide
- 1 - USB-C to USB-B cable
Package Depth (mm) 154 Package Height (mm) 186 Package Width (mm) 262 Package Quantity 1 Package Weight (g) 1684 Packaging Description USB 3.1 Dual 3.5” SATA Enclosure with RAID Packaging Description India USB 3.1 Dual 3.5” SATA Enclosure with RAID Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 USB-B (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2016-07-29 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2017-04-11 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-02-03 Target Production Release 2017-02-03 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
