S352BU33RER

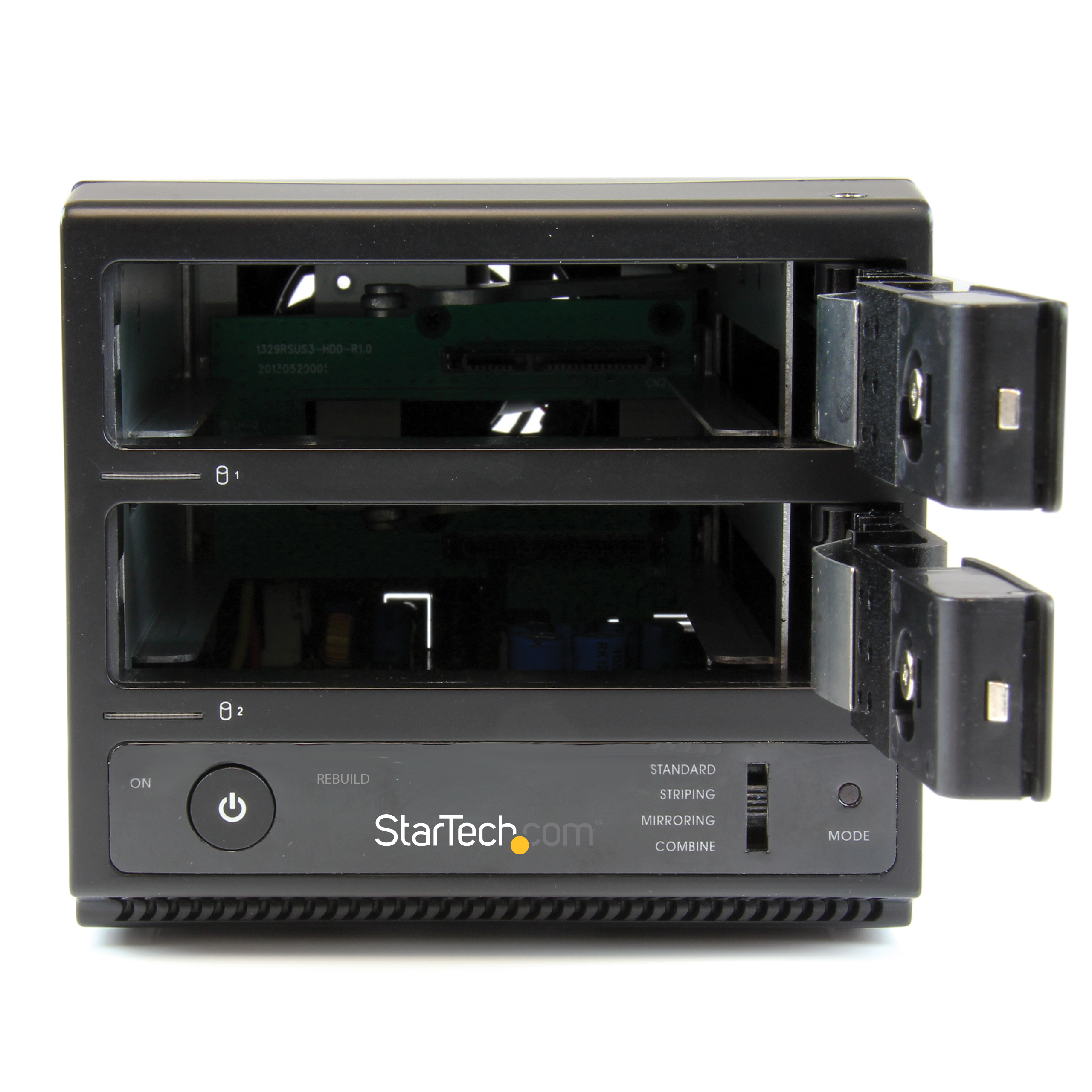

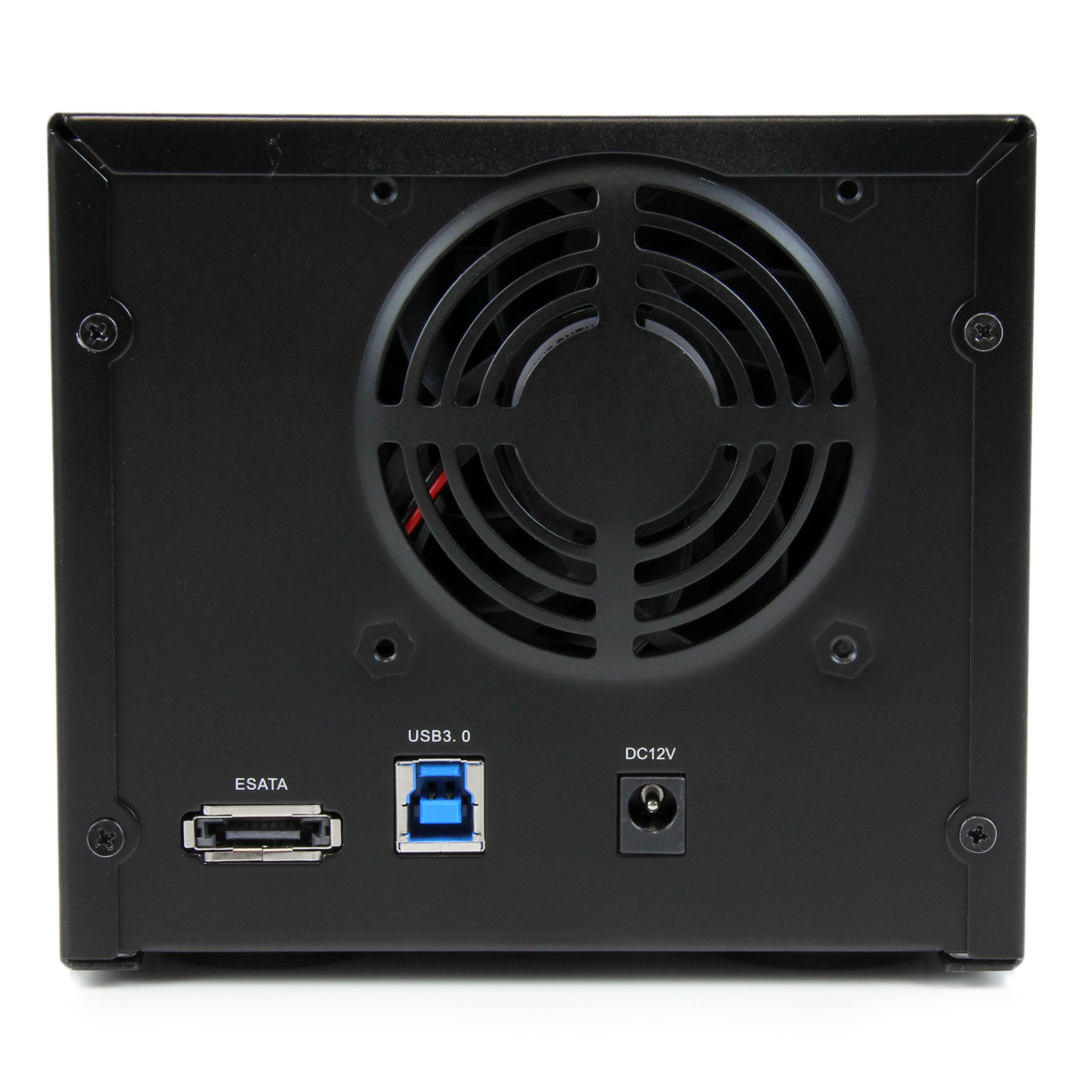

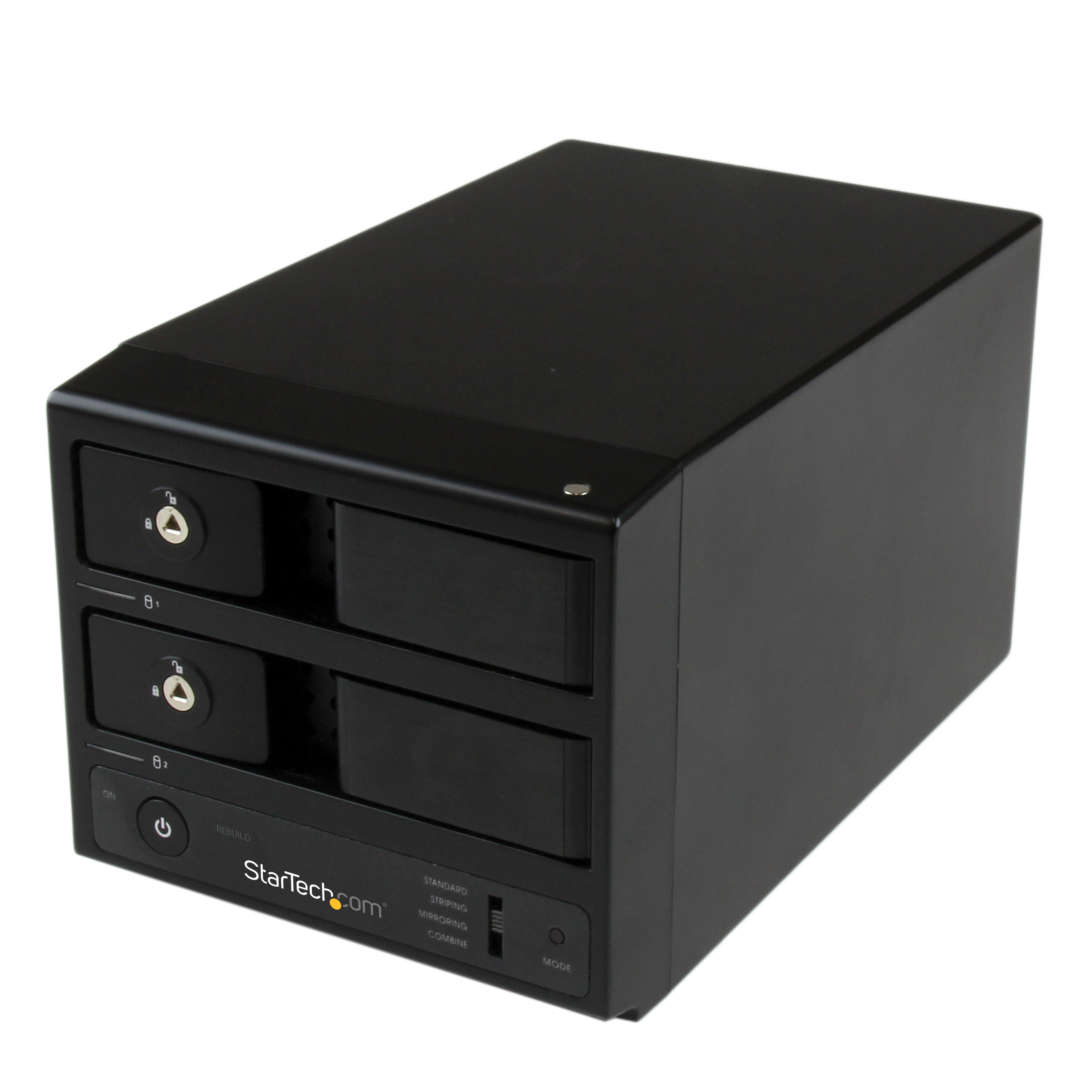

eSATA USB 3 0 to 2x 3 5 SATA Hard Drive Enclosure
Connect two hot-swappable 3.5" SATA III hard drives to your computer externally through USB 3.0 with UASP or eSATA
Main Image
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name eSATA USB 3 0 to 2x 3 5 SATA Hard Drive Enclosure Product Number S352BU33RER UPC 065030858175 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) USB/eSATA HDD Case Product Title (Short) USB 3.0 / eSATA Dual SATA HDD Enclosure Product Title (Medium) USB 3.0 / eSATA Dual-Bay Trayless 3.5” SATA III Hard Drive Enclosure with UASP Product Title (Standard) USB 3.0 / eSATA Dual-Bay Trayless 3.5” SATA III Hard Drive Enclosure with UASP – 2-Bay SATA 6 Gbps Hot-Swap HDD Enclosure Product Title (Long) USB 3.0 / eSATA Dual-Bay Trayless 3.5” SATA III Hard Drive Enclosure with UASP - 2-Bay SATA 6 Gbps Hot-Swap HDD Enclosure Product Title (AMZ) USB 3.0 / eSATA Hot Swap HDD Enclosure with UASP - 2-Bay Trayless 3.5” SATA III (6 Gbps) Hard Drive Enclosure (S352BU33RER) Title Ingram (Part 1) USB 3.0/eSATA 2x HDD Enclosure Title Ingram (Part 2) w/UASP for 3.5" SATA Hard Drives Website Product Headline Connect two hot-swappable 3.5" SATA III hard drives to your computer externally through USB 3.0 with UASP or eSATA Bullet 1 Supports SATA III (6 Gbps) and UASP (5 Gbps) for optimal performance Bullet 2 Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives Bullet 3 Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps) Bullet 4 Trayless removable HDD slots with drive locks Bullet 5 Front-mounted RAID controller Bullets (Consolidated) Connect two hot-swappable 3.5" SATA III hard drives to your computer externally through USB 3.0 or eSATA - Support SATA III (6 Gbps) and UASP for optimal performance - Hardware RAID (0/1/BIG/JBOD) - Trayless HDD slots with locks-external 2-bay Hard Drive Enclosure/Trayless RAID Enclosure/UASP Drive Enclosure/eSATA Hard Drive/USB 3.0 Hard Drive - Re-purpose an existing 3.5" SATA Hard Drive as an external Enclosure to connect to your computer Marketing Copy Marketing Copy (No HTML) The trayless hard drive enclosure lets you build an external RAID array with two 3.5" SATA hard drives and connect to your computer through USB 3.0 or eSATA. For fast performance and efficient data transfers, the eSATA hard drive enclosure supports SATA III transfer speeds -- up to 6 Gbps when connected through eSATA. The versatile SATA III external enclosure can also be connected through USB 3.0, with support for UASP, performing up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. The external 2-bay hard drive enclosure features a hardware RAID controller, supporting JBOD, Spanning, RAID 0, and RAID 1 -- to achieve greater drive capacity, or secure data redundancy. The RAID controller is also front mounted for ease of access when changing your RAID mode. For fast and easy drive installation and removal, the dual drive RAID enclosure features a convenient trayless system that eliminates having to mount and fasten your drives, saving time and hassle. To ensure compatibility with your computer system, the trayless hard drive enclosure supports all of the leading operating systems, including Microsoft Windows (8/7/Vista/XP/Server 2008/Server 2003), Apple OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS. The eSATA hard drive enclosure is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Build an external RAID 1 array for data redundancy, to protect against drive failure when working with important data
- Externally work with very large files securely in video editing or photography applications
- Quickly transfer large data files from your computer to a secure external RAID enclosure
Website Search Keyword - SATA External Hot Swap Enclosure
- 3.5" SATA Hard Drive Enclosure
- HDD Enclosure
- SATA Enclosure
- UASP
- UAS
- UASP Hard Drive
- UAS Hard Drive
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products SVA12M5NA Related Products S3510BMU33ET Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Color Black Humidity 20%RH~80%RH Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Plastic Product Length (mm) 215.000 Product Width (mm) 130.000 Product Height (mm) 118.000 Product Weight (g) 1834.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No 4Kn Support No Air Flow Rate 12.72 CFM Hot Swap Capability Yes Max Drive Capacity Currently tested with up to 4TB 7200 RPM 3.5" hard drives per bay (8TB total) and 2TB 5900 RPM 2.5" hard drives (2TB total) Maximum Data Transfer Rate 6 Gbps Noise Level 26.24 dBa OS Compatibility OS Independent Port Multiplier Yes RAID Yes SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID JMicron - JMS562 Compatible Drive Types SATA Fan Bearing Type Sleeve Bearing Fans 1 - 70 mm Fans Included? Yes/No Yes Front Door Key Lock Yes Interface/Bridge USB 3.0 & eSATA LED Indicators - 1 - HDD 1 Activity
- 1 - HDD 2 Activity
- 1 - RAID LED

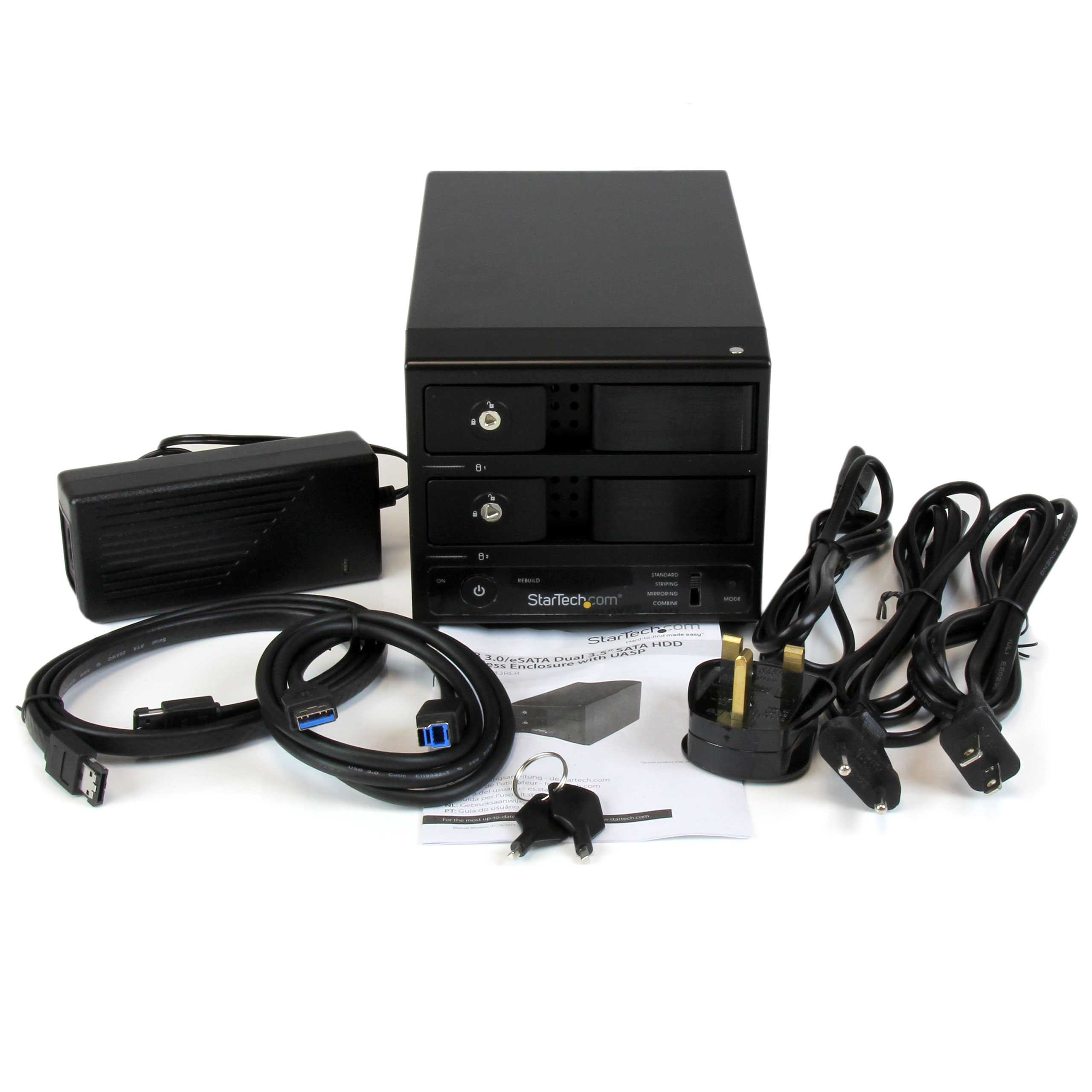

Number of Drives 2 Carton Depth (mm) 424 Carton Height (mm) 327 Carton Quantity 4 Carton Weight Gross (g) 12530 Included in Package - 1 - USB 3.0/eSATA Dual 3.5" SATA HDD Trayless Enclosure
- 1 - eSATA Cable
- 1 - USB 3.0 Cable
- 2 - Drive Bay Keys
- 1 - Universal Power Adapter (NA/UK/EU)
- 1 - Instruction manual
Package Depth (mm) 208 Package Height (mm) 187 Package Width (mm) 301 Package Quantity 1 Package Weight (g) 2855 Packaging Description USB 3.0/eSATA Dual 3.5” SATA HDD Trayless Enclosure w/ UASP Packaging Description India USB 3.0/eSATA Dual 3.5” SATA HDD Trayless Enclosure w/ UASP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Host Connector 2 eSATA (7-Pin) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-13 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
