Product Name 3.5" SATA USB HDD Enclosure w/ SATA Controller Product Number S352U2RERC UPC 065030835107 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 3.5 eSATA USB Dual Hard Drive Enclosure Product Title (Standard) 3.5in eSATA USB 2.0 Dual Hard Drive Enclosure w/ SATA Controller Product Title (Long) 3.5in eSATA USB Dual External Hard Drive Enclosure w/ SATA Controller Title Ingram (Part 1) 3.5 eSATA USB External Hard Dri Title Ingram (Part 2) ve Enclosure w/ Controller Bullet 1 Supports up to two SATA drives in individual removable hot-swap drive trays Bullet 2 Supported RAID modes: 0, 1, JBOD, BIG (Span/Concatenation), SAFE33 and SAFE50 Bullet 3 Includes a PCI Express 1-Port eSATA controller card with Port Multiplier support Bullet 4 Software GUI or on-board DIP switch configuration Bullet 5 LED indicators for each drive, host interface and power Marketing Copy Applications - Add external RAID storage solution without worrying about driver or software support
- Businesses requiring external RAID storage for data redundancy
- External storage that is easily transferable between different computer systems
- Large volume external storage for backups/archiving
- Video editing or photography professional/enthusiasts working with very large file sizes
Website Search Keyword - 3.5" SATA
- 3.5in SATA
- Dual Drive Enclosure
- eSATA Enclosure
- Hot-Swap
- Plug and Play
- Port Multiplier
- RAID enclosure
- SATA Desktop Drive
- Two Drive
- USB 2.0
- USB Enclosure
- PCIe Controller
- RAID Controller
- Storage Controller
Special Notes The maximum supported partition size for 32-bit Windows systems is 2 TB. Windows cannot detect multiple drives in any RAID mode if the total size exceeds 2TB. Hard drives in non-RAID mode (JBOD) are supported up to 2TB. Accessory Products - PEXESATA2I
- CBESATA2
- ECESATA22
- ESATA6
- ESATAPLATE1
- ESATAPLATE2
- ESATAPLT1LP
- SATA2ESATA6
- USB2HAB10
- USB2HAB10T
- USB2HAB15
- USB2HAB15T
- USB2HAB6
- USB2HAB6T
- PEXESATA1
- SAT3500TRAY
Related Products - ESATCASE2
- SAT3510BU2E
- SAT3520U2ER
- SAT3540ER
- SAT3550ESR
- SATCASE2U2
- SATCASE2U2R
- S352U2RER
Input Current 1500mA Input Voltage 115V-230V AC Output Current 4.2A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Silver Humidity 10% ~ 90% RH Material Aluminum Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 233 Product Width (mm) 100 Product Height (mm) 140 Product Weight (g) 2000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Insertion Rating 5,000 Cycles Max Drive Capacity Tested up to 2.0 TB OS Compatibility - Windows 98SE
- Windows 2000
- Windows XP
- Windows Vista
- Linux
- Windows 7
RAID Yes SATA Type and Rate SATA II (3 Gbps) USB Type and Rate USB 2.0 (480Mbps) Chipset ID Silicon Image - SiI5744 Compatible Drive Types SATA Fans 1 - 50 mm Fans Included? Yes/No Yes Interface/Bridge USB 2.0 & eSATA LED Indicators - 2 - Drive A - One x Link, One x Activity
- 2 - Drive B - One x Link, One x Activity
- 2 - eSATA - One x Link, One x Activity
- 2 - USB - One x Link, One x Activity

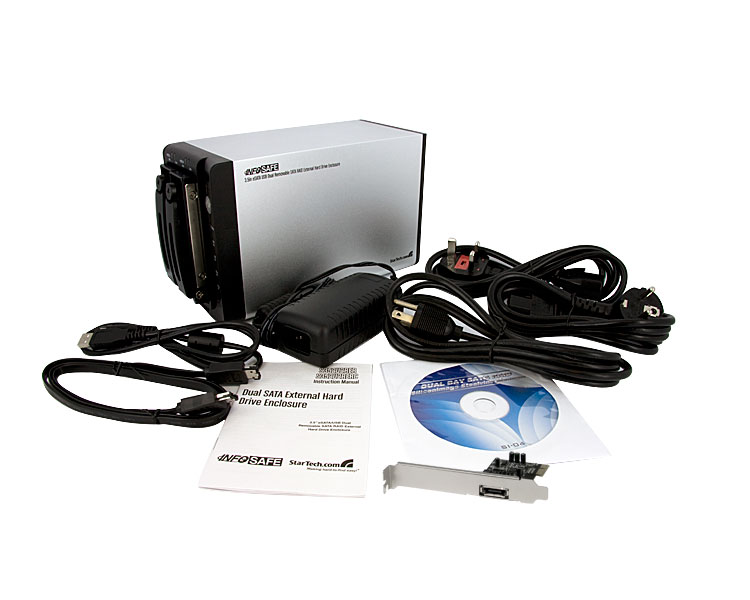

Number of Drives 2 Carton Depth (mm) 287 Carton Height (mm) 390 Carton Quantity 6 Carton Weight Gross (g) 21120 Included in Package - 1 - Aluminum Enclosure
- 1 - eSATA Cable
- 1 - Instruction Manual
- 1 - Power Adapter
- 3 - Power Cord
- 1 - USB Cable
- 1 - PCIe 1x RAID ESATA Controller Card
- 1 - CD
Package Depth (mm) 270 Package Height (mm) 182 Package Width (mm) 193 Package Weight (g) 3320 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (15-Pin) Connector 1 (Quantity) 2 Connector 2 SATA (7-Pin) Connector 2 (Quantity) 2 Host Connector 1 eSATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
