S354SMTB2R
4-Bay RAID System with Thunderbolt Interface 12TB
Bandwidth hungry? Your solution is here: Quad-bay high capacity storage with lightning fast performance.
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 4-Bay RAID System with Thunderbolt Interface 12TB Product Number S354SMTB2R UPC 065030858038 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) Thunderbolt RAID HDD Product Title (Short) 4-Bay Thunderbolt 2 HDD RAID Enclosure Product Title (Medium) 4-Bay Thunderbolt 2 Hard Drive Enclosure with RAID – Quad-Bay 3.5" HDD Enclosure Product Title (Standard) 4-Bay Thunderbolt 2 Hard Drive Enclosure with RAID – Quad-Bay 3.5" HDD RAID Enclosure - Sleek, Ultra Compact for Mac or PC Product Title (Long) 4-Bay Enclosure for 3.5in SATA Drives - Thunderbolt 2 - RAID Product Title (AMZ) 4-Bay Thunderbolt 2 Hard Drive Enclosure with RAID – Quad-Bay 3.5" HDD RAID Enclosure - Sleek, Ultra Compact for Mac or PC (S354SMTB2R) Title Ingram (Part 1) 4-Bay Thunderbolt 2 3.5in HDD Title Ingram (Part 2) RAID Enclosure w/ Thunderbolt Cable Website Product Headline Bullet 1 Create high capacity external data storage with four 3.5” SATA drive bays (HDDs are not included) Bullet 2 Transfer files at lightning speed of up 20 Gbps with Thunderbolt 2 Bullet 3 HyperDuo Support for near-SSD performance at HDD capacities Bullet 4 Set up instantly – 2 M Thunderbolt cable included Bullet 5 Sleek, ultra compact design – only 4.6” (116 mm) wide – in brushed aluminum to complement your Mac or PC Bullets (Compact) Bandwidth hungry? Your solution is here: Four-Bay Thunderbolt 2 (20 Gbps) Hard Drive Enclosure w/ RAID - Quad-Bay 3.5" HDD RAID Enclosure - Sleek, ultra compact 4-drive Thunderbolt enclosure - Ideal for Mac, MacBook Pro, Dell XPS, Dell Precision Bullets (Consolidated) Quad-bay enclosure w/ Thunderbolt 2 port - Create high capacity external data storage w/ four hot-swappable 3.5" SATA drive bays - Transfer files at ultra-fast speed of up 20 Gbps w/ Thunderbolt 2 - Four drive HDD enclosure compatible w/ Thunderbolt enabled computers such as MacBook Pro and Air - Sleek ultra compact design - Aluminum housing - Provides support for hardware RAID 0 RAID 1 RAID 10 and Hyper Duo - Supports SATA I/II/III - Backward compatible w/ Thunderbolt - Built-in fan Marketing Copy Marketing Copy (No HTML) Applications - Expand the storage capacity of your Mac, MacBook Pro, Dell™ XPS 13, Dell Precision or other device.
- Add high-speed external storage, for graphics-intensive applications such as high-resolution video or photo editing
- Quickly transfer large data files from your computer to an external hard drive for secure backups
- Build an external hardware RAID array to maximize storage performance or secure data redundancy
Website Search Keyword - Thunderbolt RAID
- Thunderbolt Hard Drive Enclosure
- RAID enclosure
- 2.5 hard drive enlosure
- thunderbolt drive enclosure
- 3.5 hard drive enclosure
- thunderbolt raid enclosure
- raid enclosure thunderbolt
- thunderbolt 2 enclosure
- raid hard drive enclosure
- 4 bay raid enclosure
- thunderbolt 2 accessories
- thunderbolt 2 raid enclosure
- 4 bay raid
- 4 drive raid enclosure
- quad bay enclosure
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes The Marvell Storage Utility application requires macOS 10.9 to 10.14. Accessory Products - TBOLTMM1M
- TBOLTMM3M
- MDISPLPORT6
- MDPMM3MW
- MDPMM2MW
- TBOLTMM2M
- TBOLTMM50CM
- MDISPLPORT3
- MDPMM1MW
- 25SAT35HDD
- 25SATSAS35
Related Products - S252SMTB3
- TBDOCKHDPBC
Input Voltage 100 - 240 AC Output Current 10 A Output Voltage (V) 12V DC Power Consumption (In Watts) 120 Power Source AC Adapter Included Plug Type M Humidity 20% ~ 80% RH Operating Temperature 5°C to 35°C (41°F to 95°F) Product Length (mm) 195 Product Width (mm) 116 Product Height (mm) 158 Product Weight (g) 1175 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant Yes Hot Swap Capability No Max Drive Capacity Currently tested with up to 6TB 7200 RPM hard drives Maximum Data Transfer Rate 20 Gbps OS Compatibility - Windows 10
- Windows 8.1
- Windows 7
- Windows Server 2016
- Windows Server 2012 R2
- Windows Server 2008 R2
- macOS Mojave (10.14)
- macOS High Sierra (10.13)
- macOS Sierra (10.12)
- Linux
- Windows 11
- Windows Server 2022
- Windows Server 2019
RAID Yes SATA Type and Rate SATA III (6 Gbps) USB Type and Rate Thunderbolt 2 (20Gbps) Bus Type Thunderbolt Chipset ID Marvell - 88SE9230 Compatible Drive Types SATA Fans 1 - 70 mm Fans Included? Yes/No Yes Interface/Bridge Thunderbolt LED Indicators - 1 - Power LED
- 1 - Drive 1 Activity LED
- 1 - Drive 2 Activity LED
- 1 - Drive 3 Activity LED
- 1 - Drive 4 Activity LED

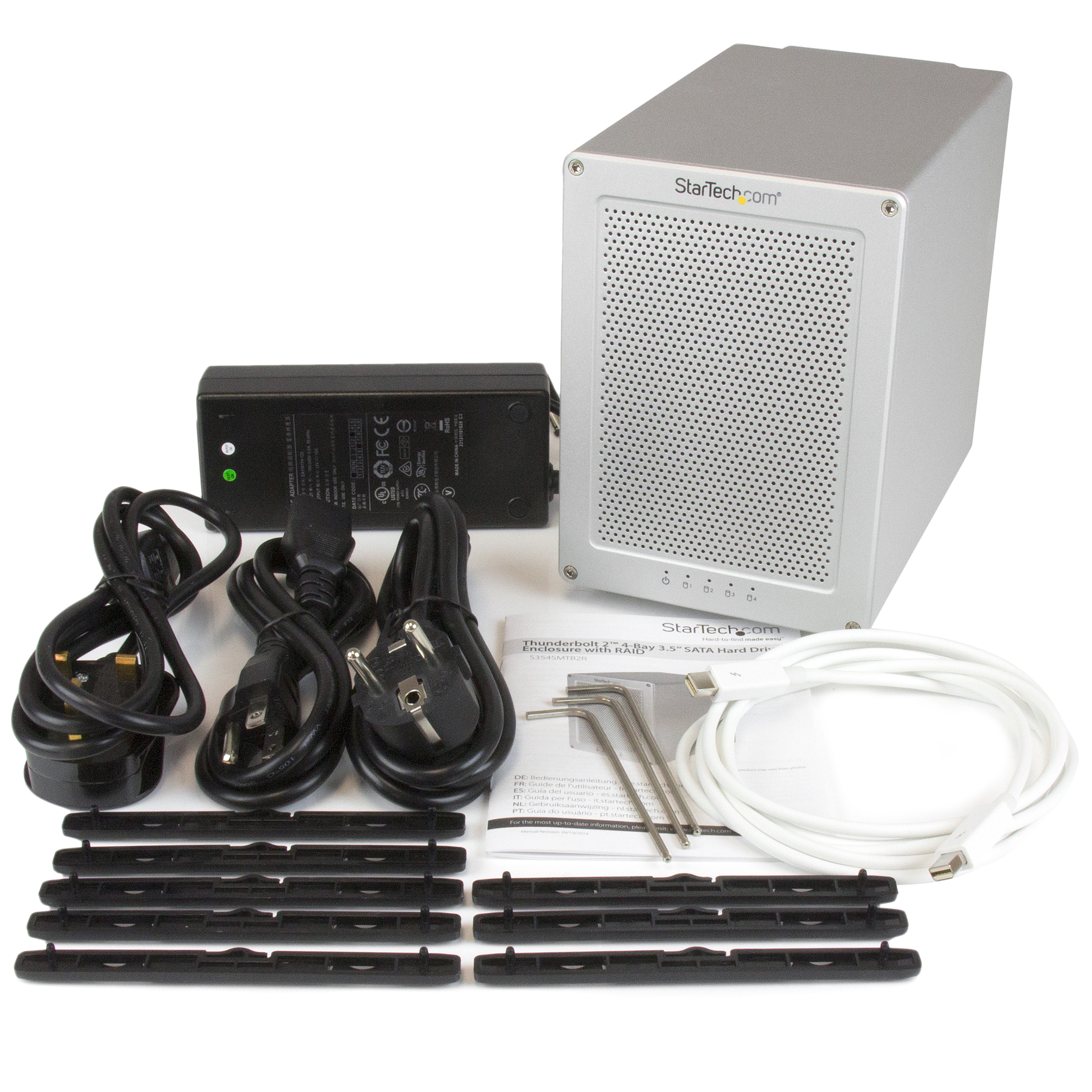

Number of Drives 4 Carton Depth (mm) 582 Carton Height (mm) 315 Carton Quantity 6 Carton Weight Gross (g) 18540 Included in Package - 1 - Thunderbolt 4-bay 3.5in Hard Drive RAID Enclosure
- 1 - 2m Thunderbolt Cable
- 3 - Allen key
- 1 - Universal power adapter (NA / UK / EU)
- 1 - Instruction manual
Package Depth (mm) 280 Package Height (mm) 197 Package Width (mm) 285 Package Quantity 1 Package Weight (g) 2812 Packaging Description Thunderbolt 2™ 4-Bay 3.5” SATA Hard Drive Enclosure w/ RAID Packaging Description India Thunderbolt 2™ 4-Bay 3.5” SATA Hard Drive Enclosure w/ RAID Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 4 Host Connector 1 Mini DisplayPort (Thunderbolt 10Gbps) Host Connector 1 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-05-29 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
