S354UFER

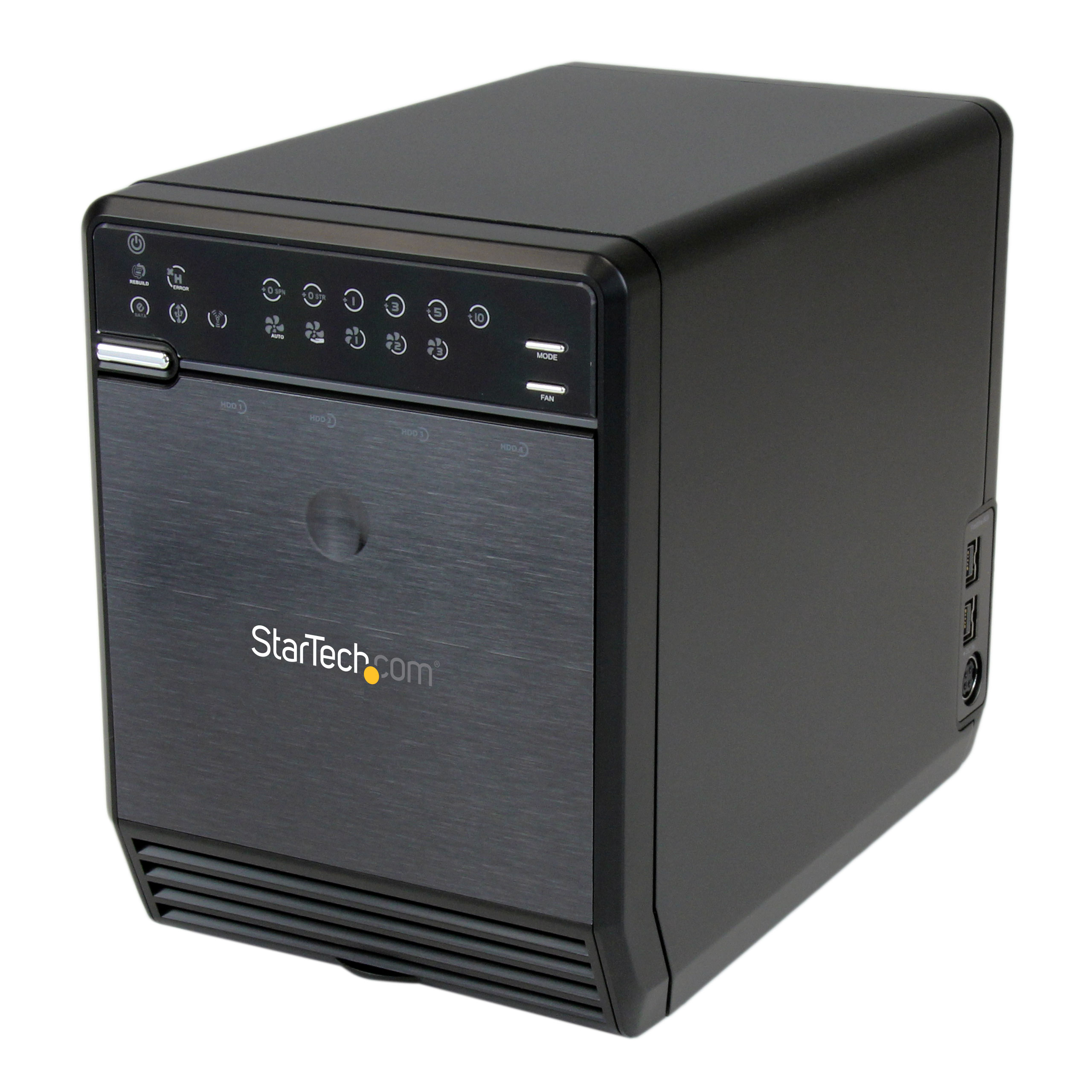

External SATA RAID Enclosure - eSATA USB 1394a/b
Turn 4 SATA hard drives into external RAID storage that connects over USB/FireWire/eSATA
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name External SATA RAID Enclosure - eSATA USB 1394a/b Product Number S354UFER UPC 065030836364 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 4 Drive FireWire SATA RAID Enclosure Product Title (Standard) 4 Drive eSATA USB FireWire SATA RAID Enclosure Product Title (Long) 3.5in 4 Drive eSATA USB FireWire External SATA RAID Enclosure Product Title (AMZ) 3.5in 4 Drive eSATA USB FireWire External SATA RAID Enclosure - 4 bay Hard Disk External SATA Enclosure (S354UFER) Title Ingram (Part 1) 4 Drive eSATA USB FireWire Exter Title Ingram (Part 2) nal SATA RAID Enclosure Website Product Headline Turn 4 SATA hard drives into external RAID storage that connects over USB/FireWire/eSATA Bullet 1 High Speed USB 2.0 host interface, with transfer rates up to 480Mbps Bullet 2 SATA revision 2 compliant eSATA host interface with transfer rates up to 3.0Gbps Bullet 3 FireWire 400 and 800 host interfaces with transfer rates up to 400Mbps and 800Mbps respectively Bullet 4 Supported RAID modes: 0 (stripe), 1 (mirror), 3 (parity disk), 5 (striped parity), 10 (1+0), Span/Concatenation Bullet 5 User configurable directly from the unit itself Marketing Copy Applications - Add external RAID storage without worrying about driver or software support
- External storage that is easily transferable between different computer systems
- Large volume external storage for backups/archiving
- Video editing or photography professional/enthusiasts working with very large file sizes
Website Search Keyword - 3.5in Hard Drive
- Desktop HDD
- eSATA USB Enclosure
- External Storage
- SATA Drive
- Storage Array
- RAID Array
- RAID 0
- RAID 1
- RAID 10
- RAID 1+0
- RAID 3
- RAID 5
- Spanning
- striped disks
- mirrored
- striped disks with parity
- 1394b Firewire 800
- 1394a Firewire 400
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Special Notes Accessory Products - CBESAT2
- ECESATA22
- ECESATUSB1
- ESATA3
- ESATA6
- PEXESATA1
- PEXESATA2
- PEXESATA2I
- SATA2ESATA6
- USB2HAB6T
- USB2HAB10
- USB2HAB10T
- USB2HAB15
- USB2HAB15T
- 1394_10
- 1394_15
- 1394_99_10
- 1394_99_6
Related Products - S352U2RER
- S352U2RERC
- SAT3540U2E
- SAT3520U2ER
- SAT3520U2R
- SAT3540ER
- SAT3550ESR
- SAT5210U2E
Replacement Product S3540BU33E Input Voltage 115V-230V AC Output Current 5A Output Voltage (V) 12V DC Power Source AC Adapter Included Color Black Humidity 90%RH Material Aluminum Operating Temperature -20°C to 60°C (-4°F to 140°F) Product Length (mm) 215 Product Width (mm) 126 Product Height (mm) 170 Product Weight (g) 1800 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant No Max Drive Capacity Currently tested with up to 4 TB 5400 RPM hard drives per bay (16TB total) MTBF (hours) 31,528 Hours OS Compatibility - Windows 8
- Linux
- Mac OS X Mavericks (10.9)
- Windows 7
RAID Yes RPM SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate - USB 2.0 (480Mbps)
- FireWire 400 IEEE-1394a (400Mbits)
- FireWire 800 IEEE-1394b (800Mbits)
Chipset ID PLX/Oxford - OXUFS936QSE Compatible Drive Types SATA Fan Bearing Type Ball Bearing Fans 1 - 80 mm Fans Included? Yes/No Yes Interface/Bridge - USB 2.0 & eSATA & Firewire
- USB 2.0
LED Indicators - 2 - Connection indicators
- 2 - Fan mode indicators
- 3 - Fan speed indicators
- 1 - Power indicator
- 1 - RAID rebuild indicator
- 1 - HDD error indicator
- 6 - RAID Mode indicators

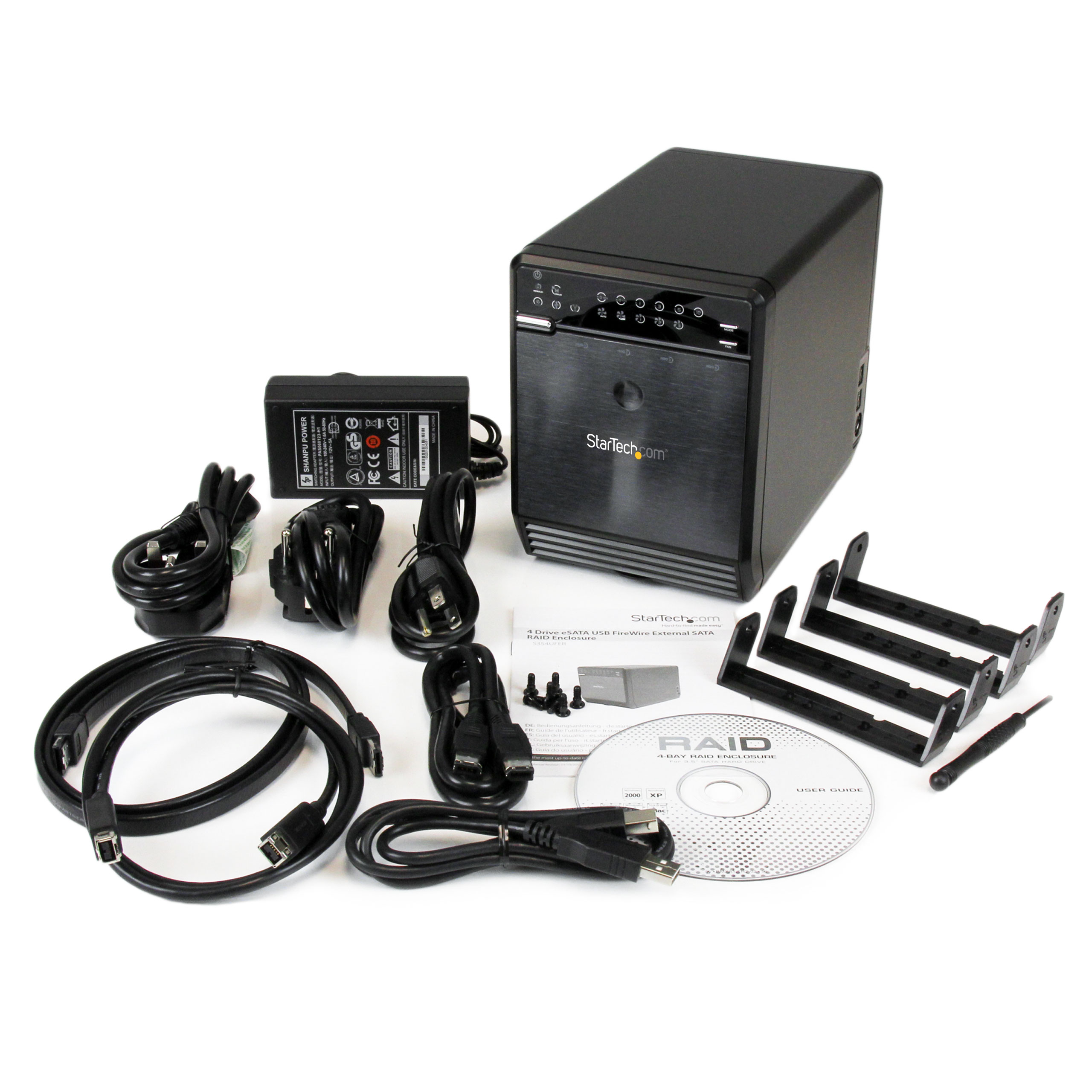

Number of Drives 4 Carton Depth (mm) 606 Carton Height (mm) 299 Carton Quantity 4 Carton Weight Gross (g) 14440 Included in Package - 1 - eSATA Cable
- 1 - Four drive HDD enclosure
- 1 - Universal Power Adapter
- 1 - Screw driver and screw kit
- 1 - USB Cable
- 1 - 6 pin FireWire cable
- 1 - 9 pin FireWire cable
- 1 - Instruction Manual
- 3 - Power Cord (NA/ UK/ EU)
Package Depth (mm) 162 Package Height (mm) 271 Package Width (mm) 292 Package Quantity 1 Package Weight (g) 3310 Packaging Description 4 Drive USB/1394/eSATA RAID Enclosure Packaging Description India 4 Drive USB/1394/eSATA RAID Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (15-Pin) Connector 1 (Quantity) 4 Connector 2 SATA (7-Pin) Connector 2 (Quantity) 4 Host Connector 1 eSATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 Host Connector 3 FireWire 400 (6-Pin, 400Mbps, Bus Power) Host Connector 3 (Quantity) 1 Host Connector 4 FireWire 800 (9-Pin, 800Mbps, Bus Power) Host Connector 4 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
