eSATA/USB 3.0 Hot-Swap 8-Bay HDD Enclosure w/ UASP
Connect eight hot-swappable 2.5/3.5" SATA III hard drives to your computer externally through USB 3.0 with UASP or eSATA
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name eSATA/USB 3.0 Hot-Swap 8-Bay HDD Enclosure w/ UASP Product Number S358BU33ERM UPC 065030858540 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX014X Product Title (Ultra-Short) 8-Bay HDD Enclosure Product Title (Short) USB 3.0 / eSATA 8-Bay SATA HDD Enclosure Product Title (Medium) USB 3.0 / eSATA 8-Bay Hot-Swap 2.5/3.5” SATA III Hard Drive Enclosure with UASP Product Title (Standard) USB 3.0 / eSATA 8-Bay Hot-Swap 2.5/3.5” SATA III Hard Drive Enclosure with UASP – 8-Bay SATA 6 Gbps Enclosure for HDD / SSD Product Title (Long) USB 3.0 / eSATA 8-Bay Hot-Swap 2.5/3.5” SATA III Hard Drive Enclosure with UASP – 8-Bay SATA 6 Gbps Enclosure for HDD / SSD Product Title (AMZ) USB 3.0 / eSATA 8-Bay Hot-Swap 2.5/3.5” SATA III Hard Drive Enclosure with UASP – 8-Bay SATA 6 Gbps Enclosure for HDD / SSD (S358BU33ERM) Title Ingram (Part 1) eSATA / USB 3.0 Hot-Swap 8-Bay Title Ingram (Part 2) SATA Hard Drive Enclosure w/ UASP Website Product Headline Connect eight hot-swappable 2.5/3.5" SATA III hard drives to your computer externally through USB 3.0 with UASP or eSATA Bullet 1 Supports SATA III (6 Gbps) and UASP for optimal performance Bullet 2 eSATA or USB host connection Bullet 3 Compatible with USB 3.0 / 2.0 / 1.1 (5 Gbps / 480 Mbps / 1.5 Mbps) Bullet 4 Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives Bullet 5 Supports both 2.5" and 3.5" form factor hard drives (HDD) and solid state drives (SSD) Bullets (Consolidated) Connect eight hot-swappable 2.5/3.5" SATA III hard drives to your computer externally through USB 3.0 w/ UASP or eSATA - Compatible w/ USB and eSATA enabled laptop and desktop computers and 2.5in and 3.5in SATA hard drives - External Hard Drive Enclosure/USB 3.0 eSATA HDD Enclosure/8 Bay Hard Drive Enclosure/USB 3.0 or eSATA Back-up Drives - Built-in cooling fan - Expand the storage capacity of a small form factor system or laptop - Add an 8-bay hot-swap enclosure to a server or workstation Marketing Copy Applications - Add an 8-bay hot-swap enclosure to a server or workstation computer, for a removable backup solution
- Expand the storage capabilities of a small form factor/embedded system or laptop, with external drives
- Adding external storage capacity for video editing or photo editing stations, making it easier to work with very large file sizes
- Creating additional backup/archive storage
- Turn unused SATA hard drives into additional external data storage
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
System and Cable Requirements Computer system with available USB port or eSATA port. The enclosure requires that the host device supports port multiplier to access multiple drives simultaneously. Accessory Products - USB3SAB10BK
- USB3SEXT5DKB
- USB3SAB1MRA
- USB3SAB2MRA
- USB3SAB3
- USB3SAB3BK
- USB3SAB1
- USB3SEXTAA6
- ESATA3
- ESATA6
- SATA2ESATA6
- ECESATA22
- PEXESAT322I
- PEXSATA24E
- PEXESATA2
Related Products - S355BU33ERM
- S3520WU33ER
- S3520BU33ER
- S352BMU3N
- S352BU33HR
- S352BU33RER
- S352U2RER
- S352U2RERC
- SAT3540U2E
- SAT3520U2ER
- SAT3520U2R
- SAT3540ER
- SAT3550ESR
- SAT5210U2E
- S3540BU33E
Input Current 6 A Input Voltage 100 - 240 AC Power Consumption (In Watts) 120 Power Source AC Adapter Included Color Black Humidity 10% ~ 90% non-condensing Operating Temperature 5°C to 55°C (41°F to 131°F) Product Length (mm) 350.000 Product Width (mm) 150.000 Product Height (mm) 340.000 Product Weight (g) 8610.000 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant Yes Air Flow Rate 35CFM General Specifications Hot Swap Capability Yes Max Drive Capacity Currently tested with up to 6TB 7200 RPM hard drives Maximum Data Transfer Rate 6 Gbps MTBF (hours) 30,000 Hours Noise Level 20.4 dBA OS Compatibility OS Independent Port Multiplier Yes RAID No SATA Type and Rate eSATA (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.0 & eSATA Chipset ID Compatible Drive Types SATA Fan Bearing Type Sleeve Bearing Fans 1 - 120 mm Fans Included? Yes/No Yes Interface/Bridge USB 3.0 & eSATA LED Indicators - 8 - Drive Activity / Interface LED
- 1 - Power LED
- 1 - HDD Ready LED
- 1 - USB / eSATA LED

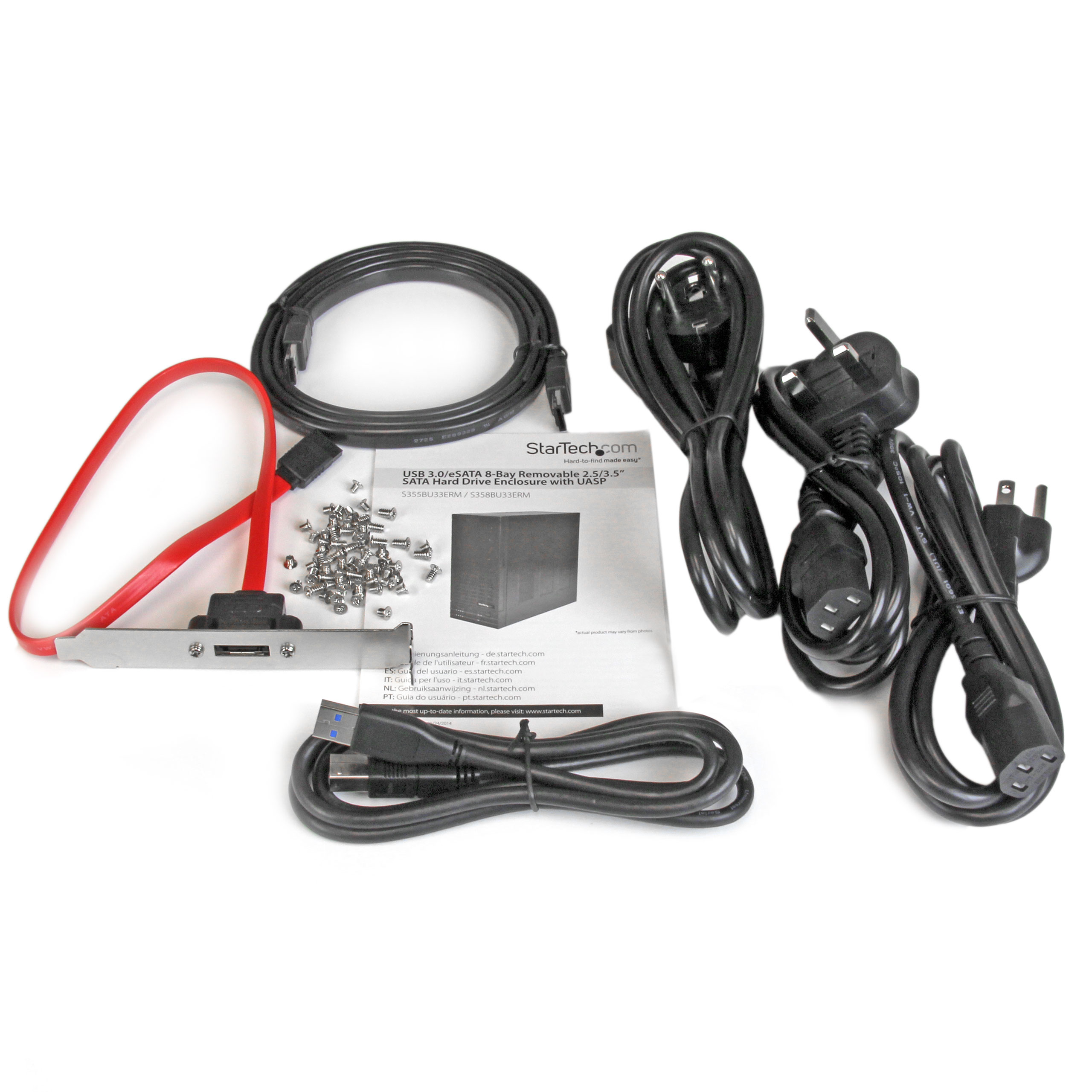

Number of Drives 8 Carton Depth (mm) 504 Carton Height (mm) 283 Carton Quantity 1 Carton Weight Gross (g) 9730 Included in Package - 1 - USB 3.0 / eSATA SSD/HDD Enclosure
- 8 - 2.5/3.5” drive trays (preinstalled)
- 1 - SATA to eSATA full profile bracket
- 1 - eSATA cable
- 1 - USB 3.0 cable
- 1 - 2.5/3.5” drive installation screw kit
- 3 - Power cables (NA/UK/EU)
- 1 - Instruction manual
Package Depth (mm) 504 Package Height (mm) 283 Package Width (mm) 508 Package Quantity 1 Package Weight (g) 8610 Packaging Description USB 3.0/eSATA 8 SATA 2.5/3.5” HDD Enclosure Packaging Description India USB 3.0/eSATA 8 SATA 2.5/3.5” HDD Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 8 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Host Connector 2 eSATA (7-Pin) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-06 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
