S5G16AINDS-USB-A-HUB
16 Port Industrial USB 3 0 Two Host Hub Switch 5Gbps w 160W

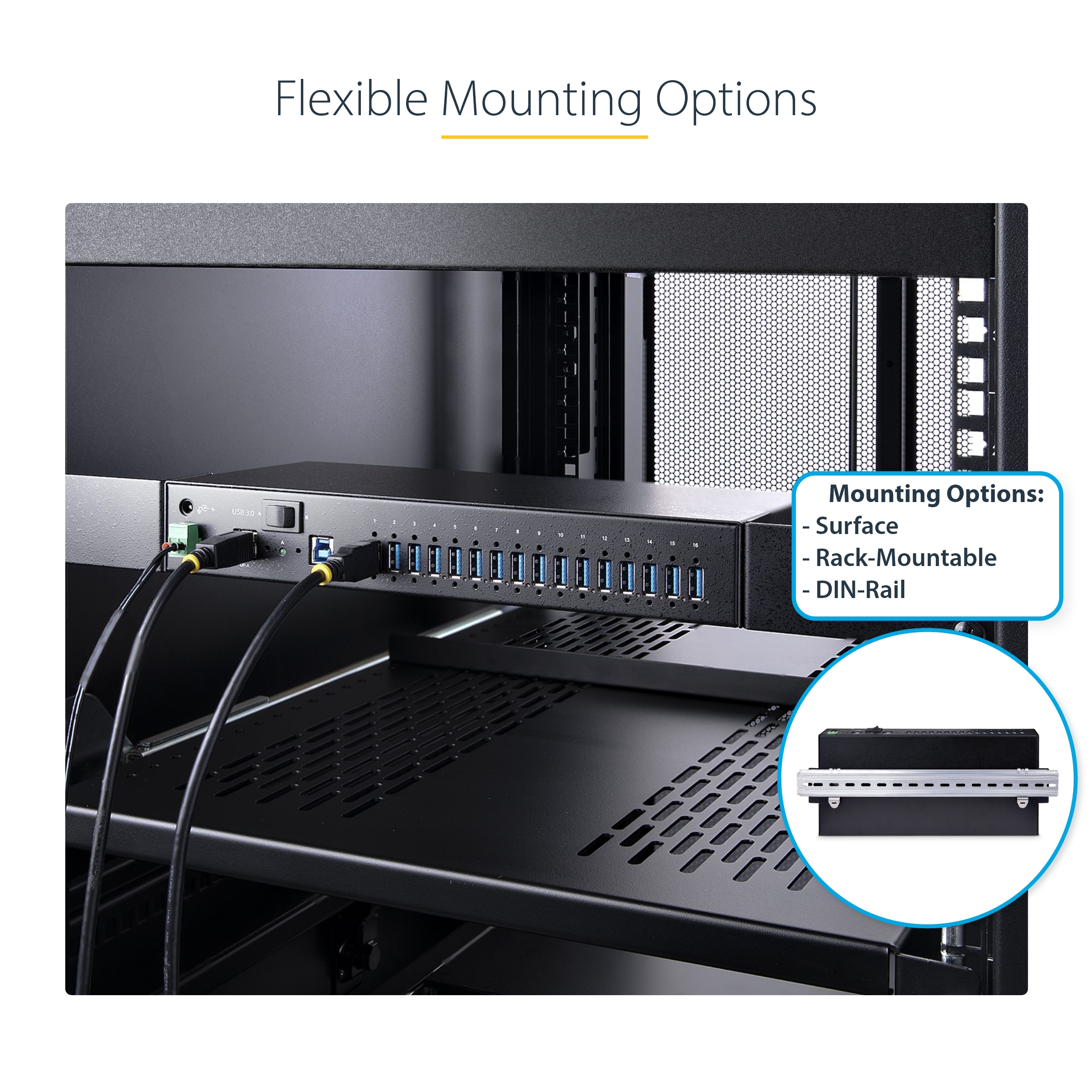

Add 16x USB 3.2 Gen 1 (5 Gbps) ports to two host computers, using this DIN-rail/Surface/Rack-mountable industrial hub
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Quick-Start Guide
Video Link YouTube
Product Name 16 Port Industrial USB 3 0 Two Host Hub Switch 5Gbps w 160W Product Number S5G16AINDS-USB-A-HUB UPC 065030905381 Lifecycle status Active Warranty 2 Years Weighted Opportunity 113807 Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 Industrial USB Hubs Category Level 3 Industrial USB Hubs - 5Gbps Family Industrial USB Hubs - 5Gbps - 16-Port Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Product Title (Ultra-Short) Industrial USB Hub Product Title (Short) 16-Port Industrial USB 5Gbps Hub/Switch Product Title (Medium) 16-Port Industrial USB 5Gbps Hub with Power Adapter, Mountable, Dual-Host Switch Product Title (Standard) 16-Port Industrial USB 5Gbps Hub with Power Adapter, Mountable, Terminal Block Power, USB Charging, Dual-Host Hub/Switch, TAA Product Title (Long) 16-Port Industrial USB 5Gbps Hub with Power Adapter, Metal Enclosure, Mountable, ESD Protection, Terminal Block Power, USB Charging, Dual-Host Switch - TAA Product Title (AMZ) 16-Port Industrial USB 5Gbps Hub with Power Adapter, Metal, DIN/Surface/Rack Mountable, Dual-Host Hub/Switch, TAA Title Ingram (Part 1) Industrial USB 5Gbps Hub for Title Ingram (Part 2) Laptops/Desktops - USB Charging Website Product Headline Add 16x USB 3.2 Gen 1 (5 Gbps) ports to two host computers, using this DIN-rail/Surface/Rack-mountable industrial hub Bullet 1 16-PORT INDUSTRIAL USB HUB: USB 3.2 Gen 1 hub w/metal housing for durability in harsh environments & Level 4 ESD protection (15kV air/8kV contact); 16x USB-A Ports; 5Gbps shared; 10ft long host cable; USB Event Monitoring utility (available for download) Bullet 2 FLEXIBLE MOUNTING OPTIONS: EIA-310 compliant mounting brackets for 1U 19" rackmount installation; Built-in mounting ears for wall/desk installation; DIN-rail mounting hardware; Screw-lock-enabled connectors on all ports facilitate reliable connections Bullet 3 POWER & CHARGE: When connected to the power adapter, the multiport USB expansion hub supports BC 1.2 charging; 120W is shared across all ports with 16 ports simultaneously charging at max 1.5A/7.5W per port, or up to 8 ports at max 2.0A/10W charging Bullet 4 DUAL-HOST SWITCH: With a 2-port host switch, this USB hub can connect to two separate desktop or laptop computers and seamlessly switch between primary host devices, using the manual rocker switch Bullet 5 INCLUDED 160W POWER ADAPTER: The rugged USB Hub is powered by the included power adapter using the built-in DC 2-wire terminal block; Overcurrent protection protects connected devices from overdrawing power; DC barrel jack for optional power redundancy Bullets (Compact) 16 USB-A 3.2 Gen 1 (5Gbps shared) Downstream Facing Ports (DFP) w/dual-host switch/hub - Power Adapter Included - Steel enclosure - Locking ports - Level-4 ESD protection 15kV air/8kV contact - Rack/Surface/DIN rail mountable - BC 1.2 charging Bullets (Consolidated) - 16 USB-A 3.2 Gen 1 (5Gbps shared) Downstream Facing Ports - Switch between 2 computers w/dual host switch - 10ft host cable - Level-4 ESD protection (15kV air/8kV contact) - 19" EIA-310 rack/wall/desk/DIN-rail mountable - USB multiport expansion hub powered by included 160W DC terminal block power adapter plus DC jack for optional power redundancy - BC 1.2 charging (7.5W) on each port (power adapter req) - Screw-locking connectors on all ports - USB Event Monitoring available for download Marketing Copy Marketing Copy (No HTML) Applications - Occupies 1U of server rack space in a 19" server rack, typically found in server rooms within data centers
- Power and/or charge up to 16 USB devices
- Connect two host devices to the USB Hub, with the option to manually select an active host device
Website Search Keyword - 16-port usb 3.0 hub
- 16-port usb hub
- charging usb hub
- desktop usb hub
- din rail usb hub
- esd protection
- industrial usb 3.0 hub
- industrial usb hub
- laptop usb hub
- mountable usb hub
- powered usb hub
- powered usb hub long cable
- rugged usb hub
- usb 3.0 powered hub
- usb 3.2 gen 2 hub
- usb expansion hub
- usb hub bc 1.2
- usb hub charging supported
- usb multiport hub
- usb splitter
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Temp - N/A - Global - Used to replace duplicates or identify for removal
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
- UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
System and Cable Requirements - Available USB 3.2 Gen 1 Port
- USB 3.2 Gen 1 (5 Gbps) is also know as SuperSpeed USB, USB 3.1 Gen 1, and USB 3.0

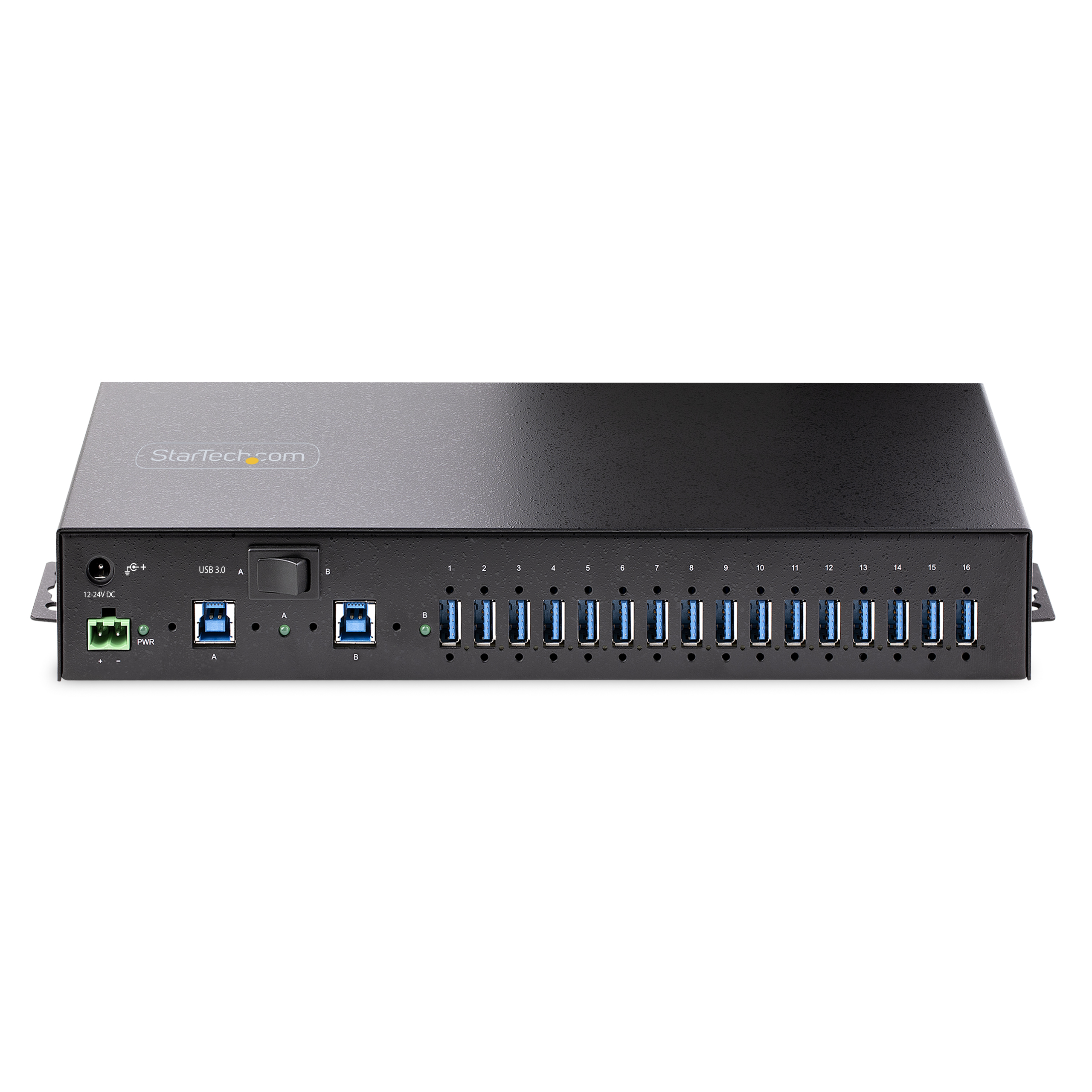

- Ports are grouped in 8 pairs (1&2, 3&4, 5&6, 7&8, 9&10, 11&12, 13&14, 15&16) and each pair supports max 3A/15W combined (1.5A/7.5W per port), or max 2.0A/10W per port when only one of both ports is used.
Accessory Products - PEXUSB3S11
- USB3SAB6BK
- USB3SAB10BK
- USB3SAB3
- USB3SAB6
- USB3SAUB3BK
- USB3SEXTAA6
Related Products - 5G4AINDNP-USB-A-HUB
- HB30A7AME
- HB30A10AME
- HB31C2A2CME
- HB31C3A1CME
- HB20A7AME
- HB20A4AME
- ST1030USBM
- ST7300USBME
- ST4300USBM
- ST4200USBM
- USB210AIND-USB-A-HUB
- ST7200USBM
- 5G16AINDS-USB-A-HUB
Input Current 3.5A Input Voltage 100 - 240 AC Output Current 6.6A Output Voltage (V) 24 DC Power Consumption (In Watts) 158.4W Power Source AC Adapter Included Plug Type - Terminal Block (2 Wire)
- M

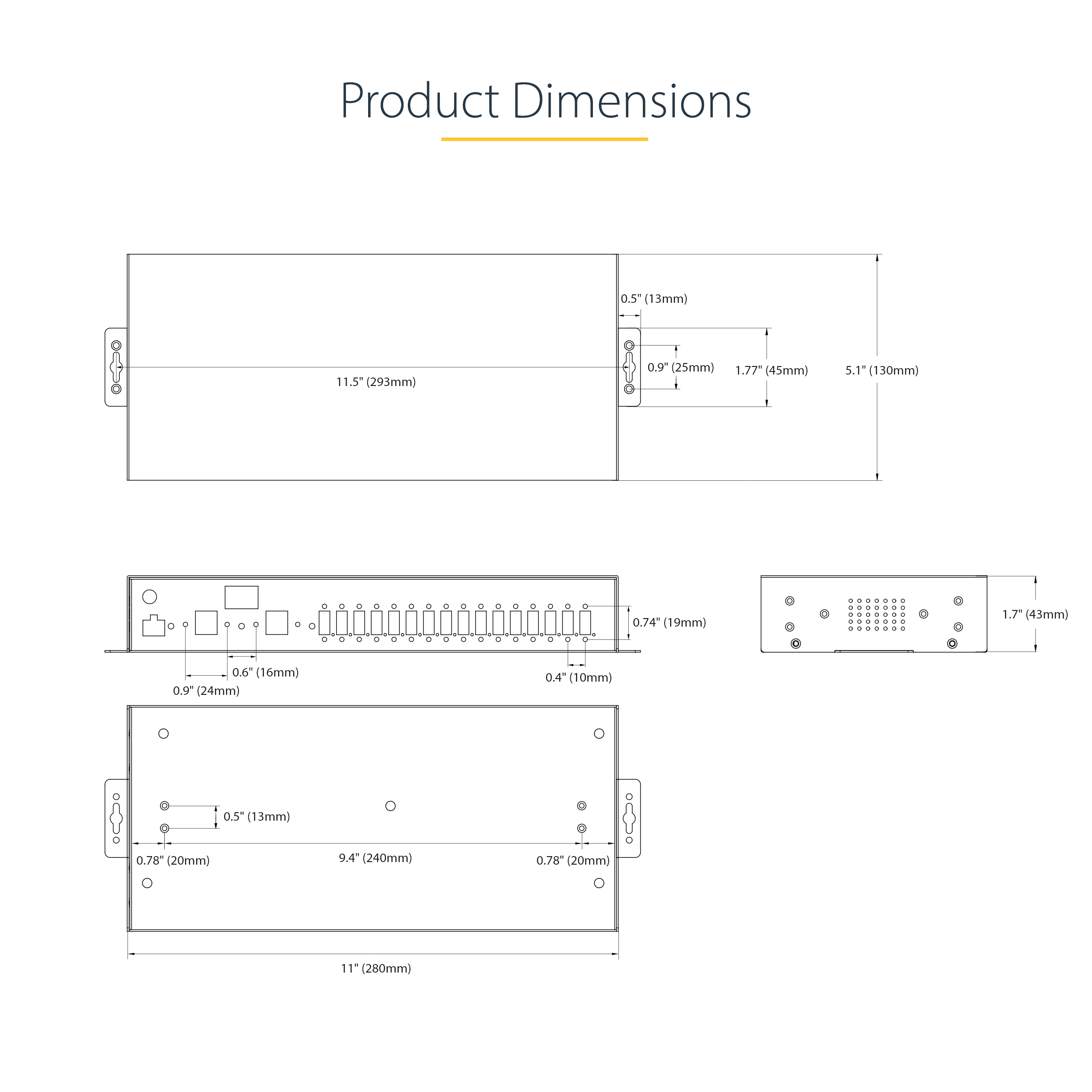

Color Black Extended Temperature Range No Humidity 5% - 95% RH Material Steel Operating Temperature 32°F to 140°F (0°C to 60°C) Product Length (mm) 13.200 Product Width (mm) 30.850 Product Height (mm) 4.420 Product Weight (g) 1100.000 Storage Temperature -4°F to 167°F (-20°C to 75°C) TAA Compliant Yes Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) ESD Protection - +/-8kV (Contact)
- +/-15kV (Air)

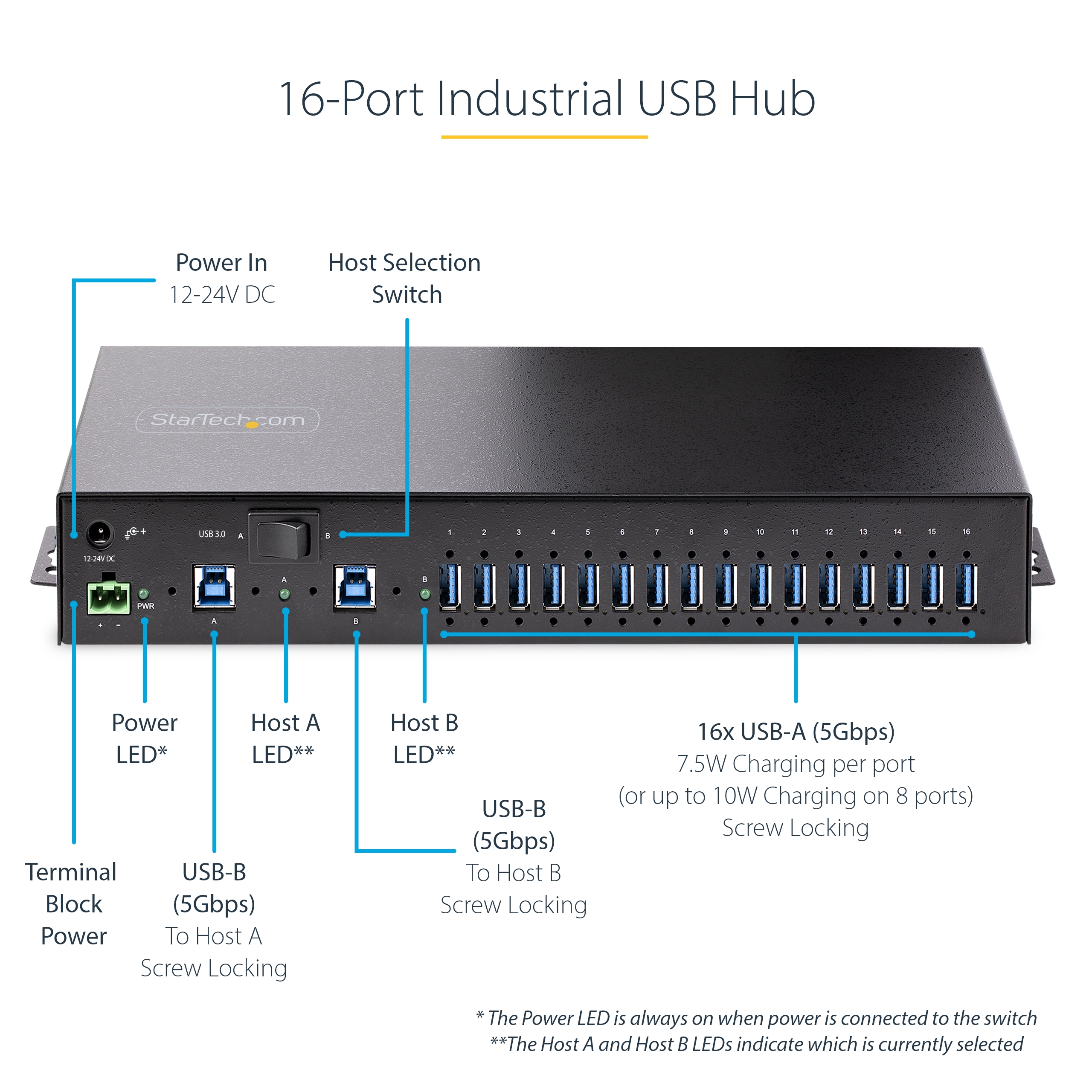

Maximum Data Transfer Rate 5 Gbps MTBF (hours) 122,383.8 Hours OS Compatibility OS Independent Total Available Power Output (In Watts) 120W USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Genesys Logic - GL3523 Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge Yes LED Indicators - 1 - Power (Green) - Solid Green - Indicates if the USB Hub is receiving power from either a USB Host or a DC Power Source
- 2 - USB Host Selection LEDs - Solid Green - Indicates which Host Device is currently selected

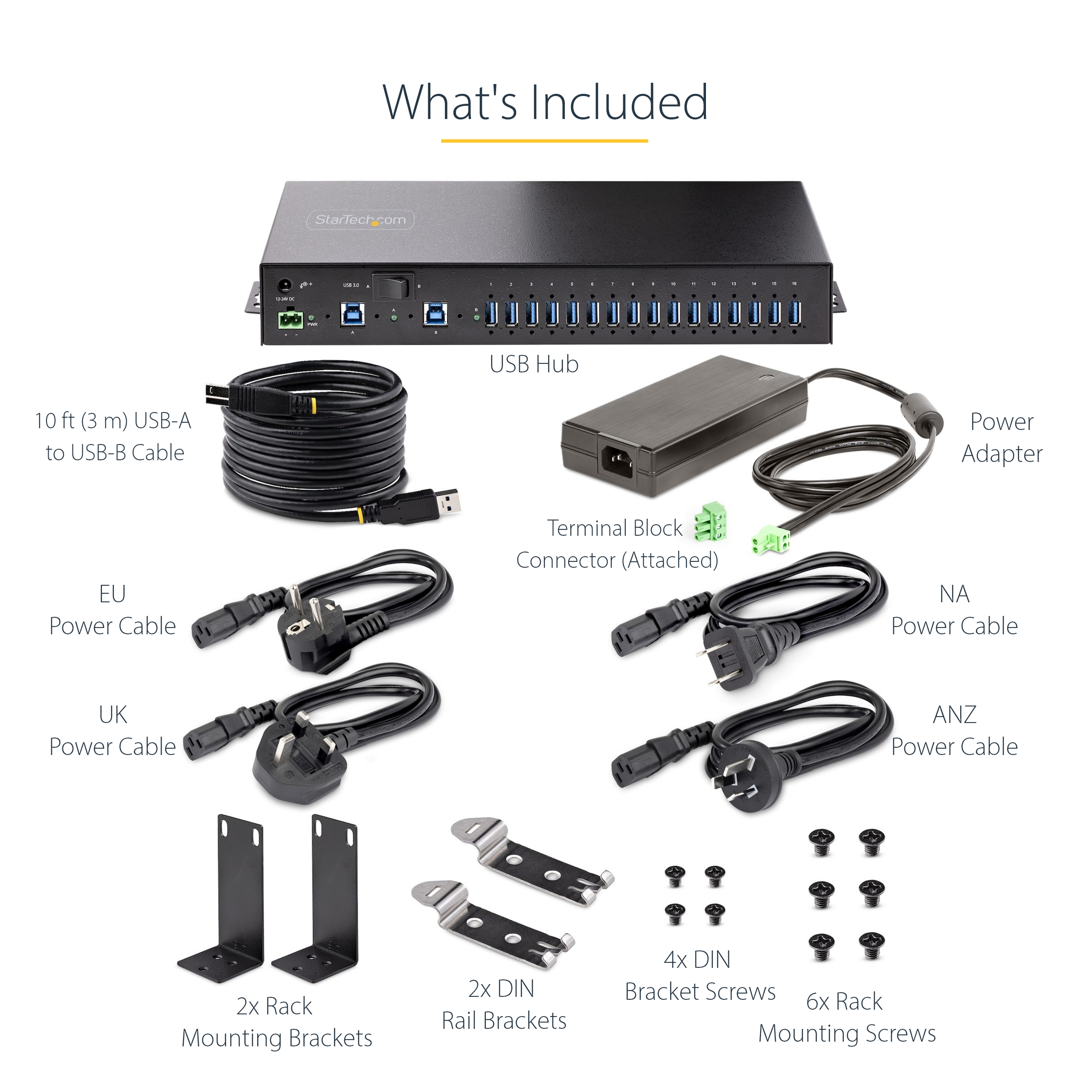

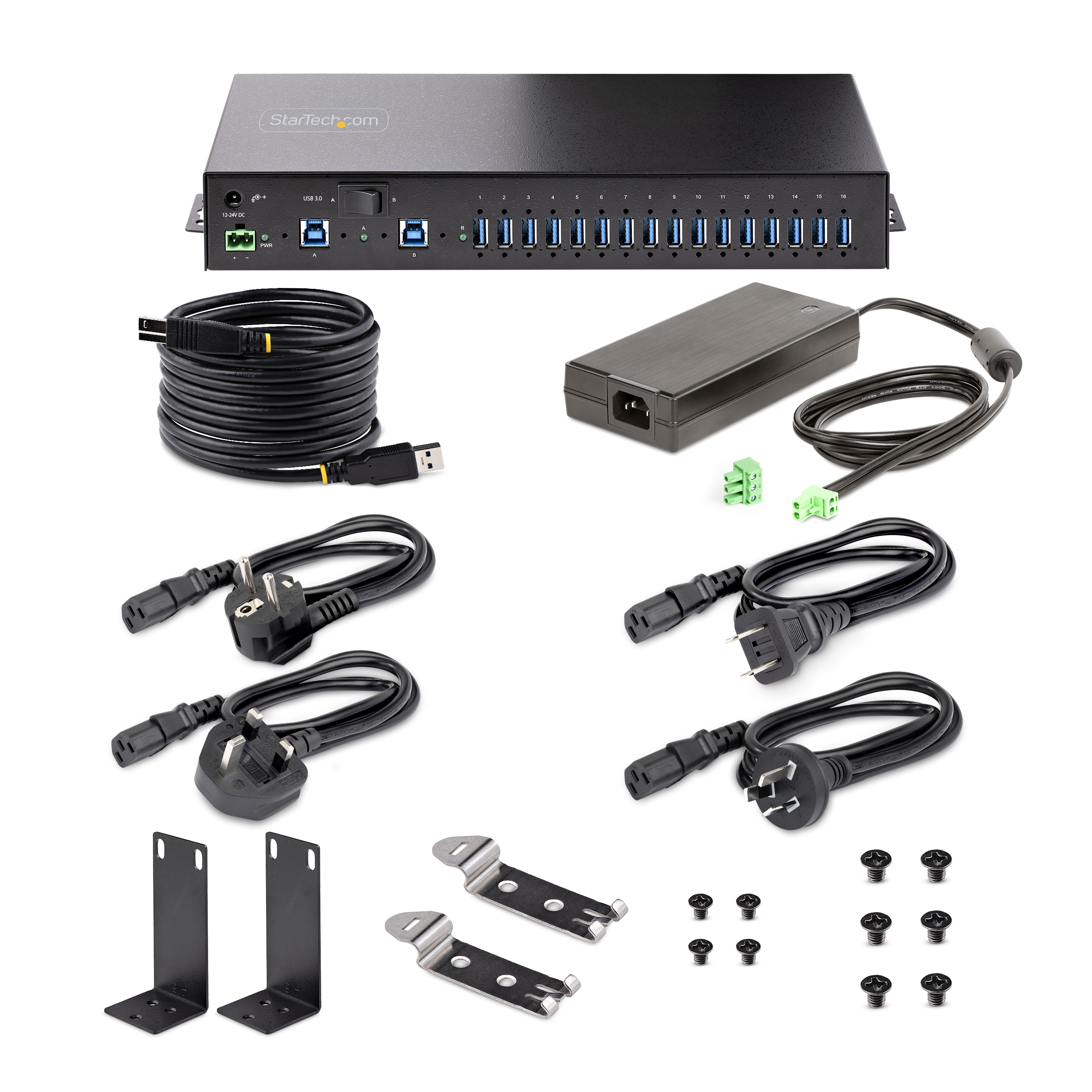

Mounting Options Surface Mount Number of Battery Charge 1.2 Ports 16 U Height 1U USB-C Device Port(s) No USB-C Host Connection No USB Port Type USB-A Carton Depth (mm) 508 Carton Height (mm) 318 Carton Quantity 5 Carton Weight Gross (g) 10000 Included in Package - 1 - USB Hub
- 1 - 10 ft [3 m] USB-A to USB-B Cable
- 1 - Terminal Block Connector (Attached)

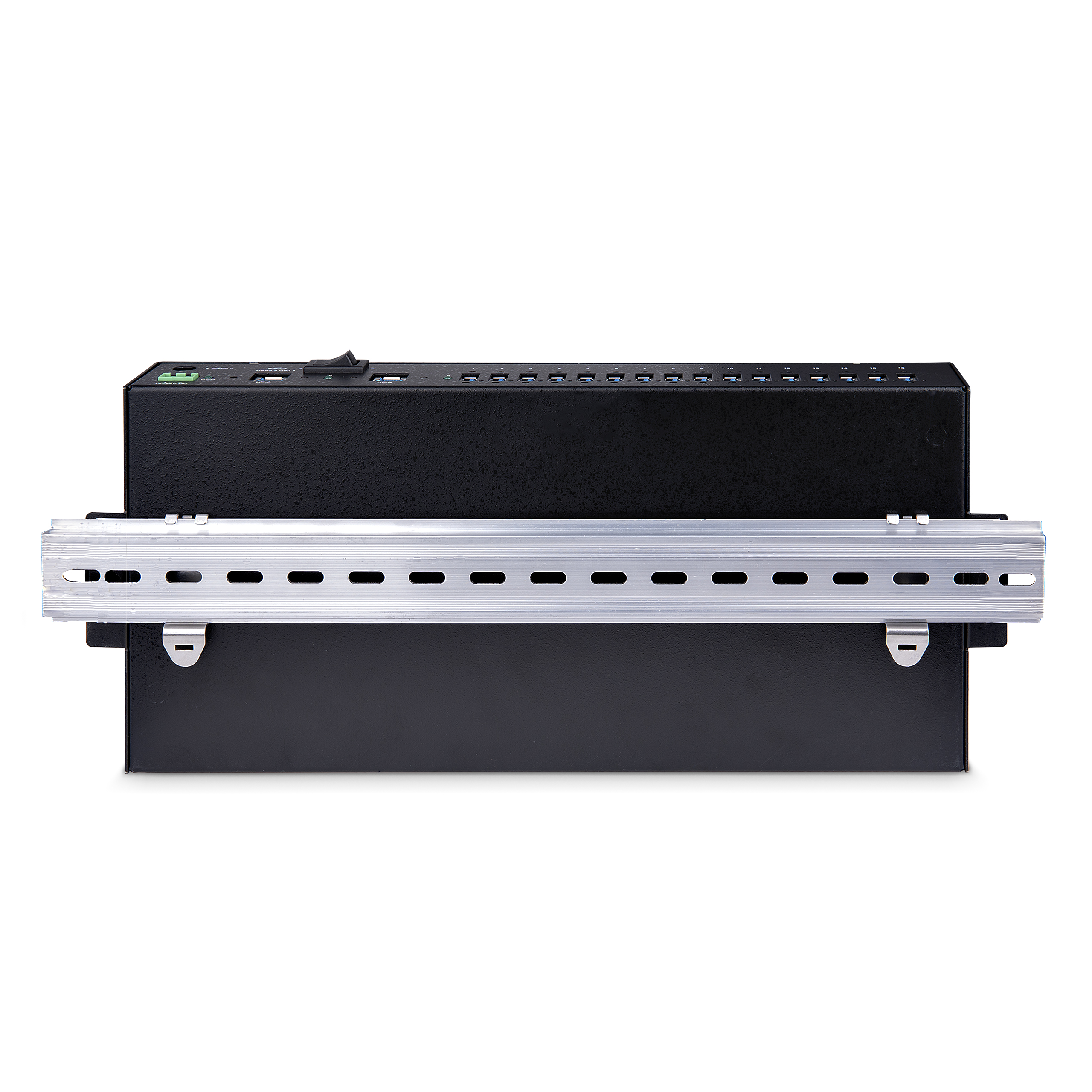

- 2 - DIN Rail Mounting Brackets (with Mounting Screws)

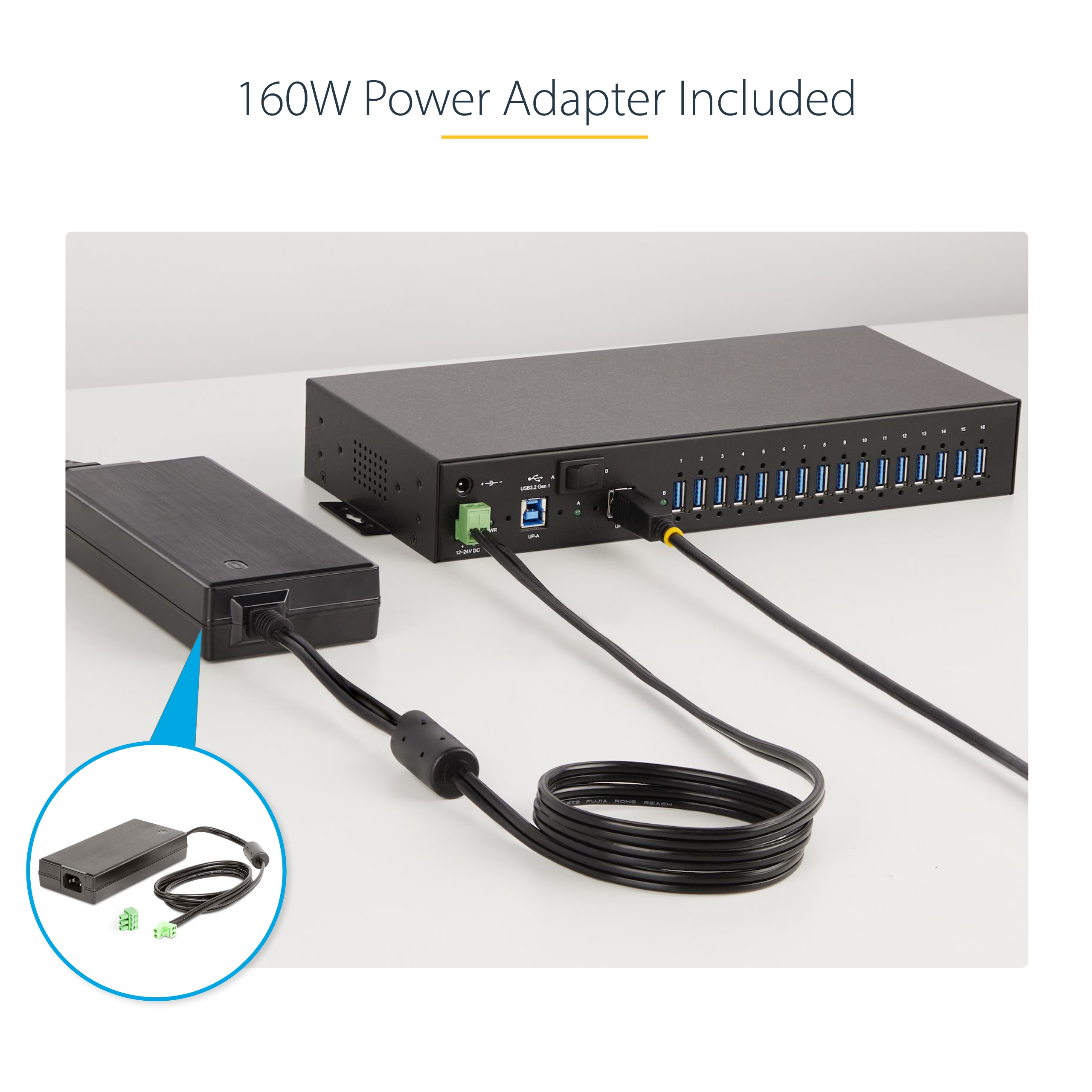

- 1 - 160W Power Adapter (160W-POWER-ADAPTER)
- 1 - Quick-Start Guide (160W-POWER-ADAPTER)
- 1 - Quick-Start Guide (5G16AINDS-USB-A-HUB)

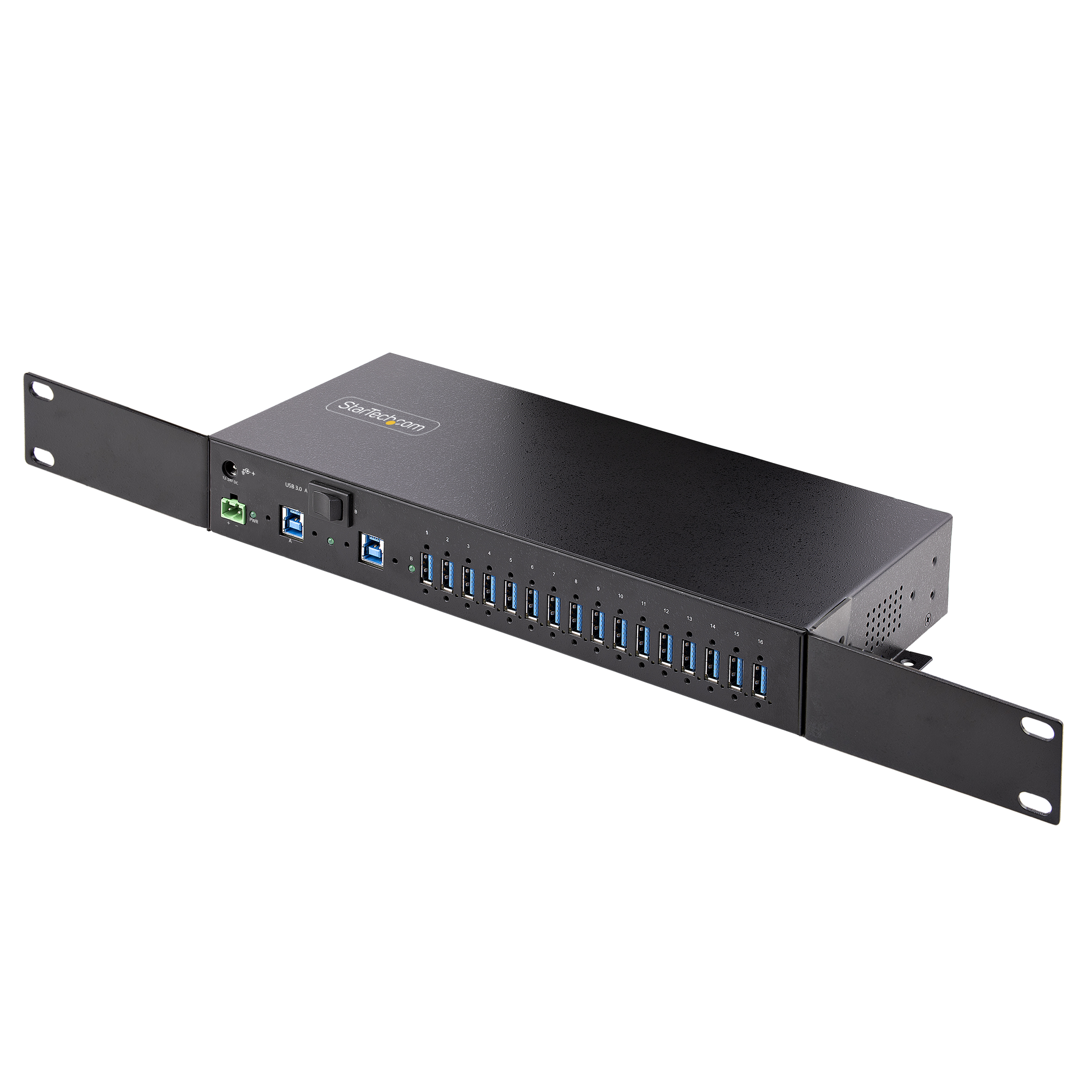

- 2 - Rackmount Brackets (with Mounting Screws)
Package Depth (mm) 273 Package Height (mm) 98 Package Width (mm) 368 Package Weight (g) 1820 Packaging Description Dual-Host 16-Port Industrial USB 5Gbps Hub - Power Adapter - ESD Protection Packaging Description India Dual-Host 16-Port Industrial USB 5Gbps Hub - Power Adapter - ESD Protection Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 16 Connector 2 Terminal Block (2 Wire) Connector 2 (Quantity) 1 Connector 3 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Connector 3 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 2 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2023-09-30 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment 10-Port USB 3.0 Hub with Power Adapter Comparable SKU 2 Comment 7-Port USB 3.0 Hub with Power Adapter Digital Content Due Date 2023-12-30 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology USB 3.2 Gen 1 / 5Gbps Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Shane Arnett Target Development Completion Date 2023-09-12 Target Production Release 2023-09-30 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine Video Not Required
