SAS808782P50

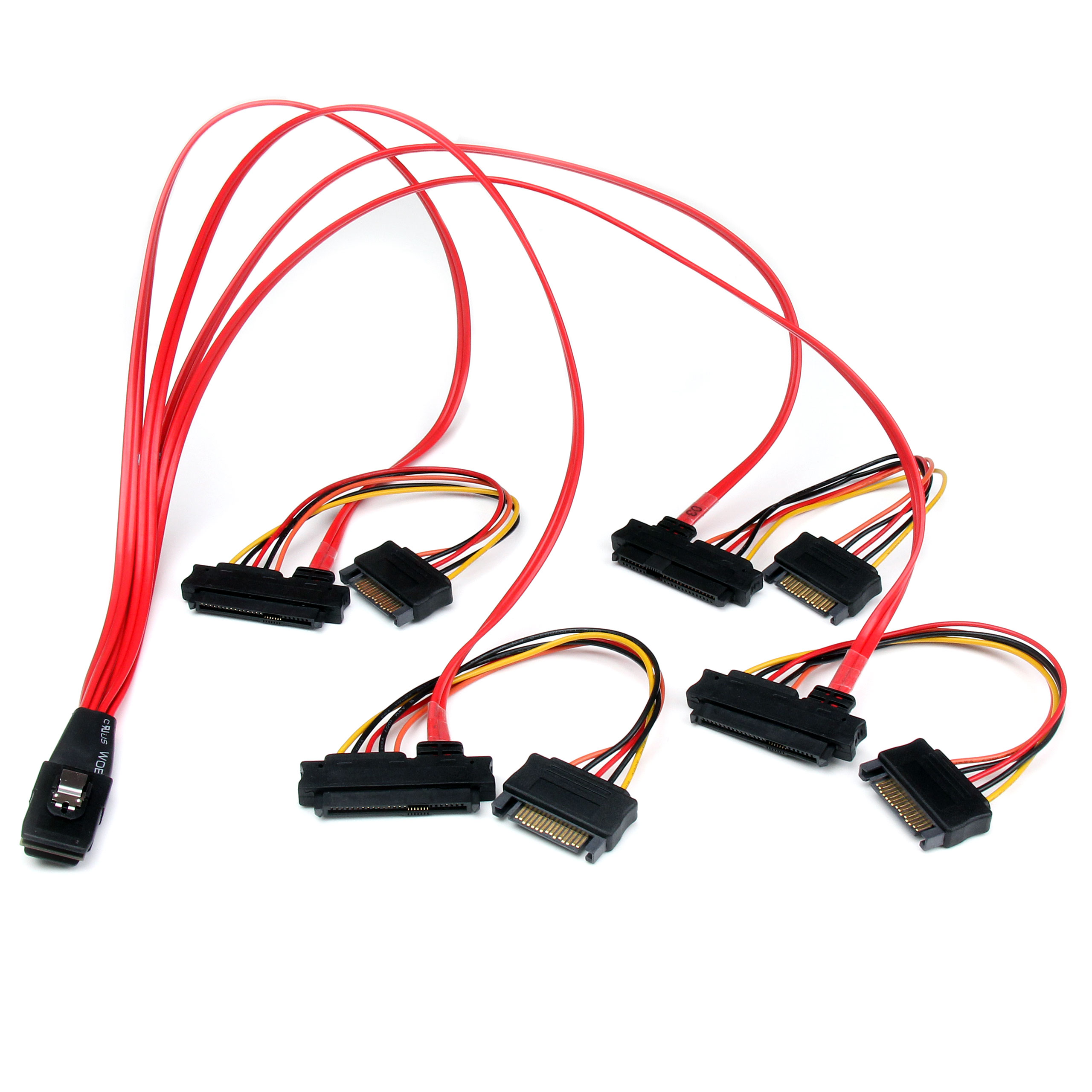

50cm Internal Mini SAS Cable - SFF8087 to 4x SFF8482
Connect a SAS Controller to 4 SAS drives
Main Image
Product Images
Product Images

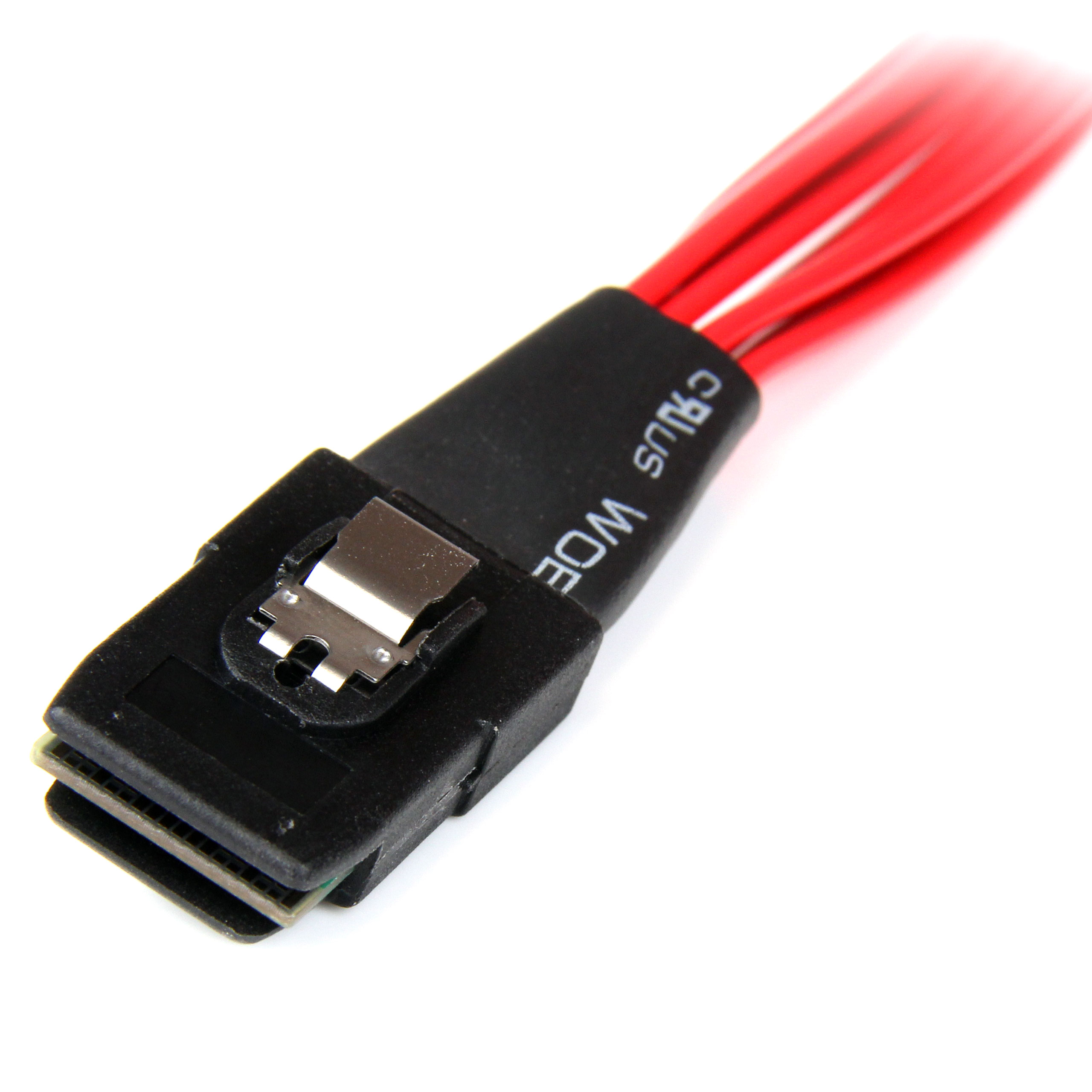

Product Name 50cm Internal Mini SAS Cable - SFF8087 to 4x SFF8482 Product Number SAS808782P50 UPC 065030848039 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Internal Data & Power Category Level 1 Cables - Other Category Level 2 Drive Cables Category Level 3 SAS Cables Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX087X Product Title (Short) 50cm SAS Cable SFF8087 to 4x SFF8482 Product Title (Medium) x Product Title (Standard) 50cm Internal Serial Attached SCSI Mini SAS Cable - SFF8087 to 4x SFF8482 Product Title (Long) 50cm Internal Serial Attached SCSI Mini SAS Cable - SFF8087 to 4x SFF8482 Product Title (AMZ) 50cm Internal Serial Attached SCSI Mini SAS Cable - SFF8087 to 4x SFF8482 - Internal Mini SAS Cable (SAS808782P50) Title Ingram (Part 1) 50cm Internal Mini SAS Cable - S Title Ingram (Part 2) FF8087 to 4x SFF8482 Website Product Headline Connect a SAS Controller to 4 SAS drives Bullet 1 Supports up to 6Gbps throughput per channel Bullet 2 4x SFF-8482 connections, each with data and power Bullet 3 1x SFF-8087 connector Bullets (Consolidated) SAS internal cable - SAS 6Gbit/s - 36 pin 4i Mini MultiLane (P) to SATA power - 29 pin internal SAS (SFF-8482) - 1.6 ft - red Marketing Copy Applications - Connects four SAS hard drives to a SAS controller

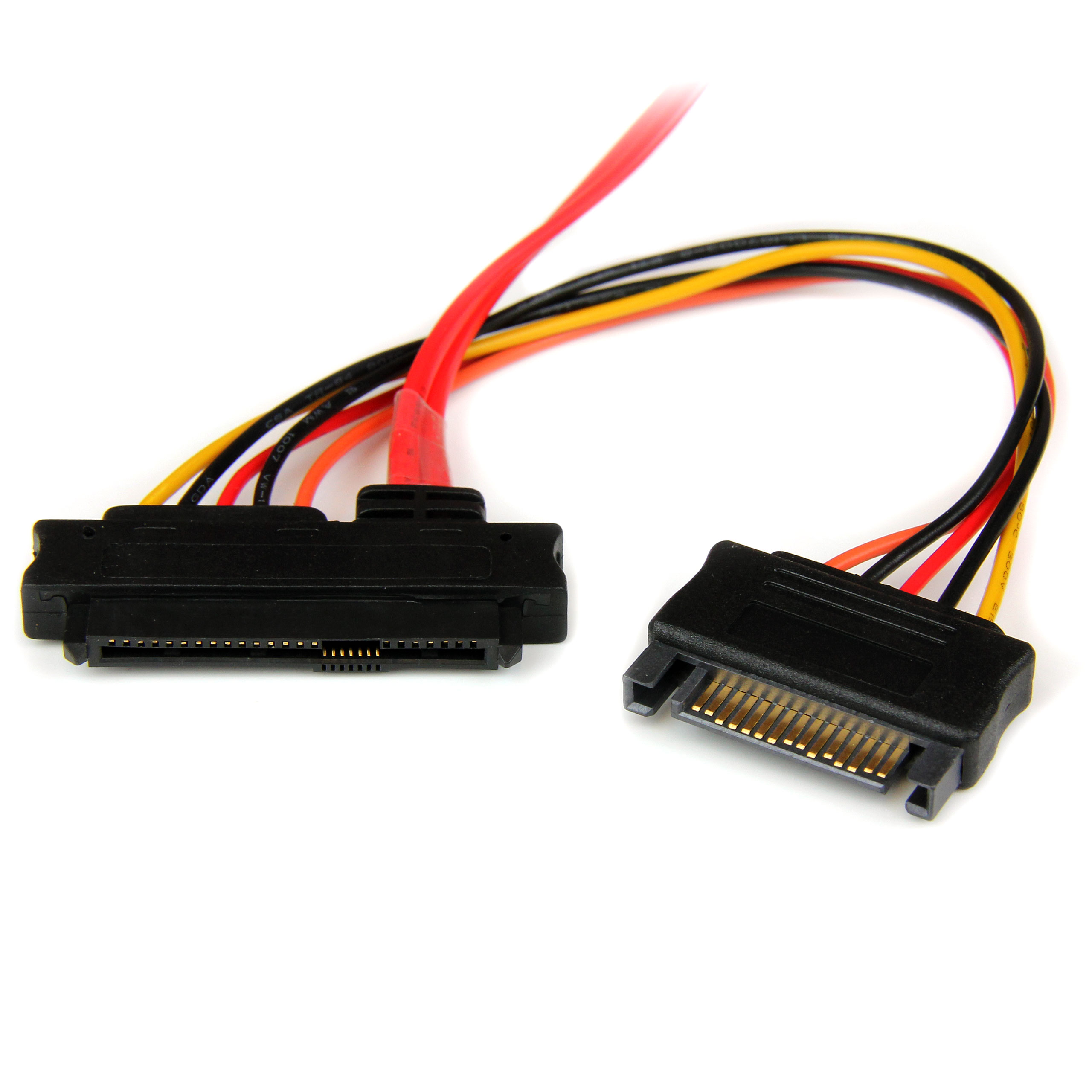

- SFF-8482 Connector will support SAS and SATA Hard Drives
Website Search Keyword - SFF 8087 to SFF 8482
- sas fanout cable
- mini sas to sas cable
- sas breakout cable
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Related Products - SAS8087S450
- SAS8087S4100
- SAS8087S4R50
Cable Length (mm) 500 Color Red Primary Material Plastic Product Length (mm) 500 Product Width (mm) 50 Product Height (mm) 15 Product Weight (g) 94 TAA Compliant No Wire Gauge 30 AWG Carton Depth (mm) 335 Carton Height (mm) 217 Carton Quantity 100 Carton Weight Gross (g) 10656 Included in Package 1 - 50cm Serial Attached SCSI SAS Cable - SFF8087 to 4x SFF8482 Included In Package for Label 1 - 50Cm Serial Attached Scsi Sas Cable - Sff8087 To 4X Sff8482 Number of Sub-Cartons 10 Package Depth (mm) 78 Package Height (mm) 45 Package Width (mm) 159 Package Quantity 1 Package Weight (g) 92 Packaging Description SAS Cable SFF-8087 to 4x SFF-8482 Packaging Description India SAS Cable SFF-8087 to 4x SFF-8482 Sub-Carton Depth (mm) 215 Sub-Carton Height (mm) 88 Sub-Carton Width (mm) 254 Sub-Carton Quantity 10 Sub-Carton Weight (g) 978 Connector 1 SFF-8087 (36-Pin, SAS) Connector 1 (Quantity) 1 Connector 2 SFF-8482 (29-Pin, SAS) Connector 2 (Quantity) 4 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 4 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-02-13 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
