SAS8087S450

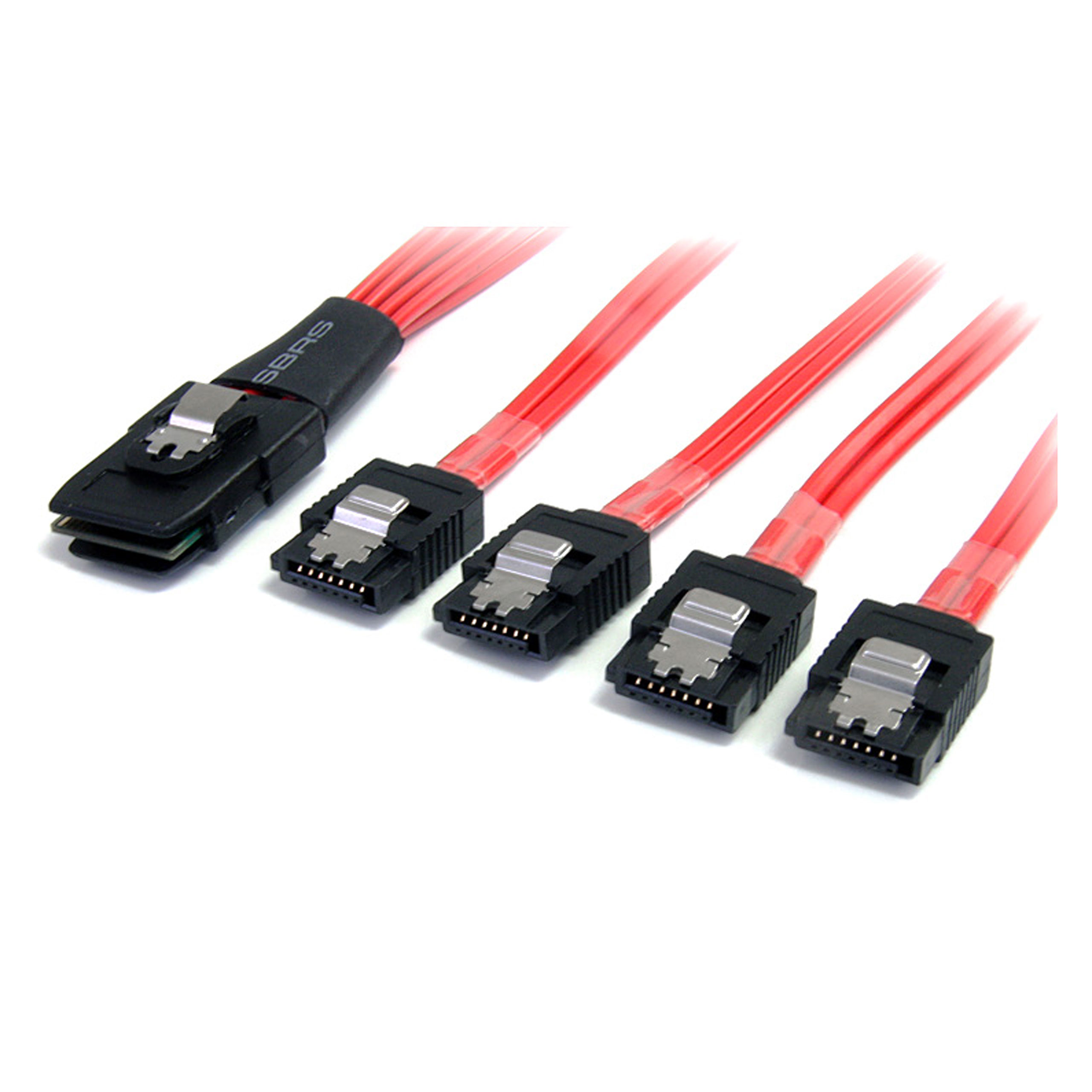

SFF-8087 to 4x Latching SATA - SAS Cable 50cm
Connect a SATA/SAS Controller to 4 SATA drives
Main Image
Product Images
Product Images
Product Name SFF-8087 to 4x Latching SATA - SAS Cable 50cm Product Number SAS8087S450 UPC 065030841672 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Internal Data & Power Category Level 1 Cables - Other Category Level 2 Drive Cables Category Level 3 SAS Cables Family Mini SAS Cables 8087 to 4 latching SATA Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX087X Product Title (Ultra-Short) 50cm 8087 to 4x SATA Product Title (Short) SAS Cable SFF-8087 to 4x Latching SATA Product Title (Medium) x Product Title (Standard) 50cm Serial Attached SCSI SAS Cable - SFF-8087 to 4x Latching SATA Product Title (Long) 50cm Serial Attached SCSI SAS Cable - SFF-8087 to 4x Latching SATA Product Title (AMZ) 50cm Serial Attached SCSI SAS Cable - SFF-8087 Plug to 4x Latching SATA (female) - Mini SAS to SATA Cable (SAS8087S450) Title Ingram (Part 1) 50cm SAS Cable - SFF-8087 to 4x Title Ingram (Part 2) Latching SATA Website Product Headline Connect a SATA/SAS Controller to 4 SATA drives Bullet 1 Supports up to 6Gbps per channel Bullet 2 4x latching SATA connectors Bullet 3 1x SFF-8087 connector Bullet 4 Multi-lane design Bullets (Consolidated) SATA/SAS cable - Serial ATA 150/300/600 - 4-Lane - SATA (R) to 36 pin 4i Mini MultiLane (P) - 1.6 ft - latched - red Marketing Copy Applications Connects up to four Serial ATA hard drives to a Serial-Attached SCSI (SAS) controller or backplane Website Search Keyword - 50cm Serial Attached SCSI SAS Cable SFF-8087 4x Latching SATA mini SAS MSAS SATA fan out cable multilane internal hard drive controller backplane host
- S508-18N
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Cable Length (mm) 500 Color Red Connector Style Latching Primary Material Plastic Product Length (mm) 500.000 Product Width (mm) 12.000 Product Height (mm) 10.000 Product Weight (g) 47.000 TAA Compliant No Wire Gauge 30 AWG SATA Type and Rate SATA III (6 Gbps) Number of Conductors 2 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 338 Carton Height (mm) 212 Carton Quantity 100 Carton Weight Gross (g) 5984 Included in Package 1 - 50cm Serial Attached SCSI SAS Cable - SFF-8087 to 4x Latching SATA Included In Package for Label 1 - 50Cm Serial Attached Scsi Sas Cable - Sff-8087 To 4X Latching SATA Number of Sub-Cartons 10 Package Depth (mm) 125 Package Height (mm) 20 Package Width (mm) 225 Package Quantity 1 Package Weight (g) 52 Packaging Description SAS Cable SFF-8087 to 4x Latching SATA Packaging Description India SAS Cable SFF-8087 to 4x Latching SATA Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 537 Connector 1 SFF-8087 (36-Pin, SAS) Connector 1 (Quantity) 1 Connector 2 SATA (7-Pin) Connector 2 (Quantity) 4 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
