Main Image
SAS8482P50

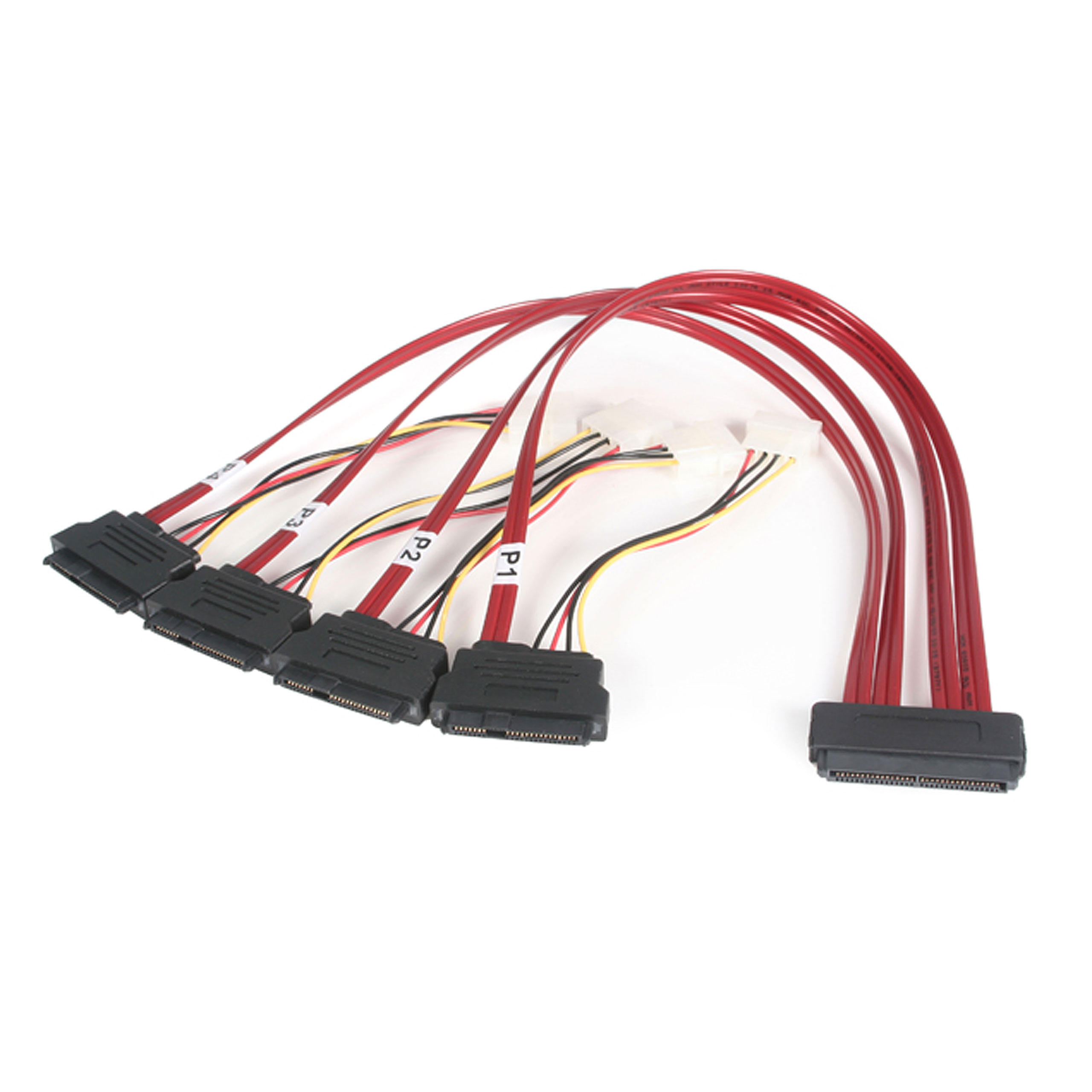

50cm SAS SFF8484 to SFF8482 Cable w. Power
Connect a SAS Controller to 4 SAS drives
Main Image
Product Images
Product Images
Product Images
Product Name 50cm SAS SFF8484 to SFF8482 Cable w. Power Product Number SAS8482P50 UPC 065030826440 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Cables - Other Category Level 2 Drive Cables Category Level 3 SAS Cables Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX084X Product Title (Ultra-Short) 50cm SCSI SAS Cable Product Title (Short) 50cm SAS Cable - SFF-8484 to SFF-8482 Product Title (Standard) 50cm Serial Attached SCSI SAS Cable – SFF-8484 to 4x SFF-8482 with LP4 Power Product Title (Long) 50cm Serial Attached SCSI SAS Cable – SFF-8484 to 4x SFF-8482 with LP4 Power Product Title (AMZ) 50cm Serial Attached SCSI SAS Cable - SFF-8484 to SFF-8482 with LP4 Power (SAS8482P50) Title Ingram (Part 1) 50cm Serial Attached SCSI SAS Ca Title Ingram (Part 2) ble - SFF-8484 to SFF-8482 Website Product Headline Connect a SAS Controller to 4 SAS drives Bullet 1 1x SFF-8484 connector Bullet 2 4x SFF-8482 connectors with LP4 power Bullet 3 Supports up to 6Gbps per channel Bullet 4 Multi-lane design Marketing Copy Marketing Copy (No HTML) The SAS8482P50 SFF-8484 to 4x SFF-8482 SAS cable features one 32-pin SFF-8484 receptacle which fans out to four 29-pin SFF-8482 receptacles with LP4 power supply connectors, providing a reliable solution for connecting up to four SAS HDDs to a SAS controller or backplane. Designed and constructed for long-lasting dependability and reliability, the 50cm (19.7in) SAS cable is backed by lifetime warranty. Applications Connects up to four SAS hard drives to a Serial-Attached SCSI (SAS) controller or backplane Website Search Keyword - SAS iSAS SCSI miniSAS Infiniband
- Dell Precision T3400 T5400 T7400
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Cable Length (mm) 500 Color Red Product Length (mm) 500.000 Product Width (mm) 0.000 Product Height (mm) 0.000 Product Weight (g) 0.000 TAA Compliant Yes Wire Gauge 26 AWG (0.404 mm) Cable Jacket Material PVC - Polyvinyl Chloride Cable Shield Material Aluminum-polyester foil Number of Conductors 28 Carton Depth (mm) 348 Carton Height (mm) 274 Carton Quantity 50 Carton Weight Gross (g) 8200 Included in Package 1 - 50cm Serial Attached SCSI SAS Cable - SFF-8484 to SFF-8482 Package Depth (mm) 37 Package Height (mm) 274 Package Width (mm) 138 Package Quantity 1 Package Weight (g) 140 Packaging Description SAS Cable - SFF-8484 to SFF-8482 Packaging Description India SAS Cable - SFF-8484 to SFF-8482 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SFF-8484 (32-Pin, SAS) Connector 1 (Quantity) 1 Connector 2 SFF-8482 (29-Pin, SAS) Connector 2 (Quantity) 4 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
