Main Image
SAS8787100

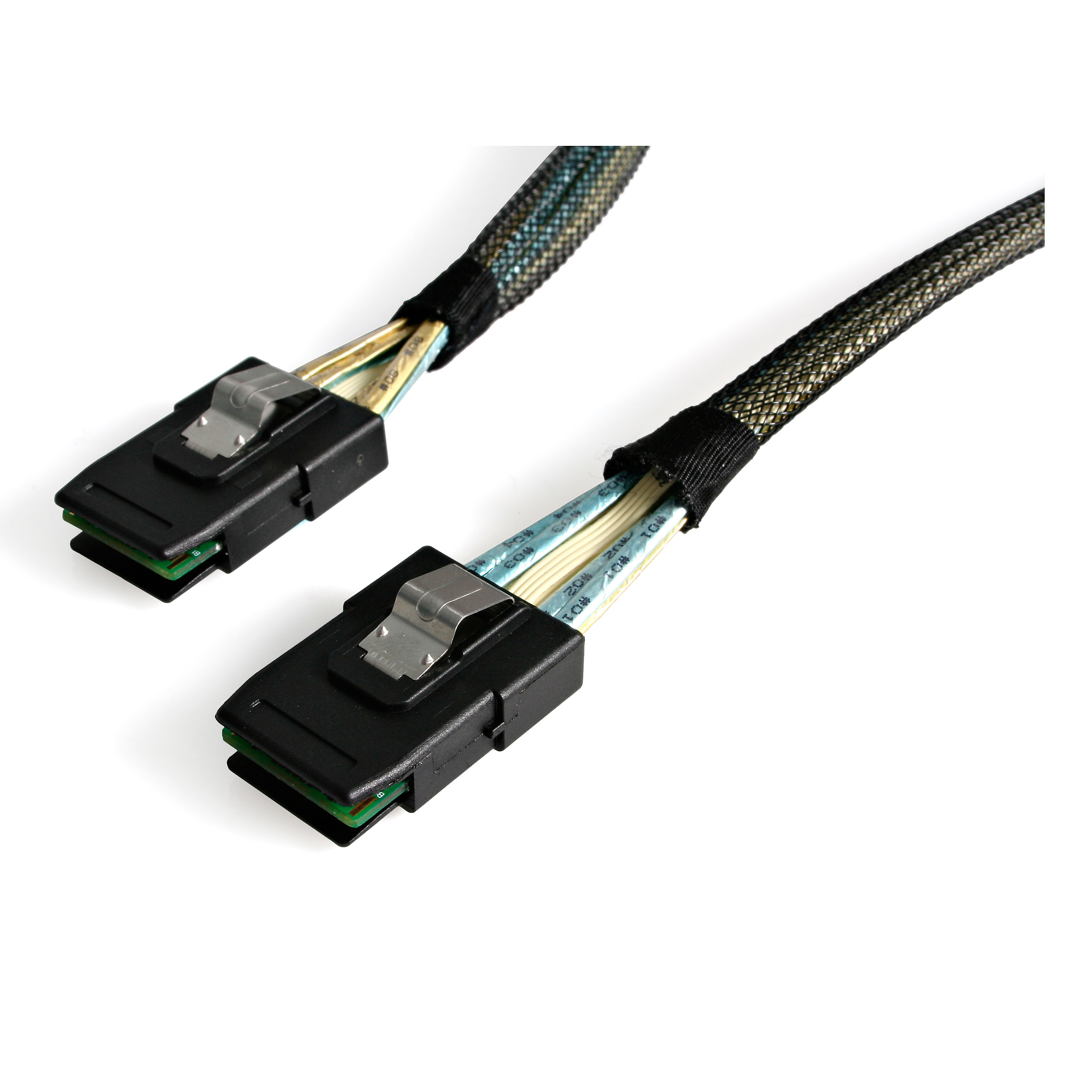

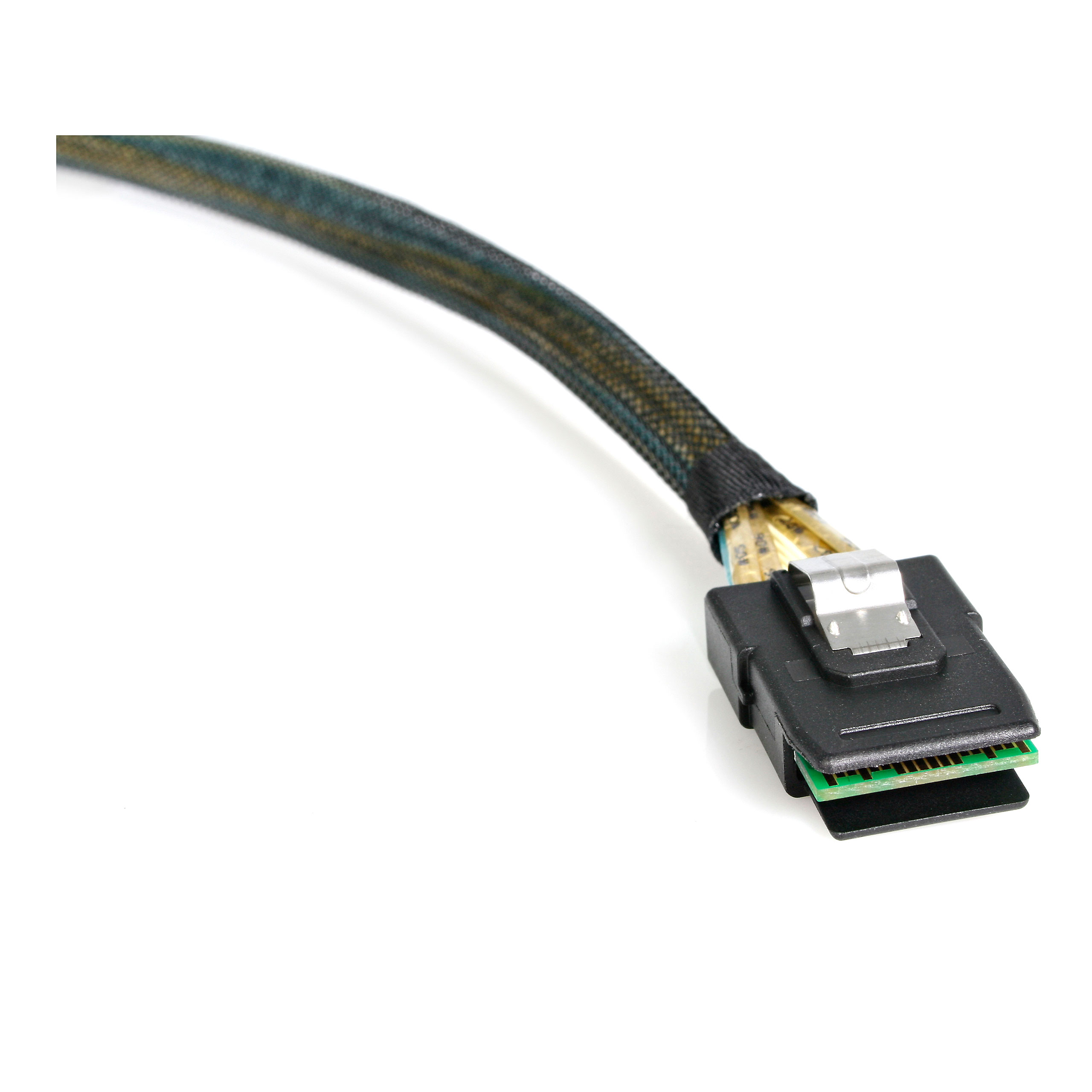

SFF-8087 to SFF-8087 - SAS Cable 100cm
Provide durable connectivity for high-performance networks, servers, workstations and desktops
Main Image
Product Images
Product Name SFF-8087 to SFF-8087 - SAS Cable 100cm Product Number SAS8787100 UPC 065030826495 Lifecycle status End of Life Warranty Lifetime Taxonomy Product > Cables > Internal Data & Power Category Level 1 Cables - Other Category Level 2 Drive Cables Category Level 3 SAS Cables Family Mini SAS 8087 to 8087 Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX087X Product Title (Ultra-Short) . Product Title (Short) 100cm SAS Cable - SFF-8087 to SFF-8087 Product Title (Medium) . Product Title (Standard) 100cm SAS Cable - SFF-8087 to SFF-8087 Product Title (Long) 100cm Serial Attached SCSI SAS Cable - SFF-8087 to SFF-8087 Product Title (AMZ) 100cm Serial Attached SCSI SAS Cable - SFF-8087 to SFF-8087 (SAS8787100) Title Ingram (Part 1) 100cm Serial Attached SCSI SAS C Title Ingram (Part 2) able - SFF-8087 to SFF-8087 Website Product Headline Provide durable connectivity for high-performance networks, servers, workstations and desktops Bullet 1 Dual SFF-8087 Internal Mini-SAS Plugs Bullets (Consolidated) SFF-8087 to SFF-8087 - SAS internal cable - with Sidebands - 4-Lane - 36 pin 4i Mini MultiLane (P) to 36 pin 4i Mini MultiLane (P) - 3.3 ft Marketing Copy Website Search Keyword - mini SAS
- cable plug
- Sidebands
- S506-003
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Related Products - SAS878750
- SAS7070S100
- SAS70S4100
- SAS84S450
- SAS8482P50
- SAS7082P50
Cable Length (mm) 1000 Color Black Primary Material Plastic Product Length (mm) 1000.000 Product Width (mm) 0.000 Product Height (mm) 0.000 Product Weight (g) 51.800 TAA Compliant No Wire Gauge 30 AWG Cable Jacket Material PVC - Polyvinyl Chloride Cable Shield Material Aluminum-polyester foil Number of Conductors 32 Carton Depth (mm) 338 Carton Height (mm) 222 Carton Quantity 100 Carton Weight Gross (g) 6528 Included in Package 1 - 100cm Serial Attached SCSI SAS Cable - SFF-8087 to SFF-8087 Number of Sub-Cartons 10 Package Depth (mm) 17 Package Height (mm) 280 Package Width (mm) 138 Package Quantity 1 Package Weight (g) 51.8 Packaging Description Serial Attached SCSI SAS Cable -SFF-8087 Packaging Description India Serial Attached SCSI SAS Cable -SFF-8087 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 0 Connector 1 SFF-8087 (36-Pin, SAS) Connector 1 (Quantity) 1 Connector 2 SFF-8087 (36-Pin, SAS) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
