Main Image
SAT2510B12U3
2.5in USB 3 SATA HDD Enclosure - 9.5/12.5mm HDD
Turn a 2.5in SATA Hard Drive (9.5mm or 12.5mm) into a Portable USB 3.0 External Hard Drive
Main Image
Product Images
BOM Image
Product Name 2.5in USB 3 SATA HDD Enclosure - 9.5/12.5mm HDD Product Number SAT2510B12U3 UPC 065030844536 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Short) 2.5" USB 3 SATA HDD Enclosure 9.5/12.5mm Product Title (Medium) x Product Title (Standard) 2.5in USB 3.0 SATA Hard Drive Enclosure - 9.5/12.5mm HDD Product Title (Long) 2.5in USB 3.0 SATA Hard Drive Enclosure - 9.5/12.5mm HDD Product Title (AMZ) 2.5in SuperSpeed USB 3.0 SATA Hard Drive Enclosure - 9.5/12.5mm HDD - USB 2.0 Hard Drive Enclosure (SAT2510B12U3) Title Ingram (Part 1) 2.5in USB 3.0 SATA Hard Drive En Title Ingram (Part 2) closure 9.5/12.5mm HDD Website Product Headline Turn a 2.5in SATA Hard Drive (9.5mm or 12.5mm) into a Portable USB 3.0 External Hard Drive Bullet 1 SuperSpeed USB 3.0 compliant host interface supporting data transfer rates up to 5Gbps Bullet 2 Powered directly from the USB port Bullet 3 Light-weight and durable aluminum side panels Bullet 4 Power/Activity LED indicator Bullet 5 Supports both 9.5mm and 12.5mm 2.5" form factor SATA hard drives Bullets (Consolidated) Turn a 2.5in SATA hard drive (9.5mm or 12.5mm) into a portable USB 3.0 external hard drive - 2.5in hard drive enclosure - 2.5in SSD/HDD enclosure - 2.5in SATA drive enclosure - Supports SATA I/II/III (up to 6 Gbps) - Fits both 9.5mm and high capacity 12.5mm height hard drives - USB 2.0 compliant drive enclosure - Plug-and-Play and Hot-Swap compatible - Powered directly from the USB port - Light-weight and portable external data storage - Durable aluminum side panels Marketing Copy Applications - Take advantage of new laptops and desktops with USB 3.0 connectivity
- Upgrade from a USB 2.0 drive enclosure to faster USB 3.0
- Create a fast, portable external storage solution for desktops, laptops or netbooks
- Add-on extra storage to almost any USB enabled computer system
- Backup important data to an external storage device
- Share large files between computers quickly and securely without a network
- Retrieve data from old SATA drive, or turn the unused drive into additional external storage space
- Turn a high capacity 12.5mm SATA hard drive into portable, external storage
Website Search Keyword - Portable
- USB 3.0
- Super Speed
- SuperSpeed
- USB Rev 3.0
- 5 Gbps
- Notebook
- Laptop
- 2.5" HDD
- Hard Drive
- External Enclosure
- External Case
- 12mm hdd
- 12.5mm
System and Cable Requirements Available USB port Accessory Products - ECUSB3S2
- PEXUSB3S2
- ECUSB3S254F
- ECUSB3S1
- PEXUSB3S11
Related Products - SATDOCKU3S
- SATDOCKU3SE
- SATDOCKU3SP
- SAT3510BU3
- SAT2510BU2
- SAT2510BU2B
- SAT2510BU2E
- SAT2510BU3
- SAT3510U3V

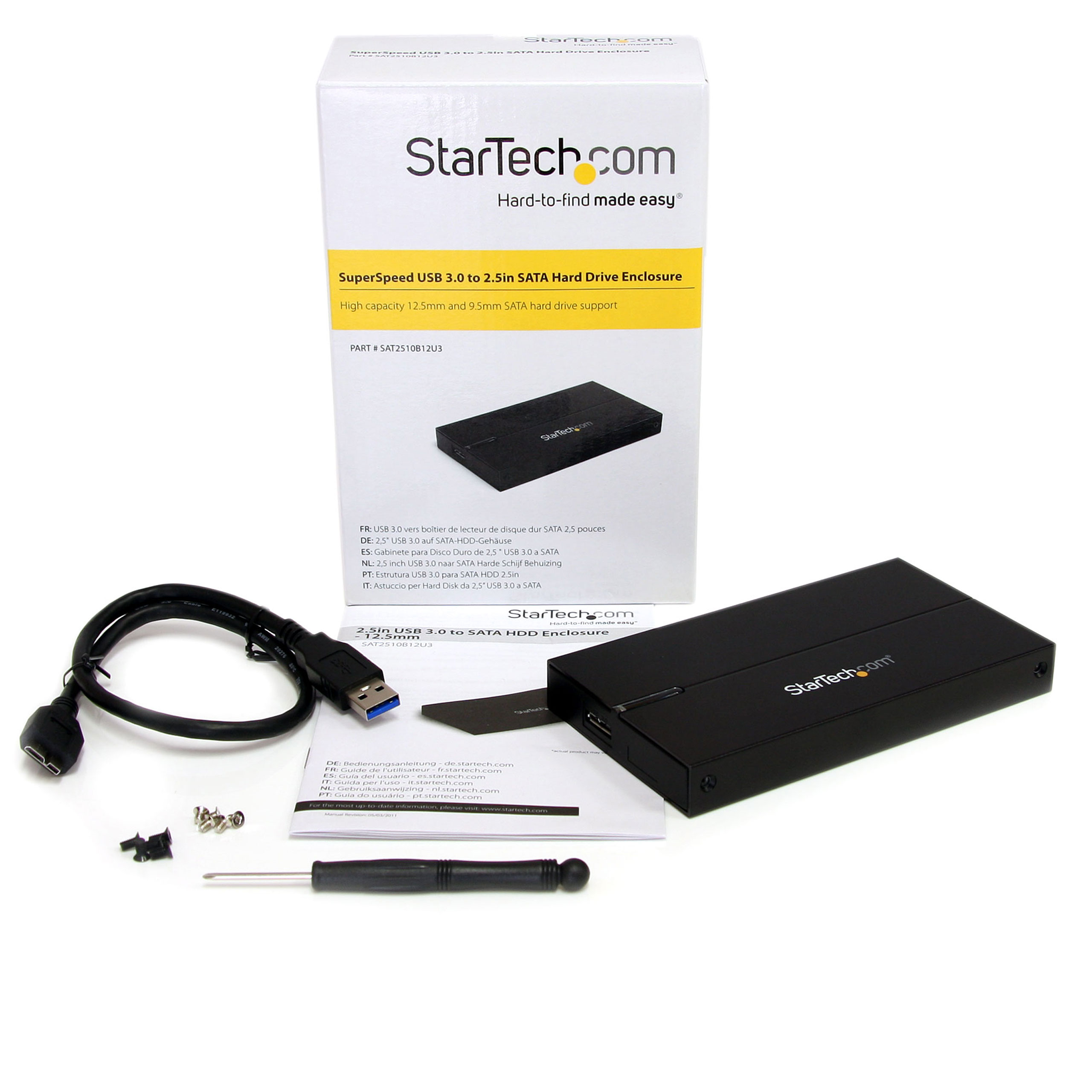

Power Source USB-Powered Color Black Humidity 10% ~ 90% RH Material Aluminum and Plastic Max Drive Height (mm) 12.5 Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 140 Product Width (mm) 75 Product Height (mm) 15 Product Weight (g) 190 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Max Drive Capacity Currently tested with up to 1TB 5400 RPM hard drives OS Compatibility OS Independent RAID No SATA Type and Rate SATA III (6 Gbps) UASP Support No USB Type and Rate USB 3.0 (5Gbps) Chipset ID ASMedia - ASM1051 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - Green - Power & Activity Number of Drives 1 Carton Depth (mm) 260 Carton Height (mm) 400 Carton Quantity 20 Carton Weight Gross (g) 7298 Included in Package - 1 - 2.5in USB 3.0 Hard Drive Enclosure
- 1 - USB 3.0 cable
- 1 - Instruction Manual
- 1 - Screw Driver
- 1 - Package of screws
Package Depth (mm) 120 Package Height (mm) 65 Package Width (mm) 180 Package Quantity 1 Package Weight (g) 331 Packaging Description USB 3.0 to 2.5in SATA HDD Enclosure Packaging Description India USB 3.0 to 2.5in SATA HDD Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB Micro-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
