Main Image
SAT2510BU3

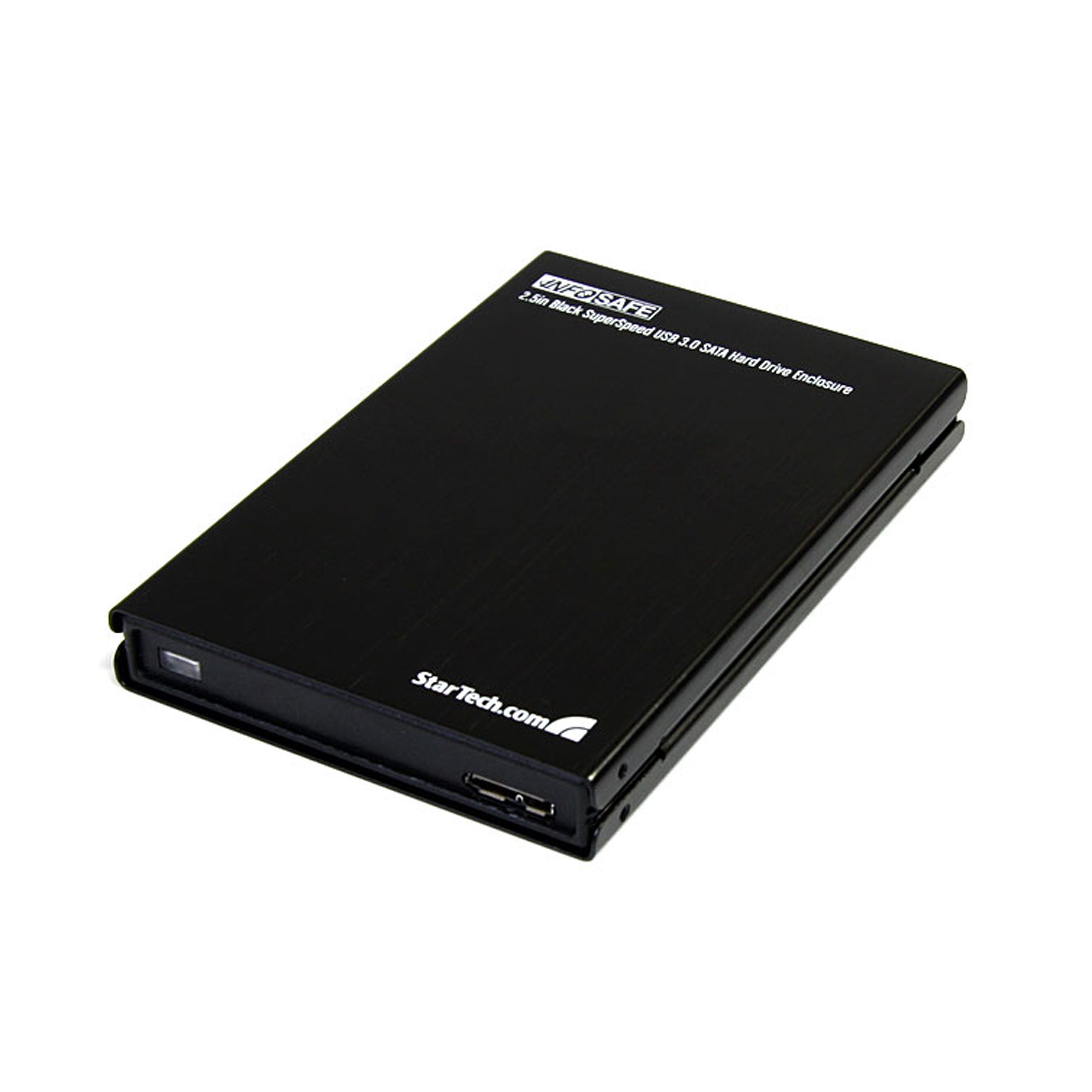

2.5in USB 3 SATA HDD Enclosure
Ultra portable and superspeed capability for faster access and downloads from laptop
Main Image
Product Images
BOM Image
Product Name 2.5in USB 3 SATA HDD Enclosure Product Number SAT2510BU3 UPC 065030839822 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX039X Product Title (Short) 2.5in USB 3.0 SATA Hard Drive Enclosure Product Title (Standard) 2.5in USB 3.0 SATA Hard Drive Enclosure Product Title (Long) 2.5in USB 3.0 SATA Hard Drive Enclosure Title Ingram (Part 1) 2.5in SuperSpeed USB 3.0 SATA Ha Title Ingram (Part 2) rd Drive Enclosure Website Product Headline Ultra portable and superspeed capability for faster access and downloads from laptop Bullet 1 SuperSpeed USB 3.0 compliant host interface, with transfer rates up to 5Gbps Bullet 2 Powered directly from the USB port Bullet 3 Light-weight and durable aluminum side panels Bullet 4 Power/Activity LED indicator Bullet 5 Supports 2.5" form factor SATA hard drives (HDD) Marketing Copy Applications - Take advantage of new laptops and desktops with USB 3.0 connectivity
- Upgrade from a USB 2.0 drive enclosure to faster USB 3.0
- Create a fast, portable external storage solution for desktops, laptops or netbooks
- Add-on extra storage to almost any USB enabled computer system
- Backup important data to an external storage device
- Share large files between computers quickly and securely without a network
- Retrieve data from old SATA drive, or turn the unused drive into additional external storage space
Website Search Keyword - Portable
- USB 3.0
- Super Speed
- SuperSpeed
- USB Rev 3.0
- 5 Gbps
- Notebook
- Laptop
- 2.5" HDD
- Hard Drive
- External Enclosure
- External Case
Accessory Products - ECUSB3S2
- PEXUSB3S2
Related Products - SATDOCKU3S
- SATDOCKU3SE
- SATDOCKU3SP
- SAT3510BU3
- SAT2510BU2
- SAT2510BU2B
- SAT2510BU2E
Color Black Humidity 10~90% RH Material Aluminum and Plastic Max Drive Height (mm) 9.5 Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 113 Product Width (mm) 76 Product Height (mm) 14 Product Weight (g) 63.5 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Max Drive Capacity Currently tested with up to 1TB 5400 RPM hard drives OS Compatibility - Windows 2000
- Windows XP
- Windows Vista
- Windows Server 2003
- Windows 7
- Windows Server 2008 R2
- Linux
- Mac OS X
- Windows 8

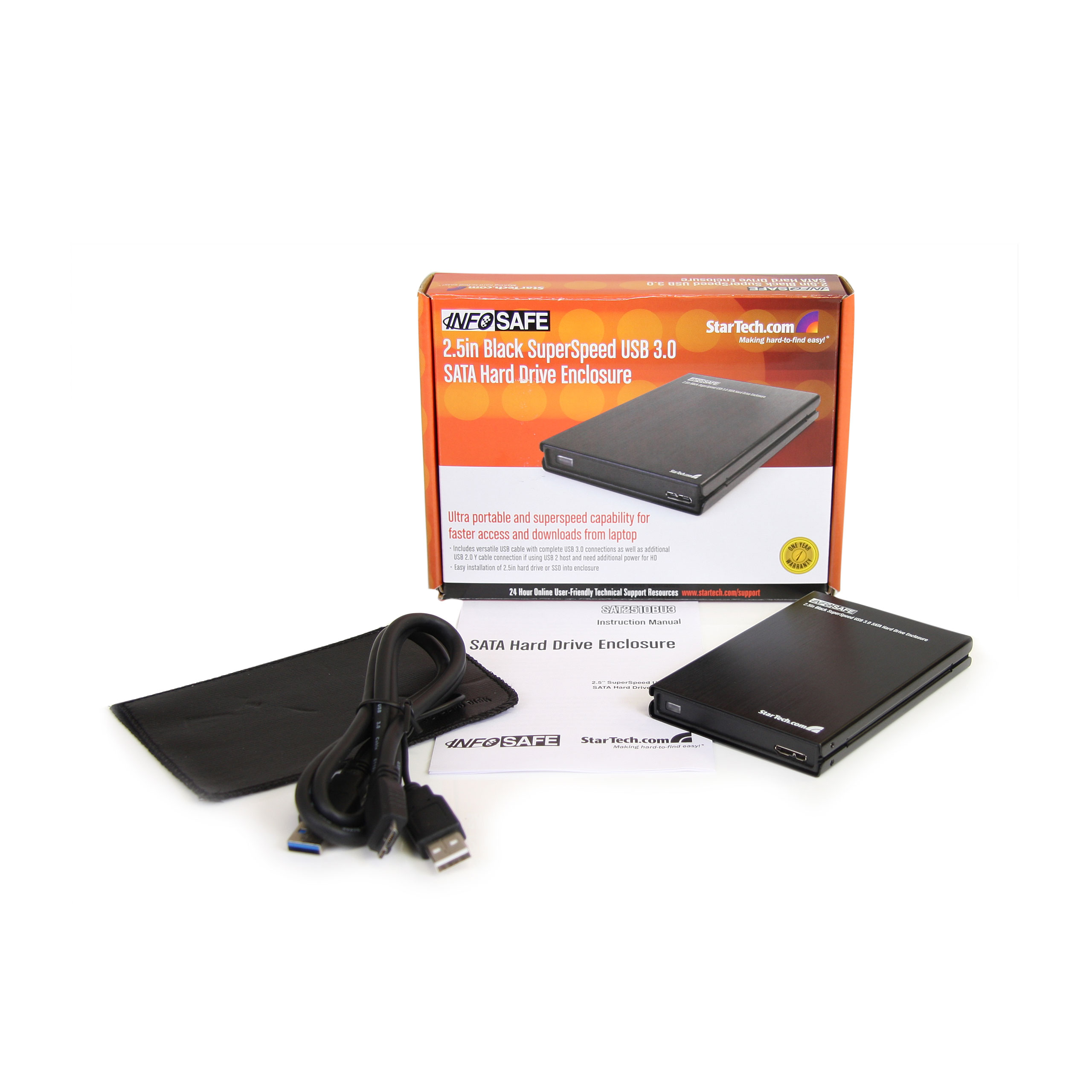

RAID No SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 3.0 (5Gbps) Chipset ID ASMedia - ASM1051 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - Green - Power & Activity Number of Drives 1 Carton Depth (mm) 537 Carton Height (mm) 325 Carton Quantity 75 Carton Weight Gross (g) 18450 Included in Package - 1 - 2.5in USB 3.0 Hard Drive Enclosure
- 1 - USB 3.0 "Y" Cable
- 1 - Black soft carrying pouch
- 1 - Instruction Manual
- 1 - Screw Driver
- 1 - Package of screws
Package Depth (mm) 37 Package Height (mm) 137 Package Width (mm) 175 Package Weight (g) 230 Packaging Description 2.5in SuperSpeed USB 3.0 SATA Hard Drive Enclosure Packaging Description India 2.5in SuperSpeed USB 3.0 SATA Hard Drive Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB Micro-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
