Main Image
SAT2510BU32
2 5in USB 3 0 SSD SATA HDD Enclosure
Turn a 2.5" SATA HDD/SSD into an external SuperSpeed USB 3.0 Hard Drive/Solid State Drive
Main Image
Product Images
Product Images
BOM Image
Product Name 2 5in USB 3 0 SSD SATA HDD Enclosure Product Number SAT2510BU32 UPC 065030845984 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Family 2.5" USB Aluminum Enclosure Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX039X Product Title (Short) 2.5in USB 3.0 SSD SATA HDD Enclosure Product Title (Medium) x Product Title (Standard) 2.5in USB 3.0 SSD SATA Hard Drive Enclosure Product Title (Long) 2.5in USB 3.0 SSD SATA Hard Drive Enclosure - TAA Product Title (AMZ) 2.5in USB 3.0 SSD SATA Hard Drive Enclosure - Storage enclosure with power indicator - 2.5" - SATA 3Gb/s - 3 Gbit/s - USB 3.0 - black (SAT2510BU32) Title Ingram (Part 1) 2.5in SuperSpeed USB 3.0 SSD SAT Title Ingram (Part 2) A Hard Drive Enclosure Website Product Headline Turn a 2.5" SATA HDD/SSD into an external SuperSpeed USB 3.0 Hard Drive/Solid State Drive Bullet 1 SuperSpeed USB 3.0 compliant host interface, which supports transfer rates up to 5Gbps Bullet 2 Supports 2.5" form factor SATA hard drives (HDD) and solid state drives (SSD) Bullet 3 Powered directly from the USB port Bullet 4 Plug-and-Play and Hot-Swap compatible Bullet 5 Power/Activity LED indicator Bullets (Consolidated) Turn a 2.5in SATA HDD/SSD into an external SuperSpeed USB 3.0 Hard Drive/Solid State Drive - 2.5in Hard Drive Enclosure - 2.5in HDD Enclosure - 2.5in Hard Disk Enclosure - 2.5in SATA Enclosure - External Drive Enclosure - Transfer speeds up to 5 Gbps Marketing Copy Applications - Take advantage of new laptops and desktops with USB 3.0 connectivity
- Upgrade from a USB 2.0 drive enclosure to faster USB 3.0
- Create a fast, portable external storage solution for desktops, laptops or netbooks
- Add-on extra storage to almost any USB-enabled computer system
- Backup important data to an external storage device for safe keeping/redundancy
- Share large files between computers, quickly and securely, without a network
- Retrieve data from an old 2.5" SATA drive, or turn the unused drive into additional external storage space
Website Search Keyword - USB 3.0 external enclosure
- Serial ATA
- HDD
- SSD
- SuperSpeed USB
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - USB3SAUB1
- USB3SAUB3
- USB3SAUB3BK
Related Products - S2510BMU33
- S2510BPU33
- UNI251BMU33
- S2510BPU337
- S251SMU33EP
- S2510BU33PW
- S251BRU33
- S251BMU313
- S251BPU313
- S251BPU31C3
- S251BU31315
- S251BRU31C3
- S251BMU3FP

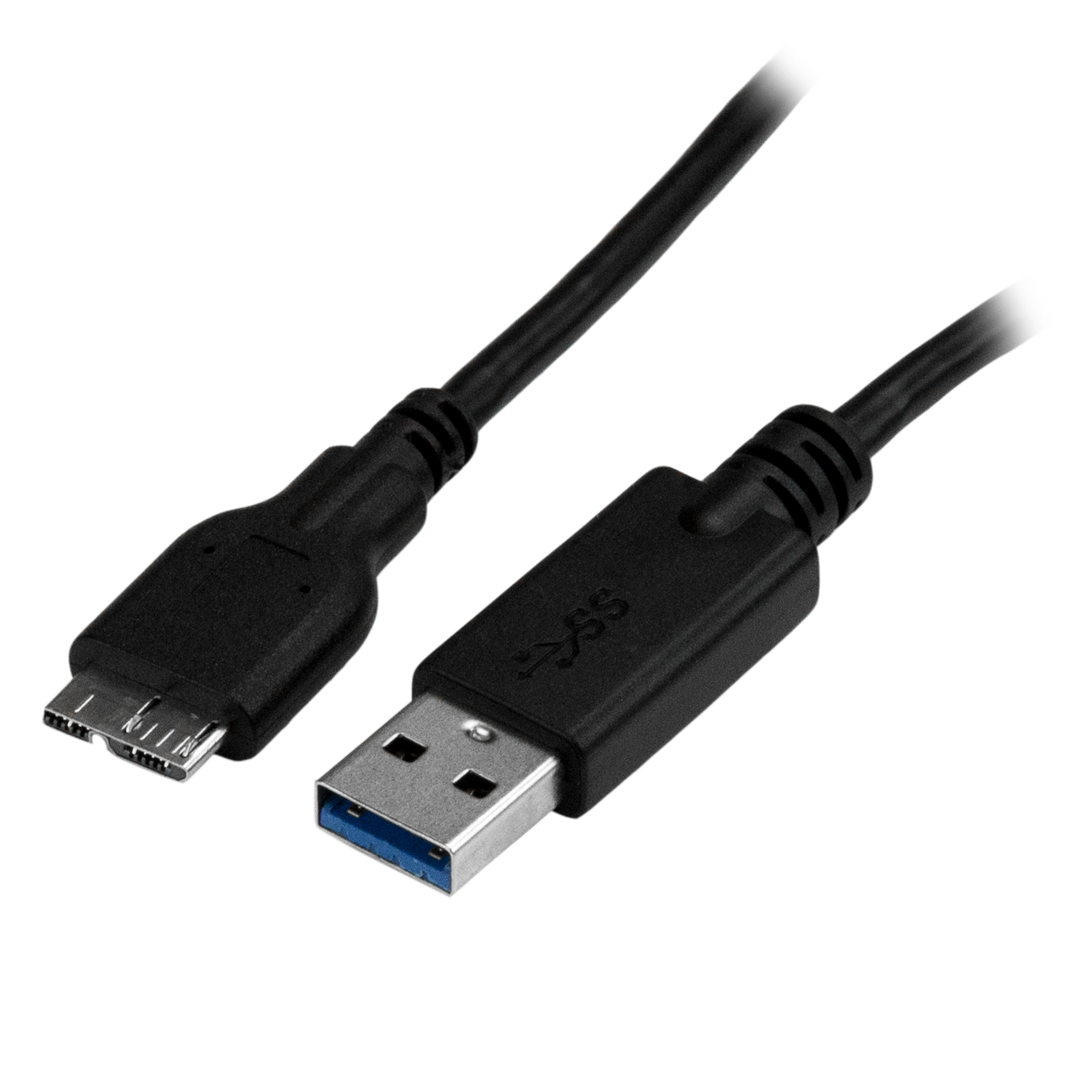

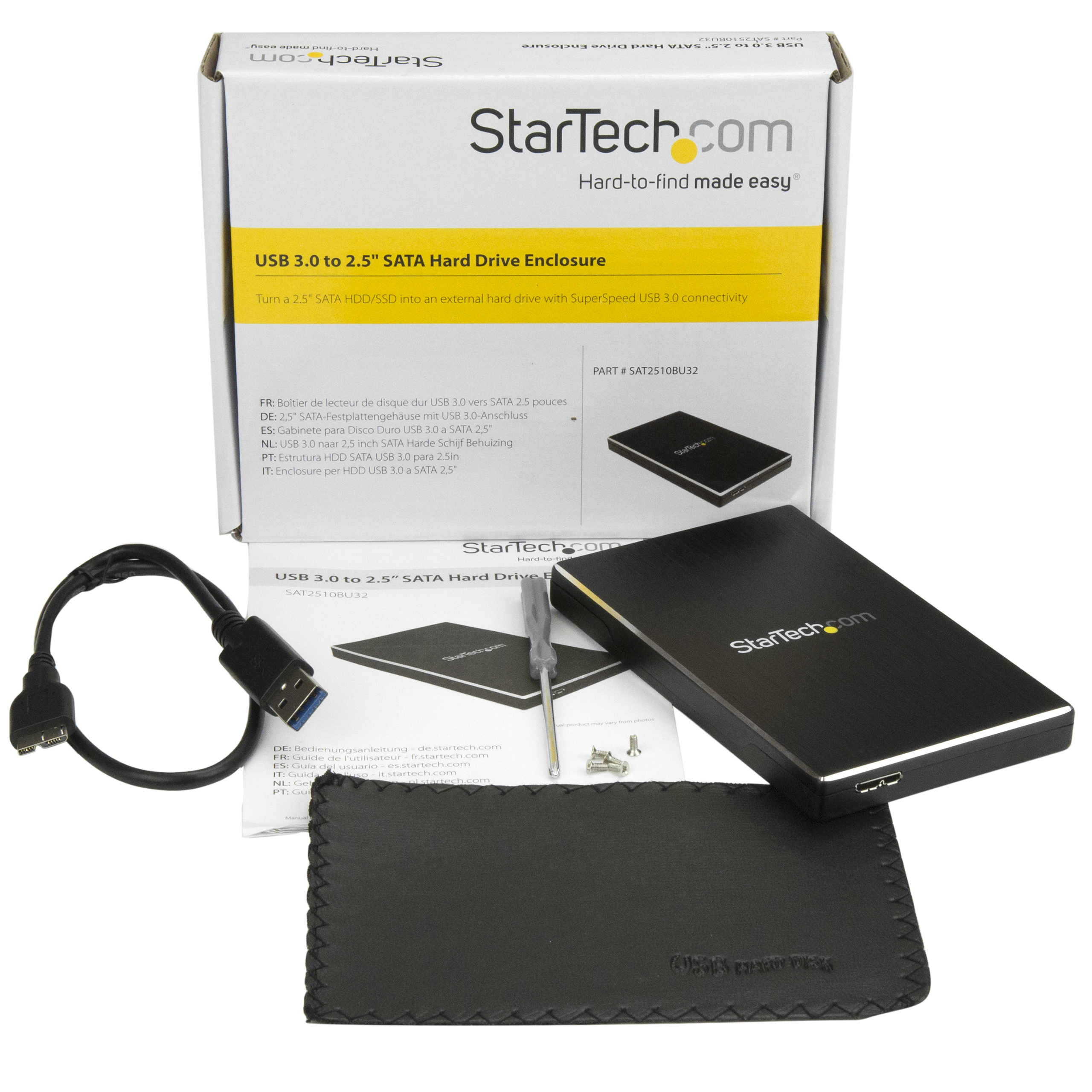

Constrained SKU Alternatives (Limited Stock) S2510BMU33 Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Color Black Humidity 10% ~ 90% RH Material Aluminum Max Drive Height (mm) 9.5 Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Aluminum Product Length (mm) 120.000 Product Width (mm) 75.000 Product Height (mm) 10.000 Product Weight (g) 81.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant Yes 4Kn Support Yes Max Drive Capacity Currently tested with up to 1TB 5400 RPM hard drives OS Compatibility OS Independent SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 3.0 (5Gbps) Chipset ID ASMedia - ASM1053 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - Power/Activity Number of Drives 1 Carton Depth (mm) 486 Carton Height (mm) 330 Carton Quantity 100 Carton Weight Gross (g) 18304 Included in Package - 1 - USB 3.0 Cable
- 1 - Protective Case
- 1 - Tool Kit
- 1 - USB to SATA Enclosure
- 1 - Instruction Manual
Package Depth (mm) 132 Package Height (mm) 32 Package Width (mm) 160 Package Quantity 1 Package Weight (g) 170 Packaging Description USB 3.0 to 2.5" SATA HDD Enclosure Packaging Description India USB 3.0 to 2.5" SATA HDD Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB Micro-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
