SAT2510SCB
SATA Hard Drive Enclosure w/ Built in USB cable
Turn a 2.5in SATA hard drive into a complete external storage solution over USB 2.0
Main Image
Product Images
BOM Image
Product Name SATA Hard Drive Enclosure w/ Built in USB cable Product Number SAT2510SCB UPC 065030836562 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Short) SATA HDD Enclosure w/ Built in USB Cable Product Title (Standard) SATA Hard Drive Enclosure with Built in USB Cable Product Title (Long) 2.5in USB SATA External Hard Drive Enclosure w/ Integrated USB cable Product Title (AMZ) 2.5in USB SATA External Hard Drive Enclosure w/ Integrated USB Cable - 2.5 HDD Enclosure - Hard Disk Enclosure (SAT2510SCB) Title Ingram (Part 1) 2.5 SATA External Hard Drive Enc Title Ingram (Part 2) losure w/ Built in USB Cable Website Product Headline Turn a 2.5in SATA hard drive into a complete external storage solution over USB 2.0 Bullet 1 Powered directly from the USB port Bullet 2 High Speed USB 2.0 host interface, with supported transfer rates up to 480 Mbps Bullet 3 Power/Activity LED indicator Bullet 4 Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) drives Bullet 5 Supports 2.5" form factor SATA hard drives (HDD) or solid state drives (SSD) Bullets (Consolidated) Turn a 2.5in SATA hard drive into a complete external storage solution over USB 2.0 - Compatible with USB - Compatible with USB enabled computers and 2.5" SATA Hard Drives or Solid-state Drives - 2.5in hard drive enclosure/2.5 hard disk enclosure/external drive enclosure - Convert an unused 2.5in HDD/SSD into portable external Drive Marketing Copy Applications - Backup important data to an external storage device
- Share large files between computers quickly and securely without a network
- Busy travelers who can't waste time locating or sorting out cables while on the road
- Add-on extra storage to almost any USB enabled computer system
- Create a fast, portable external storage solution for desktops, laptops or netbooks
- Retrieve data from old SATA drive, or turn the unused drive into additional external storage space
Website Search Keyword - 2.5inch HDD Enclosure
- Integrated Cable
- USB 2.0
- Portable HDD
- External HDD Case
- External Storage
- Removable Storage
- Mobile Hard Drive
- 2.5"
- Built in USB cable
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - GCUSBAFBF
- USB2FAAEXT15
- USBEXTAA_6
- USBEXTAA10
- USBEXTAA5DSK
- USBEXTAA6IN
Related Products - IDE2510U2
- SAT2510U2
- SAT2510BU2B
- SAT2510U2E
- SAT2510BU2
- SAT2510U2REM
- SAT2510U2S

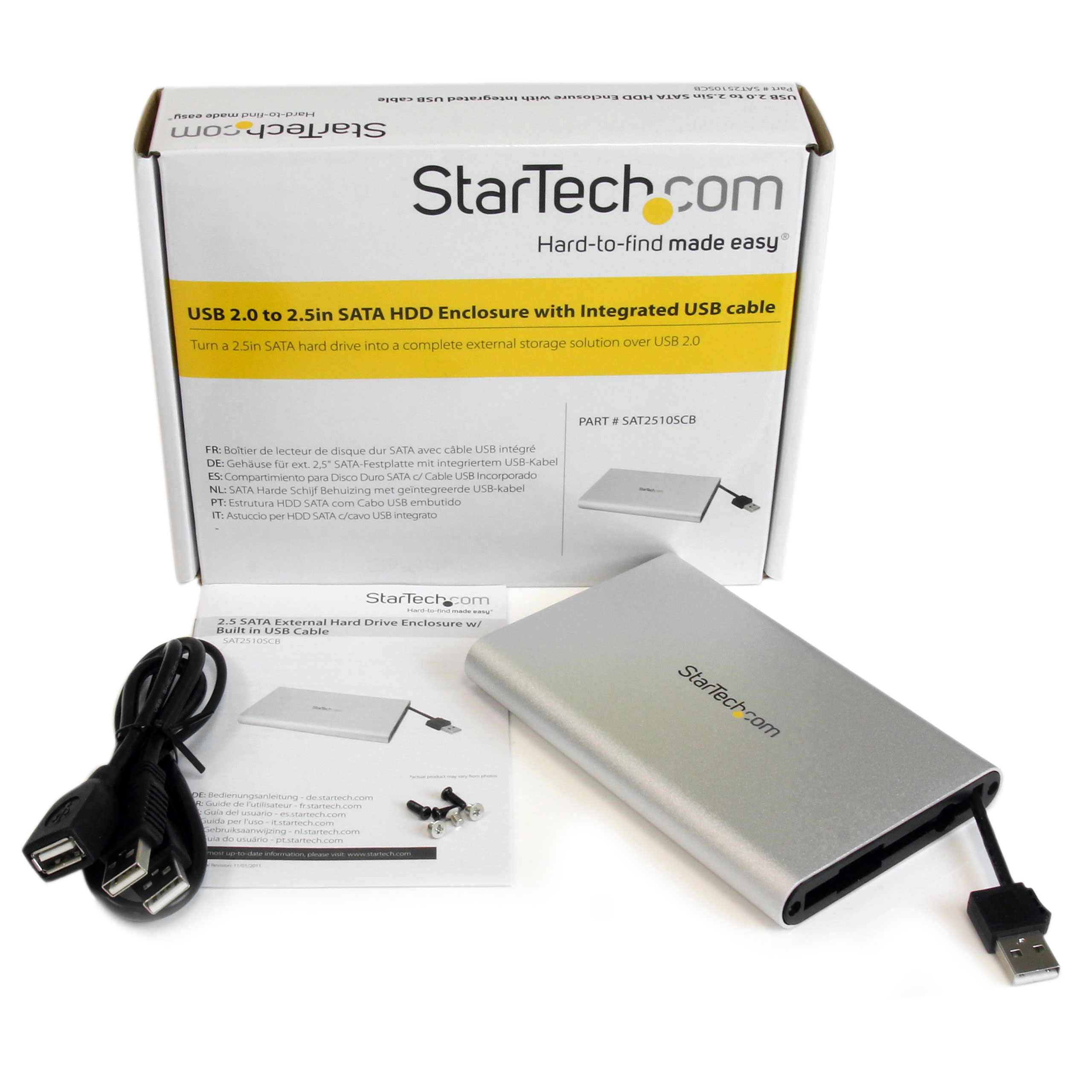

Output Current 0.5A Output Voltage (V) 5 DC Power Source Not Included (not required for standard applications) Plug Type H Center Tip Polarity Positive Color Silver Humidity 10 to 90% RH Material Aluminum Max Drive Height (mm) 9.5 Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 131 Product Width (mm) 84 Product Height (mm) 16 Product Weight (g) 145 Storage Temperature -20°C to 75°C (-4°F to 167°F) TAA Compliant No Max Drive Capacity Currently tested with up to 1TB 5400 RPM hard drives OS Compatibility OS Independent RAID No UASP Support No USB Type and Rate USB 2.0 (480Mbps) Chipset ID SunplusIT - SPIF301 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 2.0 LED Indicators 1 - Blue Power and Activity Number of Drives 1 Carton Depth (mm) 442 Carton Height (mm) 224 Carton Quantity 20 Carton Weight Gross (g) 6800 Included in Package - 1 - 2.5" Aluminum Enclosure with Integrated USB Cable
- 1 - Instruction Manual
- 1 - Package of screws
- 1 - Extension USB Y cable
Package Depth (mm) 41 Package Height (mm) 152 Package Width (mm) 183 Package Quantity 1 Package Weight (g) 280 Packaging Description SATA HDD Enclosure w/Built in USB Cable Packaging Description India SATA HDD Enclosure w/Built in USB Cable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-A (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
