SAT2510U2
2.5" USB 2.0 SATA HDD Enclosure
Turn a 2.5in SATA drive into an external storage device with USB 2.0 connectivity
Main Image
Product Images
Product Images
BOM Image
Product Name 2.5" USB 2.0 SATA HDD Enclosure Product Number SAT2510U2 UPC 065030823654 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 2.5 USB to SATA External HDD Enclosure Product Title (Standard) StarTech.com USB 2.0 to SATA External Hard Drive Enclosure Product Title (Long) 2.5in Silver USB 2.0 External Hard Drive Enclosure for SATA HDD Product Title (AMZ) 2.5in Silver USB 2.0 External Hard Drive Enclosure for SATA HDD (SAT2510U2) Title Ingram (Part 1) 2.5in USB 2.0 External Hard Driv Title Ingram (Part 2) e Enclosure for SATA HDD Website Product Headline Turn a 2.5in SATA drive into an external storage device with USB 2.0 connectivity Bullet 1 Light-weight, durable aluminum construction Bullet 2 High Speed USB 2.0 compliant host interface, with transfer rates up to 480 Mbps Bullet 3 Power/activity LED Bullet 4 Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) drives Bullet 5 Supports 2.5" form factor SATA hard drives (HDD) and solid state drives (SSD) Bullets (Consolidated) Turn a 2.5in SATA Drive into an external storage device with USB 2.0 connectivity - 2.5in Hard Drive Enclosure - 2.5in HDD enclosure - 2.5 Hard Disk Enclosure - 2.5in SATA Enclosure - External Drive Enclosure - 2.5" HDD Enclosure - Storage Enclosure Marketing Copy Applications - Create a fast, ultra portable external storage solution for laptops or netbooks
- Add-on storage to any USB enabled computer system
- Backup data to an external storage device
- Retrieve data from old laptop drive, or turn the unused drive into additional external storage space
Website Search Keyword - InfoSafe 2.5 external hard drive enclosure
- 2.5" 2.5 inch portable
Accessory Products - USB2HABM6
- USB2HABM10
- USB2HABMY1
- USB2HABMY3
- USB2HABMY6
Related Products - IDE2510U2
- SATCASE25OTG
- SAT2510BU2
Replacement Product SAT2510BU32 Input Voltage 5 DC Power Source Not Included (not required for standard applications) Color Silver Humidity 0 ~ 90% RH Material Aluminum Max Drive Height (mm) 9.5 Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 120 Product Width (mm) 76.5 Product Height (mm) 13 Product Weight (g) 60 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Max Drive Capacity Currently tested with up to 1TB 5400 RPM hard drives Maximum Data Transfer Rate 480Mbps OS Compatibility - Linux
- Windows 8
- Mac OS X Mavericks (10.9)
- Windows 7
- OS Independent

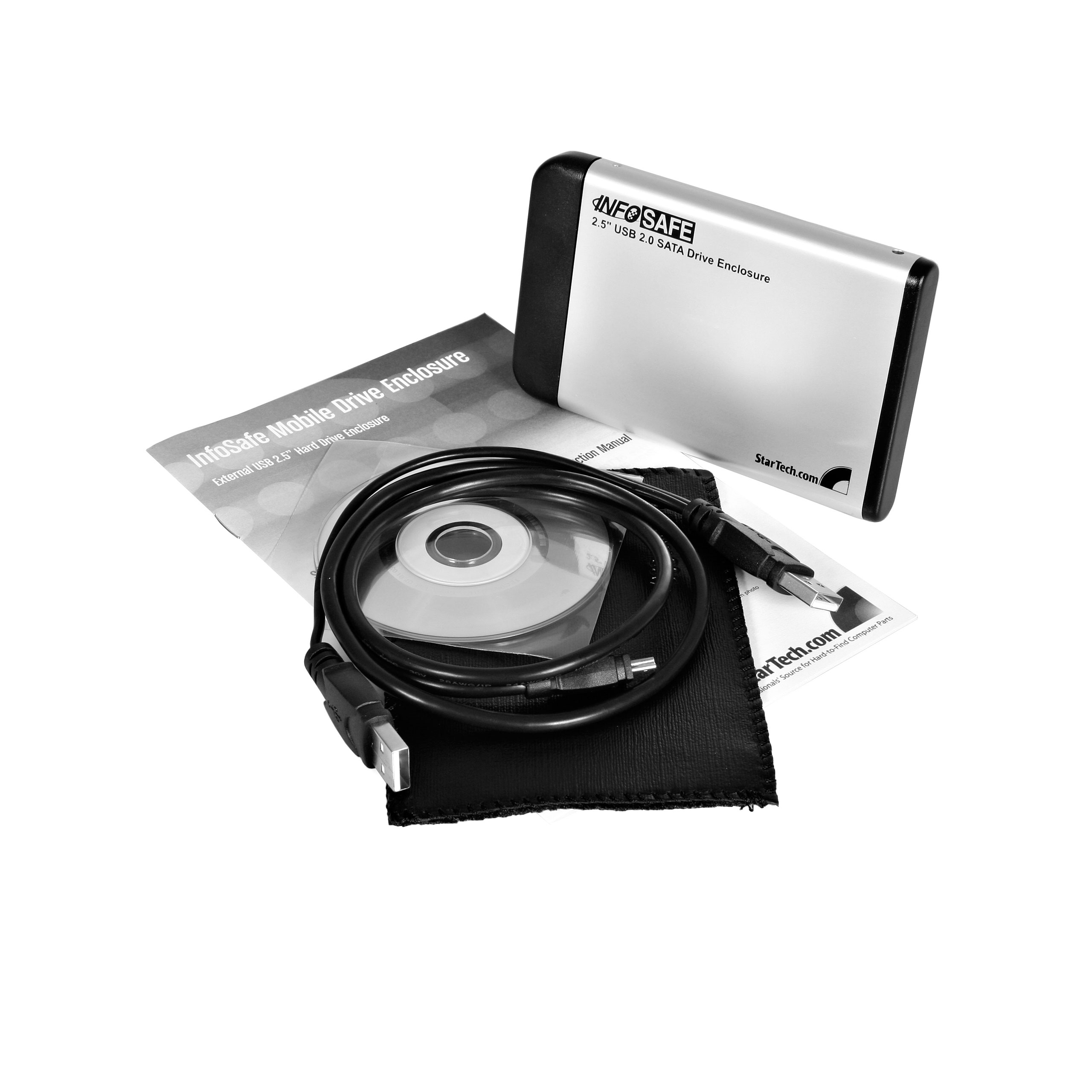

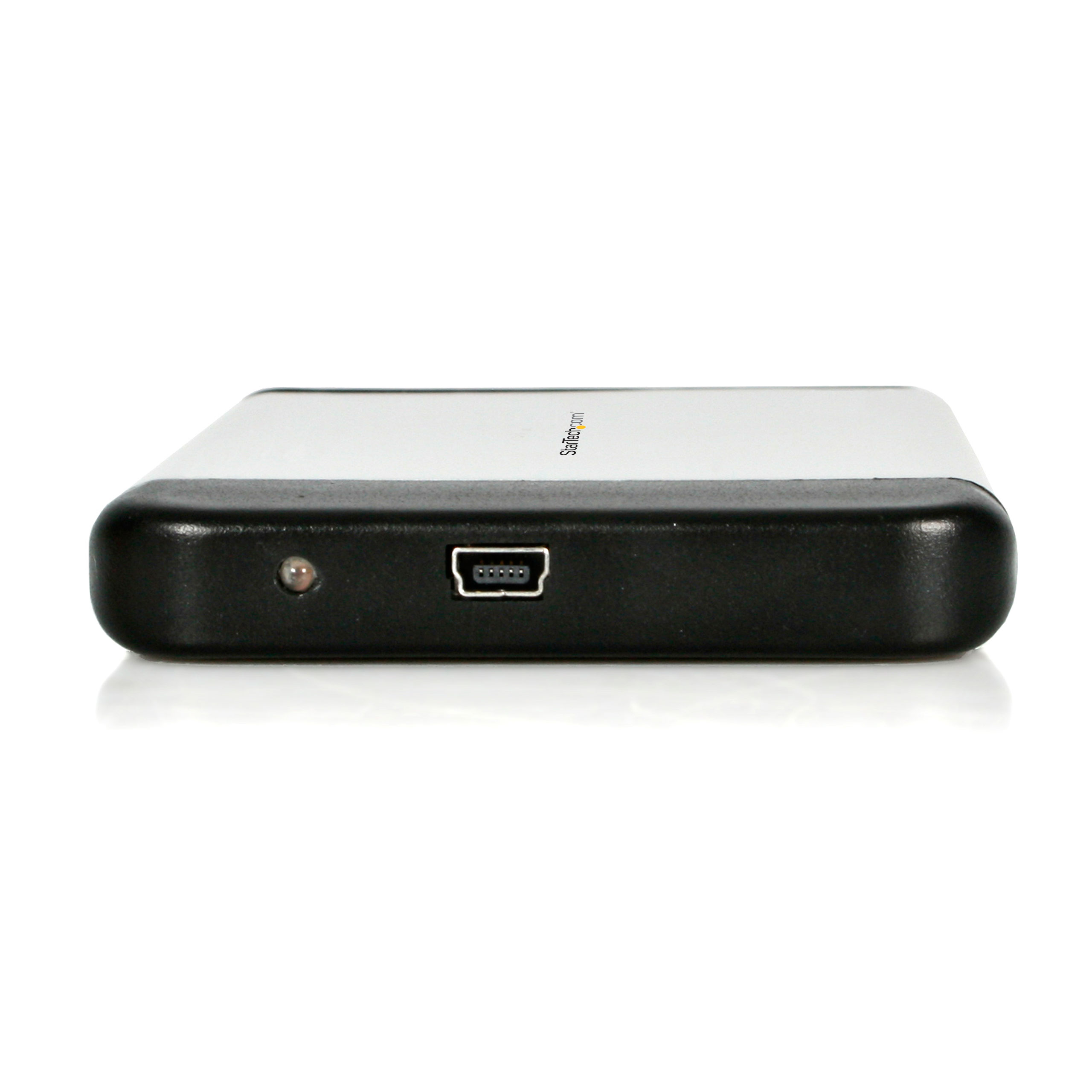

RAID No UASP Support No Bus Type USB 2.0 Chipset ID SunplusIT - SPIF225A Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 2.0 LED Indicators 1 - Green: Power / Red: Drive Activity Number of Drives 1 Carton Depth (mm) 280 Carton Height (mm) 343 Carton Quantity 60 Carton Weight Gross (g) 11700 Included in Package - 1 - 2.5" SATA Enclosure
- 1 - USB 2.0 Y-Cable
- 1 - Screw Kit
- 1 - Protective Case
- 1 - Instruction Manual
- 1 - Mini Screwdriver
Package Depth (mm) 128 Package Height (mm) 31 Package Width (mm) 160 Package Quantity 1 Package Weight (g) 178 Packaging Description USB 2.0 to 2.5in SATA HDD Enclosure Packaging Description India USB 2.0 to 2.5in SATA HDD Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB Mini-B (480Mbps, 2.5W) Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
