SAT2510U2F
2.5in External USB FireWire Enclosure
Turn a 2.5in SATA hard drive into a USB2.0 or FireWire external hard drive for PC or Mac
Main Image
Product Images
BOM Image
Product Name 2.5in External USB FireWire Enclosure Product Number SAT2510U2F UPC 065030837743 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 2.5in USB FireWire Hard Drive Enclosure Product Title (Standard) 2.5in USB FireWire External Hard Drive Enclosure Product Title (Long) 2.5in USB FireWire SATA External Hard Drive Enclosure Product Title (AMZ) 2.5in USB FireWire SATA External Hard Drive Enclosure - 2.5 USB FW SATA HDD Enclosure - Hard Disk Enclosure (SAT2510U2F) Title Ingram (Part 1) 2.5in USB FireWire SATA External Title Ingram (Part 2) Hard Drive Enclosure Website Product Headline Turn a 2.5in SATA hard drive into a USB2.0 or FireWire external hard drive for PC or Mac Bullet 1 Light-weight and durable aluminum chassis Bullet 2 High Speed USB 2.0 host interface, with supported transfer rates up to 480 Mbps Bullet 3 IEEE 1394a compliant (FireWire 400) host interface, with supported transfer rates up to 400Mbps Bullet 4 Powered directly from the USB or FireWire port Bullet 5 Power/Activity LED indicator Marketing Copy Applications - Create a fast, portable external storage solution for desktops, laptops or netbooks
- Add-on extra storage to almost any USB enabled computer system
- Backup important data to an external storage device
- Share large files between computers quickly and securely without a network
- Retrieve data from old SATA drive, or turn the unused drive into additional external storage space
Website Search Keyword - FireWire 400
- 1394a
- USB 2.0
- External Enclosure
- Hard Drive Enclosure
- Aluminum Enclosure
- 2.5in Enclosure
- Mobile Enclosure
- Laptop Hard Drive
Accessory Products - USB2HABM1
- USB2HABM3
- USB2HABM6
- USB2HABM10
- 1394_6
- 1394_10
- 1394_15
- 1394_15T
- 1394_46_6
- 1394_46_10
- 1394_46_15
- 1394_46_6T
- USB2HABMY1
- USB2HABMY3
- USB2HABMY6
- USB2TYPEH
Related Products - SAT2510BU2
- SAT2510BU2B
- SAT2510BU2E
- SAT2510SCB
- SAT2510U2
- SAT2510U2E
- S354UFER
- SAT3510U2F
Input Voltage 110V-240V AC Output Current 0.5A Output Voltage (V) 5 DC Power Source Not Included (not required for standard applications) Plug Type H Center Tip Polarity Positive Color Silver Humidity 0~90% RH Material Aluminum Max Drive Height (mm) 9.5 Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 137 Product Width (mm) 80 Product Height (mm) 17 Product Weight (g) 115 Storage Temperature -20°C to 60°C (4°F to 140°F) TAA Compliant No Max Drive Capacity Currently tested with up to 1TB 5400 RPM hard drives OS Compatibility - Linux
- Mac OS X
- Windows XP
- Windows Vista
- Windows 7
- Windows 8
RAID No UASP Support No USB Type and Rate - FireWire 400 IEEE-1394a (400Mbits)
- USB 2.0 (480Mbps)

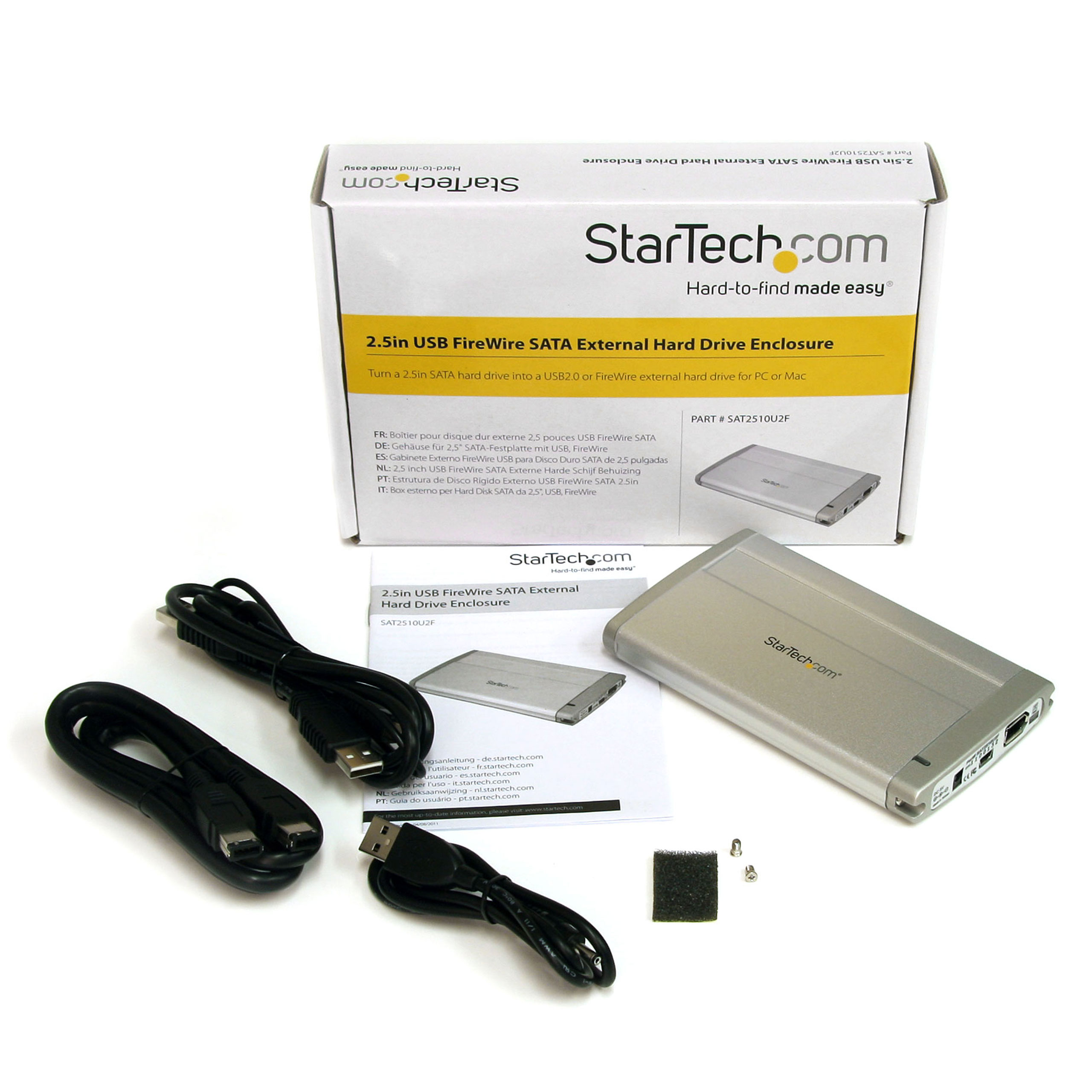

Chipset ID Initio - INIC-1615 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 2.0 & Firewire LED Indicators 1 - Green - Solid: Power, Blinking: Activity Number of Drives 1 Carton Depth (mm) 371 Carton Height (mm) 298 Carton Quantity 40 Carton Weight Gross (g) 15200 Included in Package - 1 - 2.5" SATA Hard Drive Enclosure
- 1 - USB to Power (Barrel Connector) cable
- 1 - USB Y Cable
- 1 - 6-pin Firewire Cable
- 1 - Instruction Manual
- 2 - Mounting Screw

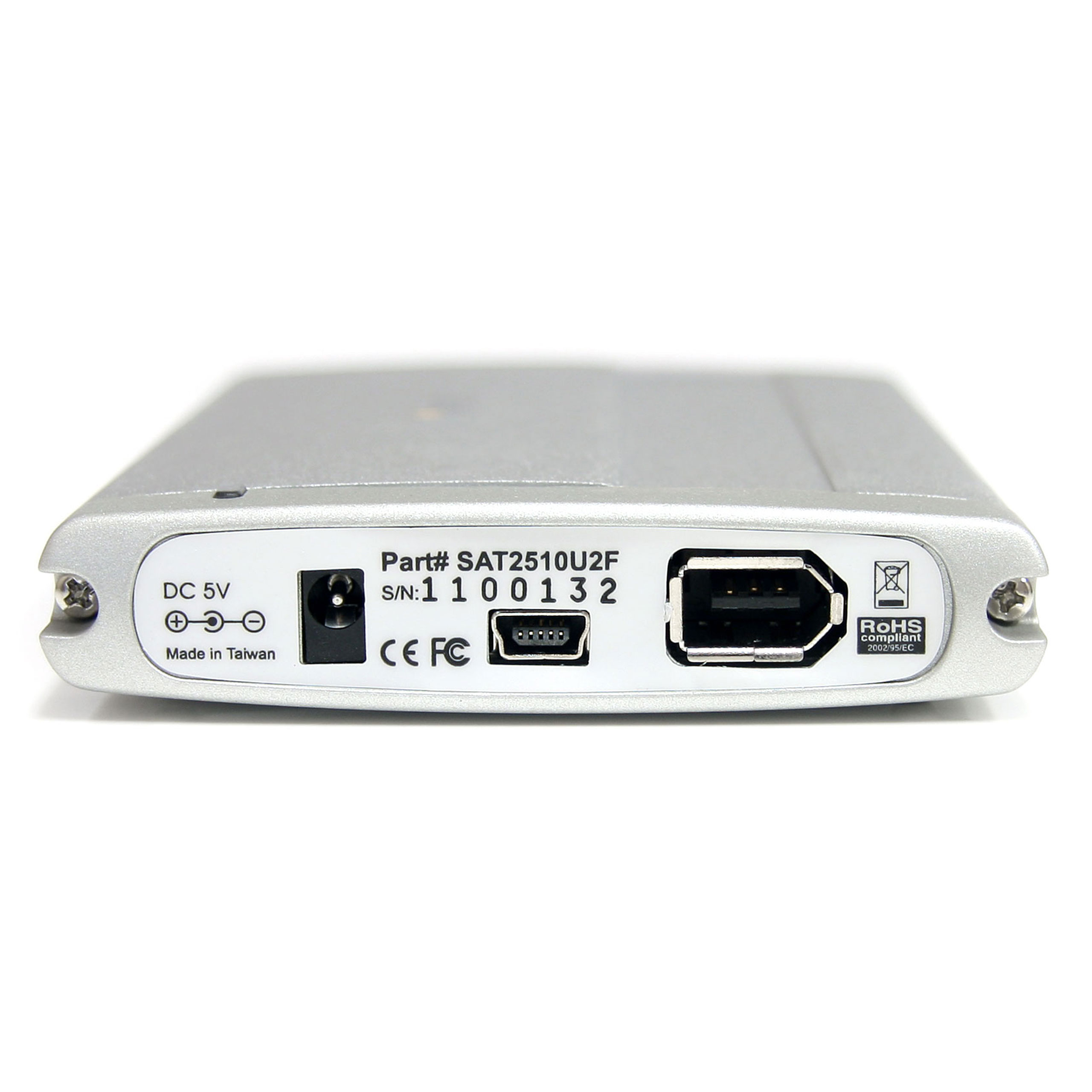

Package Depth (mm) 56 Package Height (mm) 100 Package Width (mm) 174 Package Weight (g) 350 Packaging Description 2.5in USB FireWire SATA External Hard Drive Enclosure Packaging Description India 2.5in USB FireWire SATA External Hard Drive Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 FireWire 400 (6-Pin, 400Mbps, Bus Power) Host Connector 1 (Quantity) 1 Host Connector 2 USB Mini-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
