SAT2510U2REM

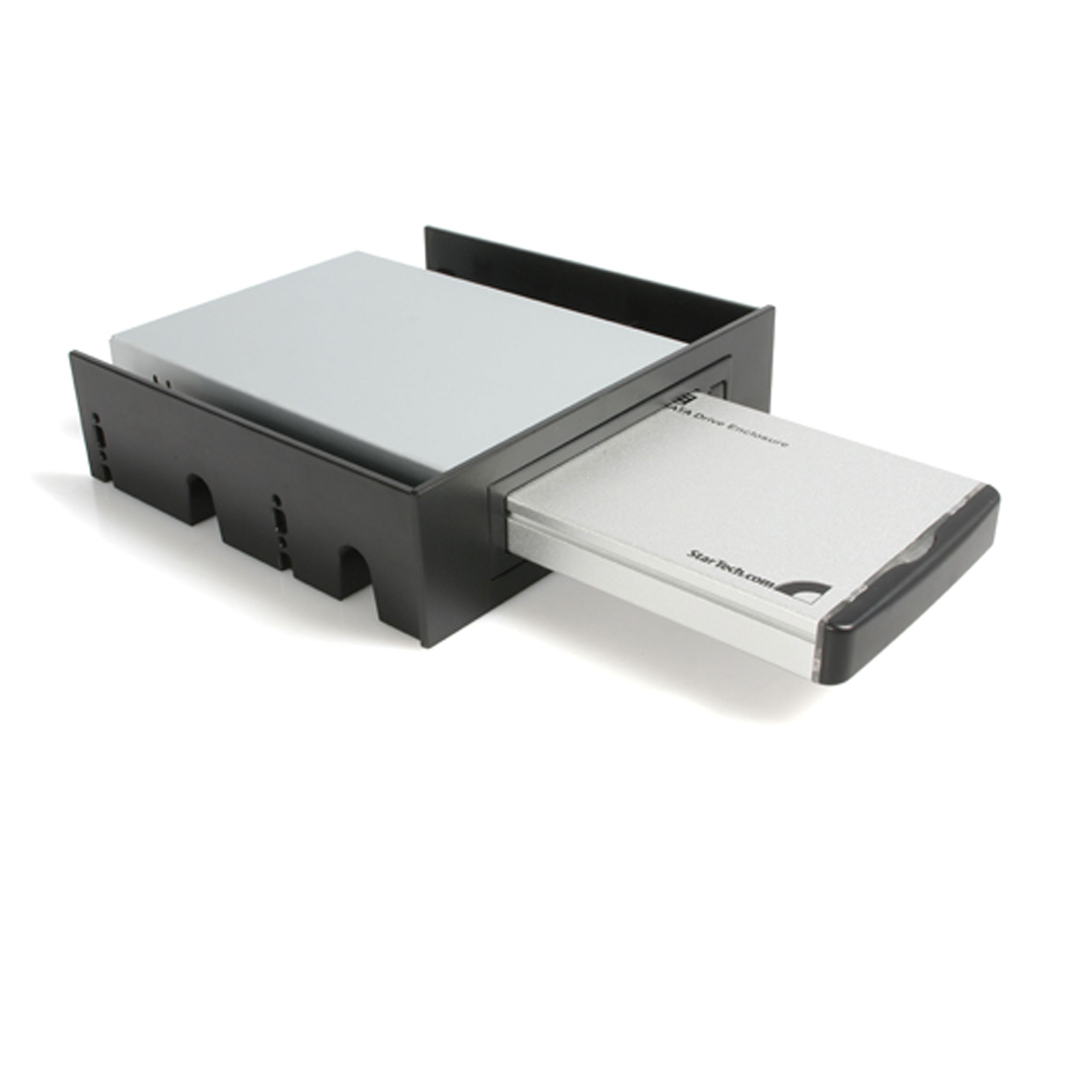

3.5 Bay Removable 2.5" SATA Drive Enclosure

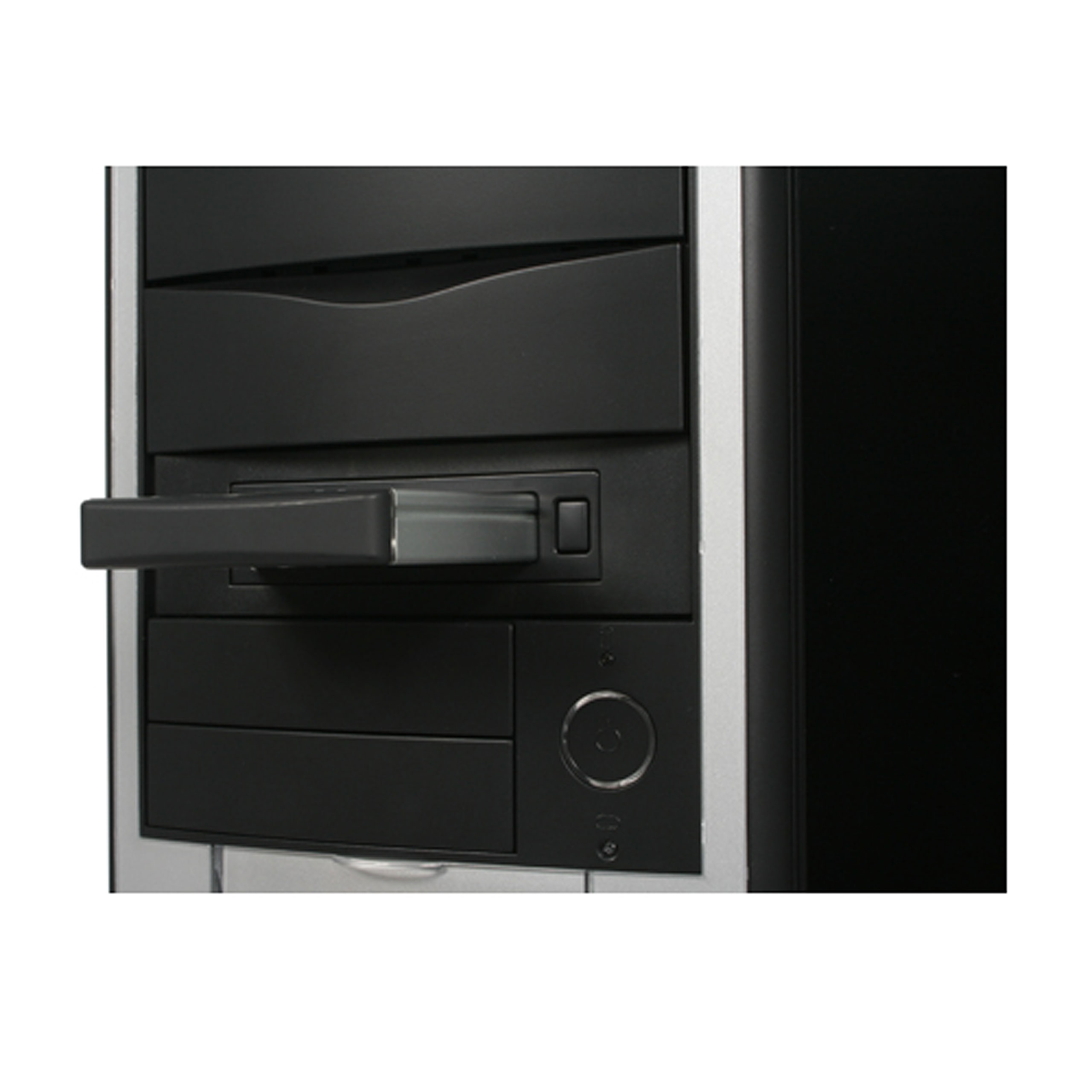

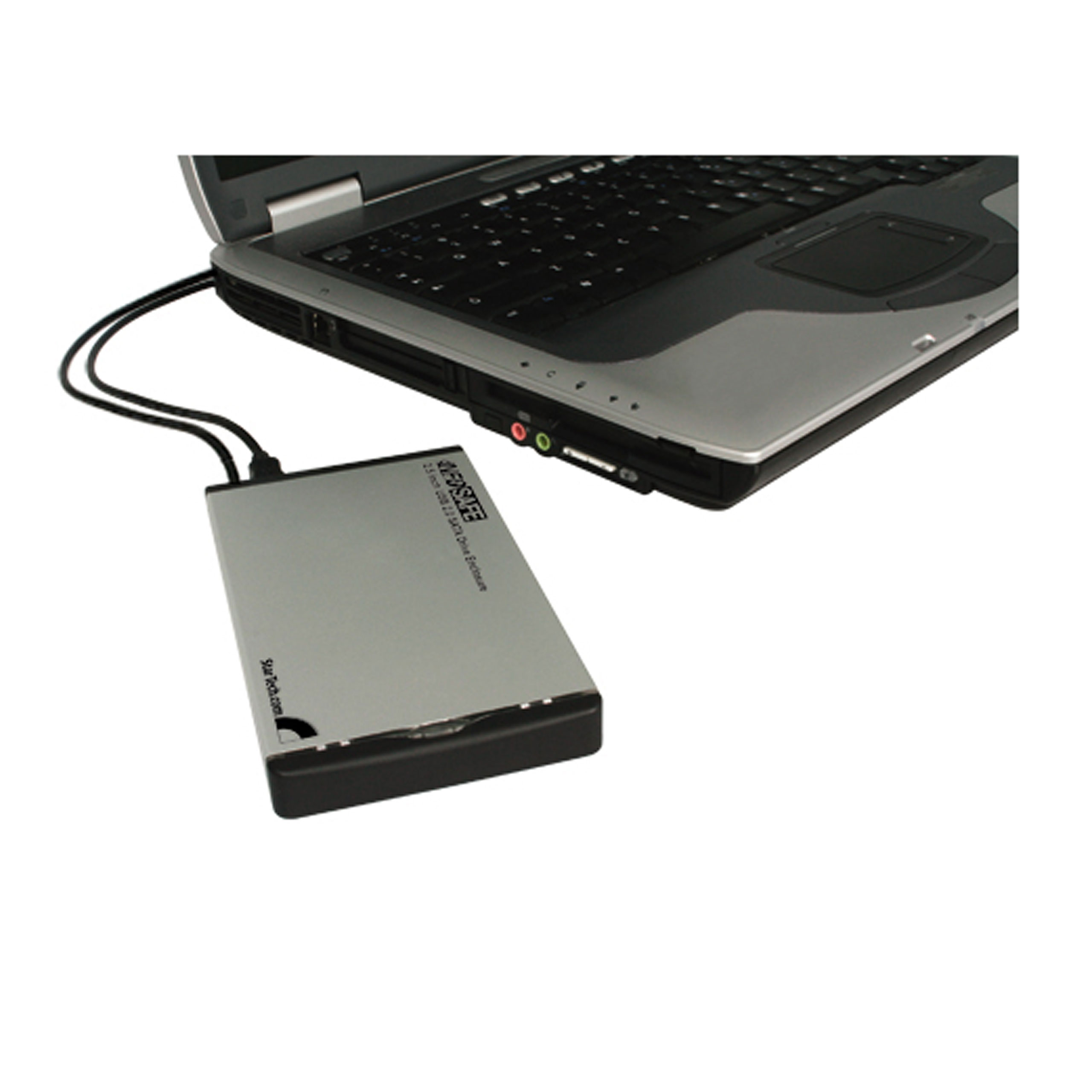

Turn any 2.5in SATA hard drive into both an internal removable hard drive or a USB 2.0 external hard drive
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 3.5 Bay Removable 2.5" SATA Drive Enclosure Product Number SAT2510U2REM UPC 065030824231 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Short) 2.5 SATA HDD Enclosure w/ 3.5/5.25 Bay Product Title (Standard) StarTech.com 3.5" Bay Removable 2.5" SATA External Drive Enclosure - Storage enclosure - SATA-300 - 300 MBps - Hi-Speed USB / SATA-300 - black Product Title (Long) 2.5in SATA External Hard Drive Enclosure w/ 3.5/5.25 Front Drive Bay Title Ingram (Part 1) 2.5 SATA External HDD Enclosure Title Ingram (Part 2) w/ 3.5/5.25 Front Drive Bay Website Product Headline Turn any 2.5in SATA hard drive into both an internal removable hard drive or a USB 2.0 external hard drive Bullet 1 Frontmount drive bay installs into any standard 3.5" or 5.25" bay Bullet 2 Unique enclosure design allows it to be used as an internal removable drive or as a regular external enclosure Bullet 3 Push button drive ejection from the frontmount bay Bullet 4 Durable aluminum construction for the drive enclosure Bullet 5 High Speed USB 2.0 compliant host interface, with transfer rates up to 480 Mbps Marketing Copy Applications - Professionals working with large files who need to transport them between computers/locations
- Easily work on and store large presentations or demos from your desktop, then transport it to a clients location without having to transfer files between drives
- Business professionals who need first hand access to their office data while traveling
- Users who need both fast internal storage and portable external storage
Website Search Keyword - removable 2.5" hard drive enclosure
- external 2.5" sata hard drive enclosure
System and Cable Requirements Accessory Products - USB2HABM6
- USB2HABM10
- SATA18
- SATA24
- SATA36
- SAT2510U2S
Related Products - DRW113SATBK
- SATCASE25OTG
- SAT2510U2
- SATCASE35U2
- HSB100SATBK
Output Voltage (V) 5 DC Center Tip Polarity Positive Color Black Material Aluminum Max Drive Height (mm) 9.5 Product Length (mm) 138 Product Width (mm) 144 Product Height (mm) 40 Product Weight (g) 500 TAA Compliant No General Specifications 2.5" Enclosure Dim.: 131 x 77 x 14mm (LxWxH) Max Drive Capacity 500GB Maximum Data Transfer Rate OS Compatibility - Windows 8
- Windows 7
- Linux

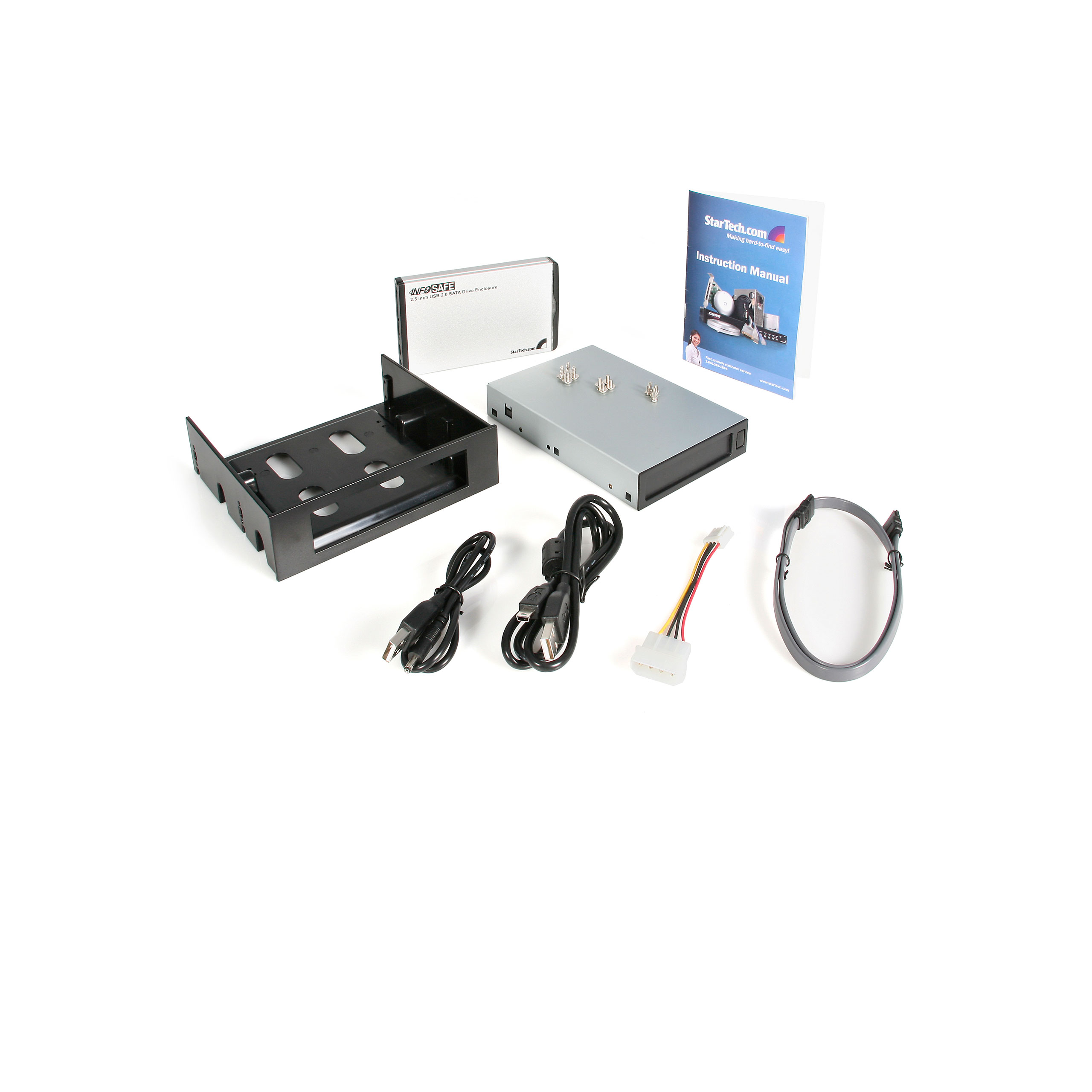

RAID No Chipset ID JMicron - JM20336 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 2.0 Number of Drives 1 Carton Depth (mm) 420 Carton Height (mm) 270 Carton Quantity 10 Carton Weight Gross (g) 8500 Included in Package - 1 - 2.5" enclosure
- 1 - 3.5" bay
- 1 - 5.25" bracket
- 1 - USB 2.0 mini B to A cable
- 1 - SATA cable
- 1 - 5V DC to USB cable
- 1 - Instruction Manual
- 1 - Screw Kit
- 1 - LP4 Molex to SP4 Power Cable
Package Depth (mm) 80 Package Height (mm) 157 Package Width (mm) 238 Package Weight (g) 730 Packaging Description 2.5 SATA HDD Enclosure w/ 3.5/5.25 Bay Packaging Description India 2.5 SATA HDD Enclosure w/ 3.5/5.25 Bay Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin) Connector 1 (Quantity) 1 Connector 2 SATA (15-Pin) Connector 2 (Quantity) 1 Host Connector 1 SATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 SATA (15-Pin) Host Connector 2 (Quantity) 1 Host Connector 3 USB Mini-B (480Mbps, 2.5W) Host Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
