SAT2510U3REM
Removable 2.5in SATA Hard Drive Hot Swap Bay
Turn a 2.5in SATA drive into a front bay mounted removable HDD backup solution
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Removable 2.5in SATA Hard Drive Hot Swap Bay Product Number SAT2510U3REM UPC 065030849449 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 2.5" Drive Mobile Racks and Backplanes Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Short) Removable 2.5" SATA Drive Backup System Product Title (Medium) x Product Title (Standard) Removable 2.5" SATA Hard Drive Enclosure and Backup System for 3.5/5.25" Bay Product Title (Long) Removable 2.5" SATA HDD Enclosure/Backup System/Mobile Rack for 3.5/5.25" Bay Product Title (AMZ) Removable 2.5 SATA Hard Drive Enclosure and Backup System for 3.5/5.25 Bay - 2.5 SATA Hot Swap Bay (SAT2510U3REM) Title Ingram (Part 1) Removable 2.5in SATA HDD Backup Title Ingram (Part 2) System for 3.5in / 5.25in Bay Website Product Headline Turn a 2.5in SATA drive into a front bay mounted removable HDD backup solution Bullet 1 Front-mount drive bay design, installs into any standard 3.5" or 5.25" bay Bullet 2 Push-button drive ejection from the front-mount bay Bullet 3 Durable aluminum construction (drive enclosure) Bullet 4 Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) drives Bullet 5 Supports 2.5" form factor SATA hard drives (HDD) and solid state drives (SSD) Bullets (Consolidated) Turn a 2.5in SATA drive into a front bay mounted removable HDD backup solution - Compatible with 2.5in SATA hard drives and desktop computer systems or servers with an available 3.5in or 5.25in bay - 2.5 SATA hot swap bay/Removable drive backup/2.5 removable hard drive bay/Removable hard disk backup/2.5 sata mobile rack - Switch between fast internal storage and portable external storage - Add a hot-swap bay to a server or workstation computer, for a removable backup solution Marketing Copy Applications - Add a hot-swap bay to a server or workstation computer, for a removable backup solution
- Environments where storage drives need to be replaced/removed regularly
- Switch between fast internal storage and portable external storage
Website Search Keyword - removable 2.5 sata drive bay
- 2.5 sata hot swap bay
- 3.5 front bay mobile rack
- 5.25 front bay mobile rack
- 3.5 front bay removable hard drive
- 5.25 front bay removable hard drive
- 2.5 sata mobile rack
- removable 2.5 sata bay
- removable hard drive bay
- removable hard disk bay
- hard drive backup system
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
System and Cable Requirements - Available 3.5" or 5.25" front bay
- Available internal SATA data connector
- Available SATA or LP4 Molex internal power connector
Accessory Products - LSATARND6
- SATA18RA1
- SATA36RA1
- LSATA12RA2
- LP4SATAFMD
- PYO4SATA
- LSATARND18
- PYO2SATA
- SAT2510U3S
Related Products - SAT2510U2REM
- HSB110SATBK
- DRW110SATBK
- DRW115SATBK
- SATDOCK2520
- HSB100SATBK
- HSB220SAT25B
- SATSASBAY425
- SAT2510U3S
Replacement Product S251BU31REM Color Black Humidity 5% ~ 95% RH Material Aluminum and Plastic Max Drive Height (mm) 9.5 Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 164.850 Product Width (mm) 145.800 Product Height (mm) 41.600 Product Weight (g) 410.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No General Specifications Flammability rating of UL 94 V-0 MTBF (hours) 100,000 hours OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) USB Type and Rate USB 3.0 (5Gbps) Chipset ID Compatible Drive Types SATA Front Door Key Lock No Interface/Bridge - SATA
- USB 3.2 Gen 1 (5Gbps)

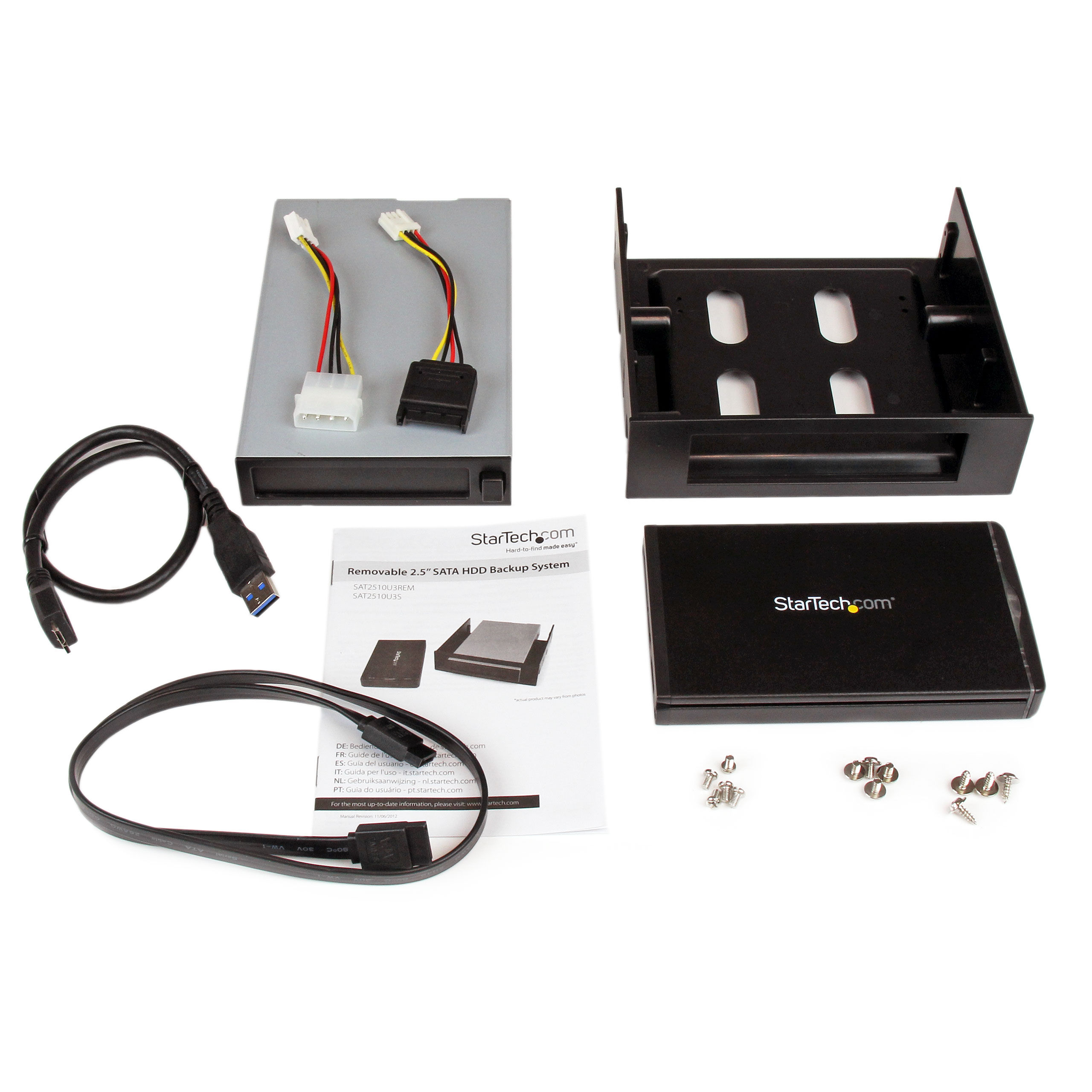

LED Indicators 1 - Power/Activity (Green) Number of Drives 1 Carton Depth (mm) 337.5 Carton Height (mm) 272 Carton Quantity 10 Carton Weight Gross (g) 8100 Included in Package - 1 - SATA Cable
- 1 - USB 3.0 A to Micro-B Cable
- 1 - Screw Kit
- 1 - 3.5" Front Panel Drive Bay
- 1 - 3.5" to 5.25" Front Bay Adapter Bracket
- 1 - 2.5" SATA enclosure
- 1 - 15-pin SATA power to 4-pin SP4 small floppy power Adapter Cable
- 1 - 4-pin LP4 Molex power to 4-pin SP4 small floppy power Adapter Cable
- 1 - Instruction Manual
Package Depth (mm) 155 Package Height (mm) 80 Package Width (mm) 237 Package Quantity 1 Package Weight (g) 717 Packaging Description Removable 2.5" SATA HDD Backup System Packaging Description India Removable 2.5" SATA HDD Backup System Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB Micro-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Host Connector 2 SATA (7-Pin) Host Connector 2 (Quantity) 1 Host Connector 3 SP4 / Floppy Power (4-Pin, 5V / 12V) Host Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-02-25 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
