SAT2520U2ER

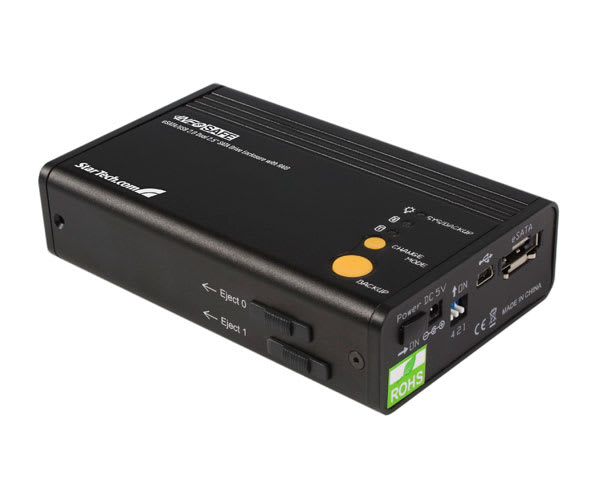

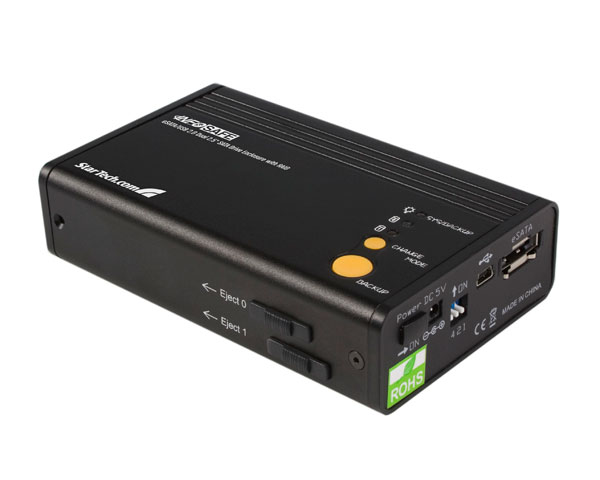

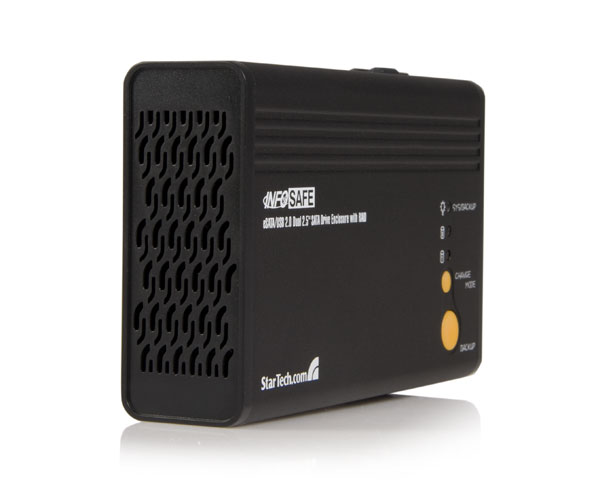

Black 2.5" Dual Drive USB/eSATA HDD RAID Enlosure
InfoSafe eSATA/USB 2.0 Dual 2.5" SATA Drive Enclosure w/RAID
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name Black 2.5" Dual Drive USB/eSATA HDD RAID Enlosure Product Number SAT2520U2ER UPC 065030831994 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX075X Product Title (Short) 2.5 eSATAUSB SATA External HDD Enclosure Product Title (Standard) 2.5in eSATA USB Dual SATA Hard Drive Enclosure Product Title (Long) 2.5in Black eSATA USB Dual SATA External Hard Drive Enclosure w/ RAID Title Ingram (Part 1) 2.5in eSATA USB Dual SATA Extern Title Ingram (Part 2) al Hard Drive Enclosure Website Product Headline InfoSafe eSATA/USB 2.0 Dual 2.5" SATA Drive Enclosure w/RAID Bullet 1 One button backup feature Bullet 2 Power Adapter is included but not required. Can draw power from a second USB port. (Note: Some PC front access USB ports may not have sufficient power for starting 2 drives!) Bullet 3 Maximum data transfer rate up 480Mbps for USB2.0 & 3.0Gbps for eSATA Interface Bullet 4 Supports eSATA port multiplier with PM compatible eSATA card Bullet 5 Can optionally setup RAID configurations through GUI software Marketing Copy Applications - Archive valuable data from notebook and desktop computers
- Ideal for users who work with large multimedia files or databases, and need to expand external storage capacities
- For scheduled or on demand backups and offloading of notebook or desktop systems
- RAID 0 support allows efficient management of large amounts of non-critical or archived data in external or mobile storage environments
- RAID 1 allows the user to insure that mission critical data is backed up and safe. And can easily be retrieved incase of data lose or system failure.
- JBOD Disk Farm
- Digital/Multimedia file archiving
Website Search Keyword - External Hard Drive Enclosure
- External Hard Drive
- 2.5"
- Dual
- eSATA/USB
- RAID
- SATA HDD
Accessory Products - SATA2ESATA6
- PEXESATA2I
- PEXESATA1
- ESATAPLATE2
- ESATAPLATE1
- ESATA3
- ESATA6
- USB2ESATA
- EC230USB
- ECESATA22
- SAT2CF
Related Products - SAT2510U2E
- SAT5210U2E
- SAT3510U2E
- SAT3520U2ER
- SAT3550ESR
- SAT3540ER
Input Voltage 115V AC Output Current 2A Output Voltage (V) 5 DC Power Source AC Adapter Included Plug Type H Center Tip Polarity Positive Color Black Product Length (mm) 133 Product Width (mm) 83 Product Height (mm) 33 Product Weight (g) 200 TAA Compliant No General Specifications - Enclosure Type: Aluminum

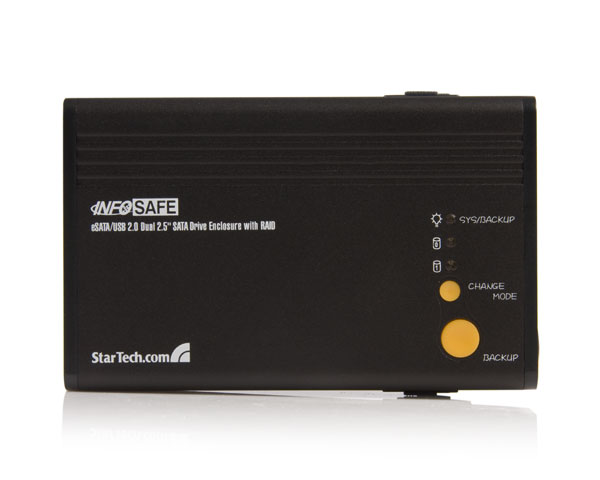

- LED Indicators: Power/Backup and individual Hard Drive activity
- Maximum Data Transfer Rate: USB 2.0 - 480Mbps / eSATA - 3.0Gbps
- Chipset: Sil5744
- Supports: JBOD(Single), Spanning or Concatentation (BIG), RAID 0 (Striping or Fast), RAID 1(Mirroring or Safe), or GUI modes
- Interfaces: eSATA / USB 2.0
- Max. HD Capacity: Tested 500 GB per drive
OS Compatibility - Windows XP
- Windows Vista
- Windows Server 2003
- Windows 7
- Windows Server 2008 R2
- Mac OS X
- Linux

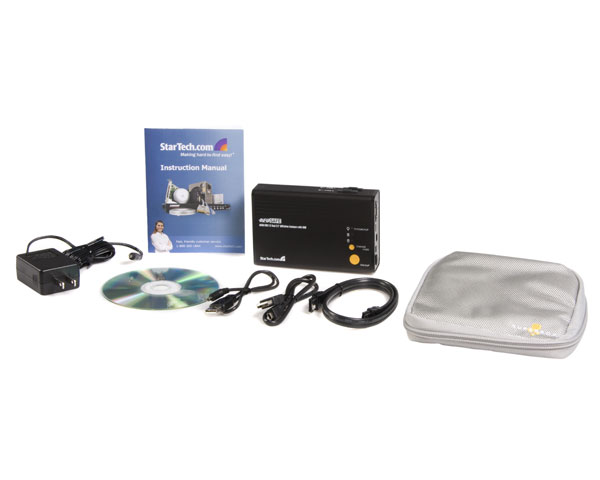

Carton Depth (mm) 480 Carton Height (mm) 300 Carton Quantity 10 Carton Weight Gross (g) 8700 Included in Package - 1 - Enclosure
- 1 - eSATA Cable
- 1 - Power Adapter
- 1 - USB + USB to DC5V Cable
- 1 - Carrying Pouch
- 1 - Instruction Manual
- 1 - Driver/Software CD

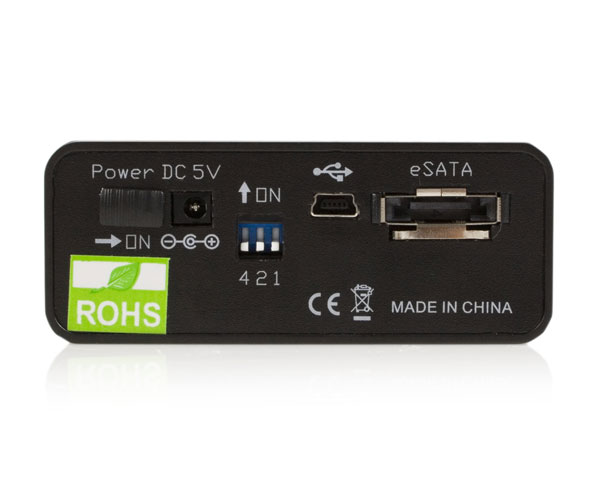

Package Depth (mm) 80 Package Height (mm) 182 Package Width (mm) 268 Package Weight (g) 750 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 eSATA (7-Pin) Connector 1 (Quantity) 1 Connector 2 USB Mini-B (480Mbps, 2.5W) Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
