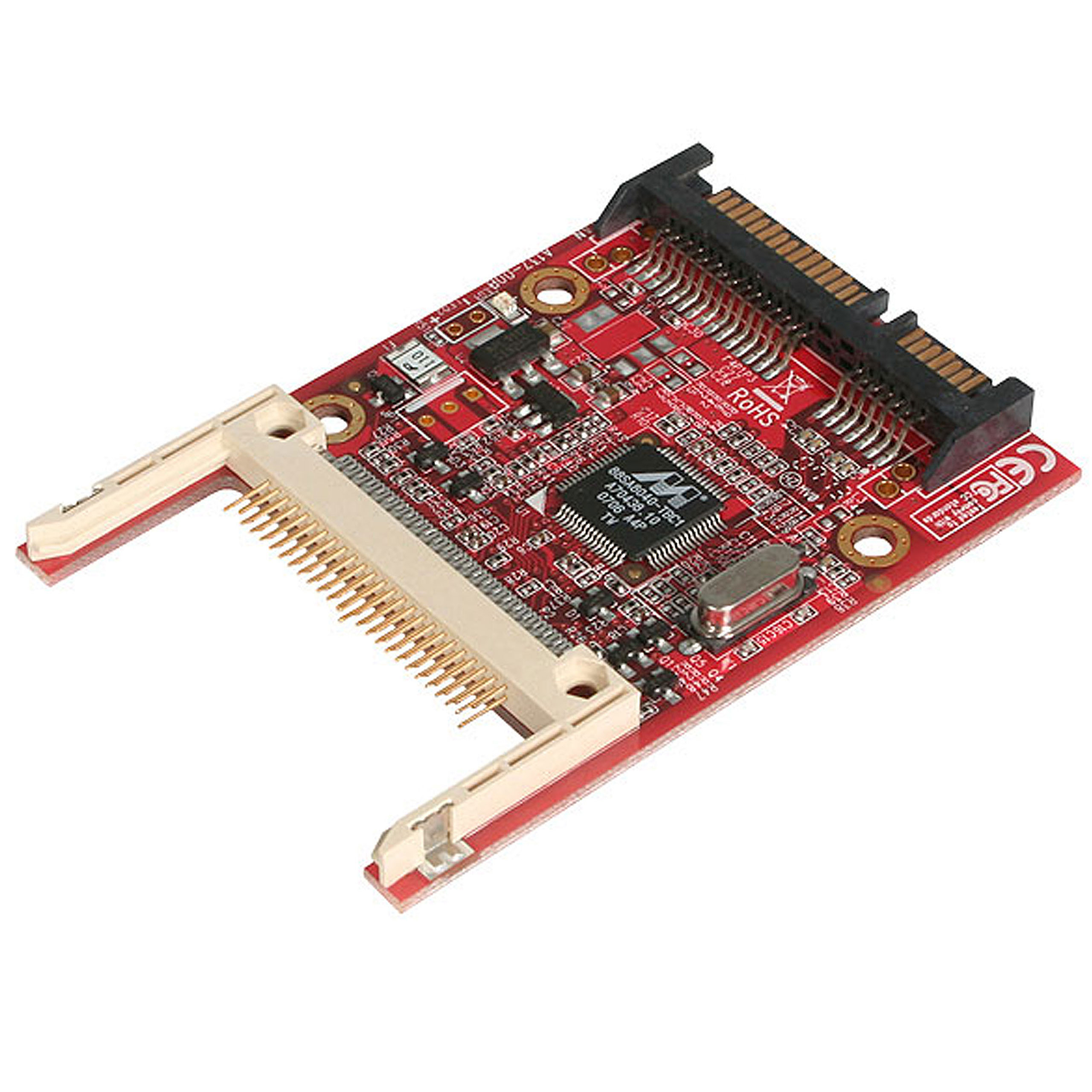

Main Image
SAT2CF
SATA to CF HDD Adapter
Turn a Compact Flash card into a bootable SATA SSD
Main Image

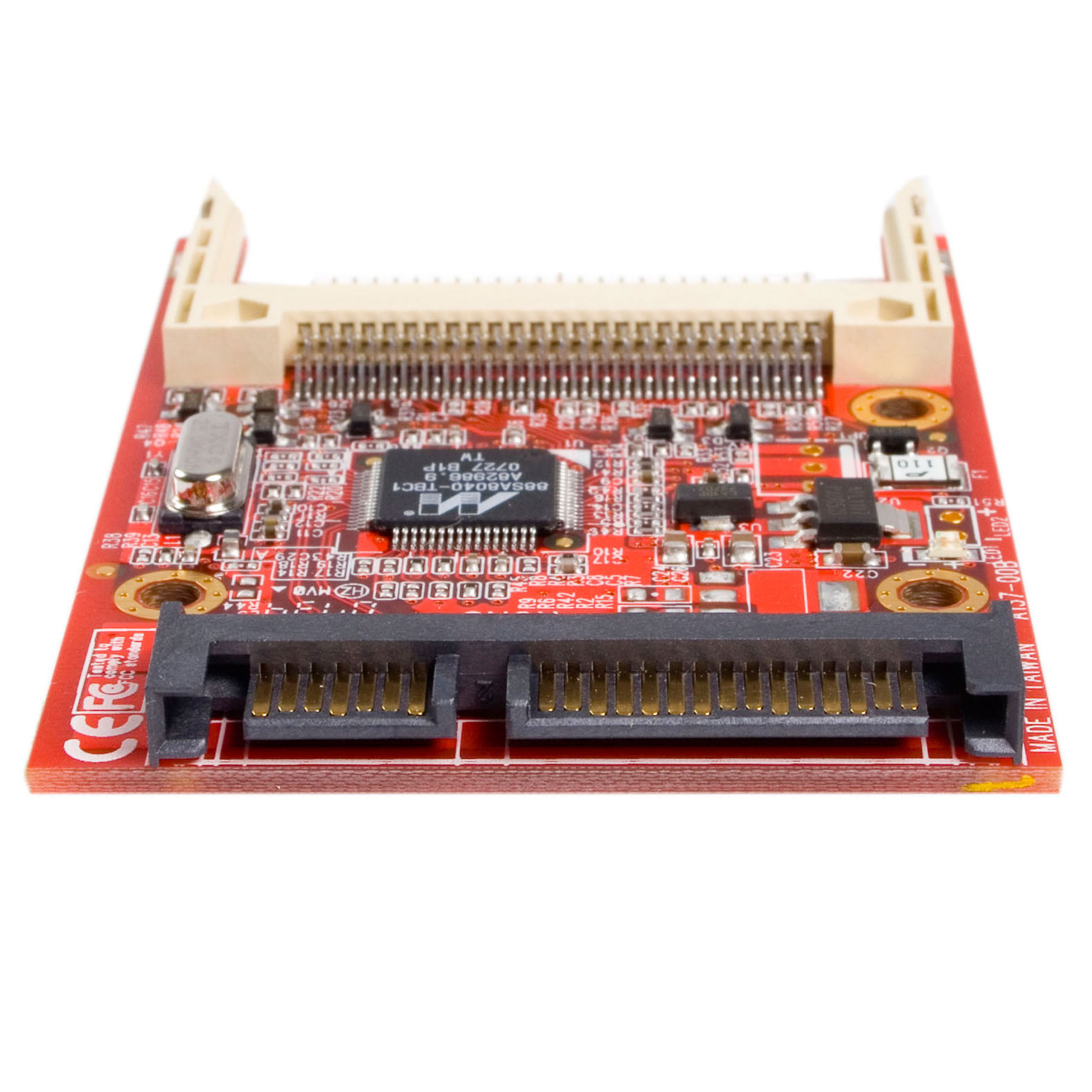

Product Images

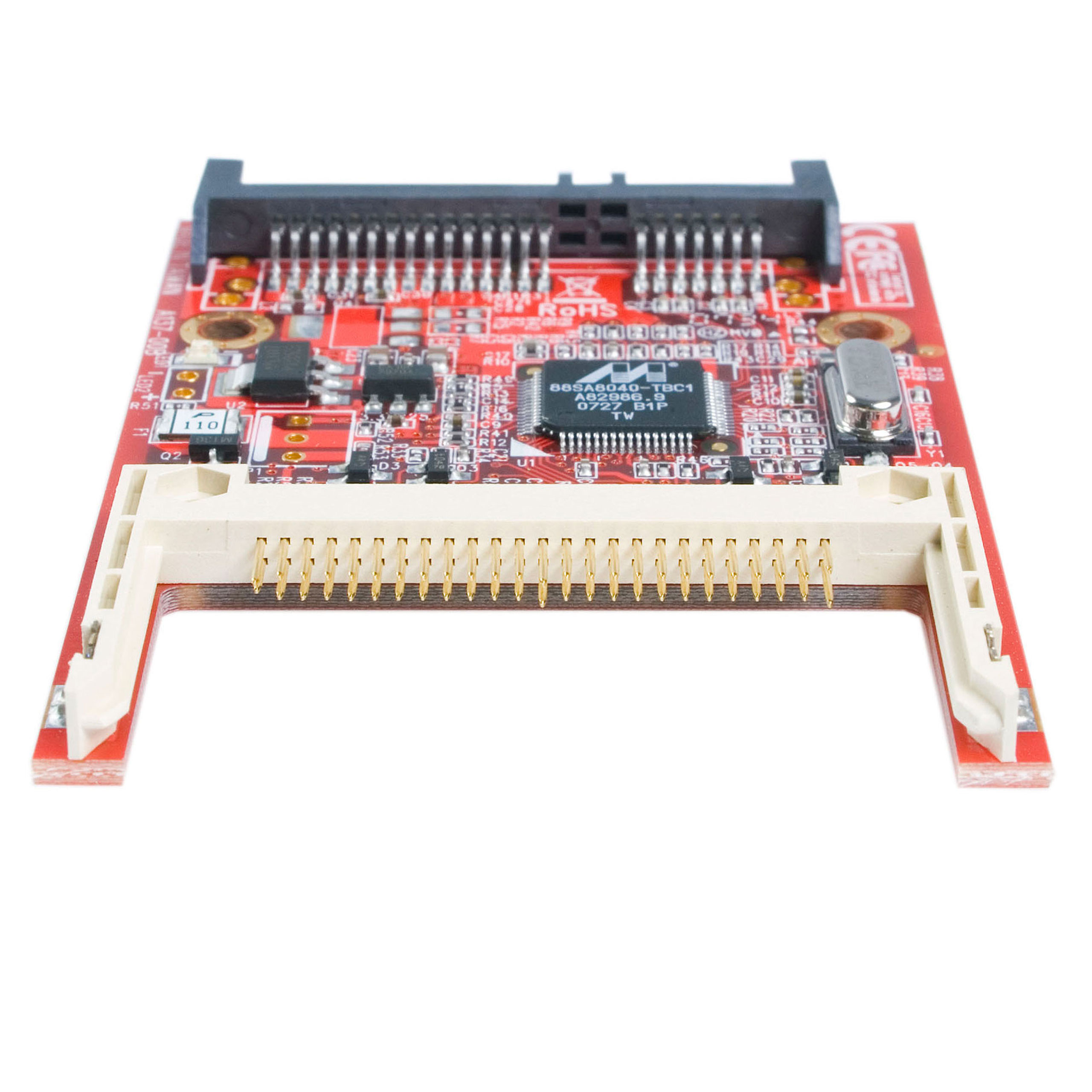

Product Images

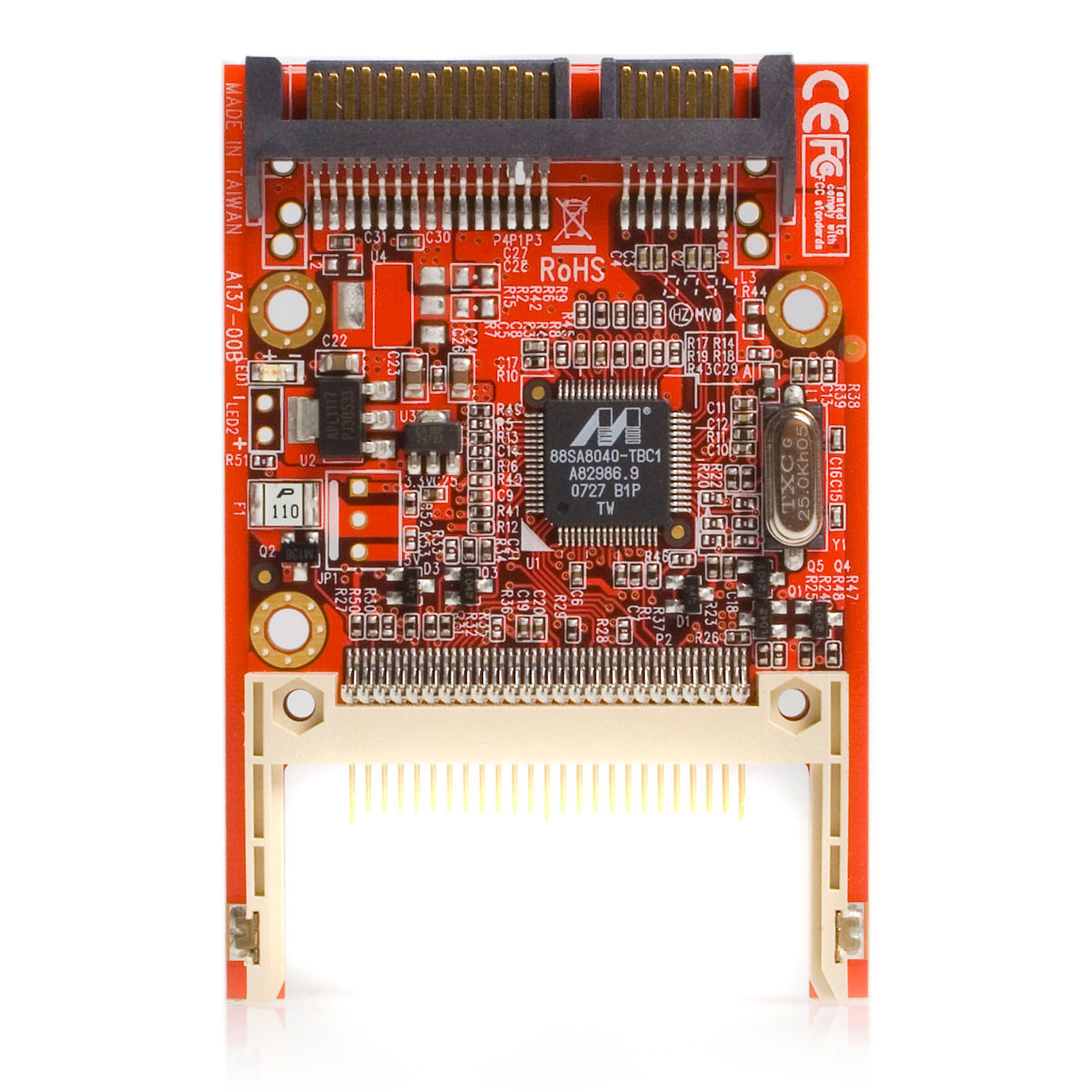

Product Images
BOM Image
Product Name SATA to CF HDD Adapter Product Number SAT2CF UPC 065030826181 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Adapter Enclosures/Converters Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Short) SATA to Compact Flash SSD Adapter Product Title (Standard) StarTech.com SATA to Compact Flash SSD Adapter Product Title (Long) SATA to Compact Flash SSD Adapter Product Title (AMZ) SATA to Compact Flash SSD Adapter (SAT2CF) Title Ingram (Part 1) SATA to Compact Flash SSD Adapte Title Ingram (Part 2) r Website Product Headline Turn a Compact Flash card into a bootable SATA SSD Bullet 1 Compatible with Compact Flash I/II, MicroDrive™ Bullet 2 Small, compact form factor Bullet 3 No driver of software installation required Marketing Copy Applications - Convert a CF card into a bootable SATA solid state drive (SSD) for reduced power consumption, greater reliability and reduced heat generation
- Add cost-effective solid state storage to a small form factor or embedded computing solution
- Create a compact SSD for use in volatile environments such as handheld, mobile, or industrial environments
Website Search Keyword - CF
- adapter
- Notebook or laptop hard drive
- Laptop accessory
- Compactflash
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Special Notes Hot swapping not supported Related Products - IDE442CF
- IDE441CF
- IDE2CFINT
- 35BAYCF2IDE
Humidity 20% to 80% RH Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 74 Product Width (mm) 51 Product Height (mm) 6 Product Weight (g) 20 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant No Memory Media Type - CF (Compact Flash I/II Card)
- IBM Micro Drive

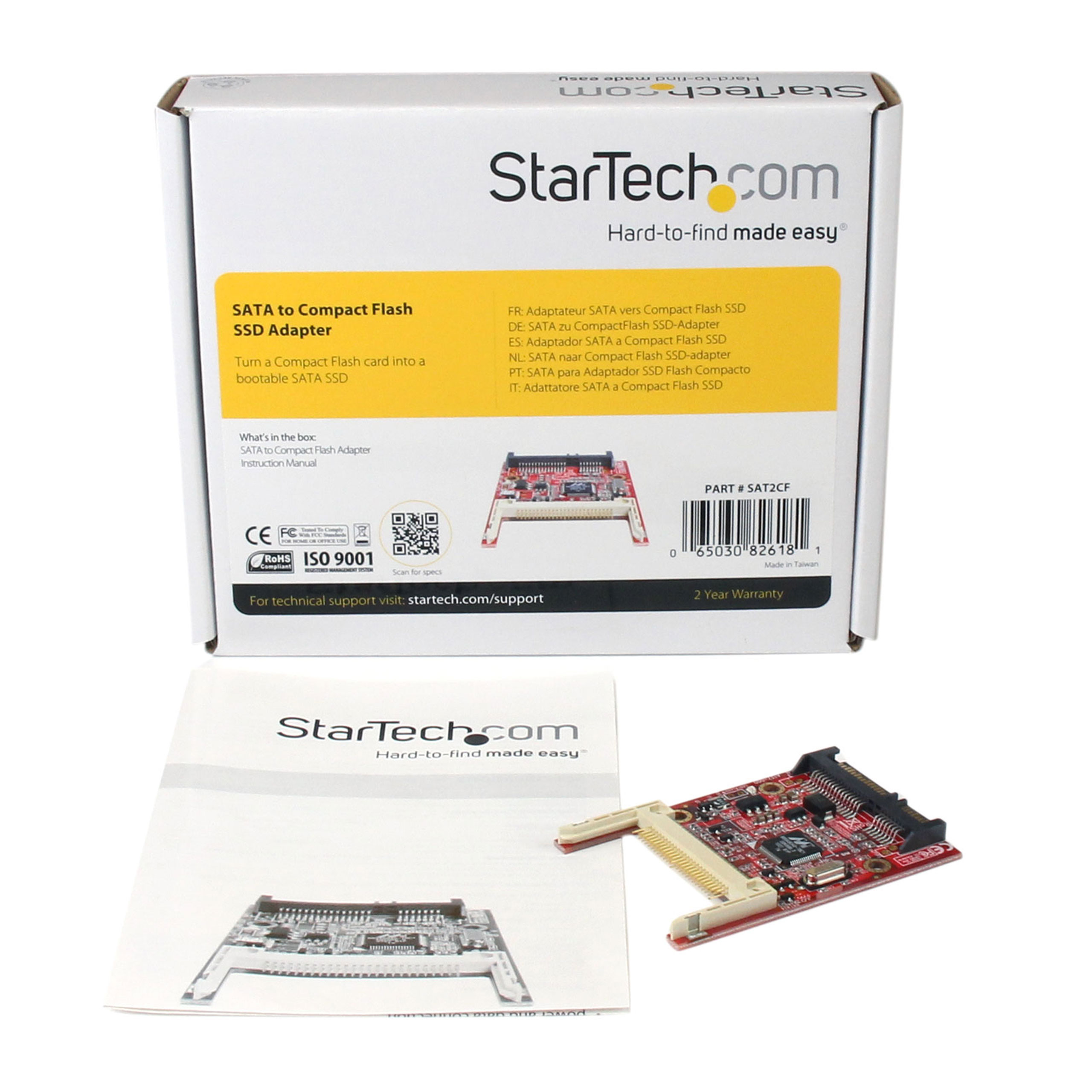

MTBF (hours) 3,864,231 Hours OS Compatibility OS Independent Carton Depth (mm) 500 Carton Height (mm) 350 Carton Quantity 40 Carton Weight Gross (g) 6000 Included in Package - 1 - SATA to Compact Flash Adapter
- 1 - Instruction Manual
Package Depth (mm) 47 Package Height (mm) 159 Package Width (mm) 218 Package Quantity 1 Package Weight (g) 120 Packaging Description SATA to Compact Flash SSD Adapter Packaging Description India SATA to Compact Flash SSD Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (15-Pin) Connector 1 (Quantity) 1 Connector 2 SATA (7-Pin) Connector 2 (Quantity) 1 Connector 3 CompactFlash Slot Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
