SAT2IDEADP

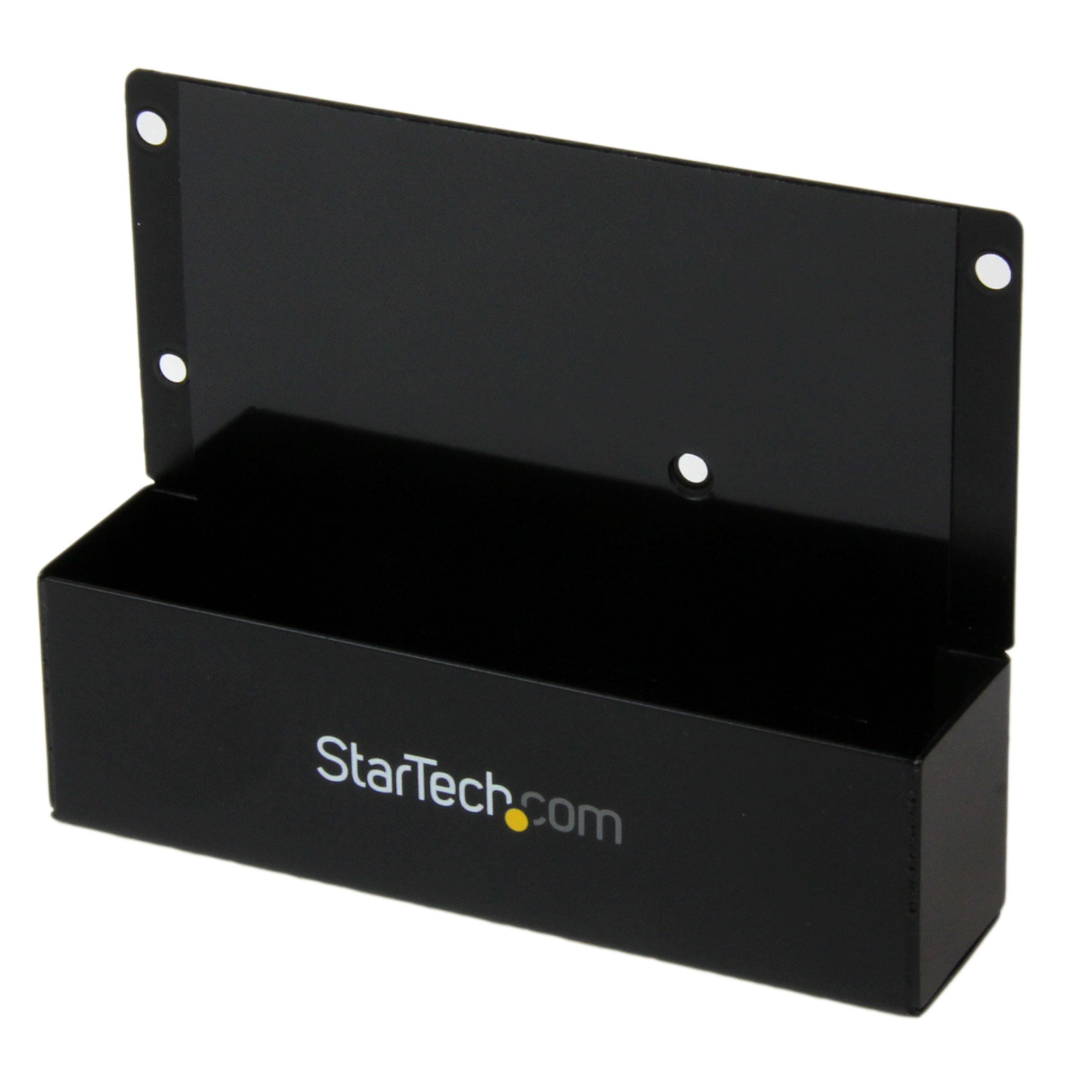

SATA to IDE Hard Drive Adapter for HDD Docks

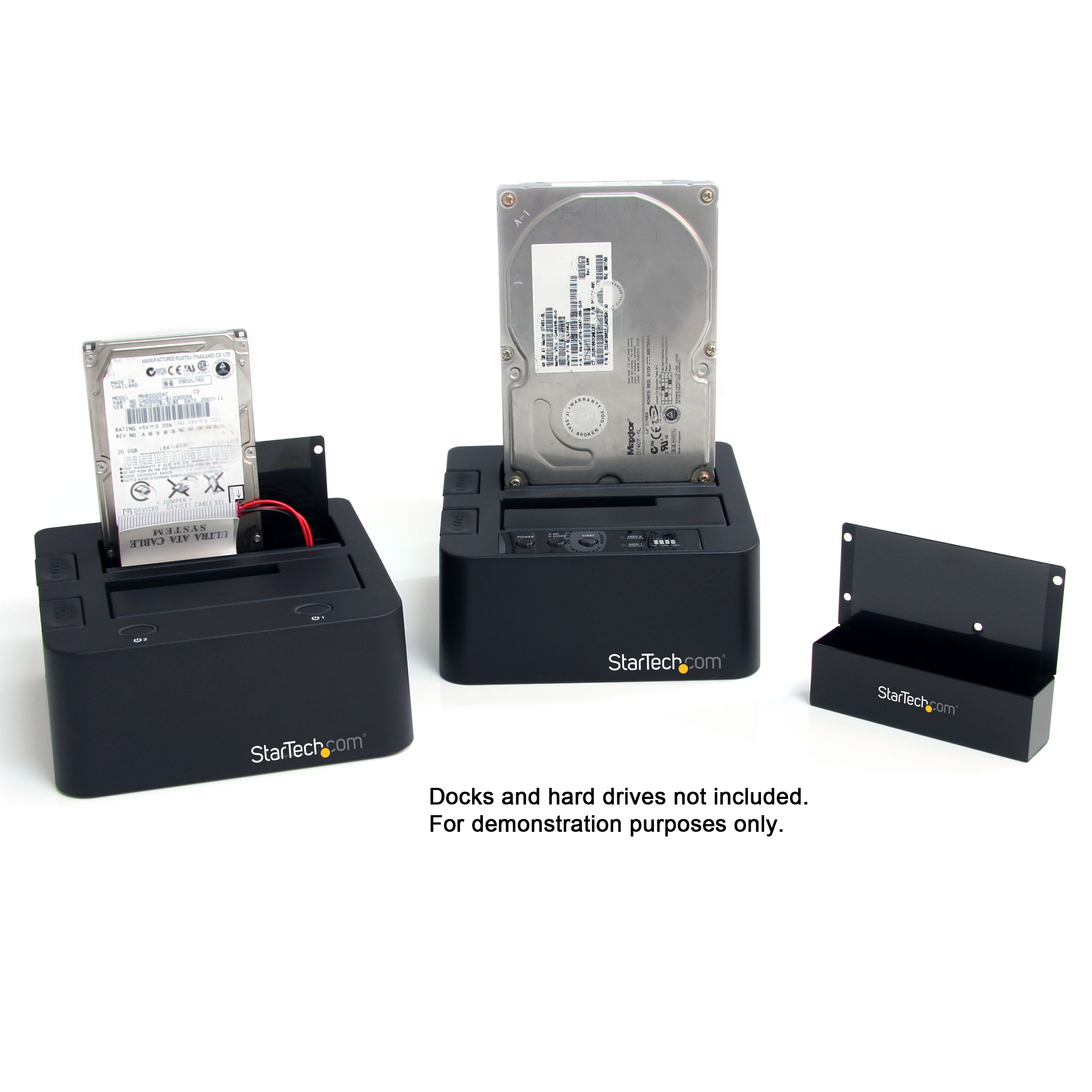

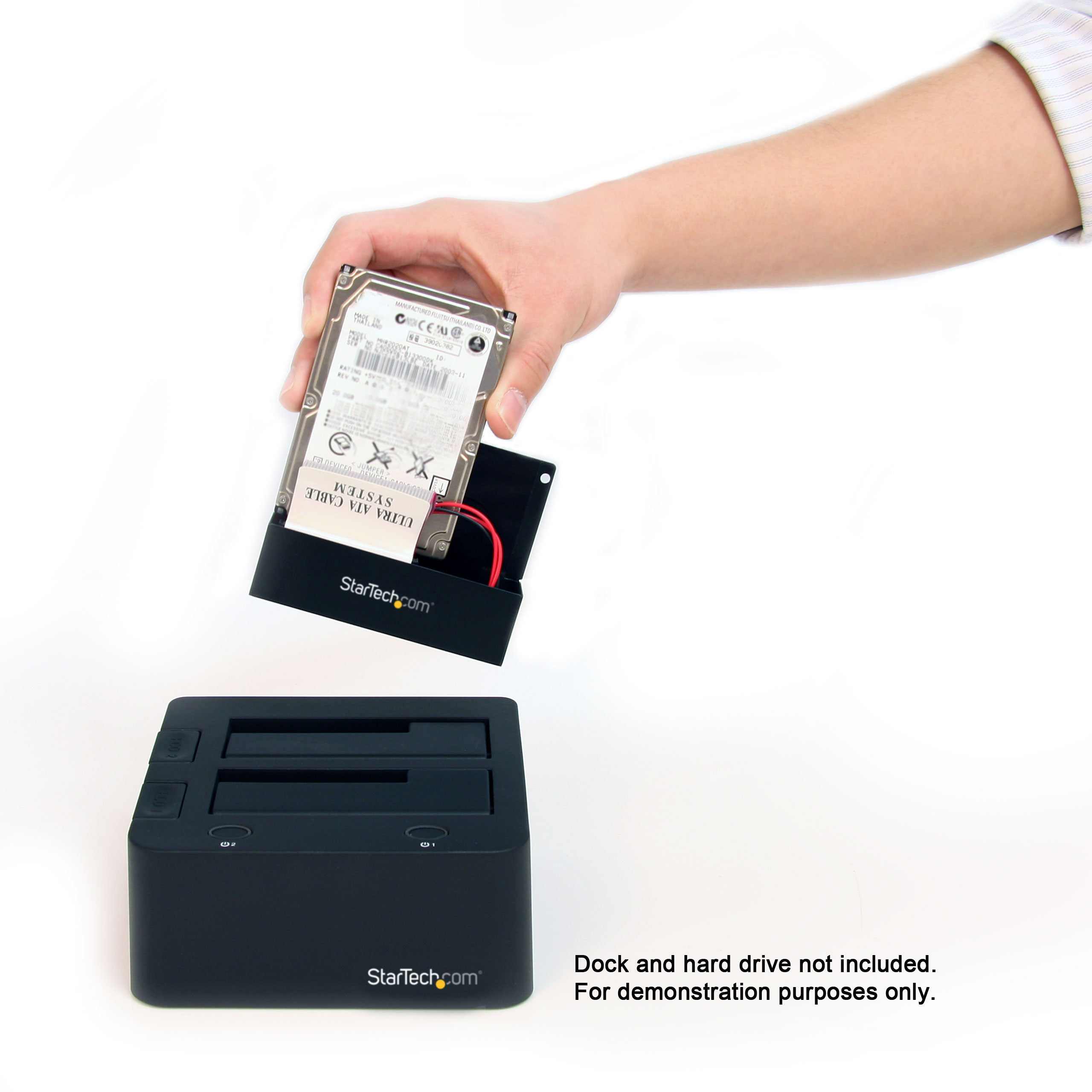

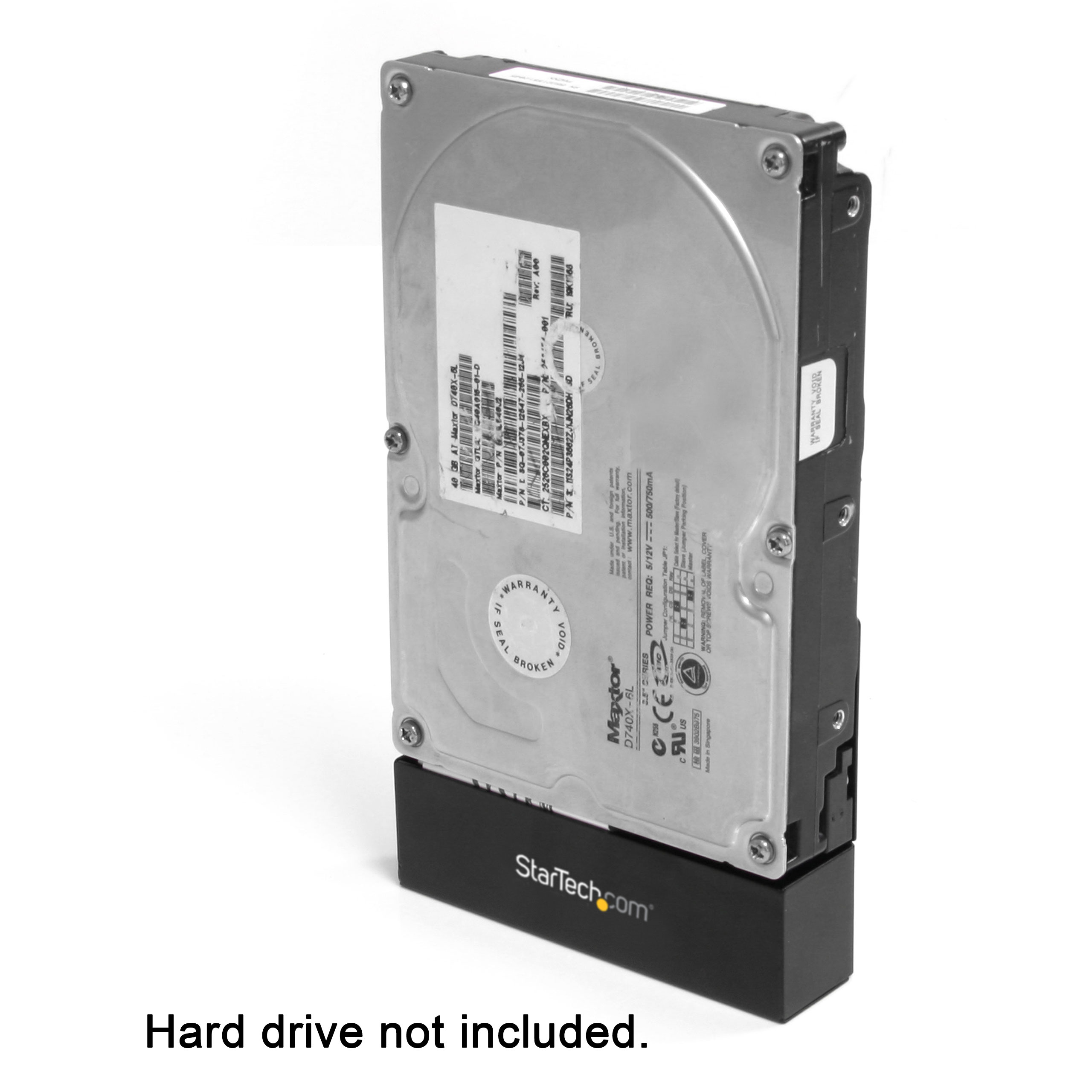

Use your 2.5in or 3.5in IDE hard drives in a SATA HDD Docking Station
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name SATA to IDE Hard Drive Adapter for HDD Docks Product Number SAT2IDEADP UPC 065030843393 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Adapter Enclosures/Converters Family SATA IDE Adapter Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX157X Product Title (Ultra-Short) . Product Title (Short) SATA to 2.5/3.5 IDE Hard Drive Adapter Product Title (Medium) . Product Title (Standard) SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks Product Title (Long) SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks Product Title (AMZ) SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks - SATA to IDE Converter - HDD Docking Station (SAT2IDEADP) Title Ingram (Part 1) SATA to 2.5in or 3.5in IDE Hard Title Ingram (Part 2) Drive Adapter for HDD Docks Website Product Headline Use your 2.5in or 3.5in IDE hard drives in a SATA HDD Docking Station Bullet 1 Supports 40-pin (3.5in) and 44-pin (2.5in) IDE hard drives Bullet 2 Durable, metal construction Bullet 3 Compatible with most 3.5in StarTech.com SATA hard drive docking stations and duplicators Bullet 4 Large capacity hard drive support, with 48-bit LBA Bullet 5 Compliant with SATA revision 1.0 Bullets (Compact) . Bullets (Consolidated) Use your 2.5in or 3.5in IDE hard drives in a SATA HDD Docking Station - SATA to IDE Aadapter - SATA to PATA Adapter - SATA to IDE Converter - SATA to IDE Hard Drive Adapter - Storage Controller Marketing Copy Applications - Use old IDE/PATA hard drives in a SATA hard drive docking station
- Install an IDE/PATA hard drive into a computer with only SATA ports

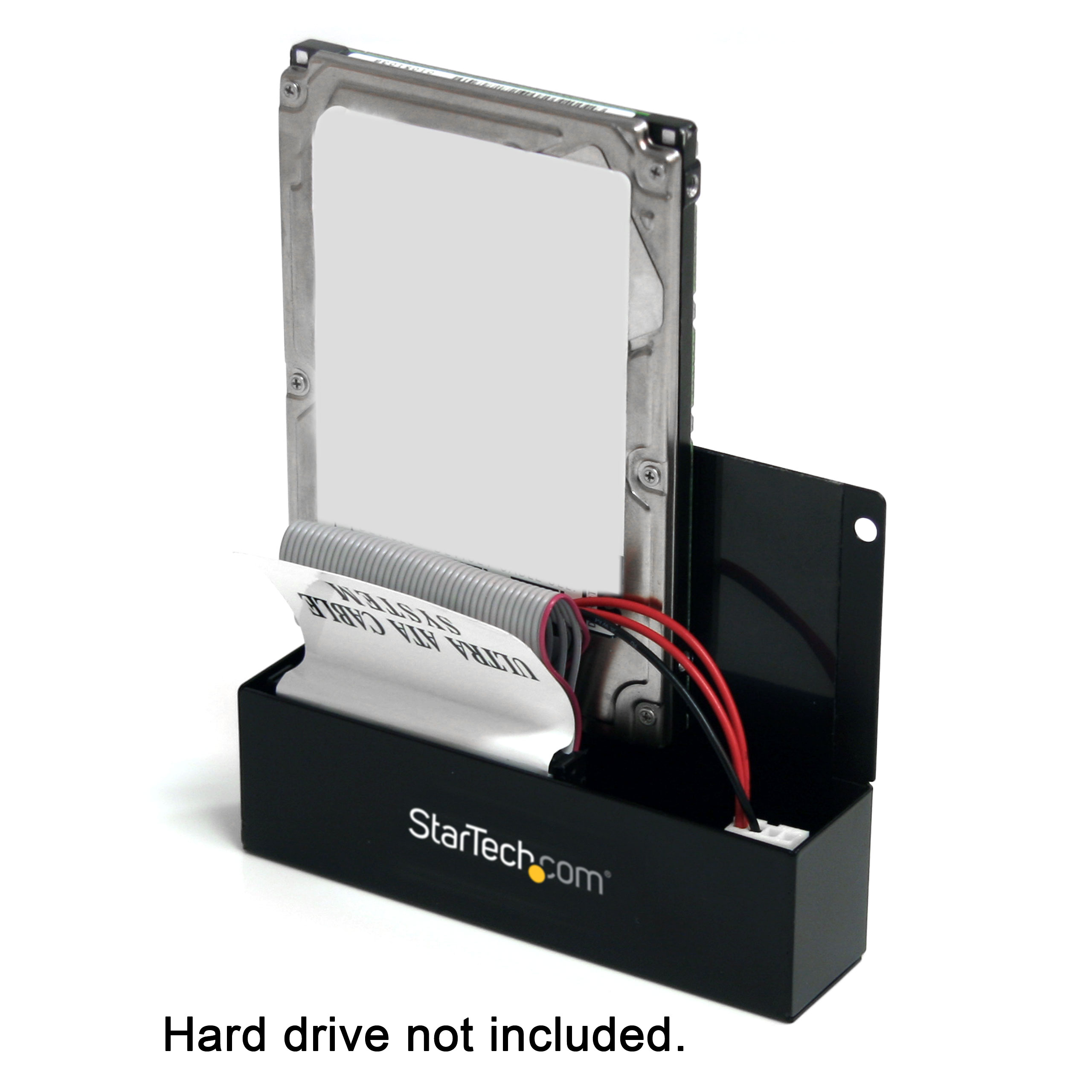

- Easily recover data from a 2.5in (laptop) IDE hard drive, by connecting it to a SATA-enabled computer or docking station
- Technicians who are required to work with a wide variety of old and new technologies
Website Search Keyword - sata to pata converter
- eide adapter
- hard drive adapter
- sata docking station
- drive dock
- hdd dock
- IDE Hard Drive Dock Universal HDD Dock IDE to SATA
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Accessory Products - SATDOCK22R
- SATDOCK22RE
- SATADOCKU2
- SATADOCKU2E
- SATDOCKU3S
- SATADOCK22UE
- SATDOCKCRH
- SATDOCK4U3E
- SATDOCK4U2E
- SATDUPUE
- SATDOCK2UEGB
- SATDOCKU2GB
- SATDOCKU2EGB
- UNIDOCK2U
- UNIDUPDOCK
- SATDOCKU2EU
- SATDOCKU2EEU
- BRACKETFDBK
Related Products - PATA2SATA3
- PATA2SATA2
- SATA2ATA133
- IDE2SAT25
- OPT2SATA

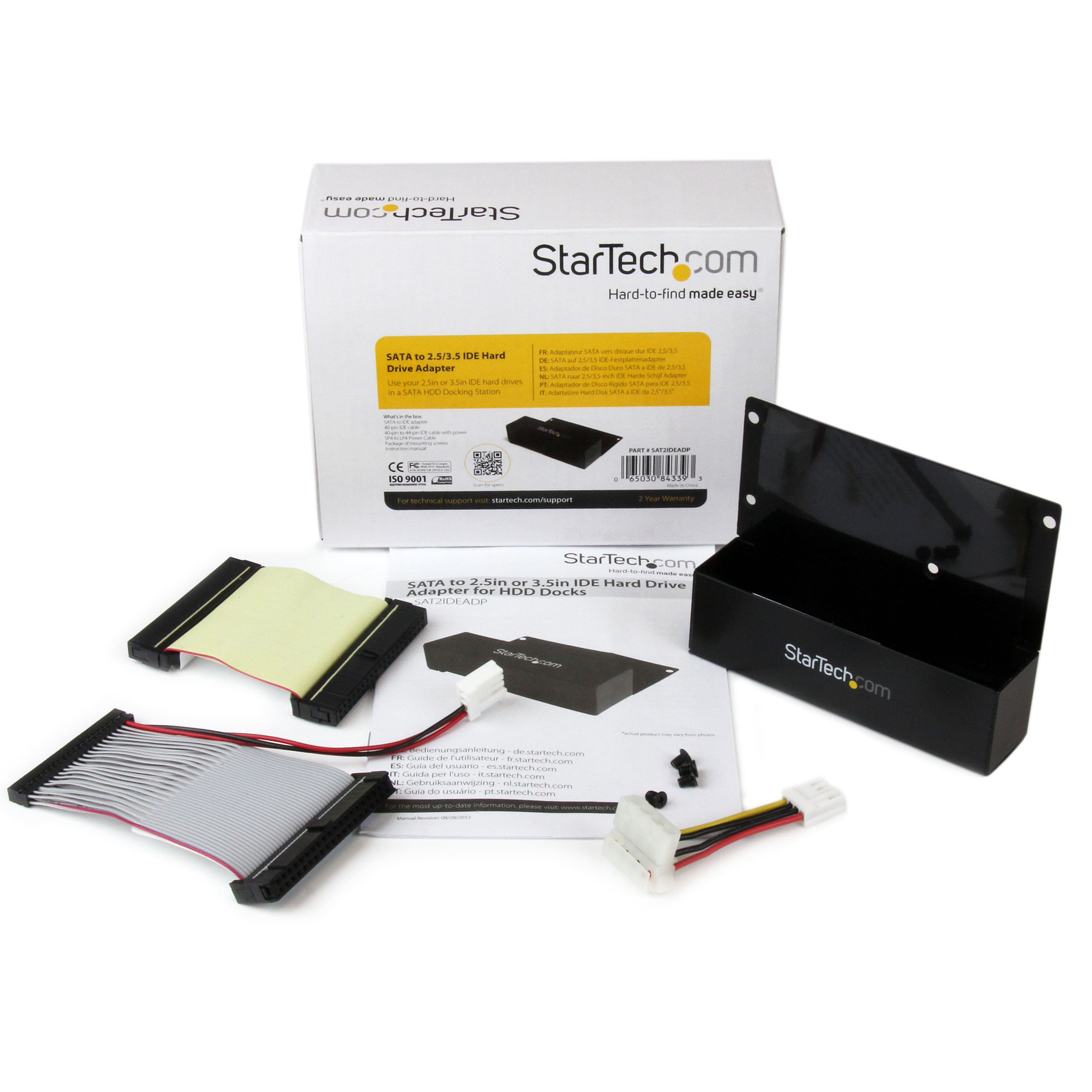

Input Voltage 5V DC / 12V DC Output Voltage (V) 5 DC Color Black Humidity 8% ~ 90% RH Material Steel Operating Temperature 5°C to 80°C (41°F to 176°F) Primary Material Steel Product Length (mm) 101.000 Product Width (mm) 80.000 Product Height (mm) 24.900 Product Weight (g) 106.000 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No OS Compatibility OS Independent RAID No Chipset ID JMicron - JM20330 Compatible Drive Types IDE (ATA) Fans Included? Yes/No No Number of Drives 1 Carton Depth (mm) 282 Carton Height (mm) 272 Carton Quantity 20 Carton Weight Gross (g) 5100 Included in Package - 1 - SATA to IDE adapter
- 1 - 40-pin IDE cable
- 1 - 40-pin to 44-pin IDE cable with power
- 1 - SP4 to LP4 Power cable
- 1 - Instruction Manual
- 1 - Package of mounting screws
Included In Package for Label - 1 - Product Documentation
- 1 - Sp4 To LP4 Cable
- 1 - 40-Pin To 44-Pin Ide Cable
- 1 - 40-Pin Ide Cable
- 1 - Screw Kit
- 1 - SATA To Ide Converter

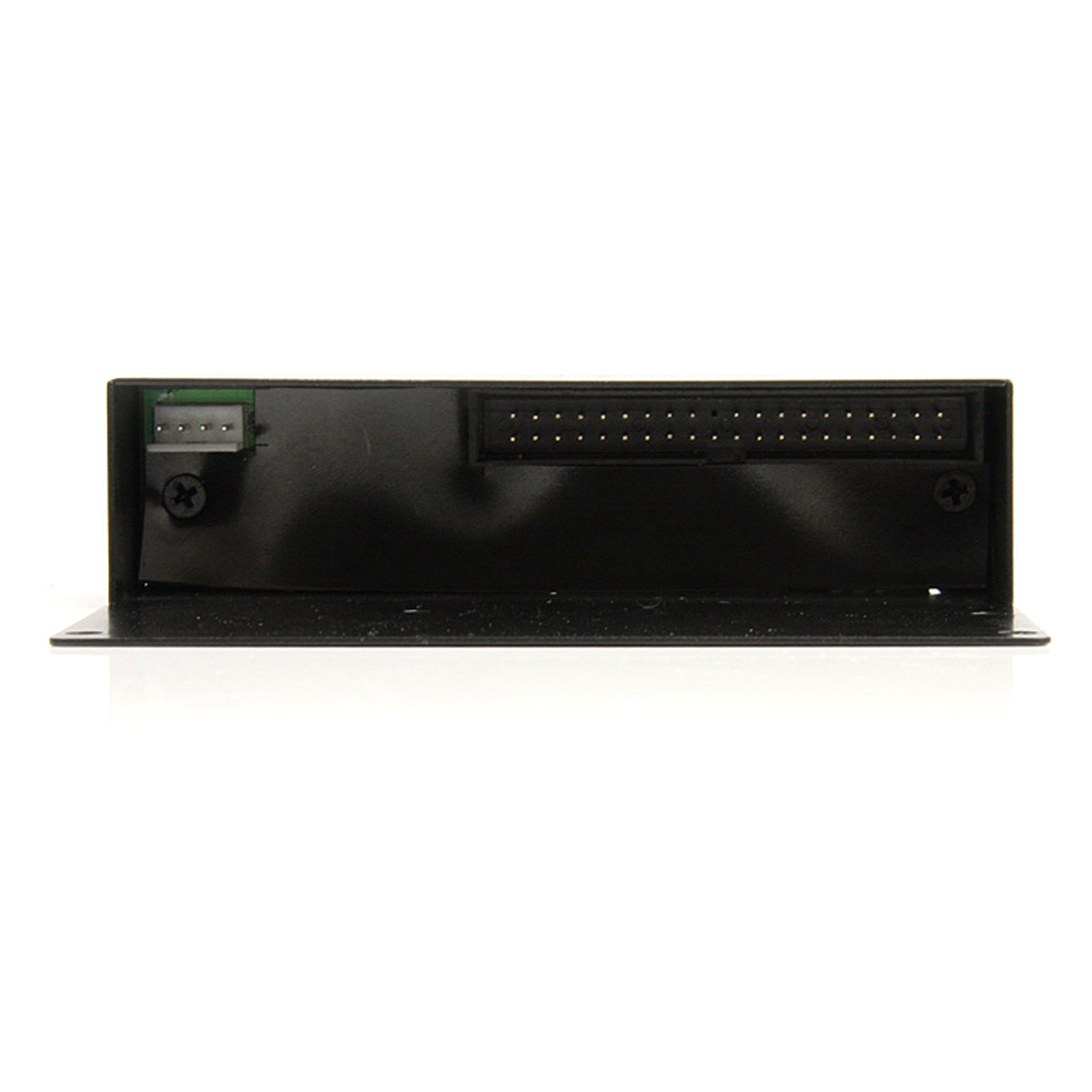

Package Depth (mm) 145 Package Height (mm) 53 Package Width (mm) 113 Package Quantity 1 Package Weight (g) 226 Packaging Description SATA to 2.5/3.5 IDE Hard Drive Adapter Packaging Description India SATA to 2.5/3.5 IDE Hard Drive Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 1 (Quantity) 1 Connector 2 IDE / PATA (ATA/133) Connector 2 (Quantity) 1 Connector 3 IDE / PATA 2.5in (ATA/133, Power) Connector 3 (Quantity) 1 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 Host Connector 1 SATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 SATA (15-Pin) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
