SAT2M2NGFF25

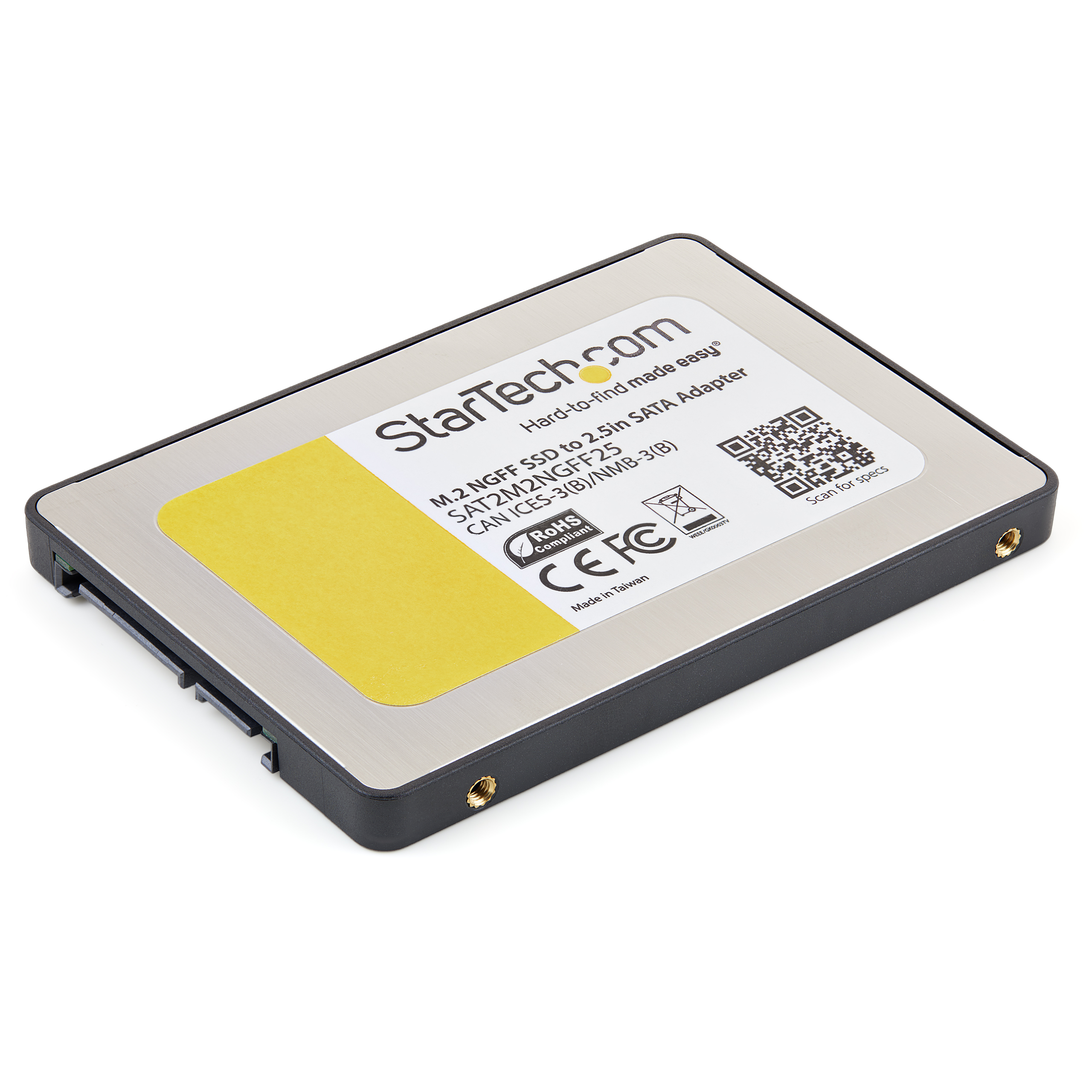

2 5in SATA to M 2 NGFF SSD Adapter Enclosure
Convert an M.2 solid state drive into a standard 2.5in form factor 6Gbps SSD
Main Image
Product Images
Product Images
BOM Image
Product Name 2 5in SATA to M 2 NGFF SSD Adapter Enclosure Product Number SAT2M2NGFF25 UPC 065030859288 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 M.2 NVMe/SATA Card Adapters/Controllers Family M.2 SATA to 2.5" SATA Adapter Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX039X Product Title (Ultra-Short) M.2 to SATA Adapter Product Title (Short) Adapter - M.2 SSD to 2.5in SATA III Product Title (Medium) M.2 SSD to 2.5in SATA III Adapter - M.2 SSD Drive Converter - Protective Housing Product Title (Standard) M.2 SSD to 2.5in SATA III Adapter, M.2 Solid State Drive Converter with Protective Housing, TAA Product Title (Long) M.2 SSD to 2.5in SATA III Adapter - M.2 Solid State Drive Converter with Protective Housing - TAA Product Title (AMZ) M.2 (NGFF) SSD to 2.5in SATA III Adapter - Up to 6 Gbps - M.2 SSD Converter to SATA with Protective Housing , TAA (SAT2M2NGFF25) Title Ingram (Part 1) M.2 to 2.5inch SATA III Adapter Title Ingram (Part 2) with Protective Housing Website Product Headline Convert an M.2 solid state drive into a standard 2.5in form factor 6Gbps SSD Bullet 1 SECURE DESIGN: The M.2 SSD to 2.5in SATA III adapter features an enclosed housing that adds protection to your NGFF (Next Generation Form Factor) SSD; Fits in a 9.5mm or larger SATA slot or enclosure Bullet 2 STURDY CONSTRUCTION: The M.2 (NGFF) to SATA adapter's added protection lets you confidently use your M.2 drive in applications that require an added level of durability Bullet 3 INCREASED PRODUCTIVITY: Using an M.2 SSD to SATA adapter in place of a platter drive better utilizes your SATA III controller, by reducing any bottlenecks with file transfer speeds up to 6Gbps Bullet 4 BROAD COMPATIBILITY: The M2 to SATA converter supports full length M2 SDD solid state drives and is compatible with other sizes including: 2230, 2242, 2260, and 2280; NOTE: Not compatible with M.2 NVMe or AHCI PCI-Express SSDs Bullet 5 THE IT PRO'S CHOICE: IT professionals choice for over 30 years, this TAA compliant 2.5in M.2 SATA adapter is backed for 2 years, including free 24/5 North America based multi-lingual assistance Bullets (Compact) Convert an M.2 solid-state drive into a standard 2.5in SATA III 6Gbps SSD - M.2 to SATA Adapter - M.2 to SATA Converter - M.2 SSD to SATA Adapter - M.2 to 2.5" SATA Converter - Install M.2 Drive in 2.5in SATA Bay - M.2 to Hard Drive Adapter Bullets (Consolidated) Convert an M.2 solid-state drive into a standard 2.5in SATA III 6Gbps SSD - Compatible with M.2 SSD and SATA-enabled host devices such as desktop and laptop computer systems and Hot Swap 2.5in SATA Bays - M.2 to SATA Adapter with broad compatibility with support for the most common SATA M.2 SSDs (2242, 2260, 2280)(Not compatible with M.2 NVMe or AHCI PCI-Express SSDs) - Install an M.2 SSD into a SATA-enabled computer system to improve performance - M.2 to SATA Converter/M.2 SSD to SATA Adapter Marketing Copy Marketing Copy (No HTML) Vastly increase system performance by replacing your 2.5" SATA hard drive with an M.2 solid state drive, using the M.2 SSD to 2.5in SATA III adapter. The M.2 (NGFF) to SATA III adapter features an enclosed housing that adds protection to your NGFF (Next Generation Form Factor) SSD. The added protection provided by this M.2 SSD to SATA III adapter gives you the peace of mind to confidently use your M.2 drive in applications that require an added level of durability such as hot-swap drive bays, or external SATA docking stations. Using an M.2 SSD in place of a platter drive better utilizes the full potential of your SATA III controller, by reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps -- this M.2 SSD to SATA adapter is an ideal solution for further increasing the performance of a HyperDuo array. For wide compatibility with all the common M.2 solid state drives, the M.2 to SATA adapter supports multiple drive heights including: 2230, 2242, 2260, 2280. The M.2 SSD to 2.5in SATA III adapter is backed by a StarTech.com 2-year warranty, and lifetime technical support. Applications - Access M.2 drives from an external source, such as a SATA drive enclosure or docking station
- Retrieve/backup data from an M.2 (NGFF) drive with a standard SATA computer
- Turn an unused M.2 drive into a regular 2.5in SATA solid state drive
- Use an M.2 in any 2.5in SATA application
Website Search Keyword - M.2 to SATA Adapter
- M.2 to SATA Converter
- NGFF to SATA
- M.2 to SATA
- NGFF to SATA Adapter
- NGFF to SATA Converter
- M.2 Adapter
- M.2 Converter
- NGFF Adapter
- NGFF Converter
- SSD to SATA Adapter
- Mac SSD to SATA Adapter
- Mac drive to SATA adapter
- M2 to SATA
- M2 to SATA adapter
- M2 to SATA Converter
- M2 Adapter
- M2 Converter
- P960-001-M2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - LSATA12
- SATA18
- SATA18POW
- SATA24
- LSATA8
- SATA12LSA1
- SATA12RSA1
- SATA18RSA1
- LSATA18RA1
- SATA6LA1
- LP4LSATAADAP
- PYO2LP4SATA
- LP4SATAFM6IN
- SATA18RA1
- SATA18LA1
- SATA12
- SATA24RA1
- SATA18LSA1
- BRACKET25SAT
- SATA35252X
- BRACKET25X2
Related Products - SAT2MSAT25
- SAT32MSAT257
- 25SAT22MSAT
- CF2USAT18E
- 2CF2SATAR
- SAT2CF
- IDE2SAT2
- SAT32MSATM
- MSAT2SAT3
- SAT32MSATPEX
- SAT32M225
Input Voltage 5V DC / 12V DC Output Voltage (V) 5 DC Color Black Humidity 5% to 95% RH Material Aluminum and Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Aluminum Product Length (mm) 98.000 Product Width (mm) 68.000 Product Height (mm) 8.000 Product Weight (g) 54.000 Storage Temperature -10°C to 85°C (14°F to 185°F) TAA Compliant Yes General Specifications Not compatible with M.2 NVMe or AHCI PCI-Express SSDs Hot Swap Capability No Maximum Data Transfer Rate 6 Gbps OS Compatibility OS Independent RAID No SATA Type and Rate SATA III (6 Gbps) Compatible Drive Types M.2 (SATA, B-Key, NGFF) Interface/Bridge SATA Number of Drives 1 Supported Drive Height(s) - 2242
- 2260
- 2280
- 2230

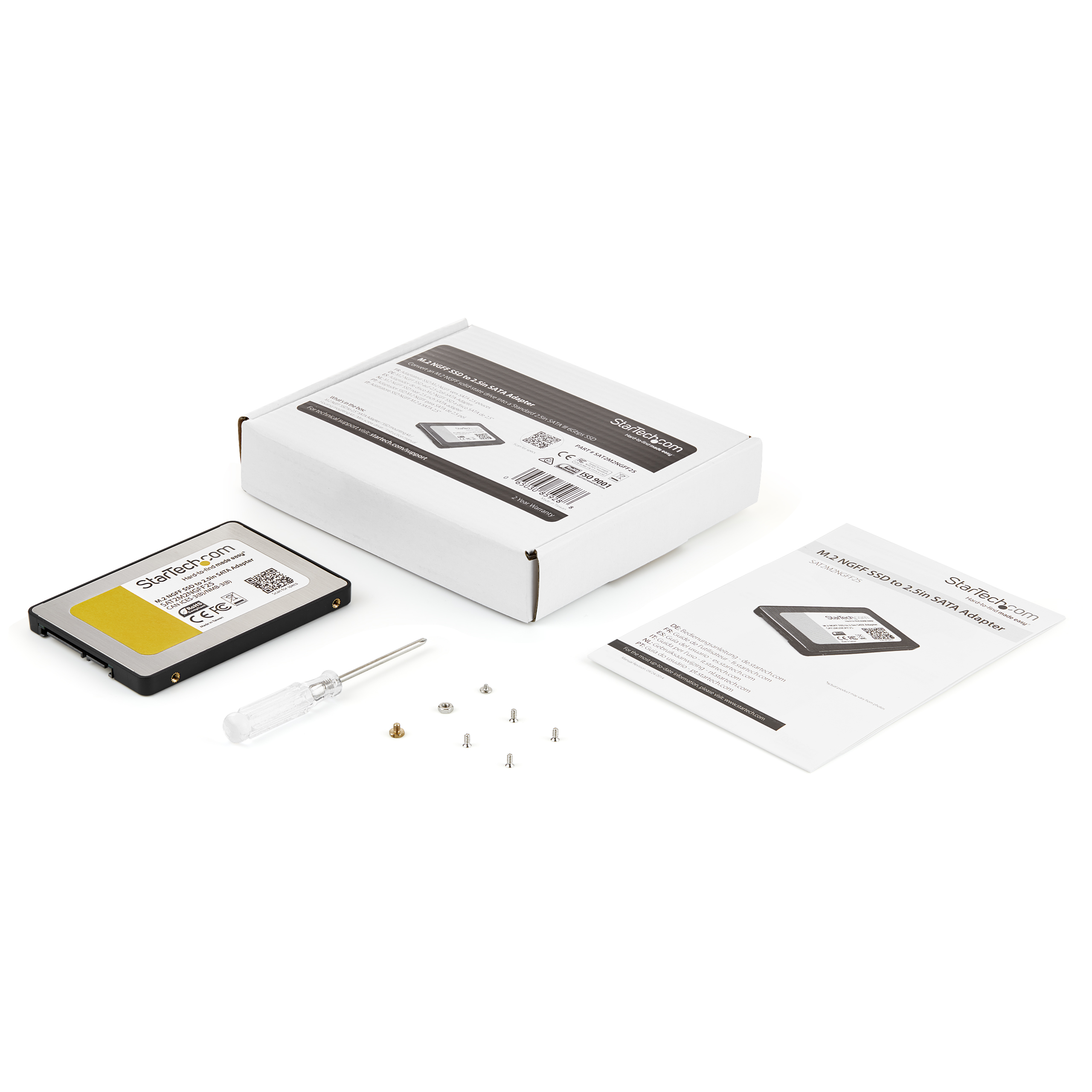

Carton Depth (mm) 480 Carton Height (mm) 328 Carton Quantity 100 Carton Weight Gross (g) 12960 Included in Package - 1 - M.2 NGFF SSD to 2.5" SATA Adapter
- 1 - Mini screw driver
- 1 - Instruction manual
- 1 - SSD mounting kit
- 1 - Housing mounting kit
Package Depth (mm) 133 Package Height (mm) 34 Package Width (mm) 162 Package Quantity 1 Package Weight (g) 116 Packaging Description M.2 NGFF SSD to 2.5in SATA Adapter Packaging Description India M.2 NGFF SSD to 2.5in SATA Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 M.2 B-Key (SATA, AHCI) Connector 1 (Quantity) 1 Host Connector 1 SATA (7-Pin + 15-Pin) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-07-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
