SAT2MSAT25

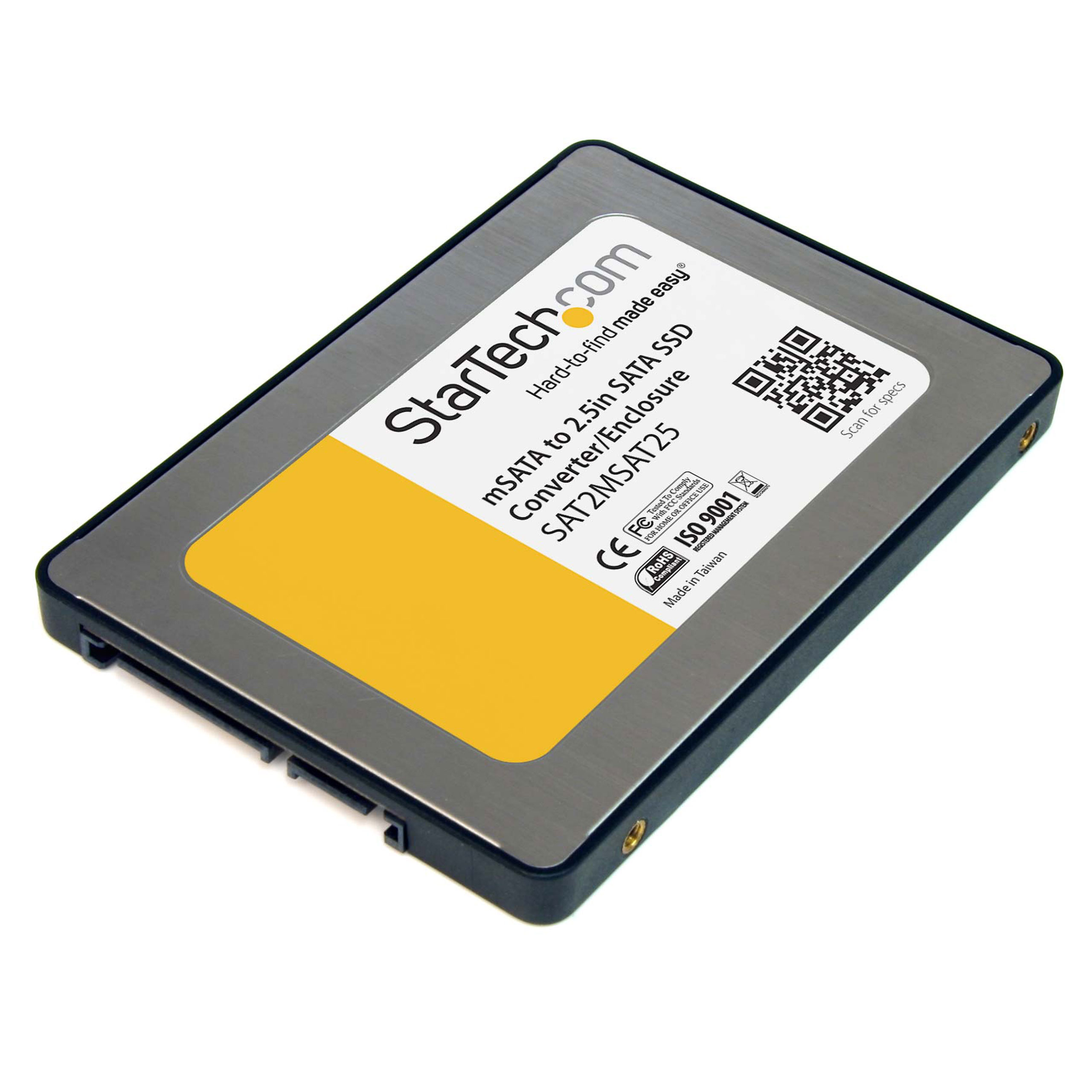

2 5 SATA to mSATA SSD Converter

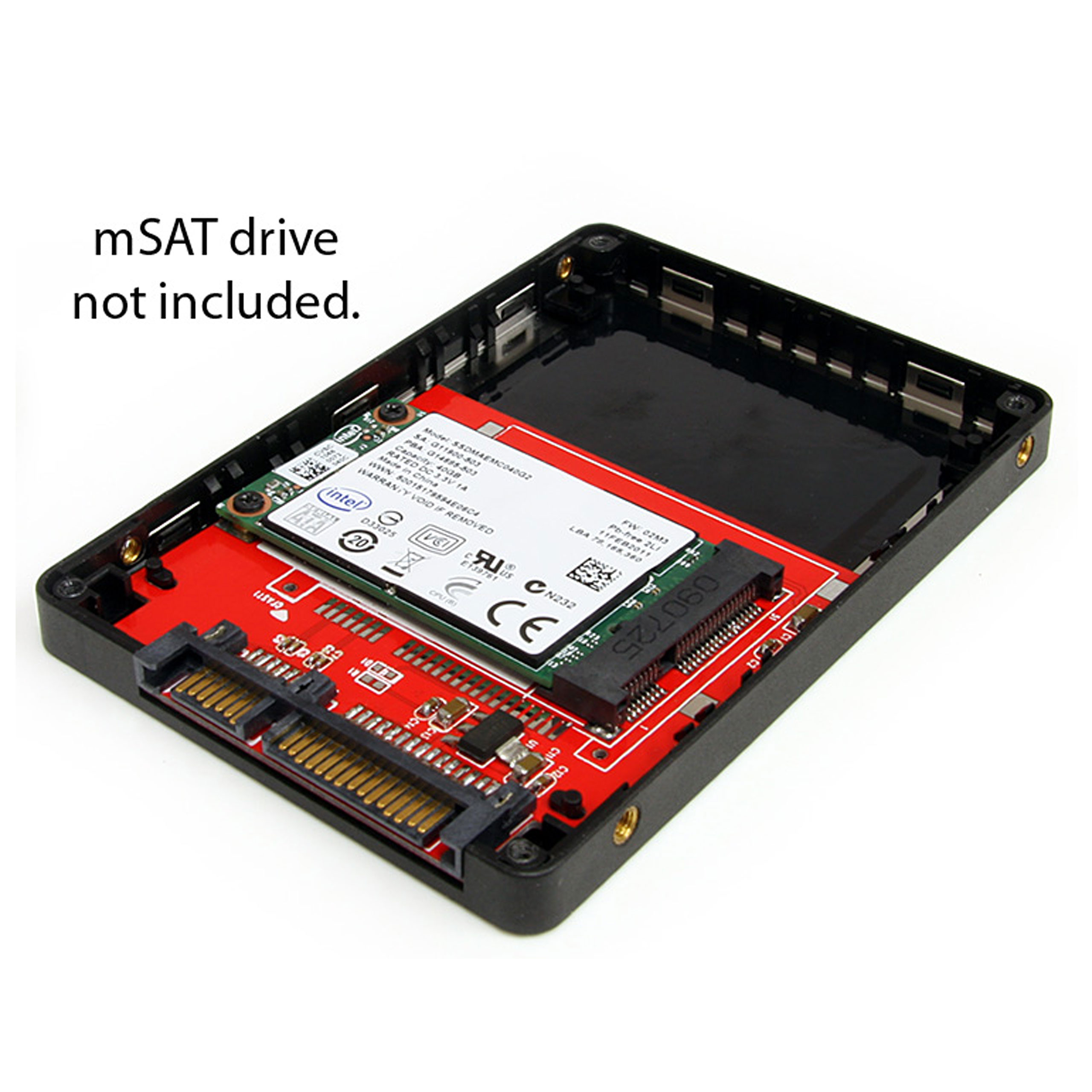

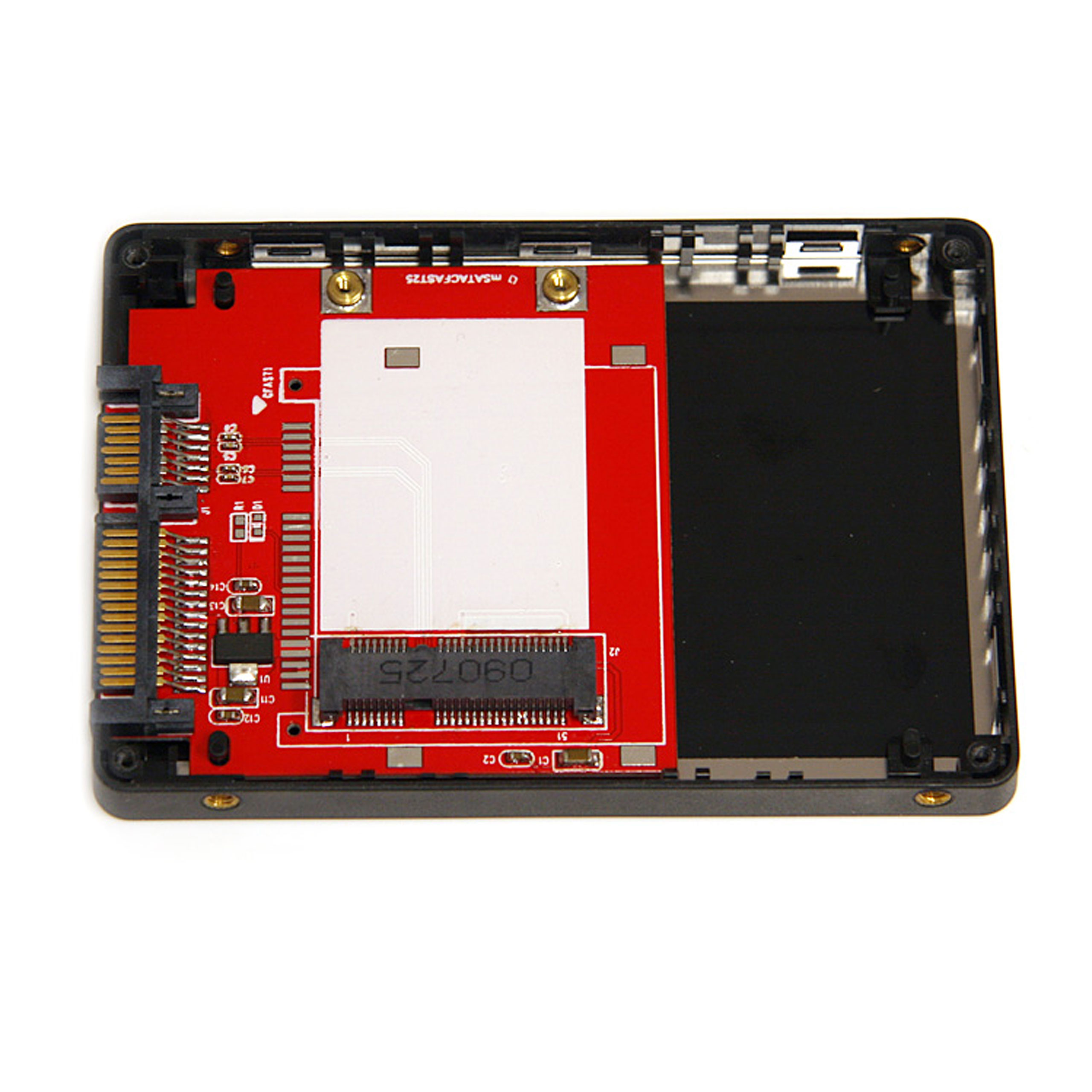

Convert an mSATA mini-SSD into a Standard 2.5in SATA SSD
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 5 SATA to mSATA SSD Converter Product Number SAT2MSAT25 UPC 065030845694 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 Other Cards And Adapters - mSATA/CF/IDE Family mSATA to 2.5" SATA Adapter Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX039X Product Title (Short) 2.5" SATA to Mini SATA Adapter Enclosure Product Title (Medium) x Product Title (Standard) 2.5in SATA to Mini SATA SSD Adapter Enclosure, TAA Product Title (Long) 2.5in SATA to Mini SATA SSD Adapter Enclosure - TAA Product Title (AMZ) 2.5in SATA to Mini SATA SSD Adapter Enclosure - Mini PCIe ssd Adapter - SATA to mSATA - Mini PCIe SATA , TAA (SAT2MSAT25) Title Ingram (Part 1) 2.5in SATA to Mini SATA SSD Adap Title Ingram (Part 2) ter Enclosure Website Product Headline Convert an mSATA mini-SSD into a Standard 2.5in SATA SSD Bullet 1 Supports full length mSATA (Mini SATA) form factor Solid State Drives Bullet 2 2.5in SATA form factor housing Bullet 3 Completely pass-through design for SATA data/power Bullet 4 Durable aluminum and plastic construction Bullet 5 Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps) Bullets (Consolidated) Storage enclosure - 2.5" - 1 Channel - SATA - silver Marketing Copy Applications - IT technicians that need to access to an mSATA drive from a standard SATA computer system
- IT professionals looking to access an mSATA (Mini SATA) drive from an external source, such as a SATA drive enclosure or docking station
- Turn an unused mSATA drive into a regular 2.5in SATA solid state drive
- Retrieve/backup data from an old mSATA (Mini SATA) drive
- System builders looking to use an mSATA drive in a dual drive system, with an SSD for the OS and traditional HDD for storage
Website Search Keyword - mSATA hard drive
- mini PCI Express SSD
- mini SATA
- mPCIe SSD
- miniSATA
- solid state drive
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Accessory Products - LSATA12
- SATAPOWADAP
- SATA12
- SATA36
- SATA24RA1
- SATA18LA1
Related Products - CF2USAT18E
- IDE502CFE

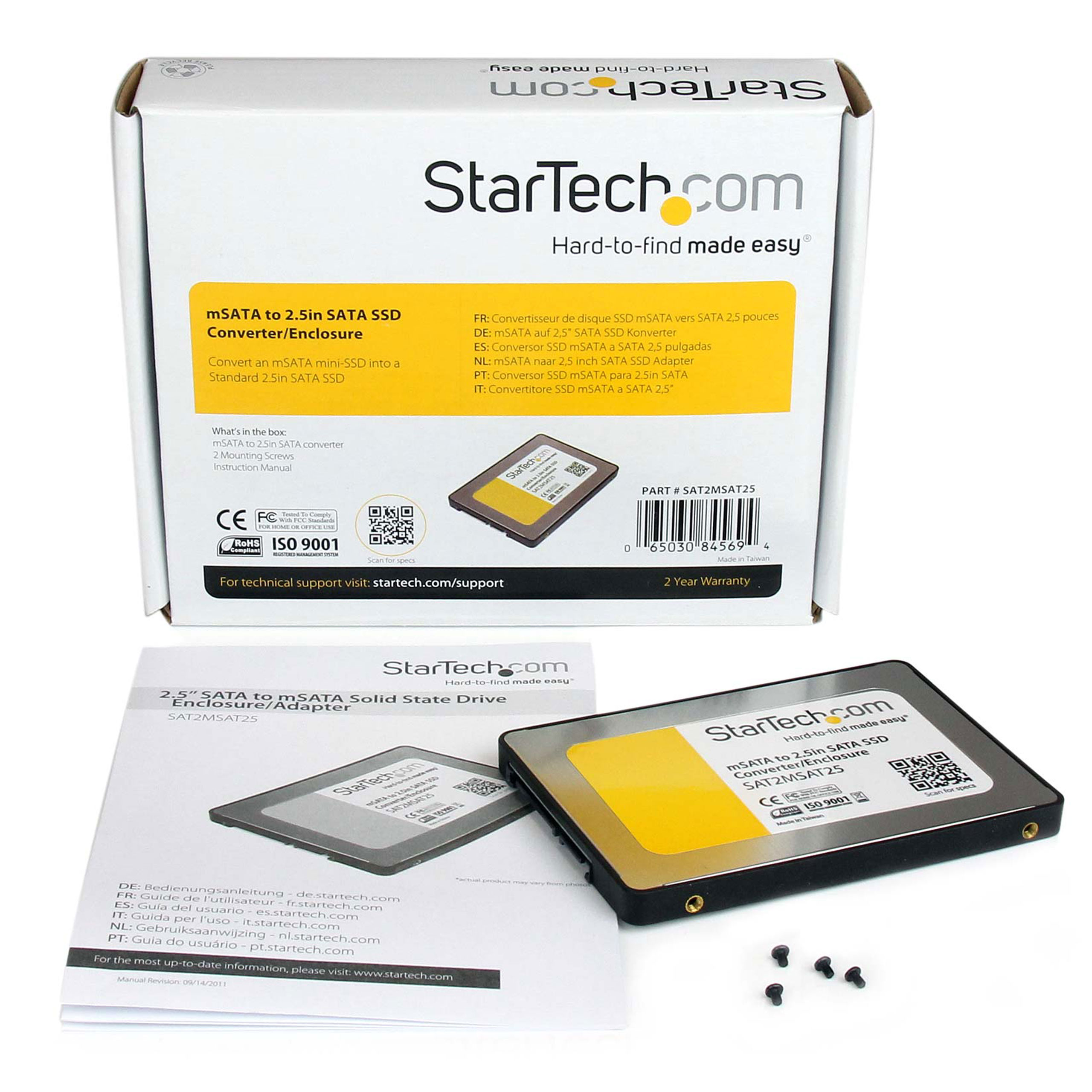

Input Voltage 5V DC / 12V DC Output Voltage (V) 5 DC Color Silver Humidity 5% ~ 95% RH Material Aluminum and Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Aluminum Product Length (mm) 100 Product Width (mm) 70 Product Height (mm) 8.1 Product Weight (g) 52 Storage Temperature -10°C to 85°C (14°F to 185°F) TAA Compliant Yes OS Compatibility OS Independent RAID No Compatible Drive Types mSATA (Mini SATA) Interface/Bridge SATA Number of Drives 1 Carton Depth (mm) 484 Carton Height (mm) 336 Carton Quantity 100 Carton Weight Gross (g) 12536 Included in Package - 1 - mSATA to 2.5in SATA converter
- 2 - Mounting Screws
- 1 - Instruction Manual
Included In Package for Label - 1 - Instruction Manual
- 2 - Mounting Screws
- 1 - Msata To 2.5In SATA Converter
Package Depth (mm) 130 Package Height (mm) 32 Package Width (mm) 161 Package Quantity 1 Package Weight (g) 112 Packaging Description mSATA to 2.5in SATA SSD Converter Packaging Description India mSATA to 2.5in SATA SSD Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 mSATA (52-Pin) Connector 1 (Quantity) 1 Host Connector 1 SATA (7-Pin + 15-Pin) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
