SAT32M225

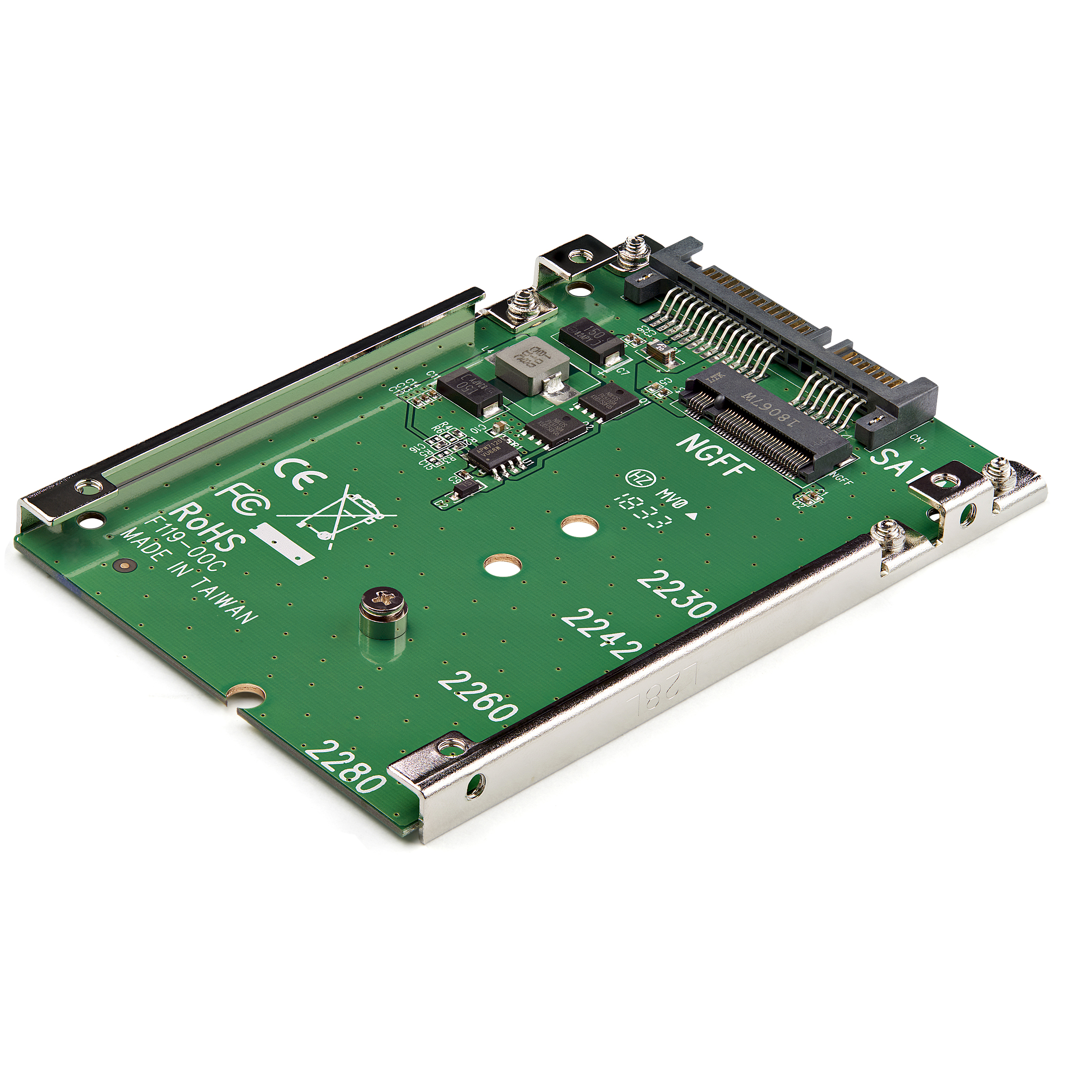

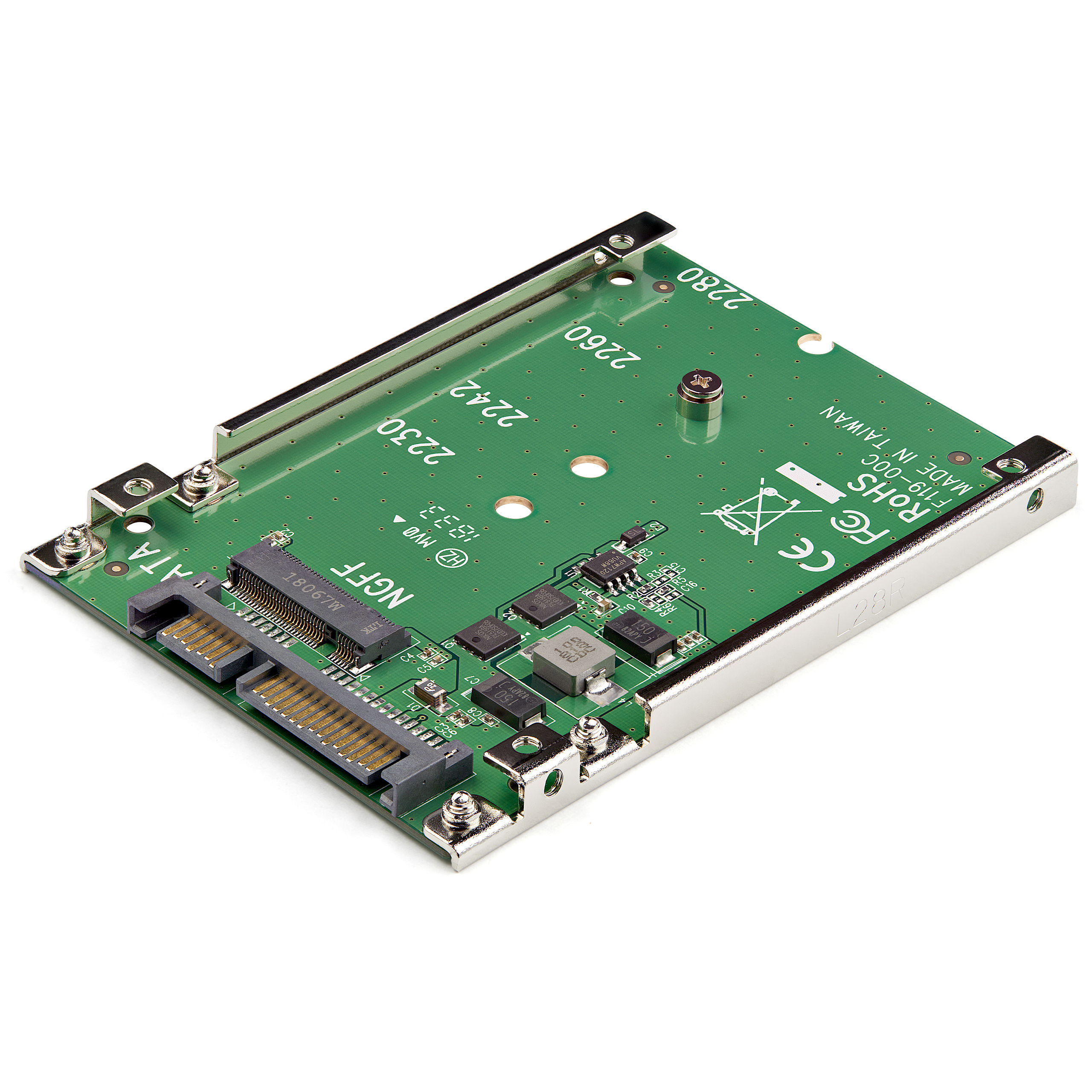

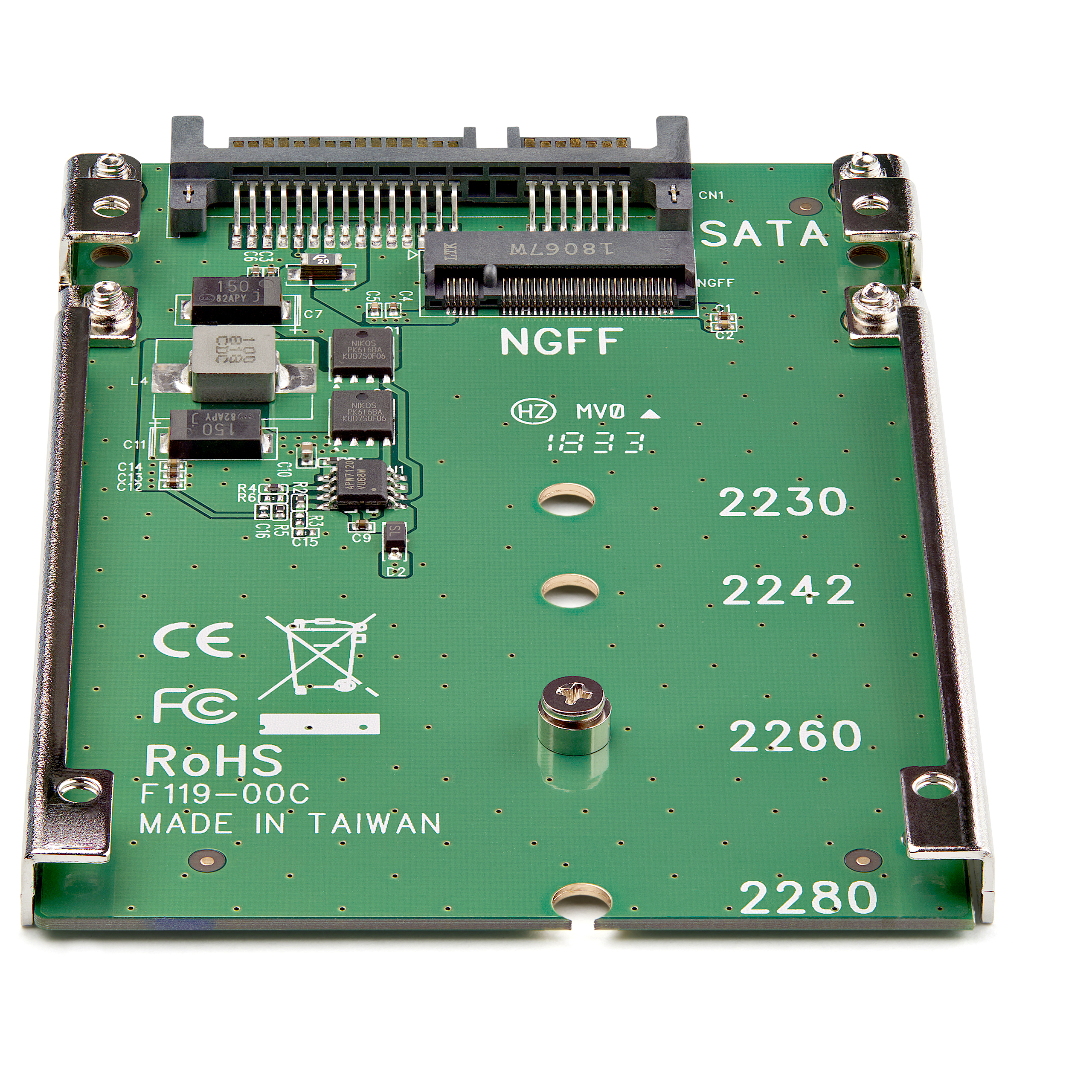

M 2 NGFF SSD to 2 5in SATA SSD Converter
M.2 SATA NGFF to 2.5 in. SATA | 7mm High | SATA 6Gbps | Open Frame
Main Image
Product Images
Product Images
BOM Image
Product Name M 2 NGFF SSD to 2 5in SATA SSD Converter Product Number SAT32M225 UPC 065030855600 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 M.2 NVMe/SATA Card Adapters/Controllers Family M.2 SATA to 2.5" SATA Adapter Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) M.2 to SATA Adapter Product Title (Short) Adapter - M.2 SATA SSD to SATA Product Title (Medium) M.2 SATA SSD to 2.5in SATA Adapter Converter w/ Open Frame Housing & 7mm Height Product Title (Standard) M.2 SATA SSD to 2.5in SATA Adapter, Open-Frame Bracket Converter, 7mm High, M2 Drive Adapter, Not Compatible with NVMe, TAA Product Title (Long) M.2 SATA SSD to 2.5in SATA Adapter, M.2 NGFF to SATA Converter, Open-Frame Bracket, 7mm High, M2 Hard Drive Adapter - Not Compatible with NVMe - TAA Product Title (AMZ) M.2 SATA SSD to 2.5" SATA Adapter [NOT NVMe], Open-Frame Bracket, 7mm High, M2 Hard Drive Adapter - TAA Title Ingram (Part 1) M.2 SATA SSD to 2.5in SATA Adapter Title Ingram (Part 2) - M.2 SSD to SATA Converter Website Product Headline M.2 SATA NGFF to 2.5 in. SATA | 7mm High | SATA 6Gbps | Open Frame Bullet 1 BROAD COMPATIBILITY: The M2 to SATA converter supports full length M2 SDD solid state drives and is compatible with other sizes including: 2230, 2242, 2260, and 2280; NOTE: Not compatible with M.2 NVMe or AHCI PCI-Express SSDs Bullet 2 THE IT PRO'S CHOICE: IT professionals choice for over 30 years, this TAA compliant 2.5in M.2 SATA adapter is backed for 2 years, including free 24/5 North America based multi-lingual assistance Bullet 3 BOOST SYSTEM PERFORMANCE: Increase system performance by adding the speed of an M2 SSD in any 2.5" SATA application with the M2 SSD to 2.5in SATA Adapter; Open design maximizes heat dissipation to protect the health of your drive Bullet 4 HASSLE-FREE SETUP: This M2 hard drive adapter offers fast and easy setup with no drivers to install; Mounting hardware included with M2 SSD to SATA adapter; Supports 7mm or larger 2.5in SATA bays Bullet 5 INCREASED TRANSFER SPEEDS: Utilize the full potential of your SATA III controller with an M2 SSD, reducing your data transfer bottleneck with file transfer speeds up to 6Gbps; Operating Temperature: -40°F to 185°F; Supports B Key/M+B Key M2 SATA SSDs Bullets (Compact) Convert an M.2 SSD into a 7mm high 2.5in SATA 6Gbps Open Frame SSD - M.2 SSD to 2.5in SATA Adapter - Supports B key M.2 SSDs - 2.5 SATA Adapter - M.2 SSD to SATA - 2.5" Sata Adapter - M.2 SSD to 2.5in SATA Adapter - 7mm SSD to SATA Adapter Bullets (Consolidated) Boost performance by adding an M.2 SSD into any 2.5" SATA Application - M.2 SSD to 2.5in SATA Adapter Converter Supports B key/M+B key M.2 SATA SSDs - Open Frame M2 SSD to 2.5" SATA Converter Adapter maximizes heat dissipation - For 7mm or larger 2.5" SATA bays - M.2 SSD to 2.5" SATA Adapter supports SATA I/II/III - 2.5in SATA form factor housing - Supports full length M.2 NGFF SSDs (2230, 2242, 2260, 2280) - M.2 SSD to SATA Adapter - Not compatible w/M.2 NVMe or AHCI PCI-Express SSDs (M-Key) Marketing Copy Marketing Copy (No HTML) Applications - Turn an unused M.2 (NGFF) drive into a regular 2.5in SATA solid state drive
- Retrieve/backup data from an M.2 (NGFF) drive with a standard SATA computer
- Access M.2 (NGFF) drives from an external source, such as a SATA drive enclosure or docking station
Website Search Keyword - M.2 SSD
- M.2 to SATA converter
- NGFF SSD to SATA Adapter
- M.2 NGFF to SATA converter
- SSD to SATA Converter
- NGFF to SATA
- SSD to SATA Adapter
- M.2 to SATA adapter
- M.2 to SATA Converter
- NGFF to SATA Converter
- NGFF to SATA Adapter
- P960-001-M2-NE
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Accessory Products - LSATA12
- SATA18
- SATA18POW
- SATA24
- LSATA8
- SATA12LSA1
- SATA12RSA1
- SATA18RSA1
- LSATA18RA1
- SATA6LA1
- LP4LSATAADAP
- PYO2LP4SATA
- LP4SATAFM6IN
- SATA18RA1
- SATA18LA1
- SATA12
- SATA24RA1
- SATA18LSA1
- BRACKET25SAT
- SATA35252X
- BRACKET25X2
Related Products - SAT2MSAT25
- SAT32MSAT257
- 25SAT22MSAT
- CF2USAT18E
- 2CF2SATAR
- SAT2CF
- IDE2SAT2
- SAT32MSATM
- MSAT2SAT3
- SAT32MSATPEX
Input Voltage 5V DC / 12V DC Output Voltage (V) 5 DC Color Green Operating Temperature -40°C to 85°C (-40°F to 185°F) Primary Material Plastic Product Length (mm) 100.000 Product Width (mm) 70.000 Product Height (mm) 7.000 Product Weight (g) 36.000 TAA Compliant Yes General Specifications Not compatible with M.2 NVMe or AHCI PCI-Express SSDs Hot Swap Capability No Maximum Data Transfer Rate 6 Gbps OS Compatibility OS Independent RAID No SATA Type and Rate SATA III (6 Gbps) Compatible Drive Types - M.2 (SATA, B-Key, NGFF)
- M.2 (SATA, B+M-Key, NGFF)
Interface/Bridge SATA Number of Drives 1 Supported Drive Height(s) - 2230
- 2242
- 2260
- 2280

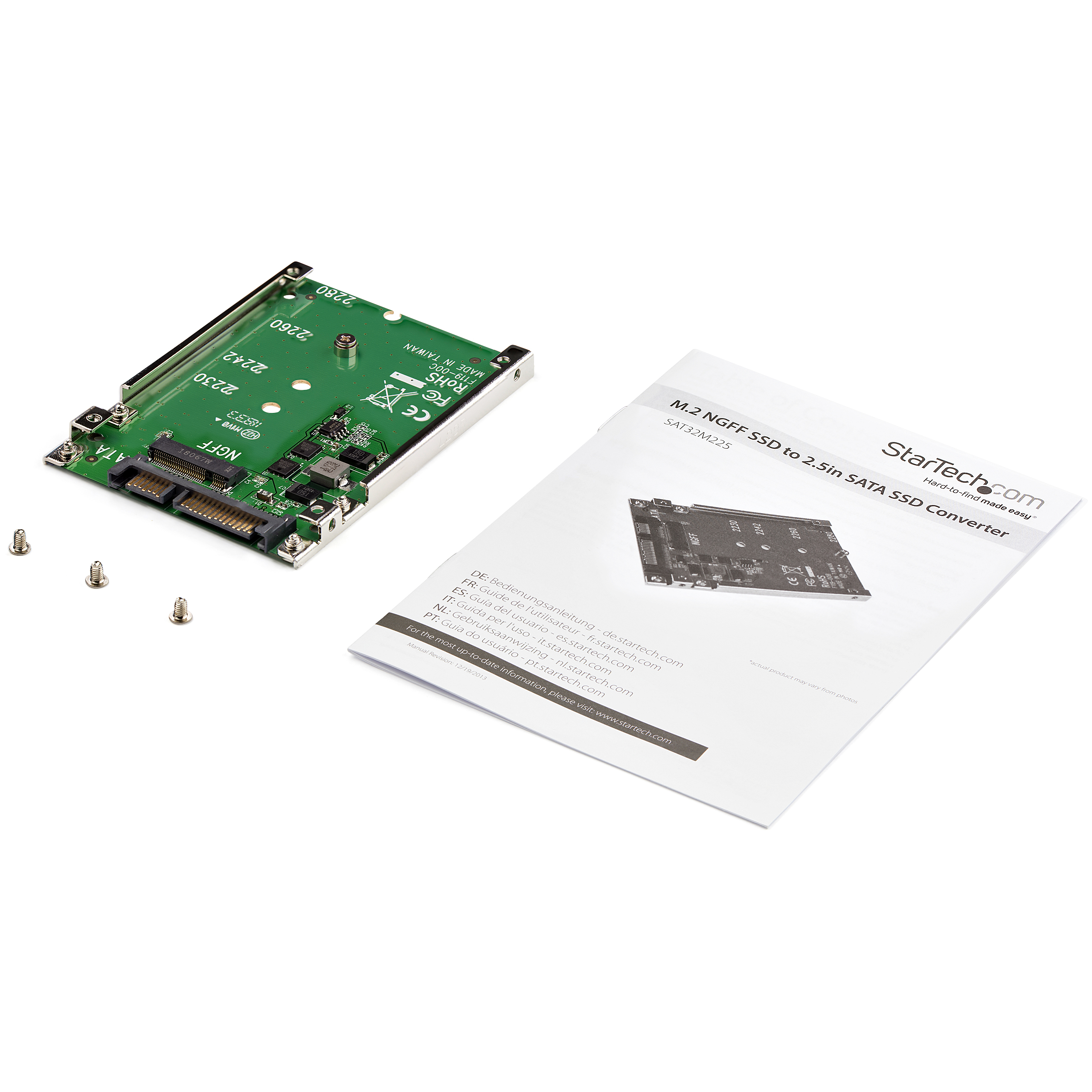

Carton Depth (mm) 502 Carton Height (mm) 326 Carton Quantity 60 Carton Weight Gross (g) 7318 Included in Package - 1 - M.2 NGFF SSD to 2.5in SATA SSD Converter
- 1 - Mounting screw kit
- 1 - Installation manual
Included In Package for Label - 1 - M.2 NGFF SSD to 2.5in SATA SSD Converter
- 1 - Mounting screw kit
- 1 - Installation manual
Package Depth (mm) 142 Package Height (mm) 33 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 110 Packaging Description M.2 NGFF SSD to 2.5in SATA SSD Converter Packaging Description India M.2 NGFF SSD to 2.5in SATA SSD Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 M.2 B+M-Key (SATA, AHCI) Connector 1 (Quantity) 1 Connector 2 M.2 B-Key (SATA, AHCI) Connector 2 (Quantity) 1 Host Connector 1 SATA (7-Pin + 15-Pin) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-01-06 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
