SAT32MSATM

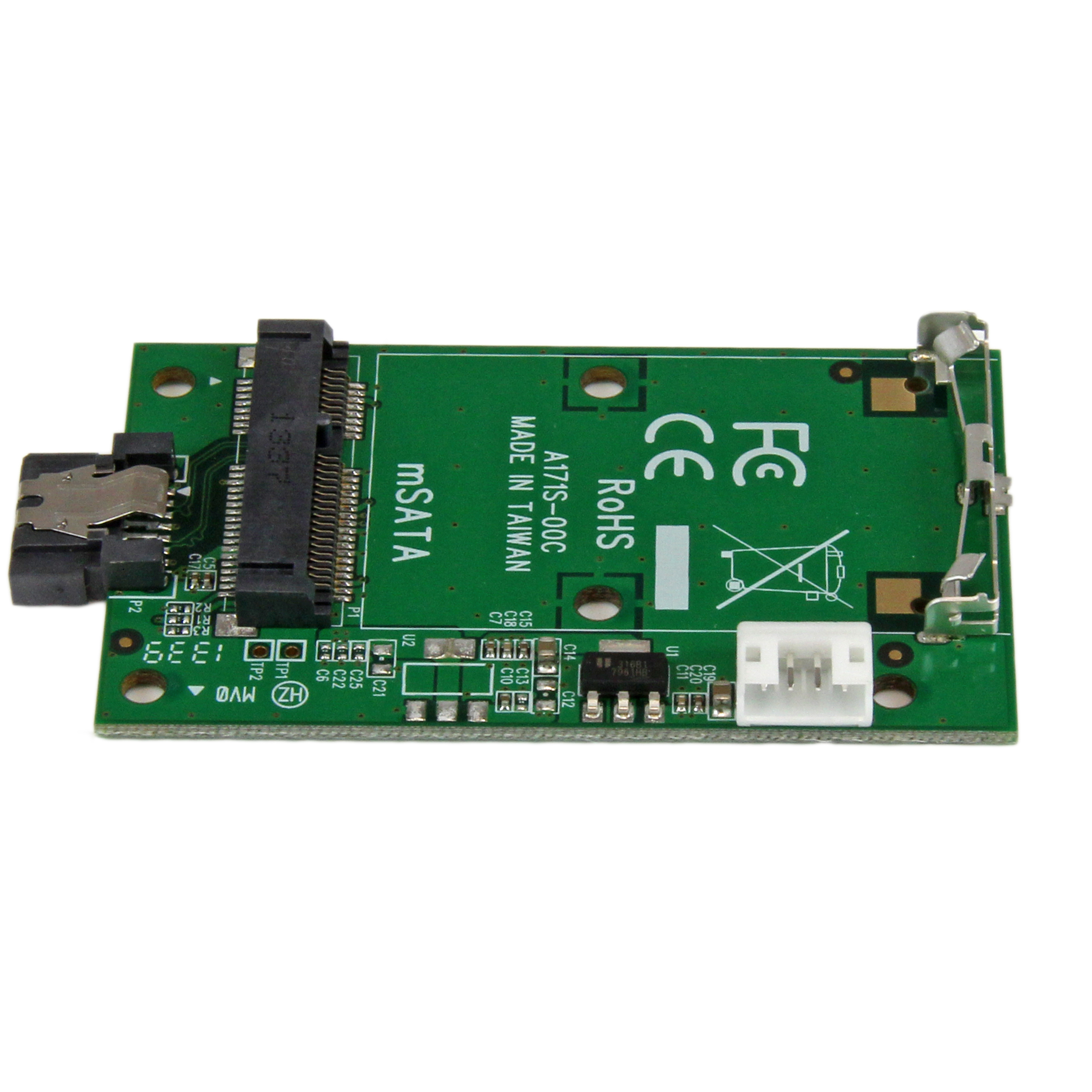

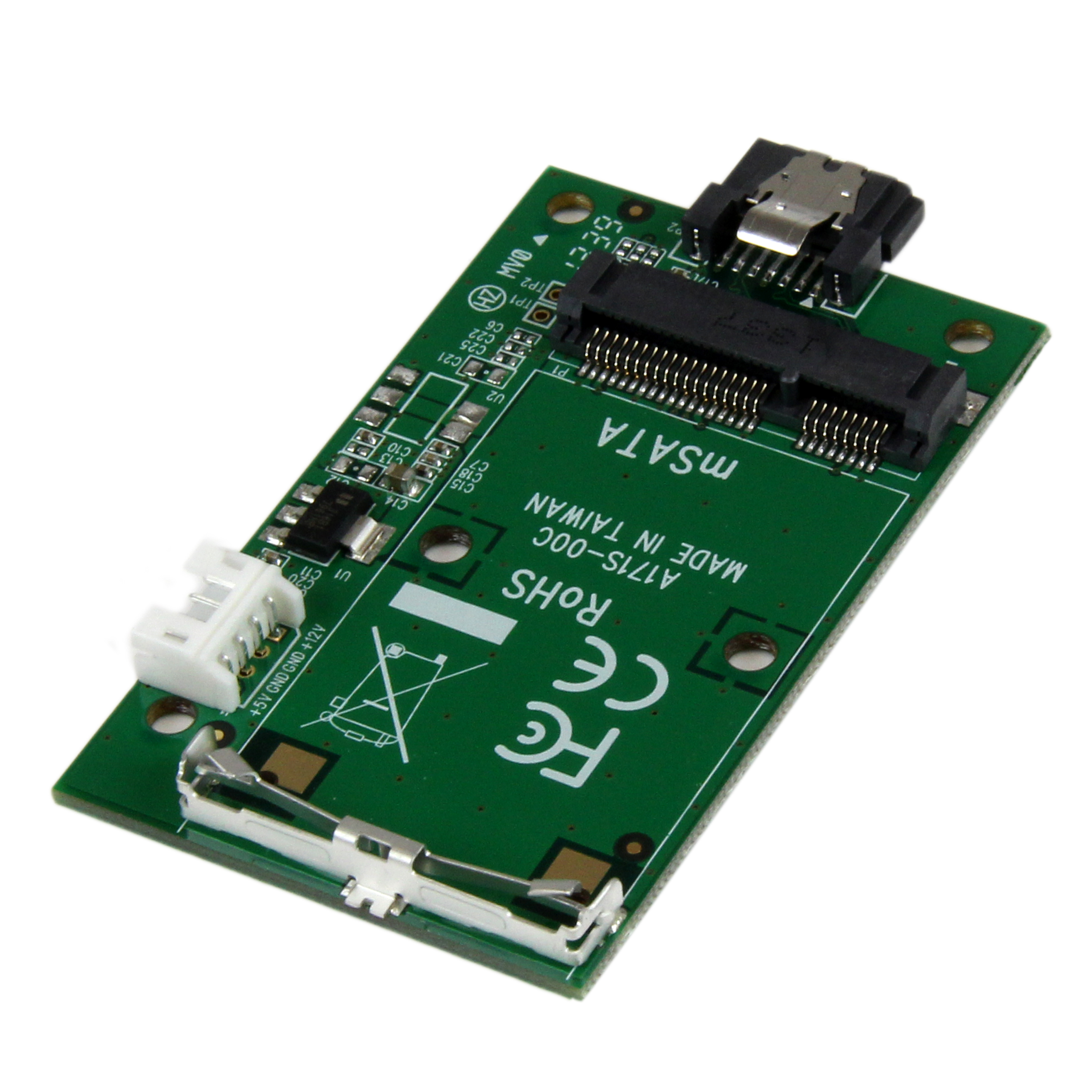

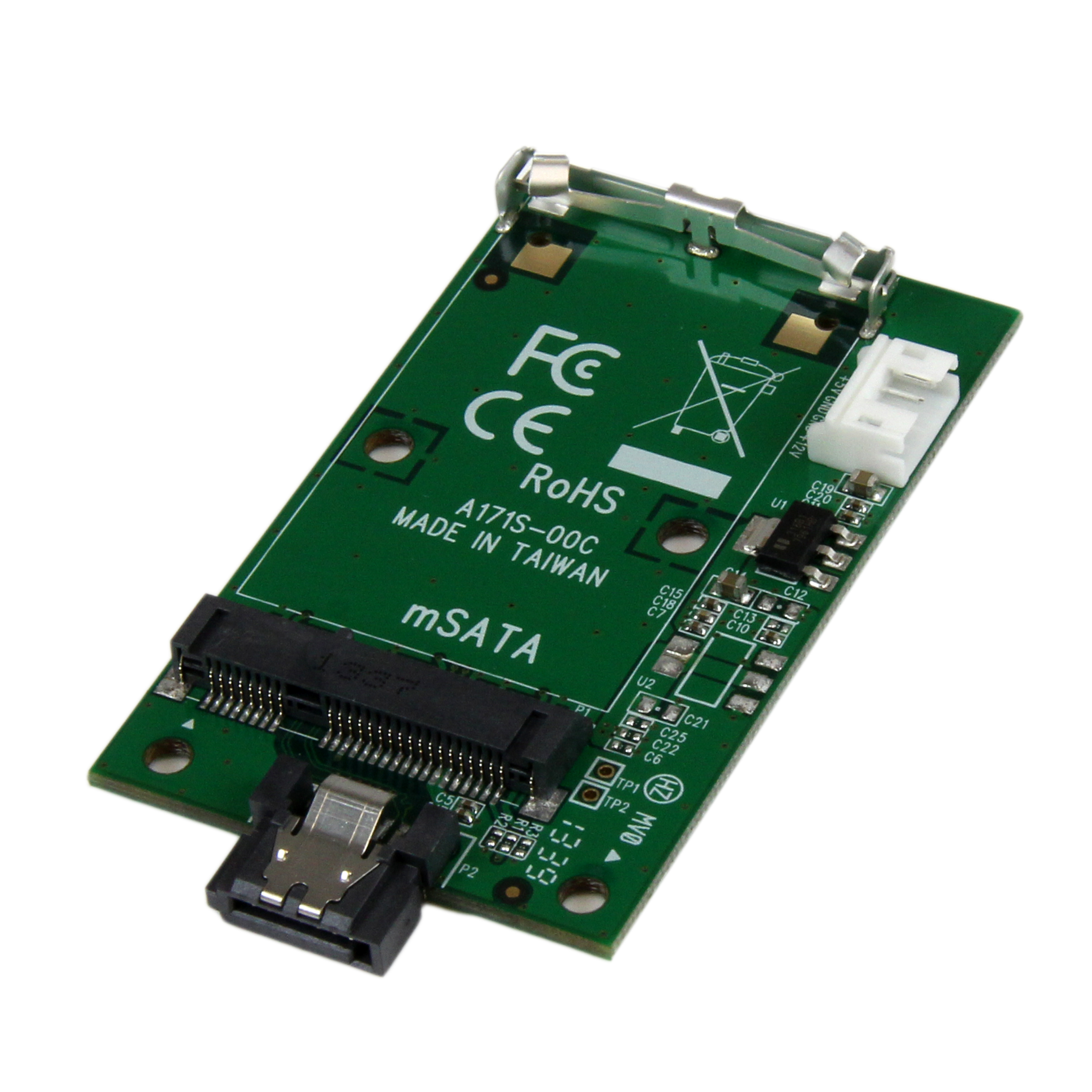

SATA to mSATA 6Gbps Adapter Card
Turn a SATA host connection into an mSATA port
Main Image
Product Images
Product Images
BOM Image
Product Name SATA to mSATA 6Gbps Adapter Card Product Number SAT32MSATM UPC 065030854795 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 Other Cards And Adapters - mSATA/CF/IDE Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) SATA to mSATA Card Product Title (Short) SATA to mSATA Adapter Converter Card Product Title (Medium) x Product Title (Standard) SATA to mSATA SSD Adapter – Port Mounted SATA to Mini SATA Converter Card Product Title (Long) mSATA Drive to SATA Host Adapter for mSATA SSDs Product Title (AMZ) SATA to mSATA SSD Adapter – Port Mounted SATA to Mini SATA Drive Converter Card - 7-Pin SATA to mSATA Adapter Converter Card (SAT32MSATM) Title Ingram (Part 1) SATA to mSATA Port Mounted Title Ingram (Part 2) SSD Adapter Converter Card Website Product Headline Turn a SATA host connection into an mSATA port Bullet 1 Compliant with SATA revision I/II/III (1.5/3.0/6.0 Gbps) Bullet 2 1.8v/3.3v SSD support Bullet 3 SATA port mounted Bullets (Consolidated) Connect an mSATA SSD to any standard SATA port - Port Mounted SATA to Mini SATA converter card - 7-Pin SATA to mSATA adapter with no mounting bay or additional hardware required - Storage adapterr - Connect an mSATA SSD to an ITX computer systems that does not have an mSATA port - Supports SATA I/II/III - Harness the speed of upgrading to a faster drive by connecting an mSATA SSD to any SATA-enabled computer - Supports all drive capacities - Supports mini SATA (full-size) Marketing Copy Marketing Copy (No HTML) Applications - Install your primary operating system on a faster SSD drive, and keep your larger standard HDD in the same system for bulk storage
- Add an mSATA drive to an ITX computer system with only standard SATA ports
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - ESATAPLATE1
- SATA24RA1
- SATA18RA1
- SATA18LA1
- LSATA12
- SATA12RSA1
- SATA12
- SATA12LSA1
Related Products - MSAT2SAT3
- SAT2MSAT25
- SAT32MSATPEX
- USB2SLSATINT
- SAT2CF
- CF2IDE18
- ZIF2CF
- IDE502CFE
- 2CF2SATAR
- IDE2CFINT
- CF2USAT18E
- PLATEIDE2CF
- OPT2IDE
- CF2X2IDE25
- OPT2SATA
- IDE2CF

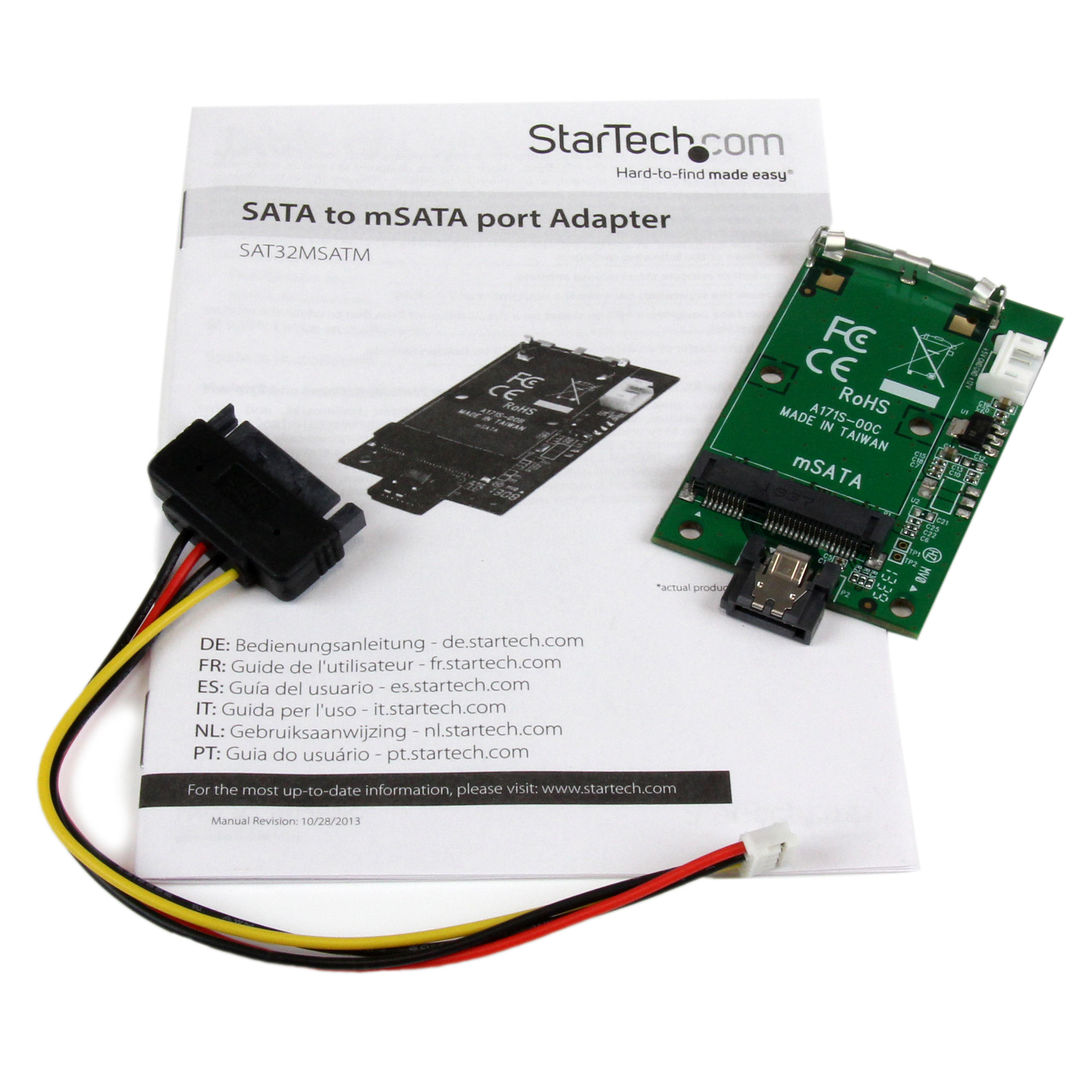

Humidity Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 76.000 Product Width (mm) 41.000 Product Height (mm) 7.000 Product Weight (g) 14.000 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes OS Compatibility OS Independent RAID No SATA Type and Rate SATA III (6 Gbps) Compatible Drive Types mSATA (Mini SATA) Number of Drives 1 Carton Depth (mm) 280 Carton Height (mm) 200 Carton Quantity 100 Carton Weight Gross (g) 4700 Included in Package - 1 - SATA to mSATA Adapter
- 1 - SATA Power to 4-pin Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 225 Package Height (mm) 10 Package Width (mm) 125 Package Quantity 1 Package Weight (g) 35 Packaging Description SATA to mSATA port Adapter Packaging Description India SATA to mSATA port Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 mSATA (52-Pin) Connector 1 (Quantity) 1 Host Connector 1 SATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-10-16 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
