SAT32MSATPEX
2.5

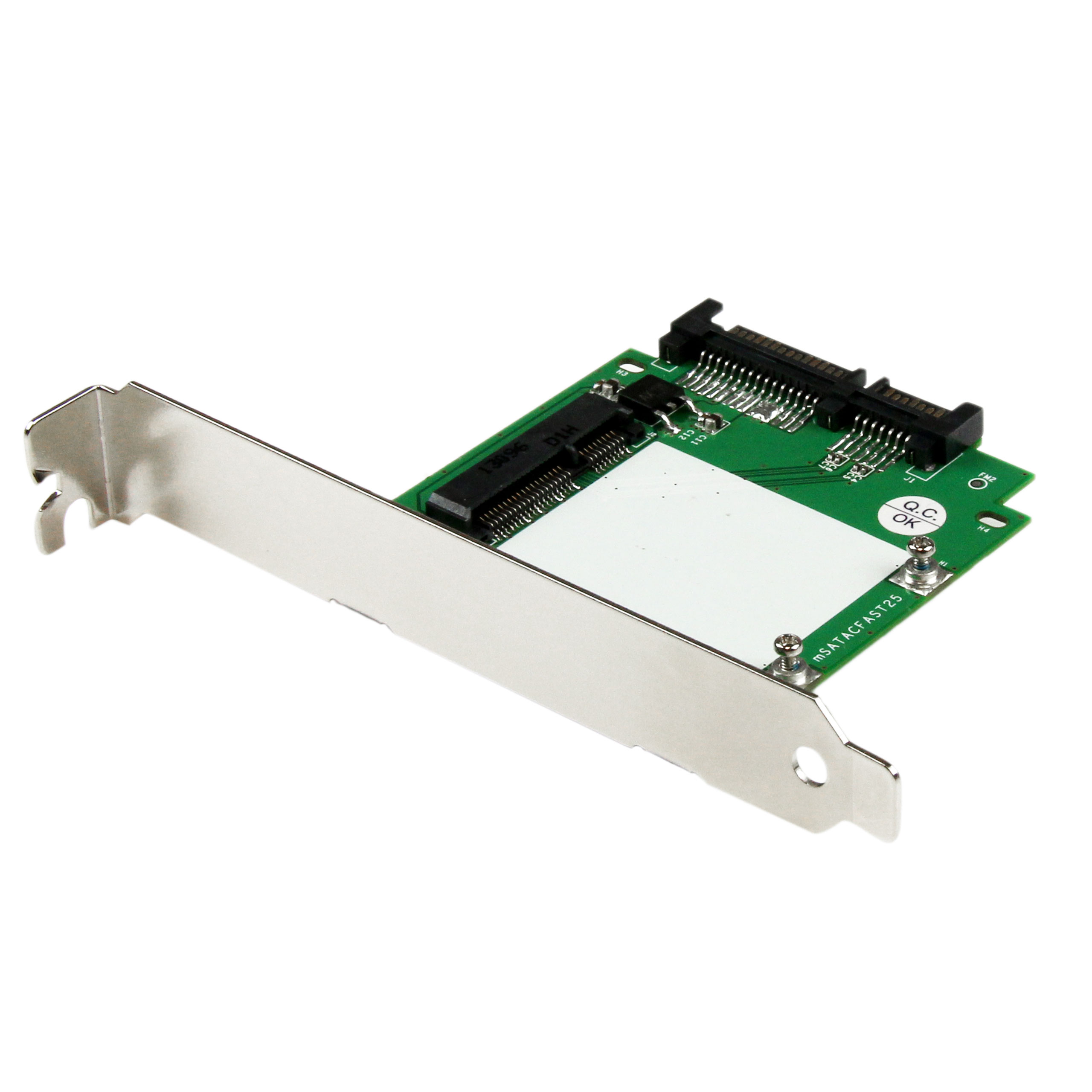

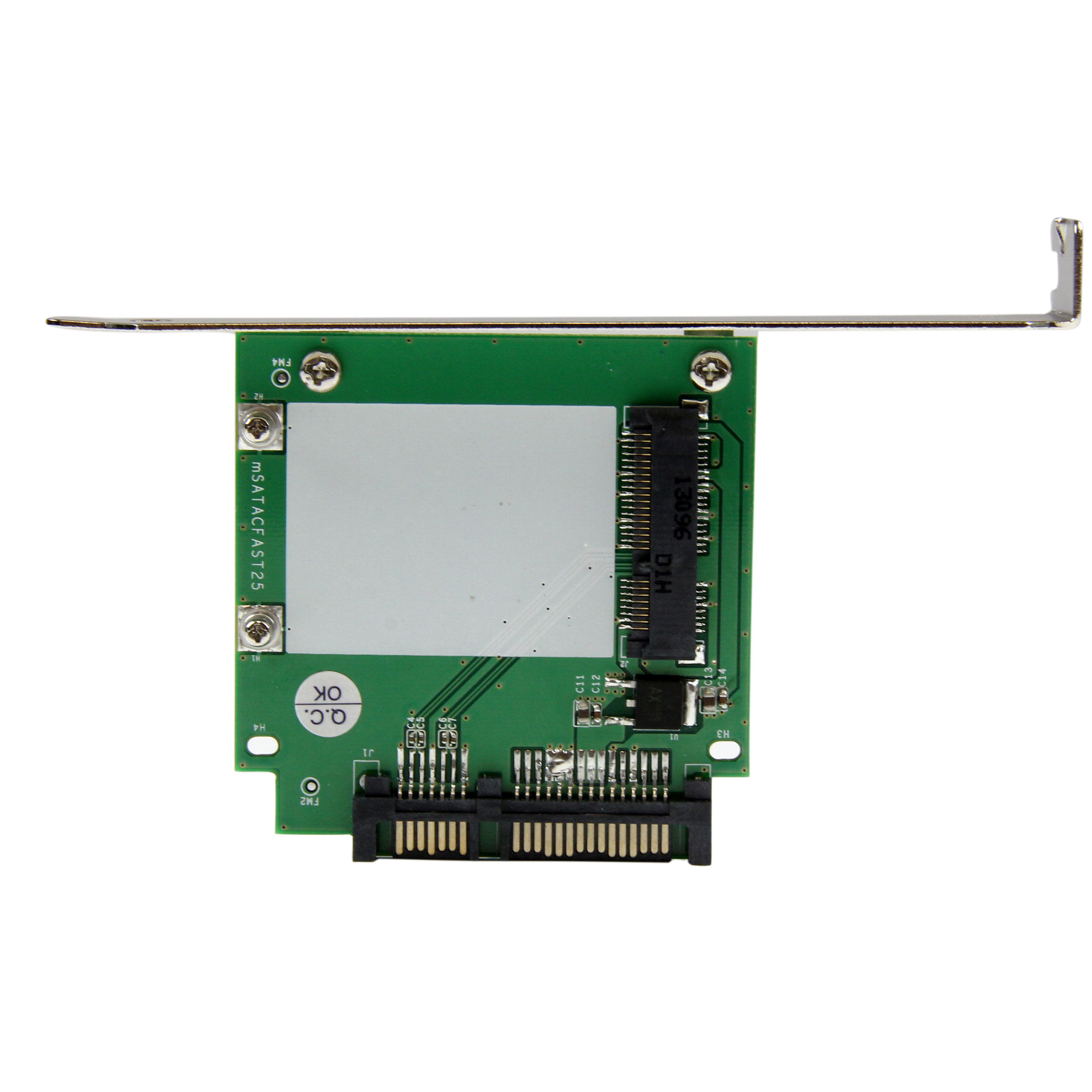

Mount an mSATA SSD into your standard or small form factor desktop computer, using a standard SATA host connection
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2.5 Product Number SAT32MSATPEX UPC 065030854771 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Card Adapters/Controllers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX039X Product Title (Ultra-Short) SATA to mSATA Card Product Title (Short) SATA to mSATA Adapter w/ Brackets Product Title (Medium) x Product Title (Standard) SATA to mSATA SSD Adapter w/ Full and Low Profile Brackets – SATA to Mini SATA Converter Card Product Title (Long) SATA to mSATA SSD Adapter w/ Full and Low Profile Brackets – SATA to Mini SATA Converter Card Product Title (AMZ) SATA to mSATA SSD Adapter w/ Full and Low Profile Brackets - 2.5" SATA to Mini SATA Converter Card (SAT32MSATPEX) Title Ingram (Part 1) 2.5" SATA to mSATA Card with Title Ingram (Part 2) Brackets - SATA to Mini SATA Website Product Headline Mount an mSATA SSD into your standard or small form factor desktop computer, using a standard SATA host connection Bullet 1 Compliant with SATA revision I/II/III (1.5/3.0/6.0 Gbps) Bullet 2 PCI/PCI-E slot compatible Bullet 3 1.8v/3.3v SSD support Bullet 4 Low Profile and Full Profile brackets included Bullets (Consolidated) Storage controller - mSATA - SATA 6Gb/s low profile - 600 MBps - PCIe Marketing Copy Applications - Install your primary operating system on a faster SSD drive, and keep your larger standard HDD in the same system for bulk storage
- Turn an unused mSATA drive into a regular 2.5in SATA solid state drive
- Access to an mSATA drive from a standard SATA computer system
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - SATA18
- SATA24RA1
- SATA18RA1
- SATA18LA1
- LSATA12
- SATA12RSA1
- LP4SATAFM
- SATA24
- SATA12
- SATA12LSA1
- SATAPOWADAP
- PYO3SATA
- PYO2SATA
- PYO2LP4LSATA
- PYO2LSATA
- PYO2LP4LSATR
Related Products - MSAT2SAT3
- SAT2MSAT25
- SAT32MSATM
- PLATEIDE2CF
- OPT2SATA
- OPT2IDE
- IDE2CF
- IDE502CFE
- 2CF2SATAR
- IDE2CFINT
- CF2USAT18E
- CF2IDE18
- ZIF2CF
- SAT2CF
- USB2SLSATINT
- CF2X2IDE25

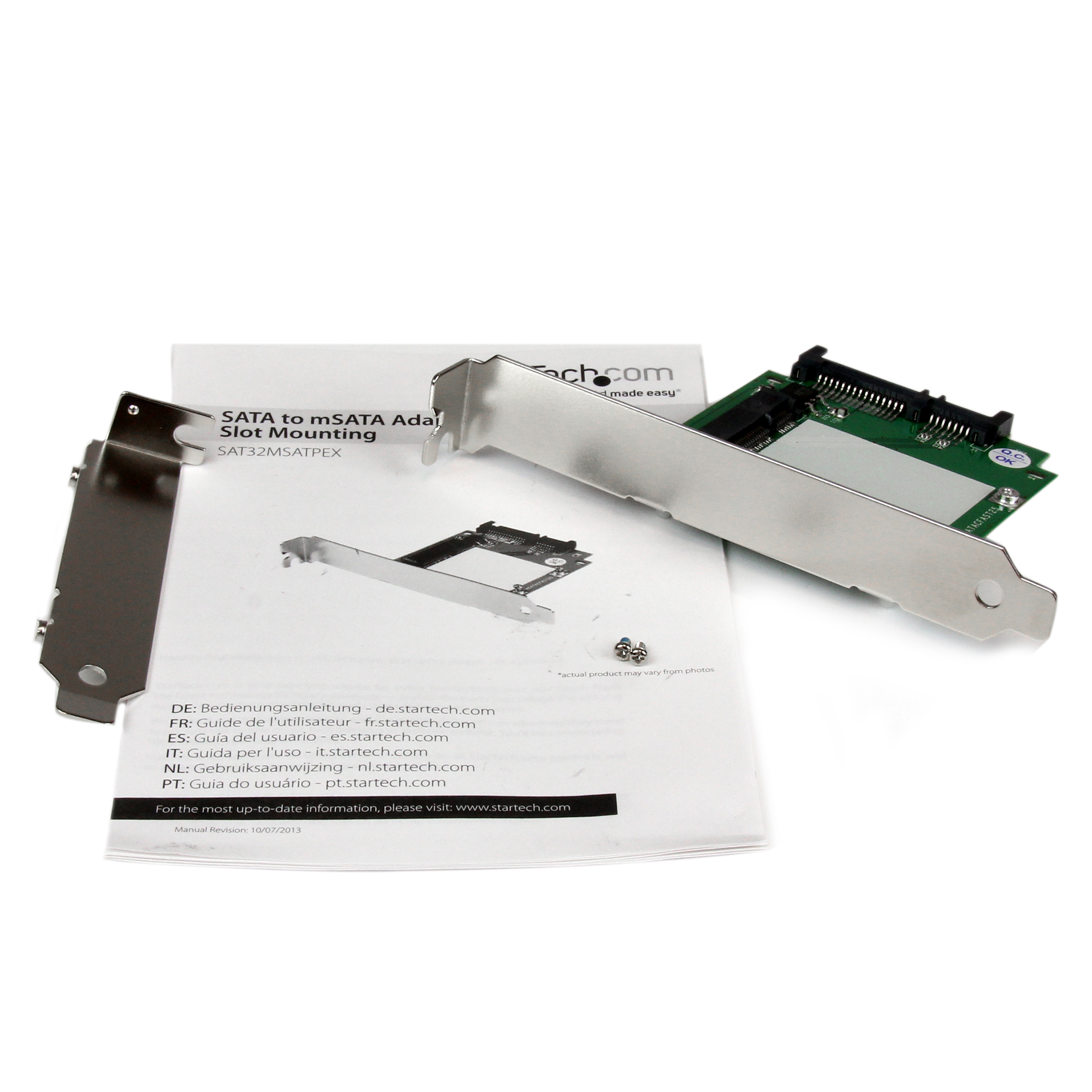

Humidity 5% to 95% RH Operating Temperature -0°C to 50°C (32°F to 122°F) Product Length (mm) 120 Product Width (mm) 18 Product Height (mm) 62 Product Weight (g) 125 Storage Temperature -10°C to 85°C (14°F to 185°F) TAA Compliant Yes OS Compatibility OS Independent RAID No SATA Type and Rate SATA III (6 Gbps) Compatible Drive Types mSATA (Mini SATA) Number of Drives 1 Carton Depth (mm) 484 Carton Height (mm) 335 Carton Quantity 100 Carton Weight Gross (g) 12070 Included in Package - 1 - SATA to mSATA Adapter

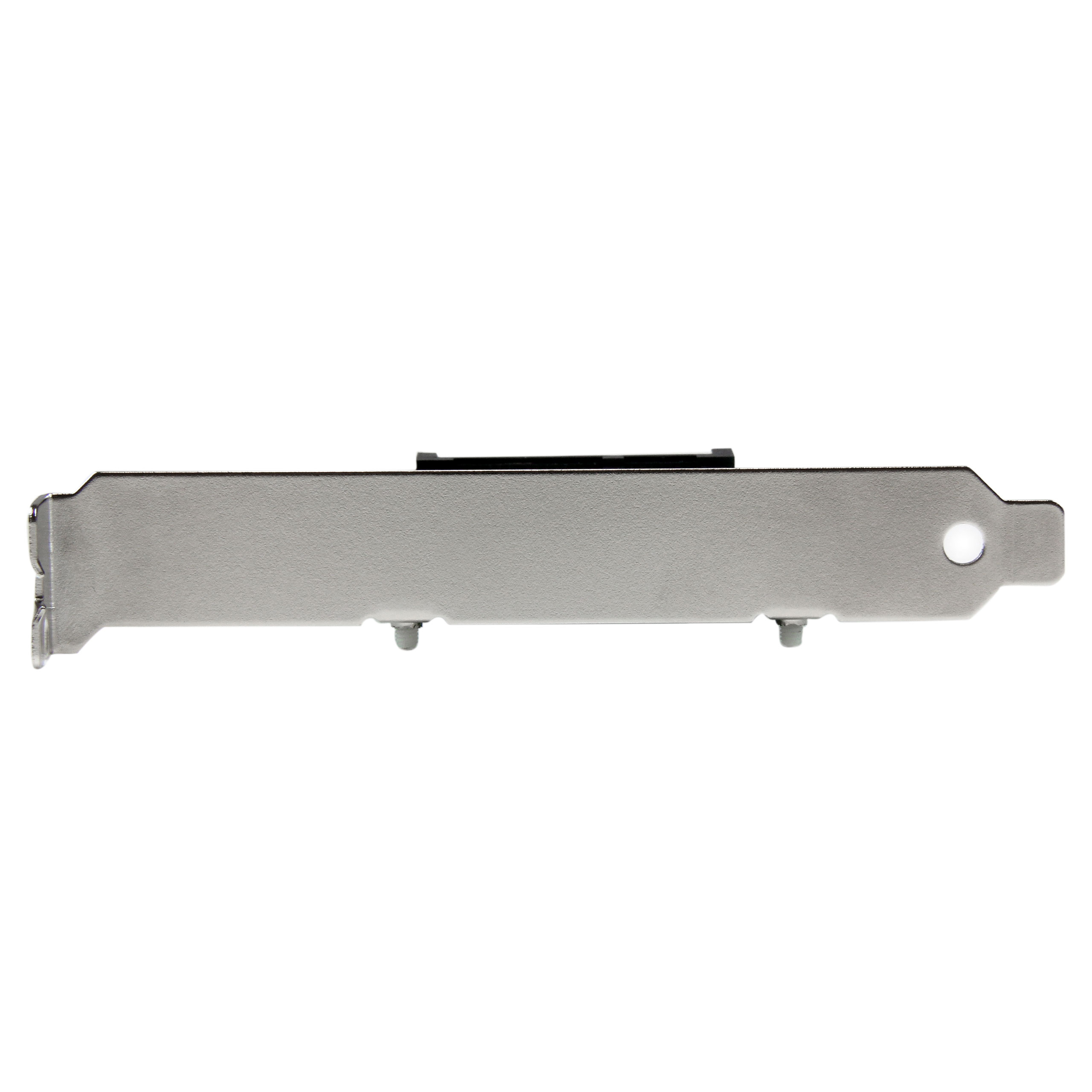

- 1 - Full profile mounting bracket

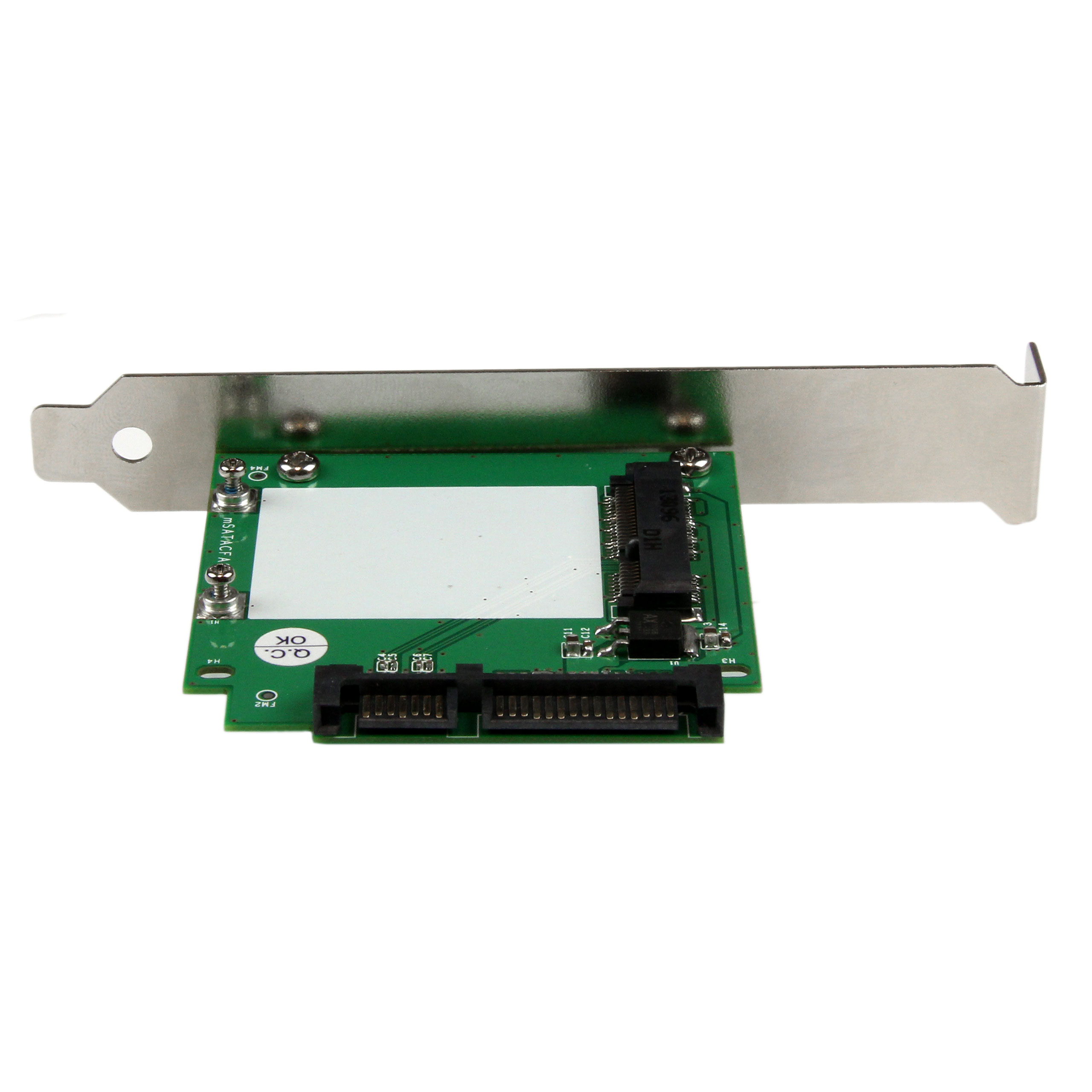

- 1 - Low profile mounting bracket
- 2 - PCI slot standoff
- 2 - SSD installation screws
Package Depth (mm) 131 Package Height (mm) 33 Package Width (mm) 164 Package Quantity 1 Package Weight (g) 103 Packaging Description SATA to mSATA Adapter w/ Expansion Slot Mounting Packaging Description India SATA to mSATA Adapter w/ Expansion Slot Mounting Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 mSATA (52-Pin) Connector 1 (Quantity) 1 Host Connector 1 SATA (7-Pin + 15-Pin) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-10-01 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
