SAT3510BU2E
3.5in eSATA/USB 2.0 Removable SATA Enclosure
Turn a 3.5" SATA hard drive into a swappable external hard drive with USB 2.0 and eSATA connectivity
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 3.5in eSATA/USB 2.0 Removable SATA Enclosure Product Number SAT3510BU2E UPC 065030832311 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Short) 3.5 eSATA USB External HDD Enclosure Product Title (Standard) StarTech.com 3.5 eSATA USB External HDD Enclosure Product Title (Long) 3.5in Black eSATA USB Trayless SATA External Hard Drive Enclosure Product Title (AMZ) 3.5in Black eSATA USB Trayless SATA External Hard Drive Enclosure (SAT3510BU2E) Title Ingram (Part 1) 3.5in eSATA USB Black SATA Exter Title Ingram (Part 2) nal Hard Drive Enclosure Website Product Headline Turn a 3.5" SATA hard drive into a swappable external hard drive with USB 2.0 and eSATA connectivity Bullet 1 Trayless design: drive is not mounted to a tray or the enclosure chassis/frame Bullet 2 Lockable drive door Bullet 3 40mm cooling fan Bullet 4 Power and Activity LED indicators Bullet 5 SATA revision 1 compliant eSATA host interface, with supported transfer rates up to 1.5 Gbps Bullets (Consolidated) Turn a 3.5in SATA hard drive into a swappable external hard drive with USB 2.0 and eSATA connectivity - 3.5in Hard Drive Enclosure - 3.5in HDD Enclosure - 3.5in Hard Disk Enclosure - 3.5in SATA Hard Drive Enclosure - 3.5in External Drive Enclosure Marketing Copy Applications - Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
- Technicians who regularly test or benchmark different hard drives and need to swap between them
- Create a fast, portable external storage solution for desktops, laptops or netbooks
- Add-on extra storage to almost any USB enabled computer system
- Backup important data to an external storage device
- Share large files between computers quickly and securely without a network
- Retrieve data from old SATA drive, or turn the unused drive into additional external storage space
Website Search Keyword - External Hard Drive Enclosure
- External Hard Drive
- 3.5"
- eSATA/USB
- SATA HDD
- ESATCASE2
Special Notes Advance Format drives are not fully supported System and Cable Requirements eSATA to eSATA Cable (Optional) Accessory Products - ESATA3
- ESATA6
- ESATAPLATE1
- SATA2ESATA6
- USB2HAB10
- USB2HAB15
- USB2HAB6
Related Products - SAT3510U2V
- SATCASE35U2
- SAT3510U2E
- SATADOCKU2E
- SAT3510U2B
- HSB100SATBK
- SATADOCK22UE
Equivalent Part Number in the EU SAT3510BUEEU Equivalent Part Number in the UK SAT3510BUEGB Input Voltage 115V AC Output Current 2A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Aluminum Product Length (mm) 208 Product Width (mm) 38 Product Height (mm) 126 Product Weight (g) 641 TAA Compliant No Max Drive Capacity Currently tested with up to 4TB 5400 RPM hard drives Maximum Data Transfer Rate OS Compatibility OS Independent RAID No UASP Support No Chipset ID Initio - INIC-1611 Compatible Drive Types SATA Fans 1 - 40 mm Fans Included? Yes/No Yes Interface/Bridge USB 2.0 & eSATA LED Indicators - 1 - Power
- 1 - Drive Activity

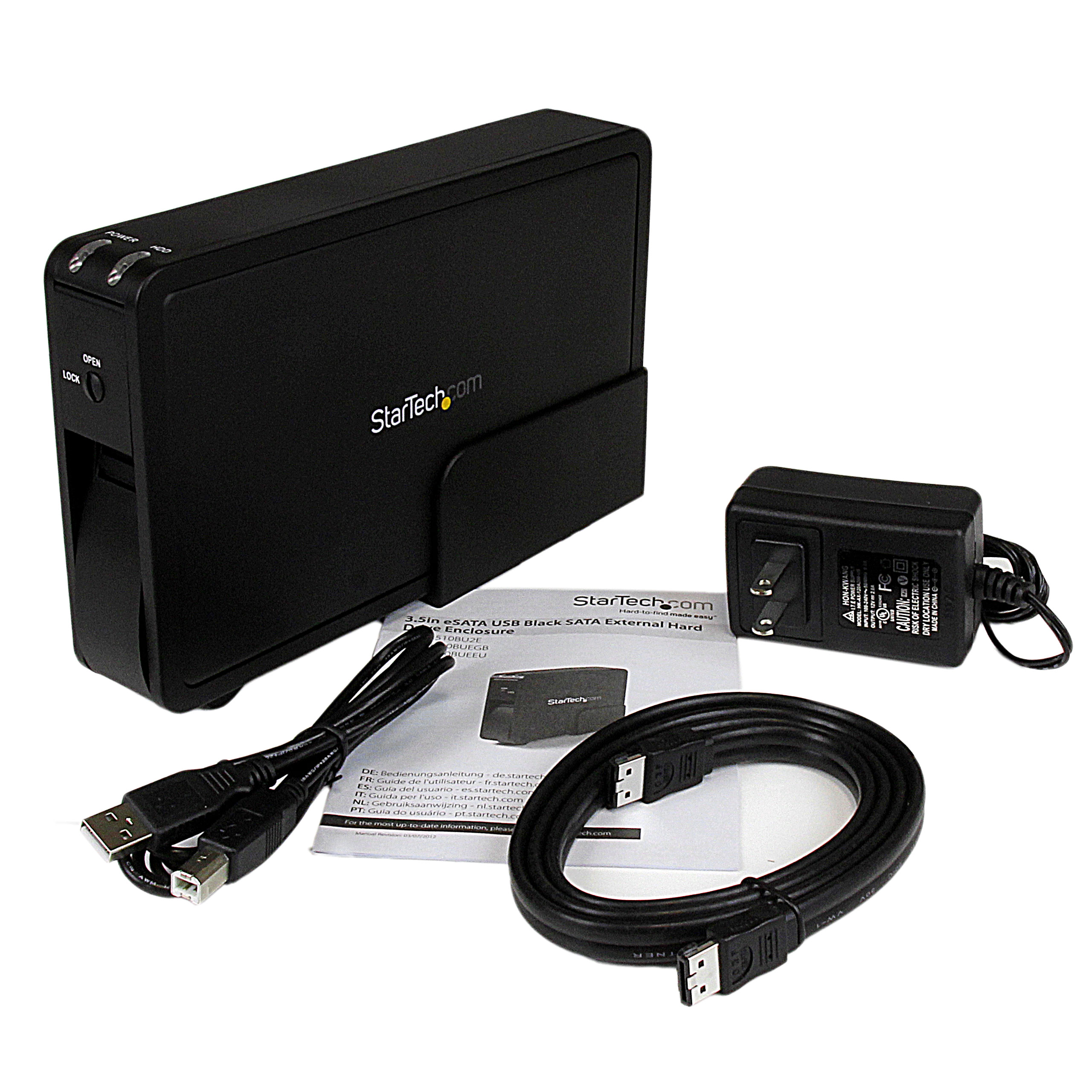

Number of Drives 1 Carton Depth (mm) 510 Carton Height (mm) 250 Carton Quantity 10 Carton Weight Gross (g) 9900 Included in Package - 1 - Enclosure
- 1 - Manual
- 1 - Power Adapter
- 1 - USB 2.0 Cable
- 1 - eSATA Cable
Package Depth (mm) 87 Package Height (mm) 245 Package Width (mm) 231 Package Weight (g) 870 Packaging Description USB/eSATA to 3.5" SATA Trayless Enclosure Packaging Description India USB/eSATA to 3.5" SATA Trayless Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 eSATA (7-Pin) Connector 1 (Quantity) 1 Connector 2 USB-B (480Mbps, 2.5W) Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
