Main Image
SAT3510BU2V
Cat5 UTP VGA/Multisync Video Ext
Turn a 3.5in SATA drive into an external storage device with USB 2.0 connectivity
Main Image
Product Images
Product Images
BOM Image
Product Name Cat5 UTP VGA/Multisync Video Ext Product Number SAT3510BU2V UPC 065030835985 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Short) 3.5 USB to SATA External HDD Enclosure Product Title (Standard) StarTech.com 3.5in Black USB 2.0 to SATA External Hard Drive Enclosure Product Title (Long) 3.5in Black USB 2.0 to SATA External Hard Drive Enclosure Product Title (AMZ) 3.5in Black USB 2.0 to SATA External Hard Drive Enclosure (SAT3510BU2V) Title Ingram (Part 1) 3.5in Black USB 2.0 to SATA Exte Title Ingram (Part 2) rnal Hard Drive Enclosure Website Product Headline Turn a 3.5in SATA drive into an external storage device with USB 2.0 connectivity Bullet 1 High Speed USB 2.0 host interface, with supported transfer rates up to 480 Mbps Bullet 2 Power/Activity LED indicator Bullet 3 Light-weight and durable aluminum chassis Bullet 4 Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) hard drives Bullet 5 Supports 3.5" form factor SATA hard drives Marketing Copy Applications - Create a fast, portable external storage solution for desktops, laptops or netbooks
- Add-on extra storage to almost any USB enabled computer system
- Backup important data to an external storage device
- Share large files between computers quickly and securely without a network
- Retrieve data from old SATA drive, or turn the unused drive into additional external storage space
Website Search Keyword - 1 One Terabyte hard drive compatible
- 3.5 inch hard drive enclosures
- 3.5" External SATA Drive Enclosure
- black aluminum enclosure
- Aluminum Hard drive enclosure
- Apple Mac compatible
- Apple Mac hard drive enclosures
- Build your own hard drive storage
- compact hard drive enclosure
- Desktop computer hard drive storage
- DIY hard drive storage
- Do-it-yourself hard drive storage
- external hard drive enclosures
- external hard drive solution
- external hard drive storage
- hard drive backup
- hard drive cages
- hard drive cases
- hard drive enclosure
- hard drive enclosures
- Laptop computer hard drive storage
- Notebook computer hard drive storage
- SATA 300 hard drive compatible
- SATA hard drive enclosure
- SATA hard drive interface
- SATA II hard drive compatible
- SATCASE35U2
- small form factor hard drive enclosure
- Terabyte hard drive enclosure
- USB 2.0 external storage
- USB 2.0 Hard drive enclosure
- SATA USB enclosure
- SATA USB
Accessory Products - PCI220USB
- PCI330USB2
- PCI420USB
- PEX400USB2
- USB2HAB10
- USB2HAB15
- USB2HAB6
Related Products - UNI3510U2
- SAT3510U2B
- SAT3510U2V

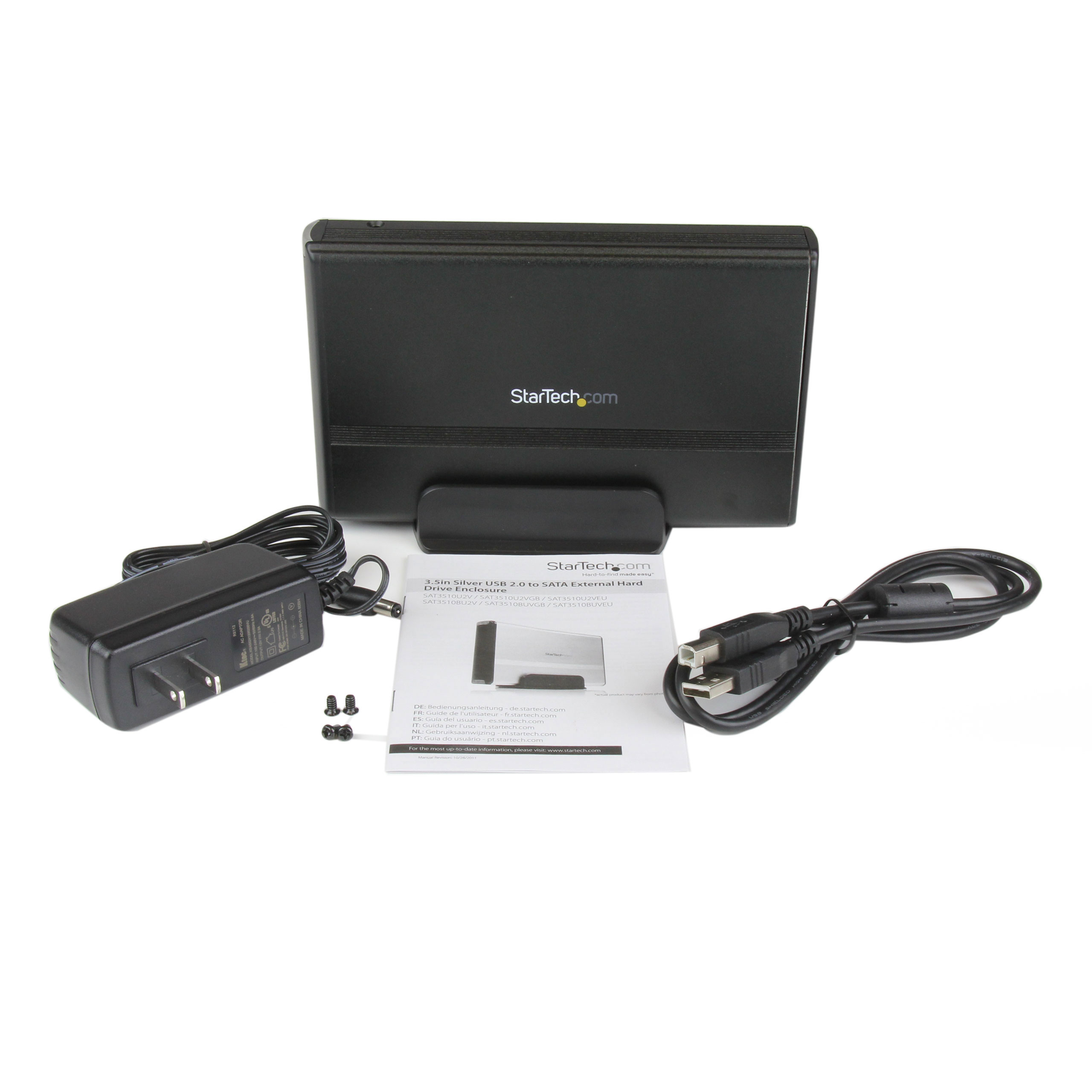

Equivalent Part Number in the EU SAT3510BUVEU Equivalent Part Number in the UK SAT3510BUVGB Input Voltage 115V AC Output Current 2A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5% ~ 95% RH Material Aluminum Operating Temperature 0°C ~ 70°C Product Length (mm) 193 Product Width (mm) 31 Product Height (mm) 113 Product Weight (g) 325 Storage Temperature -20°C ~ 70°C TAA Compliant No Max Drive Capacity Currently tested with up to 4TB 5400 RPM hard drives Maximum Data Transfer Rate 480 Mbps OS Compatibility OS Independent RAID No SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 2.0 (480Mbps) Chipset ID SunplusIT - SPIF301 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 2.0 LED Indicators 1 - Power/Activity (Green) Number of Drives 1 Carton Depth (mm) 468 Carton Height (mm) 410 Carton Quantity 10 Carton Weight Gross (g) 7700 Included in Package - 1 - 3.5in SATA HDD Enclosure
- 1 - Instruction Manual
- 1 - Plastic Stand
- 1 - Power Adapter
- 1 - Screw Kit
- 1 - USB 2.0 Cable
Package Depth (mm) 95 Package Height (mm) 197 Package Width (mm) 262 Package Weight (g) 650 Packaging Description USB 2.0 to 3.5in SATA HDD Enclosure Packaging Description India USB 2.0 to 3.5in SATA HDD Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
