Main Image
SAT3510BU3
3.5in USB 3 SATA HDD Enclosure
Backup and Transfer Data at SuperSpeed USB 3.0 speeds
Main Image
Product Images
Product Images
BOM Image
Product Name 3.5in USB 3 SATA HDD Enclosure Product Number SAT3510BU3 UPC 065030839464 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Short) 3.5in USB 3.0 SATA HDD Enclosure w/ Fan Product Title (Medium) x Product Title (Standard) 3.5in USB 3.0 SATA Hard Drive Enclosure w/ Fan Product Title (Long) 3.5in USB 3.0 SATA Hard Drive Enclosure w/ Fan Product Title (AMZ) 3.5in SuperSpeed USB 3.0 SATA Hard Drive Enclosure w/ Fan - 3.5 External Drive Enclosure - SATA HDD Enclosure (SAT3510BU3) Title Ingram (Part 1) 3.5in SuperSpeed USB 3.0 SATA Ha Title Ingram (Part 2) rd Drive Enclosure w/ Fan Website Product Headline Backup and Transfer Data at SuperSpeed USB 3.0 speeds Bullet 1 80mm cooling fan with On/Off switch Bullet 2 SuperSpeed USB 3.0 compliant host interface, with transfer rates up to 5Gbps Bullet 3 Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) drives Bullet 4 Supports 3.5" form factor SATA hard drives (HDD) Bullet 5 Plug-and-Play and Hot-Swap compatible Bullets (Consolidated) Backup and Transfer Data at SuperSpeed USB 3.0 speeds - 3.5 Hard Drive Enclosure - 3.5 HDD Enclosure - 3.5 Hard Disk Enclosure - 3.5in SATA Hard Drive Enclosure - 3.5" External Drive Enclosure - USB 3 to SATA Hard Enclosure - Storage Enclosure - 80mm Cooling Fan Marketing Copy Applications - Take advantage of new laptops and desktops that offer USB 3.0 connectivity
- Upgrade from a USB 2.0 drive enclosure to a faster USB 3.0 external storage solution
- Create a fast, portable external storage solution for desktops, laptops or netbooks
- Add-on extra storage to almost any USB-enabled computer system
- Backup important data to an external storage device
- Share large files between computers quickly and securely without a network connection
- Retrieve data from old SATA drive, or turn the unused drive into additional external storage space
Website Search Keyword - USB 3.0
- SuperSpeed
- Super-Speed
- Super Speed
- HDD Enclosure
- Hard Drive Enclosure
- MyBook
- External Storage
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - ECUSB3S2
- PEXUSB3S2
- USB3SAB3
- USB3SAB6
- USB3SAB10
- USB3SEXTAA6
- SVA12M2NEUA
- SVA12M5NA
Related Products - SATDOCKU3S
- SAT3510BU2E
- SAT3510BU2V
- SAT3510U2B
- SAT3510U2F
- SAT3510U2REM
- SAT3510U2V
- SAT3510BU3P
- SAT3510BU3E

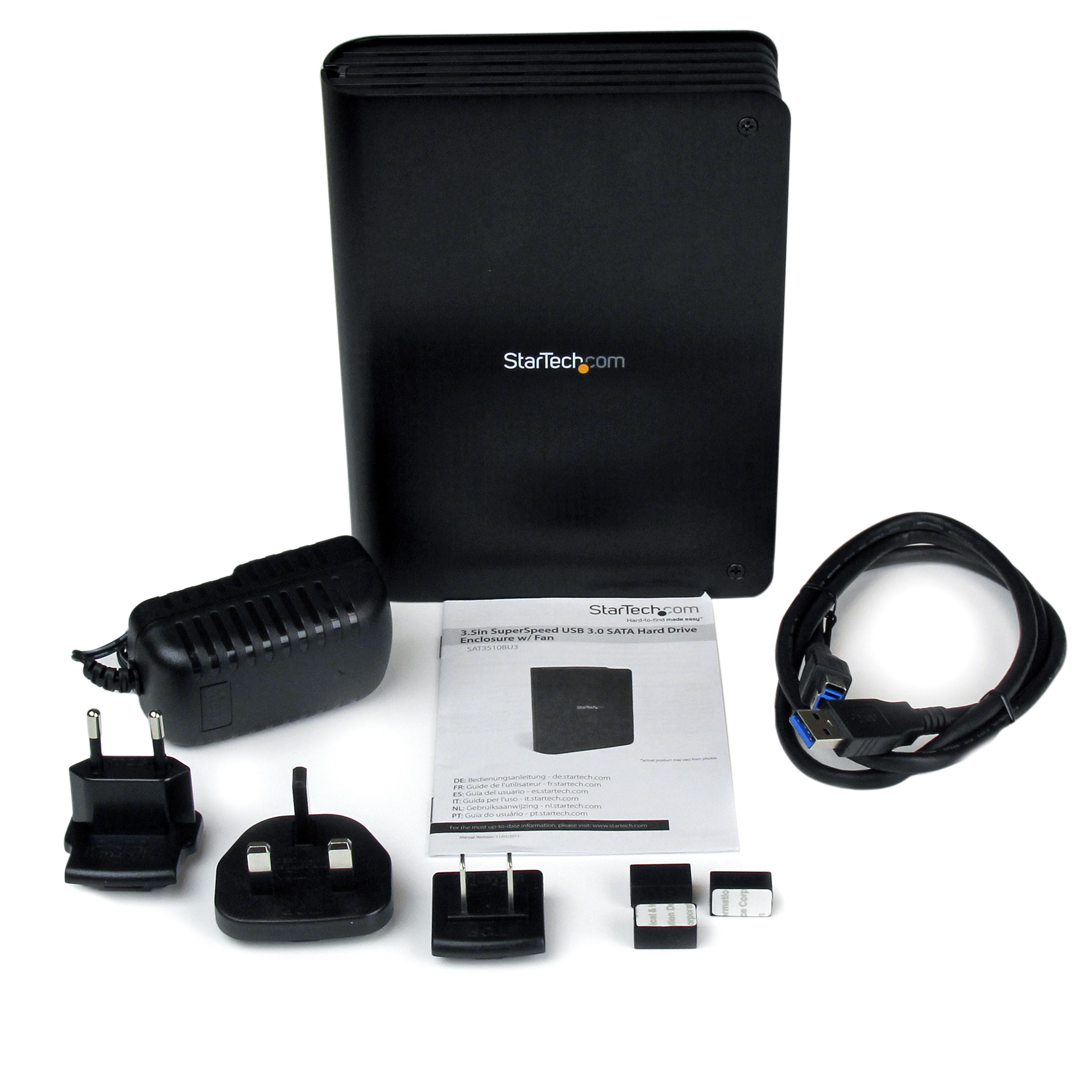

Replacement Product S3510BMU33 Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 12V DC Power Consumption (In Watts) 24 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Aluminum and Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 143 Product Width (mm) 52.1 Product Height (mm) 180 Product Weight (g) 580 Storage Temperature 0°C to 70°C (-4°F to 158°F) TAA Compliant No Air Flow Rate 22 CFM Max Drive Capacity Currently tested with up to 2TB hard drives Noise Level 29 dBA OS Compatibility OS Independent RAID No RPM 2500 RPM UASP Support No USB Type and Rate USB 3.0 (5Gbps) Chipset ID ASMedia - ASM1051 Compatible Drive Types SATA Fan Bearing Type Sleeve Bearing Fans 1 - 80 mm Fans Included? Yes/No Yes Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - Solid - Power, Blinking - Activity Number of Drives 1 Carton Depth (mm) 438 Carton Height (mm) 463 Carton Quantity 10 Carton Weight Gross (g) 12100 Included in Package - 1 - USB 3.0 SATA 3.5in Hard Drive Enclosure
- 1 - Instruction Manual
- 1 - 3ft USB 3.0 Cable
- 1 - Universal Power Adapter
- 1 - Foam Spacer
- 3 - Power Adapter Plug (NA/UK/EU)
Package Depth (mm) 86.2 Package Height (mm) 213 Package Width (mm) 238 Package Quantity 1 Package Weight (g) 1090 Packaging Description USB 3.0 to 3.5 SATA HDD Enclosure w/Fan Packaging Description India USB 3.0 to 3.5 SATA HDD Enclosure w/Fan Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
