Main Image
SAT3510BUEEU
3.5 in. eSATA-USB 2.0 Removable SATA Enclosure

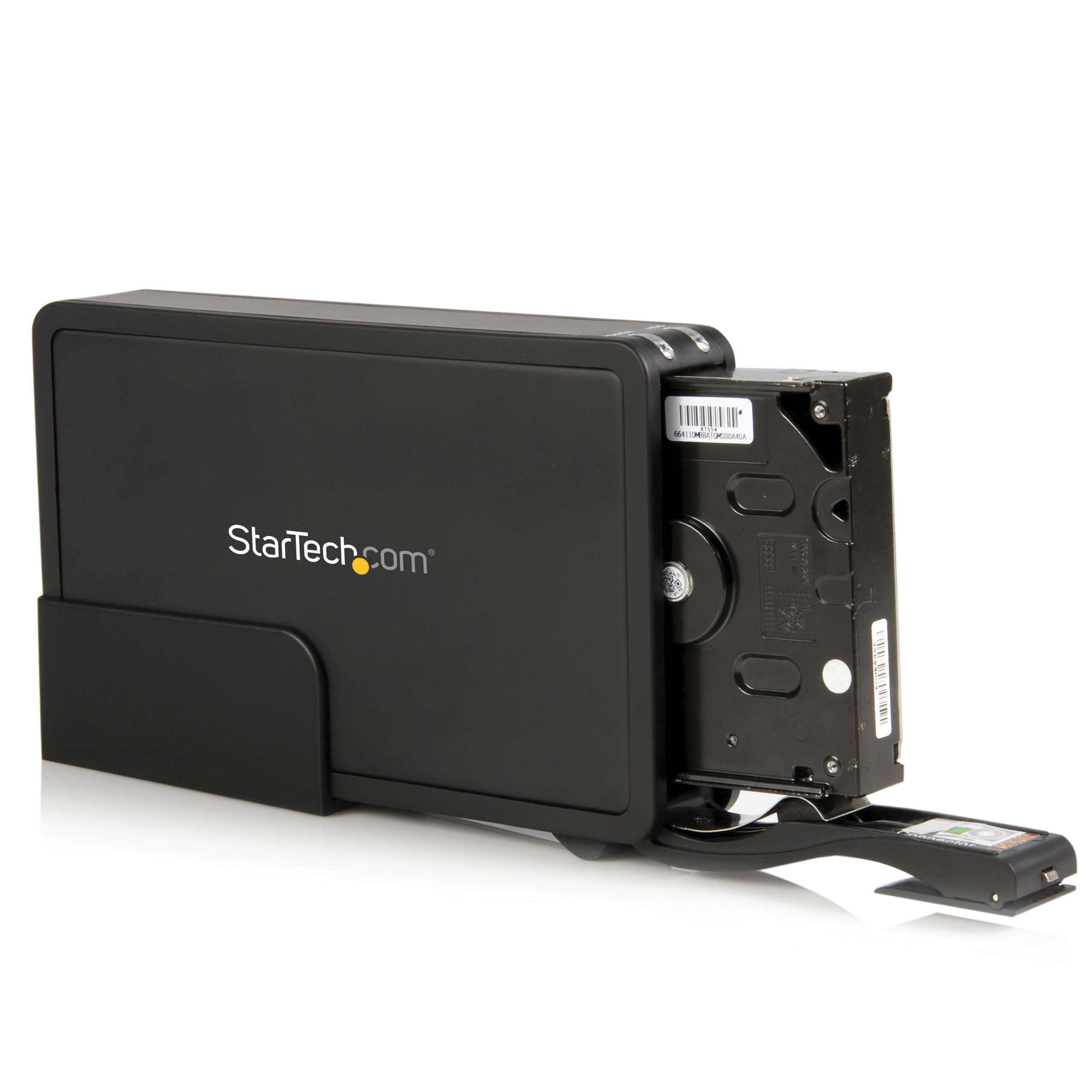

Add a trayless external storage enclosure for 3.5in SATA drives through USB or eSATA
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 3.5 in. eSATA-USB 2.0 Removable SATA Enclosure Product Number SAT3510BUEEU UPC 065030834810 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) eSATA USB External Hard Drive Enclosure Product Title (Standard) StarTech.com 3.5in Black eSATA USB Trayless SATA External Hard Drive Enclosure - Storage enclosure - SATA-300 - 300 MBps - Hi-Speed USB / eSATA-300 - black Product Title (Long) 3.5in Black eSATA USB Trayless SATA External Hard Drive Enclosure Title Ingram (Part 1) 3.5in eSATA USB Black SATA Exter Title Ingram (Part 2) nal Hard Drive Enclosure Website Product Headline Add a trayless external storage enclosure for 3.5in SATA drives through USB or eSATA Bullet 1 Trayless design: drive is not mounted to a tray or the enclosure chassis/frame Bullet 2 Lockable drive door Bullet 3 40mm cooling fan Bullet 4 Power and Activity LED indicators Bullet 5 SATA revision 1 compliant eSATA host interface, with supported transfer rates up to 1.5 Gbps Marketing Copy Applications - Create a fast, portable external storage solution for desktops, laptops or netbooks
- Technicians who regularly test or benchmark different hard drives and need to swap between them
- Add-on extra storage to almost any USB enabled computer system
- Retrieve data from old SATA drive, or turn the unused drive into additional external storage space
- Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
- Backup important data to an external storage device
- Share large files between computers quickly and securely without a network
Website Search Keyword - 3.5"
- eSATA/USB
- External Hard Drive
- External Hard Drive Enclosure
- SATA HDD
- Hot swap drive
System and Cable Requirements eSATA to eSATA Cable (Optional) Accessory Products - ESATA3
- ESATA6
- ESATAPLATE1
- SATA2ESATA6
- USB2HAB10
- USB2HAB15
- USB2HAB6
Related Products - HSB100SATBK
- SAT2510U2REM
- SAT3510U2REM
- SAT2510U2E
- SATDOCK2UEEU
- SATDOCKU2EEU
- SATDOCKU2EU
Input Voltage 230 AC Output Current 2A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Aluminum Product Length (mm) 208 Product Width (mm) 38 Product Height (mm) 126 Product Weight (g) 641 TAA Compliant No Max Drive Capacity Currently tested with up to 4TB 5400 RPM hard drives Maximum Data Transfer Rate OS Compatibility - Windows 8
- Mac OS X Mavericks (10.9)
- Linux
- Windows 7
RAID No SATA Type and Rate SATA II (3 Gbps) UASP Support No Chipset ID Initio - INIC-1611 Compatible Drive Types SATA Fans 1 - 40 mm Fans Included? Yes/No Yes Interface/Bridge USB 2.0 & eSATA LED Indicators - 1 - Drive Activity
- 1 - Power

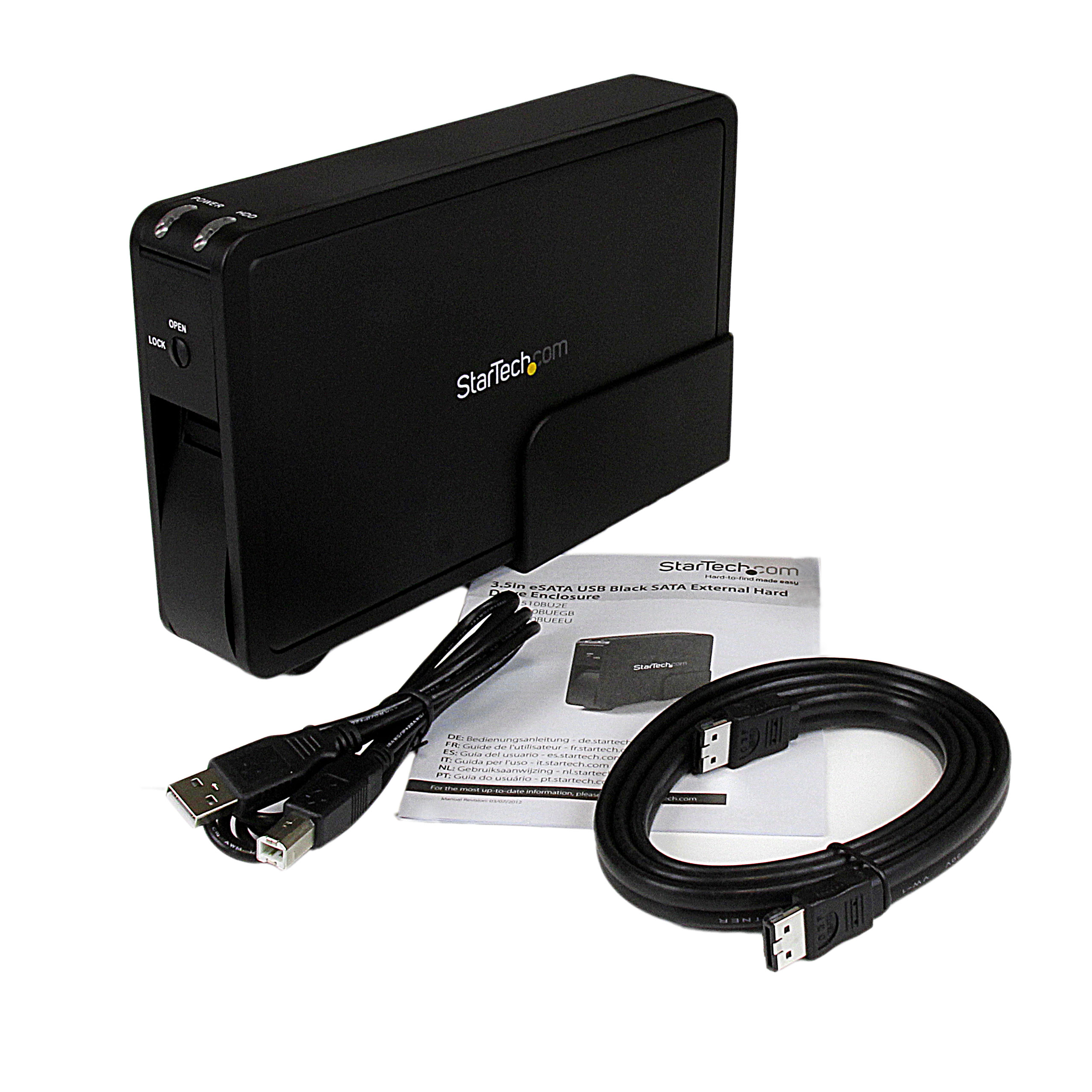

Number of Drives 1 Carton Depth (mm) 506 Carton Height (mm) 447 Carton Quantity 1 Carton Weight Gross (g) 9900 Included in Package - 1 - SATA Hard Drive Enclosure
- 1 - Instruction Manual
- 1 - Power Adapter
- 1 - Screw Pack
- 1 - USB 2.0 Cable
- 1 - eSATA Cable
Package Depth (mm) 87 Package Height (mm) 245 Package Width (mm) 231 Package Weight (g) 870 Packaging Description eSATA/USB to 3.5 SATA HDD Enclosure Packaging Description India eSATA/USB to 3.5 SATA HDD Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 eSATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
