SAT3510U2F
3.5in External USB FireWire Enclosure
Turn a 3.5" SATA hard drive into an external hard drive with USB 2.0 and FireWire connectivity
Main Image
Product Images
Product Images
BOM Image
Product Name 3.5in External USB FireWire Enclosure Product Number SAT3510U2F UPC 065030837750 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 3.5in USB FireWire Hard Drive Enclosure Product Title (Standard) 3.5in USB FireWire External Hard Drive Enclosure Product Title (Long) 3.5in USB FireWire SATA External Hard Drive Enclosure Title Ingram (Part 1) 3.5in USB FireWire SATA External Title Ingram (Part 2) Hard Drive Enclosure Website Product Headline Turn a 3.5" SATA hard drive into an external hard drive with USB 2.0 and FireWire connectivity Bullet 1 High Speed USB 2.0 host interface, with supported transfer rates up to 480 Mbps Bullet 2 Dual 6-pin FireWire 400 ports for daisy-chaining support Bullet 3 IEEE 1394a compliant (FireWire 400) host interface, with supported transfer rates up to 400Mbps Bullet 4 Power/Activity LED indicator Bullet 5 Light-weight and durable aluminum chassis Marketing Copy Applications - Create a fast, portable external storage solution for desktops, laptops or netbooks
- Add-on extra storage to almost any USB enabled computer system
- Backup important data to an external storage device
- Share large files between computers quickly and securely without a network
- Retrieve data from old SATA drive, or turn the unused drive into additional external storage space
Website Search Keyword - FireWire 400
- 1394a
- USB 2.0
- External Enclosure
- Hard Drive Enclosure
- Aluminum Enclosure
- 3.5in Enclosure
- Mobile Enclosure
- Desktop Hard Drive
Accessory Products - USB2HAB1
- USB2HAB3
- USB2HAB6
- USB2HAB6T
- USB2HAB10
- USB2HAB10T
- USB2HAB15
- USB2HAB15T
- 1394_96_6
- 1394_96_10
- 1394_6
- 1394_10
- 1394_15
- 1394_15T
- 1394_46_6
- 1394_46_6T
- 1394_46_10
- 1394_46_15
- 139466EXT6
Related Products - SAT3510BU2V
- SAT3510BU2E
- SAT3510U2B
- SAT3510U2V
- IDE3510U2
- S354UFER
- SAT2510U2F
Equivalent Part Number in the UK SAT3510U2FGB Input Current 700mA Input Voltage 115V AC Output Current 2A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Silver Humidity 0~90% RH Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 208 Product Width (mm) 118 Product Height (mm) 30 Product Weight (g) 400 Storage Temperature -20°C to 60°C (4°F to 140°F) TAA Compliant No Max Drive Capacity Currently tested with up to 4TB 5400 RPM hard drives OS Compatibility OS Independent RAID No UASP Support No USB Type and Rate - FireWire 400 IEEE-1394a (400Mbits)
- USB 2.0 (480Mbps)

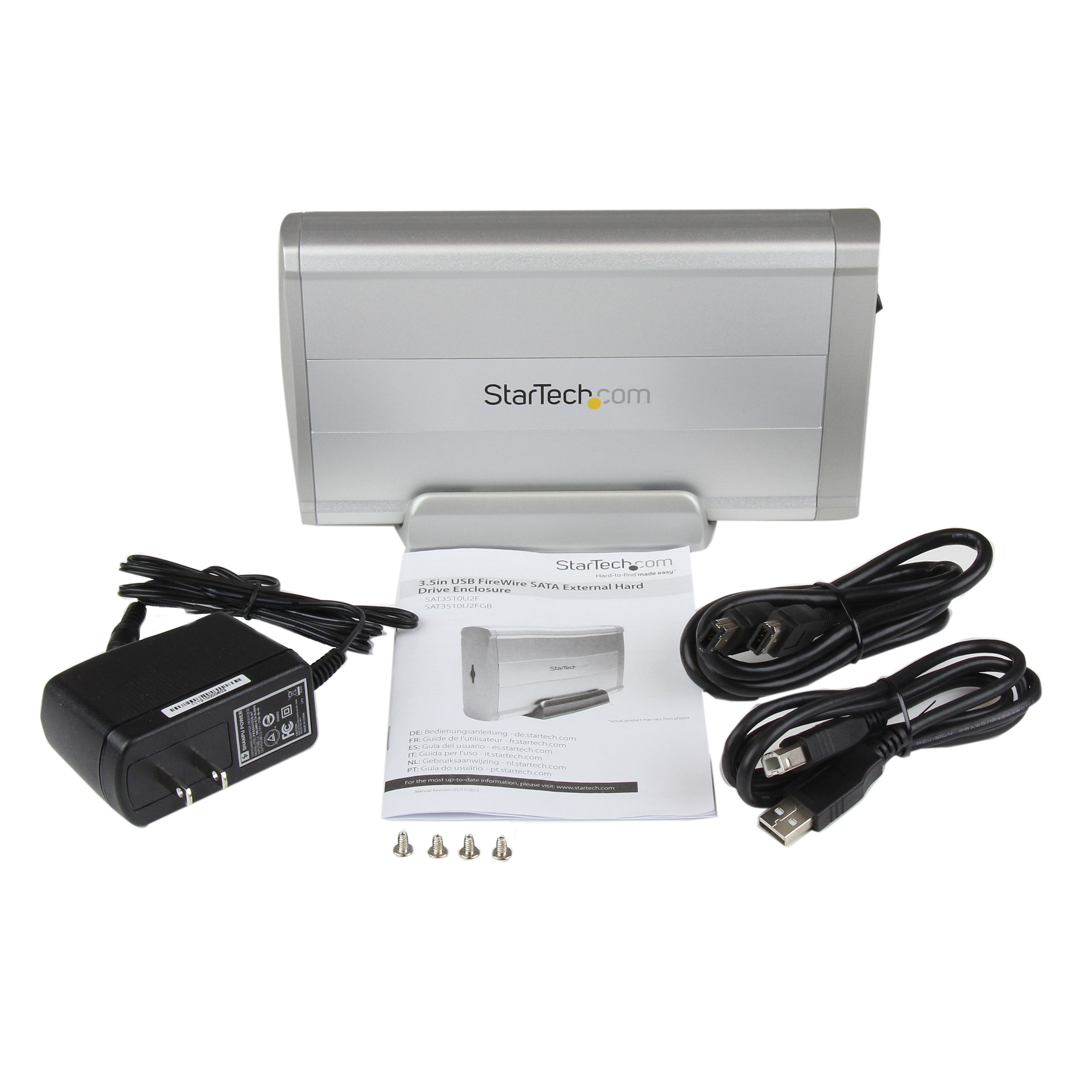

Chipset ID Initio - INIC-1615 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 2.0 & Firewire LED Indicators 1 - Blue - Solid: Power, Blinking: Activity Number of Drives 1 Carton Depth (mm) 355 Carton Height (mm) 379 Carton Quantity 10 Carton Weight Gross (g) 10000 Included in Package - 1 - 3.5" SATA Hard Drive Enclosure
- 1 - 6pin FireWire Cable
- 1 - USB A to B Cable
- 1 - Power Adapter
- 1 - Instruction Manual
- 1 - Plastic Stand
Package Depth (mm) 66 Package Height (mm) 180 Package Width (mm) 299 Package Weight (g) 880 Packaging Description USB/FireWire to 3.5" SATA Enclosure Packaging Description India USB/FireWire to 3.5" SATA Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 FireWire 400 (6-Pin, 400Mbps, Bus Power) Host Connector 1 (Quantity) 2 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
