SAT3510U2FGB
3.5in External USB FireWire Enclosure
Turn a 3.5" SATA hard drive into an external hard drive with USB 2.0 and FireWire connectivity
Main Image
Product Images
Product Images
BOM Image
Product Name 3.5in External USB FireWire Enclosure Product Number SAT3510U2FGB UPC 065030837767 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 3.5in USB FireWire Hard Drive Enclosure Product Title (Standard) 3.5in USB FireWire External Hard Drive Enclosure Product Title (Long) 3.5in USB FireWire SATA External Hard Drive Enclosure Title Ingram (Part 1) 3.5in USB FireWire SATA External Title Ingram (Part 2) Hard Drive Enclosure Website Product Headline Turn a 3.5" SATA hard drive into an external hard drive with USB 2.0 and FireWire connectivity Bullet 1 Dual 6-pin FireWire 400 ports for daisy-chaining support Bullet 2 High Speed USB 2.0 host interface, with supported transfer rates up to 480 Mbps Bullet 3 Light-weight and durable aluminum chassis Bullet 4 Power/Activity LED indicator Bullet 5 IEEE 1394a compliant (FireWire 400) host interface, with supported transfer rates up to 400Mbps Marketing Copy Applications - Create a fast, portable external storage solution for desktops, laptops or netbooks
- Add-on extra storage to almost any USB enabled computer system
- Backup important data to an external storage device
- Share large files between computers quickly and securely without a network
- Retrieve data from old SATA drive, or turn the unused drive into additional external storage space
Website Search Keyword - 1394a
- 3.5in Enclosure
- Aluminum Enclosure
- Desktop Hard Drive
- External Enclosure
- FireWire 400
- Hard Drive Enclosure
- Mobile Enclosure
- USB 2.0
Accessory Products - 1394_10
- 1394_15
- 1394_15T
- 1394_46_10
- 1394_46_15
- 1394_46_6
- 1394_46_6T
- 1394_6
- 1394_96_10
- 1394_96_6
- 139466EXT6
- USB2HAB1
- USB2HAB10
- USB2HAB10T
- USB2HAB15
- USB2HAB15T
- USB2HAB3
- USB2HAB6
- USB2HAB6T
Related Products - SAT3510BUEGB
- SAT3510BUVGB
- SAT3510U2BGB
- SAT3510U2VGB
- S354UFER
- SAT2510U2F
Input Current 700mA Input Voltage 230 AC Output Current 2A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Silver Humidity 0~90% RH Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 208 Product Width (mm) 118 Product Height (mm) 30 Product Weight (g) 400 Storage Temperature -20°C to 60°C (4°F to 140°F) TAA Compliant No Max Drive Capacity Currently tested with up to 4TB 5400 RPM hard drives OS Compatibility - Linux
- Mac OS X
- Windows 7
- Windows Vista
- Windows XP
- Windows 8
RAID No UASP Support No USB Type and Rate - FireWire 400 IEEE-1394a (400Mbits)
- USB 2.0 (480Mbps)

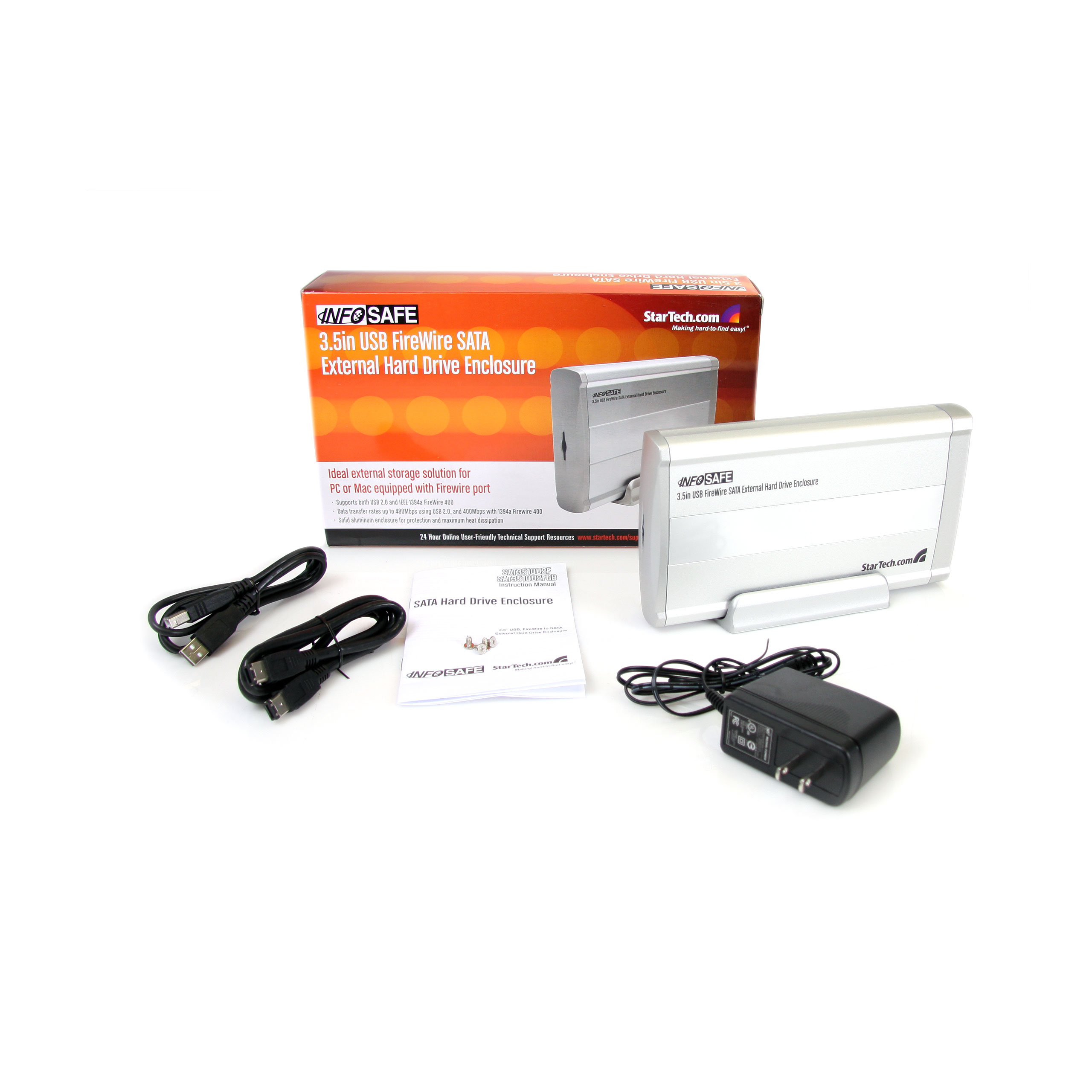

Chipset ID Initio - INIC-1615 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 2.0 & Firewire LED Indicators 1 - Blue - Solid: Power, Blinking: Activity Number of Drives 1 Carton Depth (mm) 310 Carton Height (mm) 390 Carton Quantity 1 Carton Weight Gross (g) 36400 Included in Package - 1 - 3.5" SATA Hard Drive Enclosure
- 1 - 6pin FireWire Cable
- 1 - Instruction Manual
- 1 - Power Adapter
- 1 - USB A to B Cable
- 1 - Plastic Stand
Package Depth (mm) 180 Package Height (mm) 70 Package Width (mm) 290 Package Weight (g) 880 Packaging Description USB/FireWire to 3.5" SATA Enclosure Packaging Description India USB/FireWire to 3.5" SATA Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 FireWire 400 (6-Pin, 400Mbps, Bus Power) Host Connector 1 (Quantity) 2 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
